负载分担方式的双链路热备份配置

**

实验要求和拓扑

负载分担方式的优点和主备方式的不同
负载分担可以每个ac都管理ap这样就避免了资源浪费，然后又作到了备份
主备方式则是，ap都交给一个ac，另一个ac只作为备份

实验拓扑

实验要求

配置过程

交换机配置（ap上线配置）

sysname S1

vlan batch 100 to 102

drop illegal-mac alarm

dhcp enable

interface Vlanif100
ip address 10.23.100.1 255.255.255.0
dhcp select interface
dhcp server excluded-ip-address 10.23.100.2 10.23.100.3

interface Vlanif101
ip address 10.23.101.1 255.255.255.0
dhcp select interface

interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 100 to 102

interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 100 to 102

interface GigabitEthernet0/0/3
port link-type trunk
port trunk pvid vlan 100
port trunk allow-pass vlan 100 to 102

interface GigabitEthernet0/0/4
port link-type trunk
port trunk pvid vlan 100
port trunk allow-pass vlan 100 to 102

AC1

 sysname AC1
vlan batch 100 to 102
interface Vlanif100
 ip address 10.23.100.2 255.255.255.0
#
interface Vlanif102
 ip address 10.23.102.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100 to 102
#
capwap source interface vlanif100
#
wlan
 ap-id 0 type-id 69 ap-mac 00e0-fcdb-7790 ap-sn 210235448310F6421D1B
  ap-name ap_1
  ap-group ap-group1
 ap-id 1 type-id 69 ap-mac 00e0-fcc3-11a0 ap-sn 210235448310847FC242
  ap-name ap_2
  ap-group ap-group2

AC2

sysname AC2
vlan batch 100 to 102
interface Vlanif100
 ip address 10.23.100.3 255.255.255.0
#
interface Vlanif102
 ip address 10.23.103.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100 to 102
#
capwap source interface vlanif100
#
wlan
 ap-id 0 type-id 69 ap-mac 00e0-fcdb-7790 ap-sn 210235448310F6421D1B
  ap-name ap_1
  ap-group ap-group1
 ap-id 1 type-id 69 ap-mac 00e0-fcc3-11a0 ap-sn 210235448310847FC242
  ap-name ap_2
  ap-group ap-group2

到这里上线就结束了接下来查看上线的结果

dis ap all
用来查看ap上线

配置ap射频参数sta获取到ip

AC1

wlan
 security-profile name wlan-net
  security wpa-wpa2 psk pass-phrase a1234567 aes
 ssid-profile name wlan-net
  ssid wlan-net
 vap-profile name default
 vap-profile name wlan-net
  service-vlan vlan-id 101
  ssid-profile wlan-net
  security-profile wlan-net
 ap-group name ap-gorup1
 ap-group name ap-group1
  radio 0
   vap-profile wlan-net wlan 1
  radio 1
   vap-profile wlan-net wlan 1
  radio 2
   vap-profile wlan-net wlan 1
 ap-group name ap-group2
  radio 0
   vap-profile wlan-net wlan 1
  radio 1
   vap-profile wlan-net wlan 1
  radio 2
   vap-profile wlan-net wlan 1

AC2

wlan
 security-profile name wlan-net
  security wpa-wpa2 psk pass-phrase a1234567 aes
 ssid-profile name wlan-net
  ssid wlan-net
 vap-profile name default
 vap-profile name wlan-net
  service-vlan vlan-id 101
  ssid-profile wlan-net
  security-profile wlan-net
 ap-group name ap-gorup1
 ap-group name ap-group1
  radio 0
   vap-profile wlan-net wlan 1
  radio 1
   vap-profile wlan-net wlan 1
  radio 2
   vap-profile wlan-net wlan 1
 ap-group name ap-group2
  radio 0
   vap-profile wlan-net wlan 1
  radio 1
   vap-profile wlan-net wlan 1
  radio 2
   vap-profile wlan-net wlan 1

查看波形图

查看sta获取ip

AC1

配置负载分担方式

wlan
ap-system-profile name ap-system1
primary-access ip-address 10.23.100.2
backup-access ip-address 10.23.100.3
q
ap-system-profile name ap-system2
primary-access ip-address 10.23.100.3
backup-access ip-address 10.23.100.2
q
ap-group name ap-group1
ap-system-profile ap-system1

ap-group name ap-gorup2
ap-system-profile ap-system2

q
ac protect enable

AC2这里和AC1是一样的

配置负载分担方式

wlan
ap-system-profile name ap-system1
primary-access ip-address 10.23.100.2
backup-access ip-address 10.23.100.3
q
ap-system-profile name ap-system2
primary-access ip-address 10.23.100.3
backup-access ip-address 10.23.100.2
q
ap-group name ap-group1
ap-system-profile ap-system1

ap-group name ap-gorup2
ap-system-profile ap-system2

q
ac protect enable

AC1

配置hsb热备

hsb-service 0
service-ip-port local-ip 10.23.102.1 peer-ip 10.23.102.2 local-data-port 10241 peer-data-port 10241
q
hsb-service-type ap hsb-service 0
hsb-service-type access-user hsb-service 0

AC2

配置hsb热备

hsb-service 0
service-ip-port local-ip 10.23.102.1 peer-ip 10.23.102.2 local-data-port 10241 peer-data-port 10241
q
hsb-service-type ap hsb-service 0
hsb-service-type access-user hsb-service 0

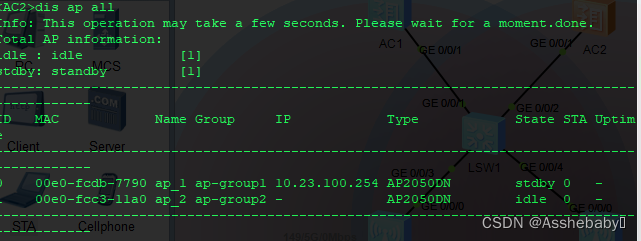

## 查看效果图
![在这里插入图片描述](https://img-blog.csdnimg.cn/875b2314fdbf4e4e9c08b5528b3fbf15.png)
到这里就结束了
