总概
A、技术栈
- 开发语言：Java 1.8
- 数据库：MySQL、Redis、MongoDB、Elasticsearch
- 微服务框架：Spring Cloud Alibaba
- 微服务网关：Spring Cloud Gateway
- 服务注册和配置中心：Nacos
- 分布式事务：Seata
- 链路追踪框架：Sleuth
- 服务降级与熔断：Sentinel
- ORM框架：MyBatis-Plus
- 分布式任务调度平台：XXL-JOB
- 消息中间件：RocketMQ
- 分布式锁：Redisson
- 权限：OAuth2
- DevOps：Jenkins、Docker、K8S
B、本节实现目标
- 搭建ac-mall2-cloud微服务基础骨架。
- 搭建微服务子项目：mall-pom、mall-common、mall-member、mall-product。
- MyBatis-Plus配置：雪花ID、创建时间/修改时间 自动填充。
- 单个微服务子项目Swagger配置及访问。
- 返回JSON数据日期格式化。
- Swagger优化：mall-common支持多个微服务Swagger配置、Swagger传参(语言参数、token、测试账号)
一、新建项目目录
新建项目目录ac-mall2-cloud，该目录并列存放所有微服务。
二、创建mall-pom父级依赖工程
2.1 创建项目
2.2 选择maven项目
2.3 项目名称和路径
2.4 配置.gitignore文件
.idea
target
*.iml
2.5 删除src目录，配置pom.xml依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<!-- 创建mall-member微服务时会自动配置 -->
<modules>
<module>../mall-member</module>
</modules>
<groupId>com.ac</groupId>
<artifactId>mall-pom</artifactId>
<version>${mall.version}</version>
<name>mall-pom</name>
<packaging>pom</packaging>
<description>基础pom依赖包</description>
<!-- lombok要与mapstruct版本匹配，用同一时间的版本,不然会出现各种问题 -->
<properties>
<mall.version>1.0-SNAPSHOT</mall.version>
<java.version>1.8</java.version>
<spring-cloud.version>Hoxton.SR9</spring-cloud.version>
<mysql.version>8.0.17</mysql.version>
<mybatis.plus.version>3.2.0</mybatis.plus.version>
<druid.version>1.1.10</druid.version>
<boot.version>2.3.6.RELEASE</boot.version>
<alibaba.cloud.version>2.2.3.RELEASE</alibaba.cloud.version>
<lombok.version>1.18.6</lombok.version>
<org.mapstruct.version>1.3.0.Final</org.mapstruct.version>
<org.projectlombok.version>1.18.6</org.projectlombok.version>
<swagger2.version>2.9.2</swagger2.version>
<hibernate-validator.version>6.0.17.Final</hibernate-validator.version>
<jwt.version>0.9.1</jwt.version>
<fastjson.version>1.2.62</fastjson.version>
<commons.version>3.9</commons.version>
<mybatis.version>3.5.3</mybatis.version>
<hutool.version>5.1.4</hutool.version>
</properties>
<!-- 管理子类所有的jar包的版本，这样的目的是方便去统一升级和维护 -->
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>${boot.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>${alibaba.cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>${boot.version}</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>${mybatis.version}</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>${lombok.version}</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.mapstruct</groupId>
<artifactId>mapstruct-jdk8</artifactId>
<version>${org.mapstruct.version}</version>
</dependency>
<dependency>
<groupId>org.mapstruct</groupId>
<artifactId>mapstruct-processor</artifactId>
<version>${org.mapstruct.version}</version>
</dependency>
<!--swagger2 start-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>${swagger2.version}</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>${swagger2.version}</version>
</dependency>
<!--swagger2 end-->
<dependency>
<groupId>org.hibernate.validator</groupId>
<artifactId>hibernate-validator</artifactId>
<version>${hibernate-validator.version}</version>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt</artifactId>
<version>${jwt.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>${commons.version}</version>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>${hutool.version}</version>
</dependency>
</dependencies>
</dependencyManagement>
<!-- 所有的子工程都会自动加入下面的依赖 -->
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>${boot.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>${alibaba.cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.mapstruct</groupId>
<artifactId>mapstruct-jdk8</artifactId>
</dependency>
<dependency>
<groupId>org.mapstruct</groupId>
<artifactId>mapstruct-processor</artifactId>
</dependency>
<!--swagger2 start-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
</dependency>
<!--swagger2 end-->
<dependency>
<groupId>org.hibernate.validator</groupId>
<artifactId>hibernate-validator</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
</dependency>
</dependencies>
<!-- SpringBoot 工程编译打包的插件，放在父pom中就直接给所有子工程继承 -->
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<version>${boot.version}</version>
</plugin>
</plugins>
</build>
</project>
2.6 modules问题
在目前模式下，所有微服务都会在mall-pom.xml下自动生成<modules>依赖，而且采用的是相对路径。后面我们可以搭建私有maven仓库来处理，替换掉<modules>依赖，即将：
<modules>
<module>../mall-member</module>
</modules>
替换成：
<distributionManagement>
<repository>
<id>maven-public</id>
<name>maven-public</name>
<url>http://192.168.100.74:8081/repository/maven-public/</url>
</repository>
</distributionManagement>
三、创建mall-member微服务工程
3.1 创建module
3.2 maven项目
3.3 项目名称和路径
3.4 pom.xml配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<artifactId>mall-pom</artifactId>
<groupId>com.ac</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<groupId>com.ac</groupId>
<artifactId>mall-member</artifactId>
<version>${mall.version}</version>
<name>mall-member</name>
<description>用户服务</description>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>8</source>
<target>8</target>
</configuration>
</plugin>
</plugins>
</build>
</project>
3.5 entity包
entity包放实体bean
package com.ac.member.entity;
import com.ac.member.enums.MemberSexEnum;
import com.baomidou.mybatisplus.annotation.FieldFill;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableLogic;
import com.baomidou.mybatisplus.annotation.TableName;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import java.time.LocalDate;
import java.time.LocalDateTime;
@Data
@TableName("t_member")
public class Member {
@ApiModelProperty("ID")
private Long id;
@ApiModelProperty("用户姓名")
private String memberName;
@ApiModelProperty("手机号")
private String mobile;
@ApiModelProperty("性别")
private MemberSexEnum sex;
@ApiModelProperty("生日")
private LocalDate birthday;
@ApiModelProperty("逻辑删除标志")
@TableLogic
private Boolean deleted;
@ApiModelProperty("数据插入时间")
@TableField(fill = FieldFill.INSERT)
private LocalDateTime createTime;
@ApiModelProperty("数据修改时间")
@TableField(fill = FieldFill.INSERT_UPDATE)
private LocalDateTime updateTime;
}
3.6 mapper包
mapper包放mybatisplus.BaseMapper子类，与个mapper.xml自定义sql接口对应
package com.ac.member.mapper;
import com.ac.member.dto.MemberDTO;
import com.ac.member.entity.Member;
import com.ac.member.qry.MemberQry;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import org.apache.ibatis.annotations.Param;
import java.util.List;
/**
* @description 用户-数据访问层(依赖mybatis-plus)，对应mapper.xml里的自定义sql
*/
public interface MemberMapper extends BaseMapper<Member> {
/**
* 查询用户
*
* @param qry
* @return
*/
List<MemberDTO> searchMember(@Param("qry") MemberQry qry);
}
3.7 resources/mapper包
放mapper.xml对应的sql语句，Member.Mapper.xml：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ac.member.mapper.MemberMapper">
<sql id="MemberDTO_Column">
t.id,
t.member_name,
t.mobile,
t.sex,
t.birthday
</sql>
<select id="searchMember" resultType="com.ac.member.dto.MemberDTO">
select
<include refid="MemberDTO_Column"></include>
from
t_member t
<where>
t.deleted = 0
<if test="qry.memberName!=null and qry.memberName!=''">
and t.member_name like concat('%', #{qry.memberName}, '%')
</if>
<if test="qry.mobile!=null and qry.mobile!=''">
and t.mobile = #{qry.mobile}
</if>
</where>
order by t.create_time desc
</select>
</mapper>
3.8 dao包
dao为数据访问层(依赖mybatis-plus),重用mybatis-service提供的CURD方法
package com.ac.member.dao;
import com.ac.member.dto.MemberDTO;
import com.ac.member.entity.Member;
import com.ac.member.qry.MemberQry;
import com.baomidou.mybatisplus.extension.service.IService;
import java.util.List;
/**
* @author 阳光倾洒
* @description 用户-数据访问层(依赖mybatis-plus),重用mybatis-service提供的CURD方法
*/
public interface MemberDao extends IService<Member> {
/**
* 查询用户
*
* @param qry
* @return
*/
List<MemberDTO> searchMember(MemberQry qry);
}
@Slf4j
@Repository
public class MemberDaoImpl extends ServiceImpl<MemberMapper, Member> implements MemberDao {
@Resource
private MemberMapper memberMapper;
@Override
public List<MemberDTO> searchMember(MemberQry qry) {
return memberMapper.searchMember(qry);
}
}
3.9 service包
public interface MemberService {
/**
* 通过ID查询
*
* @param id
* @return
*/
Member findById(Long id);
/**
* 新增用户
*
* @param editVO
* @return
*/
Boolean addMember(MemberEditVO editVO);
/**
* 查询用户
*
* @param qry
* @return
*/
List<MemberDTO> searchMember(MemberQry qry);
}
@Slf4j
@Service
public class MemberServiceImpl implements MemberService {
@Resource
private MemberDao memberDaoImpl;
@Override
public Member findById(Long id) {
return Optional.ofNullable(memberDaoImpl.getById(id)).orElseThrow(() -> new RuntimeException("数据不存在"));
}
@Override
public Boolean addMember(MemberEditVO editVO) {
Member entity = MemberConvert.instance.editVoToEntity(editVO);
return memberDaoImpl.save(entity);
}
@Override
public List<MemberDTO> searchMember(MemberQry qry) {
return memberDaoImpl.searchMember(qry);
}
}
3.10 controller包
@Api(tags = "用户")
@RestController
@RequestMapping("member")
public class MemberController {
@Resource
private MemberService memberServiceImpl;
@ApiOperation(value = "通过ID查询")
@GetMapping("{id}")
public Member findById(@PathVariable Long id) {
return memberServiceImpl.findById(id);
}
@ApiOperation(value = "新增用户")
@PostMapping
public Boolean addMember(@RequestBody @Valid MemberEditVO editVO) {
return memberServiceImpl.addMember(editVO);
}
@ApiOperation(value = "查询用户")
@GetMapping("qry")
public List<MemberDTO> searchMember(MemberQry qry) {
return memberServiceImpl.searchMember(qry);
}
}
3.11 Application类
package com.ac.product;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.ac.member.mapper")
public class ProductApplication {
public static void main(String[] args) {
SpringApplication.run(ProductApplication.class, args);
}
}
3.12 yml项目配置文件
application.yml
spring:
profiles:
active: dev
application-dev.yml
server:
port: 8080
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://192.168.100.51:3306/ac_db?serverTimezone=Asia/Shanghai&useUnicode=true&tinyInt1isBit=false&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
username: ac_u
password: ac_PWD_123
#hikari数据库连接池
hikari:
pool-name: YH_HikariCP
minimum-idle: 10 #最小空闲连接数量
idle-timeout: 600000 #空闲连接存活最大时间，默认600000（10分钟）
maximum-pool-size: 100 #连接池最大连接数，默认是10
auto-commit: true #此属性控制从池返回的连接的默认自动提交行为,默认值：true
max-lifetime: 1800000 #此属性控制池中连接的最长生命周期，值0表示无限生命周期，默认1800000即30分钟
connection-timeout: 30000 #数据库连接超时时间,默认30秒，即30000
connection-test-query: SELECT 1
mybatis-plus:
configuration:
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
swagger:
enabled: true

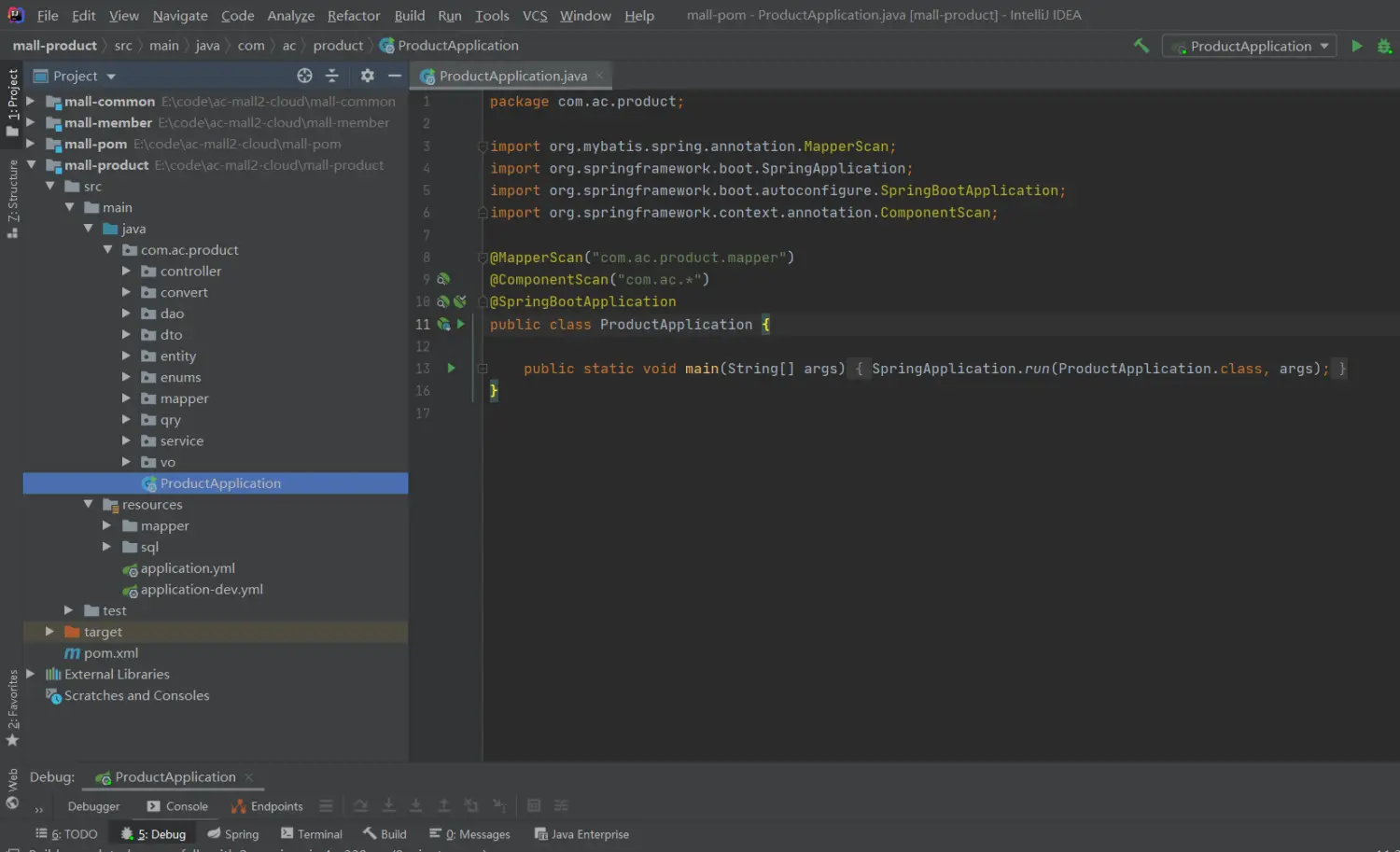

3.13 项目结构截图
mall-pom、mall-member项目截图
3.14 说明
3.14.1 mapper层与dao层
在大部分项目中，代码分为3层，大概是这样的：
- controller层：RESTful API 或 HTTP请求转发，没有业务逻辑。
- service层：放业务逻辑代码，有些会继承MyBatisPlus的IService接口，获取通用的对象CURD方法。
- mapper层：继承MyBatisPlus的BaseMapper，获取通用的对象CURD方法，同时对应mapper.xml里的自定义sql。
而在本项目中，代码分为4层，分别是：controller、service、dao、mapper。
service层不依赖任何第三方框架，即service不去继承MyBatisPlus的IService接口，这样就保证了service层的高内聚低耦合，将来哪一天项目要将ORM框架由MyBatisPlus换成其他的框架时，service层完全不需要改动，保障了业务逻辑代码的稳定性。
但MyBatisPlus的IService接口提供了丰富的通用CURD方法，如果不用又很浪费，因此，本项目就多加了一个dao层，dao层继承MyBatisPlus的IService接口，这样service再依赖dao，调用dao提供的CURD，而mapper层专门对应mapper.xml里的自定义sql。从广义上来讲，数据存储层(通常说的dao层)在本项目中包含两部分：dao和mapper，将来哪一天项目要将ORM框架由MyBatisPlus换成其他的框架时，只需要改造dao和mapper，且dao和mapper一般相对简单，没有业务逻辑代码，改造完成后容易测试。
3.14.2 @Autowired与@Resource
在Spring项目中，IOC注入有的人用@Autowired的，而有的人用@Resource，而且写法各式各样。
3.14.2.1 我的用法
本项目中，我的写法是：
- 1、
@Autowired与@Resource，我用的是@Resource，理由是@Autowired依赖Spring框架，而@Resource是Java自带注解。 - 2、引用名字用的是接口实现类的名字，而不是接口名字。
例如，我在MemberController里写的是实现类的类名memberServiceImpl，而不是接口名memberService。
理由是@Resource默认是byName查找的，如果写的是接口名memberService，IOC注入时默认byName查找，发现没有找到name为memberService，然后通过byType进行第二次查找，才找到接口类型为MemberService的类，而且只发现一个实现类MemberServiceImpl，注入成功。
即，用实现类的类名，IOC通过byName一次就能注入成功，而用接口名，需要两次查找，性能会差一些。
public class MemberController {
@Resource
private MemberService memberServiceImpl;
}
3.14.2.2 @Autowired与@Resource的区别
A、相同点
这个两个注解都是用来完成组件的装配的，即利用依赖注入（DI），完成对IOC容器当中各个组件之间依赖的装配赋值。
B、不同点
B1、来源不同
@Resource
@Resource是javaEE的注解，它遵循的是JSR-250规范，需要导入包javax.annotation.Resource。
@Autowired
@Autowired为Spring提供的注解，需要导入包org.springframework.beans.factory.annotation.Autowired。
B2、装配顺序不同
@Resource
-
默认按照byName方式进行装配，属于J2EE自带注解，没有指定name时，name指的是变量名。
-
如果同时指定了name和type，则从Spring上下文中找到唯一匹配的bean进行装配，找不到则抛出异常。
-
如果指定了name，则从上下文中查找名称（id）匹配的bean进行装配，找不到则抛出异常。
-
如果指定了type，则从上下文中找到类型匹配的唯一bean进行装配，找不到或者找到多个，都会抛出异常。
-
如果既没有指定name，又没有指定type，则自动按照byName方式进行装配。如果没有匹配，则回退为一个原始类型进行匹配，如果匹配则自动装配。
@Autowired
- 默认按byType自动注入，是Spring的注解。
- 默认情况下必须要求依赖对象必须存在，如果要允许null值，可以设置它的required属性为false，
@Autowired(required = false)。 - 按类型装配的过程中，如果发现找到多个bean，则又按照byName方式进行比对，如果还有多个，则报出异常。
四、MyBatis-Plus配置
4.1 雪花ID生成策略
4.1.1 雪花ID生成代码
import com.baomidou.mybatisplus.core.toolkit.SystemClock;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.RandomUtils;
import org.apache.commons.lang3.StringUtils;
import java.net.Inet4Address;
import java.net.UnknownHostException;
import java.util.Collections;
import java.util.LinkedList;
import java.util.List;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.CountDownLatch;
@Slf4j
public class SnowFlake {
/** 初始偏移时间戳 */
private static final long OFFSET = 1546300800L;
/** 机器id (0~15 保留 16~31作为备份机器) */
private static final long WORKER_ID;
/** 机器id所占位数 (5bit, 支持最大机器数 2^5 = 32)*/
private static final long WORKER_ID_BITS = 5L;
/** 自增序列所占位数 (16bit, 支持最大每秒生成 2^16 = 65536) */
private static final long SEQUENCE_ID_BITS = 16L;
/** 机器id偏移位数 */
private static final long WORKER_SHIFT_BITS = SEQUENCE_ID_BITS;
/** 自增序列偏移位数 */
private static final long OFFSET_SHIFT_BITS = SEQUENCE_ID_BITS + WORKER_ID_BITS;
/** 机器标识最大值 (2^5 / 2 - 1 = 15) */
private static final long WORKER_ID_MAX = ((1 << WORKER_ID_BITS) - 1) >> 1;
/** 备份机器ID开始位置 (2^5 / 2 = 16) */
private static final long BACK_WORKER_ID_BEGIN = (1 << WORKER_ID_BITS) >> 1;
/** 自增序列最大值 (2^16 - 1 = 65535) */
private static final long SEQUENCE_MAX = (1 << SEQUENCE_ID_BITS) - 1;
/** 发生时间回拨时容忍的最大回拨时间 (秒) */
private static final long BACK_TIME_MAX = 1000L;
/** 上次生成ID的时间戳 (秒) */
private static long lastTimestamp = 0L;
/** 当前秒内序列 (2^16)*/
private static long sequence = 0L;
/** 备份机器上次生成ID的时间戳 (秒) */
private static long lastTimestampBak = 0L;
/** 备份机器当前秒内序列 (2^16)*/
private static long sequenceBak = 0L;
static {
// 初始化机器ID
long workerId = getWorkId();
if (workerId < 0 || workerId > WORKER_ID_MAX) {
throw new IllegalArgumentException(String.format("cmallshop.workerId范围: 0 ~ %d 目前: %d", WORKER_ID_MAX, workerId));
}
WORKER_ID = workerId;
}
private static Long getWorkId(){
try {
String hostAddress = Inet4Address.getLocalHost().getHostAddress();
int[] ints = StringUtils.toCodePoints(hostAddress);
int sums = 0;
for(int b : ints){
sums += b;
}
return (long)(sums % WORKER_ID_MAX);
} catch (UnknownHostException e) {
// 如果获取失败，则使用随机数备用
return RandomUtils.nextLong(0,WORKER_ID_MAX-1);
}
}
/** 私有构造函数禁止外部访问 */
private SnowFlake() {}
/**
* 获取自增序列
* @return long
*/
public static long nextId() {
return nextId(SystemClock.now() / 1000);
}
/**
* 主机器自增序列
* @param timestamp 当前Unix时间戳
* @return long
*/
private static synchronized long nextId(long timestamp) {
// 时钟回拨检查
if (timestamp < lastTimestamp) {
// 发生时钟回拨
log.warn("时钟回拨, 启用备份机器ID: now: [{}] last: [{}]", timestamp, lastTimestamp);
return nextIdBackup(timestamp);
}
// 开始下一秒
if (timestamp != lastTimestamp) {
lastTimestamp = timestamp;
sequence = 0L;
}
if (0L == (++sequence & SEQUENCE_MAX)) {
// 秒内序列用尽
// log.warn("秒内[{}]序列用尽, 启用备份机器ID序列", timestamp);
sequence--;
return nextIdBackup(timestamp);
}
return ((timestamp - OFFSET) << OFFSET_SHIFT_BITS) | (WORKER_ID << WORKER_SHIFT_BITS) | sequence;
}
/**
* 备份机器自增序列
* @param timestamp timestamp 当前Unix时间戳
* @return long
*/
private static long nextIdBackup(long timestamp) {
if (timestamp < lastTimestampBak) {
if (lastTimestampBak - SystemClock.now() / 1000 <= BACK_TIME_MAX) {
timestamp = lastTimestampBak;
} else {
throw new RuntimeException(String.format("时钟回拨: now: [%d] last: [%d]", timestamp, lastTimestampBak));
}
}
if (timestamp != lastTimestampBak) {
lastTimestampBak = timestamp;
sequenceBak = 0L;
}
if (0L == (++sequenceBak & SEQUENCE_MAX)) {
// 秒内序列用尽
// logger.warn("秒内[{}]序列用尽, 备份机器ID借取下一秒序列", timestamp);
return nextIdBackup(timestamp + 1);
}
return ((timestamp - OFFSET) << OFFSET_SHIFT_BITS) | ((WORKER_ID ^ BACK_WORKER_ID_BEGIN) << WORKER_SHIFT_BITS) | sequenceBak;
}
/**
* 并发数
*/
private static final int THREAD_NUM = 30000;
private static volatile CountDownLatch countDownLatch = new CountDownLatch(THREAD_NUM);
public static void main(String[] args) {
ConcurrentHashMap<Long,Long> map = new ConcurrentHashMap<>(THREAD_NUM);
List<Long> list = Collections.synchronizedList(new LinkedList<>());
for (int i = 0; i < THREAD_NUM; i++) {
Thread thread = new Thread(() -> {
// 所有的线程在这里等待
try {
countDownLatch.await();
Long id = SnowFlake.nextId();
list.add(id);
map.put(id,1L);
} catch (InterruptedException e) {
e.printStackTrace();
}
});
thread.start();
// 启动后，倒计时计数器减一，代表有一个线程准备就绪了
countDownLatch.countDown();
}
try{
Thread.sleep(50000);
}catch (Exception e){
e.printStackTrace();
}
System.out.println("listSize:"+list.size());
System.out.println("mapSize:"+map.size());
System.out.println(map.size() == THREAD_NUM);
}
}
4.1.2 与mybatis-plus结合
@Slf4j
@Component
public class CustomIdGenerator implements IdentifierGenerator {
@Override
public Long nextId(Object entity) {
return SnowFlake.nextId();
}
}
4.2 自动填充功能
import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.reflection.MetaObject;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import javax.servlet.http.HttpServletRequest;
import java.time.LocalDateTime;
import java.util.Date;
/**
* @description 处理时间自动填充
*/
@Slf4j
@Component
public class GlobalMetaObjectHandler implements MetaObjectHandler {
private Logger logger = LoggerFactory.getLogger(GlobalMetaObjectHandler.class);
String createUserIdFieldName = "createUserId";
String updateUserIdFieldName = "updateUserId";
String createTimeFieldName = "createTime";
String updateTimeFieldName = "updateTime";
String deletedFieldName = "deleted";
@Override
public void insertFill(MetaObject metaObject) {
try {
Object createUserId = getFieldValByName(createUserIdFieldName, metaObject);
Object createTime = getFieldValByName(createTimeFieldName, metaObject);
Object updateTime = getFieldValByName(updateTimeFieldName, metaObject);
Object delTag = getFieldValByName(deletedFieldName, metaObject);
if(null ==createUserId){
setFieldValByName(createUserIdFieldName, getUserId(), metaObject);
}
LocalDateTime date = LocalDateTime.now();
if (null == createTime) {
setFieldValByName(createTimeFieldName, date, metaObject);
}
if (null == updateTime) {
setFieldValByName(updateTimeFieldName, date, metaObject);
}
if (null == delTag) {
setFieldValByName(deletedFieldName, false, metaObject);
}
} catch (Exception e) {
logger.warn(e.getMessage(), e);
}
}
@Override
public void updateFill(MetaObject metaObject) {
try {
setFieldValByName(updateTimeFieldName, LocalDateTime.now(), metaObject);
setFieldValByName(updateUserIdFieldName, getUserId(), metaObject);
} catch (Exception e) {
logger.warn(e.getMessage(), e);
}
}
private String getUserId(){
String userId = null;
RequestAttributes requestAttributes = RequestContextHolder.getRequestAttributes();
if(requestAttributes !=null){
HttpServletRequest request = ((ServletRequestAttributes)requestAttributes).getRequest();
if(request!=null){
userId = request.getHeader("userId");
}
}
return userId;
}
}
4.3 MyBatis配置类截图
五、Swagger配置
5.1 Swagger依赖包
Swagger依赖的包已经在mall-pom项目的pom.xml配置，如下
<!--swagger2 start-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>${swagger2.version}</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>${swagger2.version}</version>
</dependency>
<!--swagger2 end-->
5.2 Swagger配置
package com.ac.member.config.swagger;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.*;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
/**
* @description Swagger文档配置
*/
@EnableWebMvc
@Configuration
@EnableSwagger2
public class SwaggerConfig implements WebMvcConfigurer {
//是否开启swagger，生产环境一般关闭
@Value("${swagger.enabled}")
private boolean enabled;
/**
* @return
*/
@Bean
public Docket api() {
return new Docket(DocumentationType.SWAGGER_2)
.enable(enabled)
.apiInfo(apiInfo())
.select()
//.apis(RequestHandlerSelectors.any())
.apis(RequestHandlerSelectors.basePackage("com.ac.member.controller"))
.paths(PathSelectors.any())
.build();
}
/**
* 一些接口文档信息的简介
*
* @return
*/
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title("用户服务")
.description("用户服务相关接口")
.termsOfServiceUrl("")
.version("1.0")
.build();
}
/**
* swagger ui资源映射
*
* @param registry
*/
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
}
/**
* swagger-ui.html路径映射，浏览器中使用/api-docs访问
*
* @param registry
*/
@Override
public void addViewControllers(ViewControllerRegistry registry) {
registry.addRedirectViewController("/api-docs", "/swagger-ui.html");
}
}
5.3 Swagger访问效果
在浏览器中输入地址http://127.0.0.1:8080/swagger-ui.html 或地址http://127.0.0.1:8080/api-docs，效果如下：
5.4 Swagger访问404问题
5.4.1 404效果图
5.4.2 原因
由于要处理日期返回到前端格式化的问题，项目里加了一个处理日期格式化的配置类，继承了WebMvcConfigurationSupport类，导致swagger访问404
@Configuration
public class DateJsonConfig extends WebMvcConfigurationSupport {
//代码省略
}
5.4.3 解决方案
将继承WebMvcConfigurationSupport类，改成实现WebMvcConfigurer接口，代码如下：
@Configuration
public class DateJsonConfig implements WebMvcConfigurer {
//代码省略
}
六、返回JSON数据日期格式化
6.1 未处理前日期返回的格式
6.2 处理日期格式配置类
package com.ac.member.config;
import com.fasterxml.jackson.core.JsonGenerator;
import com.fasterxml.jackson.core.JsonParser;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.*;
import com.fasterxml.jackson.datatype.jsr310.JavaTimeModule;
import com.fasterxml.jackson.datatype.jsr310.deser.LocalDateDeserializer;
import com.fasterxml.jackson.datatype.jsr310.deser.LocalDateTimeDeserializer;
import com.fasterxml.jackson.datatype.jsr310.deser.LocalTimeDeserializer;
import com.fasterxml.jackson.datatype.jsr310.ser.LocalDateSerializer;
import com.fasterxml.jackson.datatype.jsr310.ser.LocalDateTimeSerializer;
import com.fasterxml.jackson.datatype.jsr310.ser.LocalTimeSerializer;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import java.io.IOException;
import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.time.LocalDate;
import java.time.LocalDateTime;
import java.time.LocalTime;
import java.time.format.DateTimeFormatter;
import java.util.Date;
import java.util.List;
@Configuration
public class DateJsonConfig implements WebMvcConfigurer {
/**
* 日期时间格式 yyyy-MM-dd HH:mm:ss
*/
private static final String DATE_TIME_FORMAT = "yyyy-MM-dd HH:mm:ss";
/**
* 日期格式 yyyy-MM-dd
*/
private static final String DATE_FORMAT = "yyyy-MM-dd";
/**
* 时间格式 HH:mm:ss
*/
private static final String TIME_FORMAT = "HH:mm:ss";
@Override
public void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
MappingJackson2HttpMessageConverter converter = new MappingJackson2HttpMessageConverter();
ObjectMapper objectMapper = converter.getObjectMapper();
objectMapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
objectMapper.disable(DeserializationFeature.ADJUST_DATES_TO_CONTEXT_TIME_ZONE);
JavaTimeModule javaTimeModule = new JavaTimeModule();
//LocalDateTime的序列化和反序列化
javaTimeModule.addSerializer(LocalDateTime.class, new LocalDateTimeSerializer(DateTimeFormatter.ofPattern(DATE_TIME_FORMAT)));
javaTimeModule.addDeserializer(LocalDateTime.class, new LocalDateTimeDeserializer(DateTimeFormatter.ofPattern(DATE_TIME_FORMAT)));
//LocalDate的序列化和反序列化
javaTimeModule.addSerializer(LocalDate.class, new LocalDateSerializer(DateTimeFormatter.ofPattern(DATE_FORMAT)));
javaTimeModule.addDeserializer(LocalDate.class, new LocalDateDeserializer(DateTimeFormatter.ofPattern(DATE_FORMAT)));
//LocalTime的序列化和反序列化
javaTimeModule.addSerializer(LocalTime.class, new LocalTimeSerializer(DateTimeFormatter.ofPattern(TIME_FORMAT)));
javaTimeModule.addDeserializer(LocalTime.class, new LocalTimeDeserializer(DateTimeFormatter.ofPattern(TIME_FORMAT)));
//Date类型的序列化
javaTimeModule.addSerializer(Date.class, new JsonSerializer<Date>() {
@Override
public void serialize(Date date, JsonGenerator jsonGenerator, SerializerProvider serializerProvider) throws IOException {
SimpleDateFormat formatter = new SimpleDateFormat(DATE_TIME_FORMAT);
String formattedDate = formatter.format(date);
jsonGenerator.writeString(formattedDate);
}
});
//Date类型的反序列化
javaTimeModule.addDeserializer(Date.class, new JsonDeserializer<Date>() {
@Override
public Date deserialize(JsonParser jsonParser, DeserializationContext deserializationContext) throws IOException, JsonProcessingException {
SimpleDateFormat format = new SimpleDateFormat(DATE_TIME_FORMAT);
String date = jsonParser.getText();
try {
return format.parse(date);
} catch (ParseException e) {
throw new RuntimeException(e);
}
}
});
objectMapper.registerModule(javaTimeModule);
converter.setObjectMapper(objectMapper);
converters.add(0, converter);
}
}
日期格式返回效果
七、创建mall-common服务工程
各微服务虽然是独立的，但一般都会有一些公用重复的功能，可以把这些重复的代码提取到mall-common服务，然后其他微服务依赖mall-common。
7.1 创建module
7.2 pom.xml配置
参考上面的mall-member服务的pom.xml来写mall-common服务的pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<artifactId>mall-pom</artifactId>
<groupId>com.ac</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<groupId>com.ac</groupId>
<artifactId>mall-common</artifactId>
<version>${mall.version}</version>
<name>mall-common</name>
<description>公共服务</description>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>8</source>
<target>8</target>
</configuration>
</plugin>
</plugins>
</build>
</project>

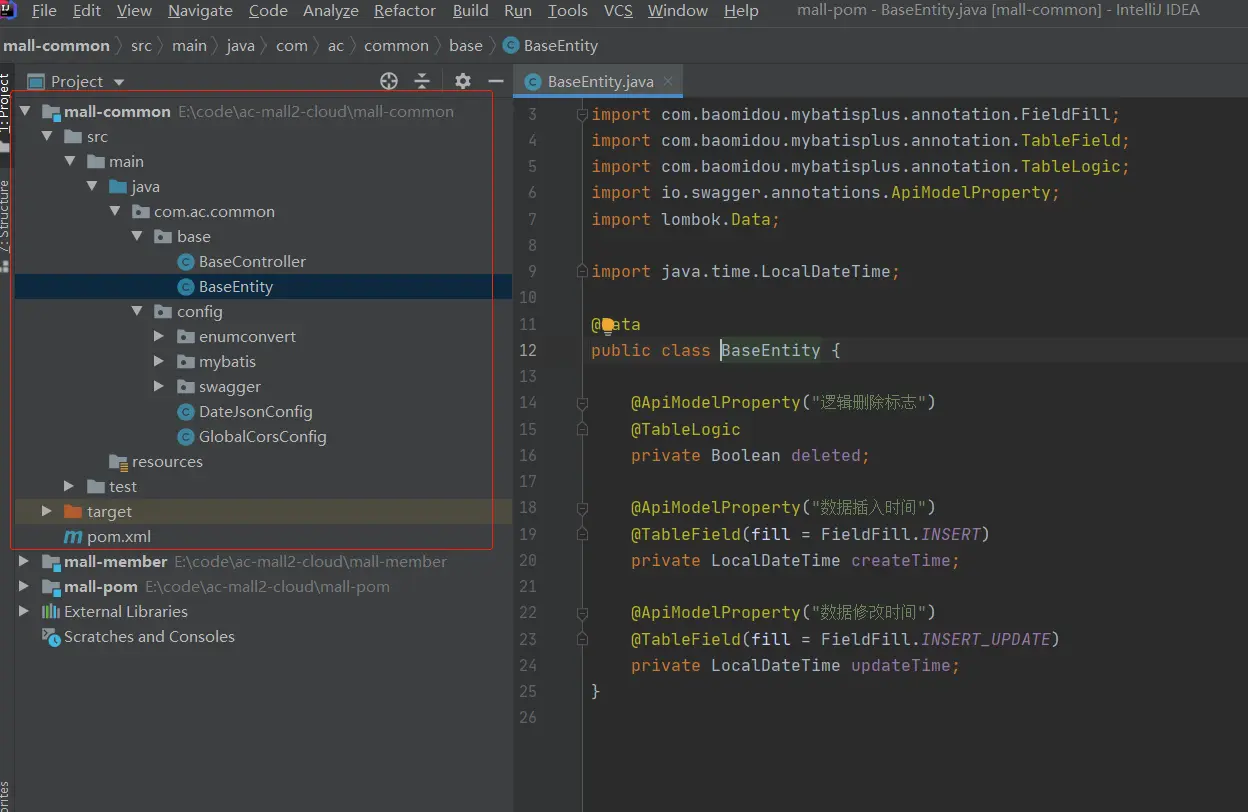

7.3 提取功能config包

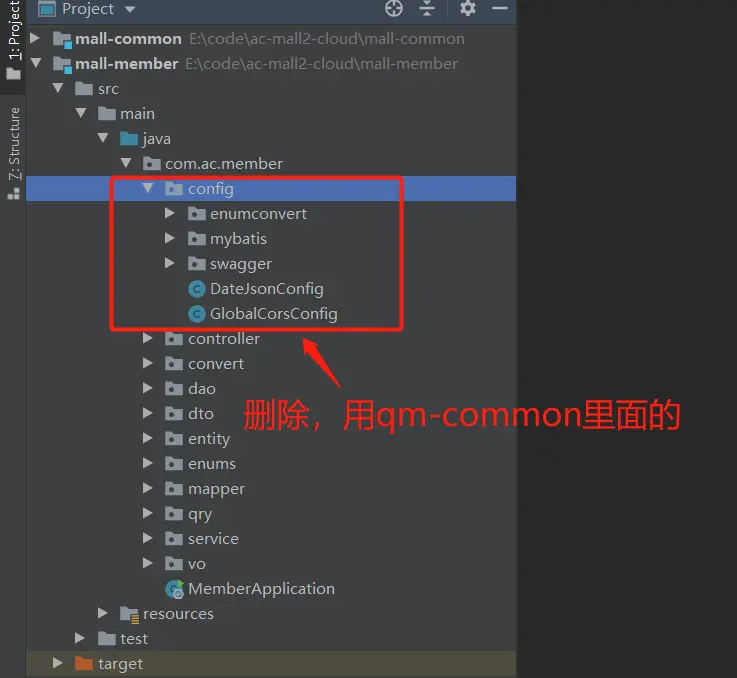

将mall-member服务里的config包提取到mall-common服务中，并将mall-member服务里的config包删除掉。
7.4 mall-member服务依赖mall-common服务

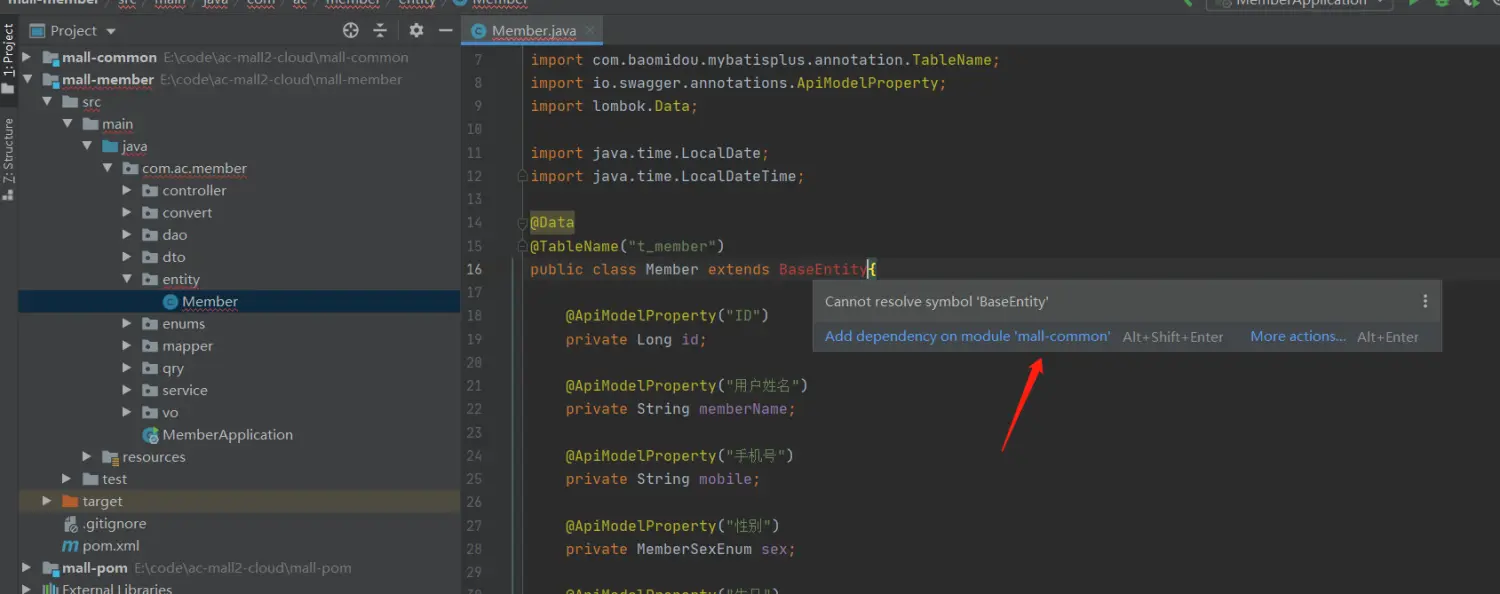

让mall-member服务里的Member实体类继承mall-common服务里的BaseEntity类，并删除deleted、createTime、updateTime字段。

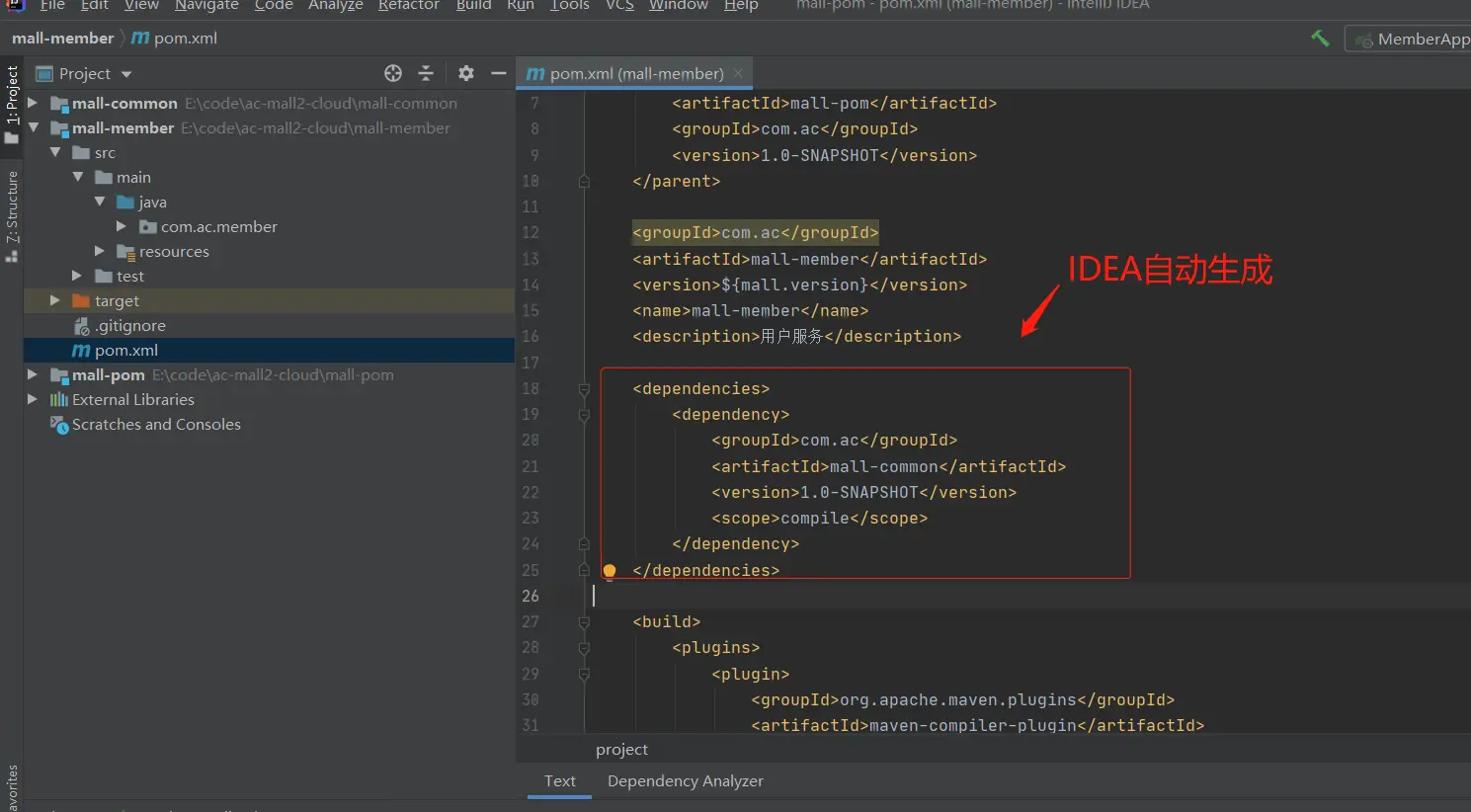

根据IDEA提示：Add dependency on module mall-common,IDEA会帮我们自动创建依赖
我们可以手动把<scope>compile</scope> 删除。
说明：后面我将mall-common里的内容放到了一个新服务mall-core，我对mall-core的定义是：稳定的不经常改动的基础服务。而mall-common里则放一些各个服务都需要依赖的一些公共类，如全局常量(topic name)、枚举等，该服务经常会被改动。
7.5 配置@ComponentScan
@SpringApplication注解里已经包含了@ComponentScan注解，但@ComponentScan注解默认扫描的是Application所在目录下的所有Bean，但mall-common里的配置类显然不在mall-member服务的Application所在目录下，导致mall-common里的配置类没有生效，因此我们需要修改mall-member服务的Application配置，扫描mall-common服务里的Bean。需要添加的配置为：@ComponentScan("com.ac.*")，MemberApplication完整代码如下：
package com.ac.member;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
@SpringBootApplication
@MapperScan("com.ac.member.mapper")
@ComponentScan("com.ac.*")
public class MemberApplication {
public static void main(String[] args) {
SpringApplication.run(MemberApplication.class, args);
}
}

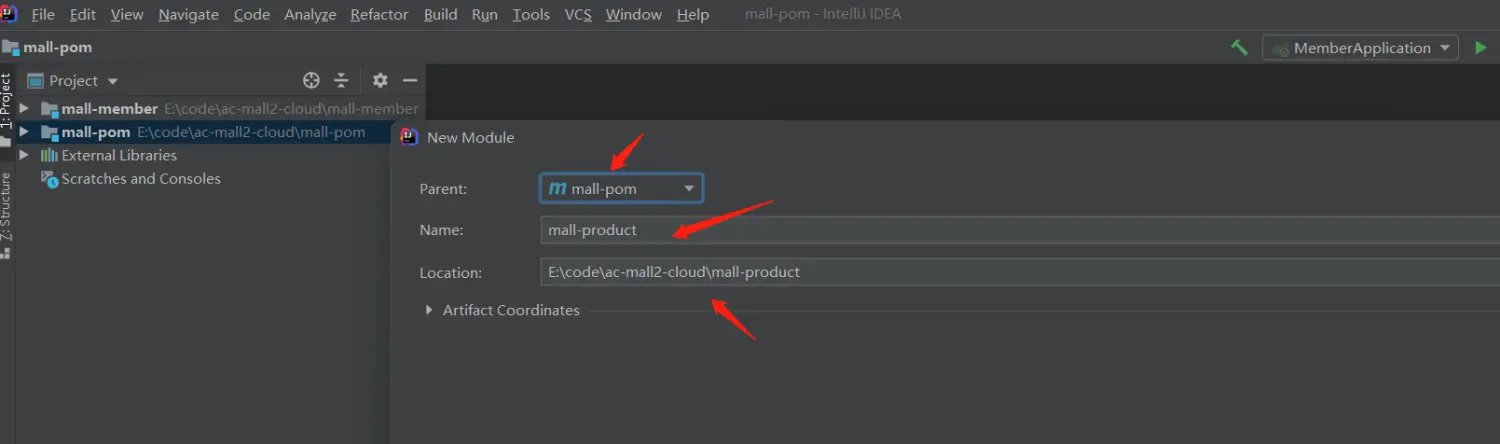

八、创建mall-product服务工程
mall-product 服务主要维护产品数据，可参考mall-member来建该服务。
九、Swagger优化
9.1 mall-common支持多个微服务Swagger配置
Swagger配置类SwaggerConfig由原来的mall-member移到了mall-common服务，因此之前在SwaggerConfig写死的配置信息需要放到yml文件进行动态配置。
9.1.1 修改代码
修改后的SwaggerConfig如下：
package com.ac.common.config.swagger;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
/**
* @description Swagger文档配置
*/
@EnableWebMvc
@Configuration
@EnableSwagger2
@ConfigurationProperties("swagger")
@Data
public class SwaggerConfig implements WebMvcConfigurer {
//取yml配置文件参数
private boolean enabled;
private String title;
private String description;
private String version;
private String basePackage;
/**
* @return
*/
@Bean
public Docket api() {
return new Docket(DocumentationType.SWAGGER_2)
.enable(enabled)
.apiInfo(apiInfo())
.select()
//.apis(RequestHandlerSelectors.any())
//.apis(RequestHandlerSelectors.basePackage(basePackage))
.apis(RequestHandlerSelectors.withClassAnnotation(RestController.class))
.paths(PathSelectors.any())
.build();
}
/**
* 一些接口文档信息的简介
*
* @return
*/
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title(title)
.description(description)
.termsOfServiceUrl("")
.version(version)
.build();
}
/**
* swagger ui资源映射
*
* @param registry
*/
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
}
/**
* swagger-ui.html路径映射，浏览器中使用/api-docs访问
*
* @param registry
*/
@Override
public void addViewControllers(ViewControllerRegistry registry) {
registry.addRedirectViewController("/api-docs", "/swagger-ui.html");
}
}
修改mall-member服务的yml配置文件
swagger:
enabled: true
title: 用户服务
basePackage: com.ac.member.controller
version: 1.0
description: 用户服务相关接口
修改mall-product服务的yml配置文件
swagger:
enabled: true
title: 产品服务
basePackage: com.ac.product.controller
version: 1.0
description: 产品服务相关接口
9.1.2 swagger访问效果
用户服务
产品服务
9.2 Swagger传参
9.2.1 修改代码
修改SwaggerConfig配置类，让Swagger支持token、语言、测试账号参数
SwaggerConfig类
package com.ac.common.config.swagger;
import com.ac.common.enums.LanguageEnum;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.AllowableListValues;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.time.LocalDate;
import java.time.LocalDateTime;
import java.time.LocalTime;
import java.util.ArrayList;
import java.util.List;
@EnableWebMvc
@Configuration
@EnableSwagger2
@ConfigurationProperties("swagger")
@Data
public class SwaggerConfig implements WebMvcConfigurer {
//取yml配置文件参数
private boolean enabled;
private String title;
private String description;
private String version;
private String basePackage;
/**
* @return
*/
@Bean
public Docket api() {
List<Parameter> pars = new ArrayList<>();
pars.add(buildToken().build());
pars.add(buildLang().build());
pars.add(buildDemos().build());
return new Docket(DocumentationType.SWAGGER_2)
.enable(enabled)
.apiInfo(apiInfo())
.directModelSubstitute(LocalDateTime.class, String.class)
.directModelSubstitute(LocalDate.class, String.class)
.directModelSubstitute(LocalTime.class, String.class)
.directModelSubstitute(Byte.class, Integer.class)
.select()
//.apis(RequestHandlerSelectors.any())
//.apis(RequestHandlerSelectors.basePackage(basePackage))
.apis(RequestHandlerSelectors.withClassAnnotation(RestController.class))
.paths(PathSelectors.any())
.build()
.globalOperationParameters(pars);
}
/**
* 一些接口文档信息的简介
*
* @return
*/
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title(title)
.description(description)
.termsOfServiceUrl("")
.version(version)
.build();
}
private ParameterBuilder buildToken() {
ParameterBuilder pb = new ParameterBuilder();
pb.name("Authorization")
.description("授权的token, 格式: Bearer xxx(需通过网关)")
.modelRef(new ModelRef("string"))
.parameterType("header")
.required(false)
.build(); //header中的ticket参数非必填，传空也可以
return pb;
}
private ParameterBuilder buildLang() {
List<String> languages = new ArrayList<>();
languages.add(LanguageEnum.zh_CN.getCode());
languages.add(LanguageEnum.zh_HK.getCode());
languages.add(LanguageEnum.en_US.getCode());
ParameterBuilder pb = new ParameterBuilder();
pb.name("lang")
.description("当前国际化语言环境")
.modelRef(new ModelRef("string"))
.allowableValues(new AllowableListValues(languages, "string"))
.parameterType("header")
.required(false)
.build(); //header中的ticket参数非必填，传空也可以
return pb;
}
private ParameterBuilder buildDemos() {
List<String> demouis = new ArrayList<>();
demouis.add("test01");
demouis.add("test02");
ParameterBuilder pb = new ParameterBuilder();
pb.name("Swagger测试用户")
.description("Swagger模拟用户, 选中时Authorization字段将失效(无需通过网关)")
.modelRef(new ModelRef("string"))
.allowableValues(new AllowableListValues(demouis, "string"))
.parameterType("header")
.required(false)
.order(0)
.build(); //header中的ticket参数非必填，传空也可以
return pb;
}
/**
* swagger ui资源映射
*
* @param registry
*/
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
}
/**
* swagger-ui.html路径映射，浏览器中使用/api-docs访问
*
* @param registry
*/
@Override
public void addViewControllers(ViewControllerRegistry registry) {
registry.addRedirectViewController("/api-docs", "/swagger-ui.html");
}
}
LanguageEnum类
@Getter
@NoArgsConstructor
@AllArgsConstructor
@ApiModel(description = "多语言类型枚举")
public enum LanguageEnum {
zh_CN("zh_CN", "简体中文", new Locale("zh", "CN")),
zh_HK("zh_HK", "繁體中文", new Locale("zh", "HK")),
en_US("en_US", "English", new Locale("en", "US"));
/**
* 语言代码
*/
private String code;
/**
* 语言名称
*/
private String name;
/**
* Locale
*/
private Locale locale;
/**
* 解析
*
* @param type
* @return
*/
public static LanguageEnum parse(String type) {
return parse(type, null);
}
/**
* 解析
*
* @param type
* @param dau
* @return
*/
public static LanguageEnum parse(String type, LanguageEnum dau) {
if (null != type && !type.isEmpty()) {
try {
return LanguageEnum.valueOf(type);
} catch (IllegalArgumentException e) {
}
}
return dau;
}
}
9.2.2 Swagger参数效果图
![C++ [STL之vector的使用]](https://img-blog.csdnimg.cn/84e4fd60d85a42619862f999bd6ec9ea.png#pic_center)
