watchdog
看门狗，又叫watchdog timer，是一个定时器电路，一般有一个输入，叫喂狗或踢狗；一个输出到MCU 的 RST 端，MCU 正常工作的时候，每隔一段时间输出一个信号到喂狗端，给 WDT 清零，如果超过规定的时间不喂狗（一般在程序跑飞时），WDT 定时超过，就会给出一个复位信号到 MCU，使 MCU 复位。防止 MCU 死机。
整体思路
- 内核模块初始化watchdog控制寄存器并使能watchdog
- 用户看门狗进程定时踢狗
一、用户空间代码分析
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <stdio.h>
#include <sys/time.h>
#include <signal.h>
#include <errno.h>
#include <stdarg.h>
static void
die(const char *msg, ...)
{
va_list ap;
va_start(ap, msg);
fprintf(stderr, "%s: ERROR: ", "watchdog");
vfprintf(stderr, msg, ap);
va_end(ap);
exit(1);
}
static void
watchdog_write_pidfile(void)
{
char pidfile[80];
char pidbuf[16];
int fd;
int ret;
snprintf(pidfile, sizeof(pidfile), "/var/run/%s.pid", "watchdog");
fd = open(pidfile, O_RDONLY);
if (fd < 0) {
if (errno != ENOENT) {
die("watchdog_write_pidfile: opening pidfile %s for read: %s
",
pidfile, strerror(errno));
}
/* ENOENT is good: the pidfile doesn't exist */
} else {
/* the pidfile exists: read it and check whether the named pid
is still around */
int pid;
char *end;
ret = read(fd, pidbuf, sizeof(pidbuf));
if (ret < 0) {
die("watchdog_write_pidfile: read of pre-existing %s failed: %s
",
pidfile, strerror(errno));
}
pid = strtol(pidbuf, &end, 10);
if (*end != '' && *end != '
') {
die("watchdog_write_pidfile: couldn't parse "%s" as a pid (from file %s); "
"aborting
", pidbuf, pidfile);
}
ret = kill(pid, 0); /* try sending signal 0 to the pid to check it exists */
if (ret == 0) {
die("watchdog_write_pidfile: %s contains pid %d which is still running; aborting
",
pidfile, pid);
}
/* pid doesn't exist, looks like we can proceed */
close(fd);
}
/* re-open pidfile for write, possibly creating it */
fd = open(pidfile, O_WRONLY|O_CREAT|O_TRUNC, 0644);
if (fd < 0)
die("watchdog_write_pidfile: open %s for write/create: %s
", pidfile, strerror(errno));
snprintf(pidbuf, sizeof(pidbuf), "%d
", getpid());
ret = write(fd, pidbuf, strlen(pidbuf));
if (ret < 0) {
die("watchdog_write_pidfile: writing my PID to lockfile %s: %s
",
pidfile, strerror(errno));
}
close(fd);
}
void watchdog_func()
{
FILE *file;
file = fopen("/proc/watchdog_kick","w+");
if(file)
{
fputs("111", file);
fclose(file);
}
}
int
main(int argc, char **argv)
{
pid_t pid;
char tmpBuff[30] = {0};
int res = 0;
int fd;
int interval;
int sec,micro_sec;
sigset_t sigset;
if(argc >= 2)
interval = atoi(argv[1]);
else
interval = 500;
if(interval >= 10000){
printf("watchdog interval too long,should not more than 10s
");
interval = 1000;
}
sec = interval/1000;
micro_sec = (interval % 1000) * 1000;
watchdog_write_pidfile();
/* unblock sigalarm and sigterm signal */
sigaddset(&sigset,SIGALRM);
if(sigprocmask(SIG_UNBLOCK,&sigset,NULL) < 0)
printf("sigprocmask error
");
// Register watchdog_func to SIGALRM
signal(SIGALRM, watchdog_func);
struct itimerval tick;
memset(&tick, 0, sizeof(tick));
//printf("interval:%d.
",interval);
// Timeout to run function first time
tick.it_value.tv_sec = sec; // sec
tick.it_value.tv_usec = micro_sec; // micro sec.
// Interval time to run function
tick.it_interval.tv_sec = sec;
tick.it_interval.tv_usec = micro_sec;
pid = getpid();
snprintf(tmpBuff,30,"renice -19 %d",pid);
system(tmpBuff);
//stop watchdog first
system("echo 1 > /proc/watchdog_kick");
system("echo enable 0 interval 0 > /proc/watchdog_cmd");
// resume watchdog
#ifdef CONFIG_RTL_8197F
system("echo enable 1 interval 32 > /proc/watchdog_cmd");
#else
system("echo enable 1 interval 10 > /proc/watchdog_cmd");
#endif
system("echo 1 > /proc/watchdog_kick");
res = setitimer(ITIMER_REAL, &tick, NULL);
if (res) {
printf("Set watchdog timer failed!!/n");
return -1;
}
while(1) {
pause();
}
return 0;
}用户进程主要做了两件事：
1. 用户进程设置watchdog intervel
echo enable 1 interval 32 > /proc/watchdog_cmd2. 定时器定时踢狗void watchdog_func()
{
FILE *file;
file = fopen("/proc/watchdog_kick","w+");
if(file)
{
fputs("111", file);
fclose(file);
}
}二、内核部分
1. 看门狗定时器控制寄存器初始化
void bsp_enable_watchdog( void )
{
bBspWatchdog = 1;
*(volatile unsigned long *)(0xb800311C)=0x00240000; // 2^24
}
void __init plat_time_init(void) // mips-ori
{
printk(COLOR_RED"[%s:%d] [watchdog] platform timer init
"COLOR_CLEAR, __FUNCTION__, __LINE__);
{/* 省略部分代码 */}
#ifdef CONFIG_RTL_WTDOG
/* 配置时钟分频寄存器 */
REG32(BSP_CDBR)=(BSP_DIVISOR) << BSP_DIVF_OFFSET;
printk(COLOR_RED"[%s:%d] [watchdog] BSP enable watchdog, BSP_CDBR=0x%x
"COLOR_CLEAR,
__FUNCTION__, __LINE__, ((BSP_DIVISOR) << BSP_DIVF_OFFSET));
/* 使能watchdog */
bsp_enable_watchdog();
wtdog_cdbr = (REG32(BSP_CDBR) >> 16) & 0xffff;
printk(COLOR_RED"[%s:%d] [watchdog] watchdog cdbr=%u
"COLOR_CLEAR, __FUNCTION__, __LINE__, wtdog_cdbr);
#endif /* CONFIG_RTL_WTDOG */
{/* 省略部分代码 */}
}
看门狗控制寄存器初始化为：0x00240000，表示 OVSEL 的高两位是 10, OVSEL 的低两位是 01， OVSEL=1001
2. 创建proc节点（watchdog_cmd 和 watchdog_kick）
为应用层配置watchdog提供两个接口，watchdog_cmd用来设置interval，watchdog_kick用来踢狗
int __init bsp_watchdog_proc_init(void)
{
proc_create_data("watchdog_reboot", 0, &proc_root,
&watchdog_reboot_proc_fops, NULL);
#ifdef CONFIG_RTL_USERSPACE_WTDOG
proc_create_data("watchdog_cmd", 0, &proc_root,
&watchdog_cmd_proc_fops, NULL);
proc_create_data("watchdog_kick", 0, &proc_root,
&watchdog_kick_proc_fops, NULL);
#endif
return 0;
}2.1 watchdog_cmd的write接口
应用层向该节点写入watchdog interval的配置，该接口去配置watchdog寄存器的OVSEL位
如：echo enable 1 interval 32 > /proc/watchdog_cmd
static ssize_t watchdog_cmd_single_write(struct file * file, const char __user * userbuf,
size_t count, loff_t * off)
{
char flag[64];
int enable,interval;
extern void bsp_enable_watchdog(void);
extern void bsp_disable_watchdog(void);
if (count < 2)
return -EFAULT;
if (userbuf && !copy_from_user(&flag, userbuf, 63)) {
int i;
unsigned int wtdog_intervel,wtdog_intervel0 = 0,wtdog_cdbr,wtdog_maxtime;
sscanf(flag,"enable %d interval %d",&enable,&interval);
if (enable == 0) {
/* disable watchdog */
bsp_disable_watchdog();
} else if (enable == 1) {
if (watchdog_default_flag == 0) {
watchdog_default_flag = 1;
watchdog_default_val = interval;
} else {
if(interval < watchdog_default_val){
printk("
watchdog timeout time should not less than default val,default=%d
",watchdog_default_val);
return -1;
}
}
wtdog_cdbr = (REG32(BSP_CDBR) >> 16) & 0xffff;
i = sizeof(wtdog_tbl)/sizeof(WTDOG_REGTBL_T) - 1;
/* interval计算方法 */
wtdog_maxtime = wtdog_tbl[i].wtdog_val/(LXBUS_CLOCK/wtdog_cdbr);
if (interval > wtdog_maxtime) {
printk("
watchdog max intervale time is %d,please check the set value
", wtdog_maxtime);
return -1;
}
for(i = 0; i < sizeof(wtdog_tbl)/sizeof(WTDOG_REGTBL_T); i++) {
wtdog_intervel = wtdog_tbl[i].wtdog_val/(LXBUS_CLOCK/wtdog_cdbr);

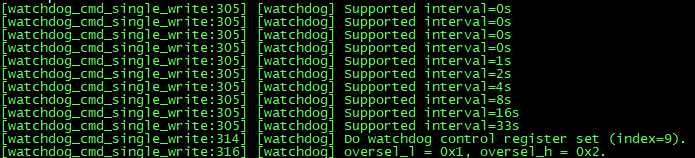

printk(COLOR_GREEN"[%s:%d] [watchdog] Supported interval=%ds
"COLOR_CLEAR,
__FUNCTION__, __LINE__, wtdog_intervel);
if (interval >= wtdog_intervel0
&& interval <= wtdog_intervel) {
goto END;
}
wtdog_intervel0 = wtdog_intervel;
}
END:
printk(COLOR_GREEN"[%s:%d] [watchdog] Do watchdog control register set (index=%d).
"COLOR_CLEAR,
__FUNCTION__, __LINE__, i);
printk(COLOR_GREEN"[%s:%d] [watchdog] oversel_l = 0x%x, oversel_h = 0x%x.
"COLOR_CLEAR,
__FUNCTION__, __LINE__, wtdog_tbl[i].oversel_l, wtdog_tbl[i].oversel_h);
/* 设置wathdog寄存器 */
REG32(BSP_WDTCNR) = ( wtdog_tbl[i].oversel_l << 21) | ( wtdog_tbl[i].oversel_h << 17);
}
return count;
}
return -EFAULT;
}
2.2 watchdog_kick的write接口
static ssize_t watchdog_kick_single_write(struct file * file, const char __user * userbuf,
size_t count, loff_t * off)
{
char flag[20];
if (count < 2)
return -EFAULT;
#ifdef CONFIG_RTL_WTDOG
{
/*If kernel fault. reboot whole system so softwatch dog can not kick even*/
extern int is_fault;
if(is_fault)
return count;
}
#endif
if (userbuf && !copy_from_user(&flag, userbuf, 1)) {
if(flag[0] == '1'){
watchdog_kick_state = RTL_WATCHDOG_KICK;
/* kick watchdog here */
*(volatile unsigned long *)(0xB800311c) |= 1 << 23;
}else {
watchdog_kick_state = 0;
}
return count;
}
return -EFAULT;
}
