1.概述
使用jdbc查询数据库把表信息导出为word文档, 导出为word时需要下载word模板文件。
已实现数据库:
- KingbaseES, 实现代码: 点击跳转
2.效果图
2.1.生成word内容

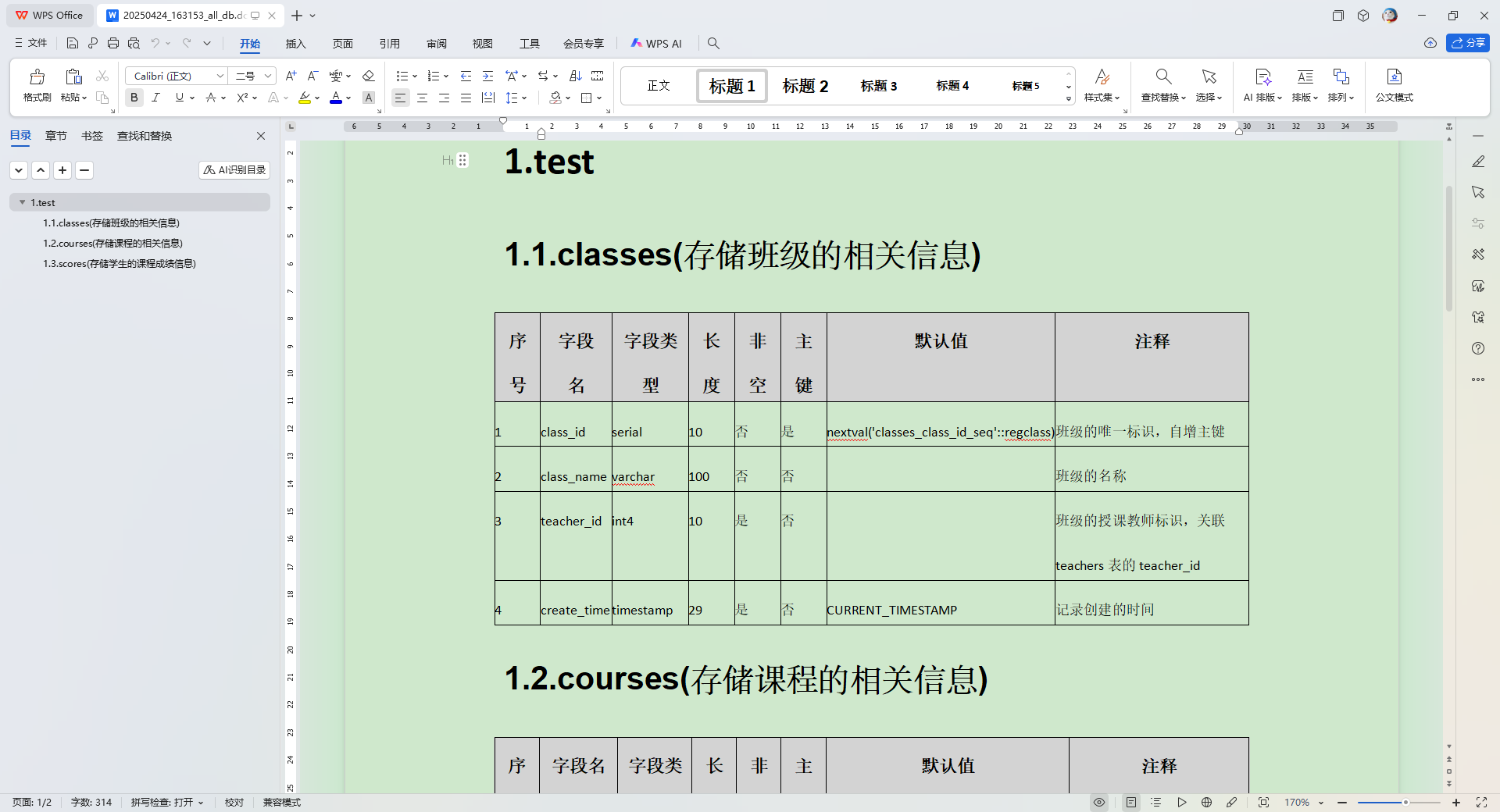

所有数据库合并

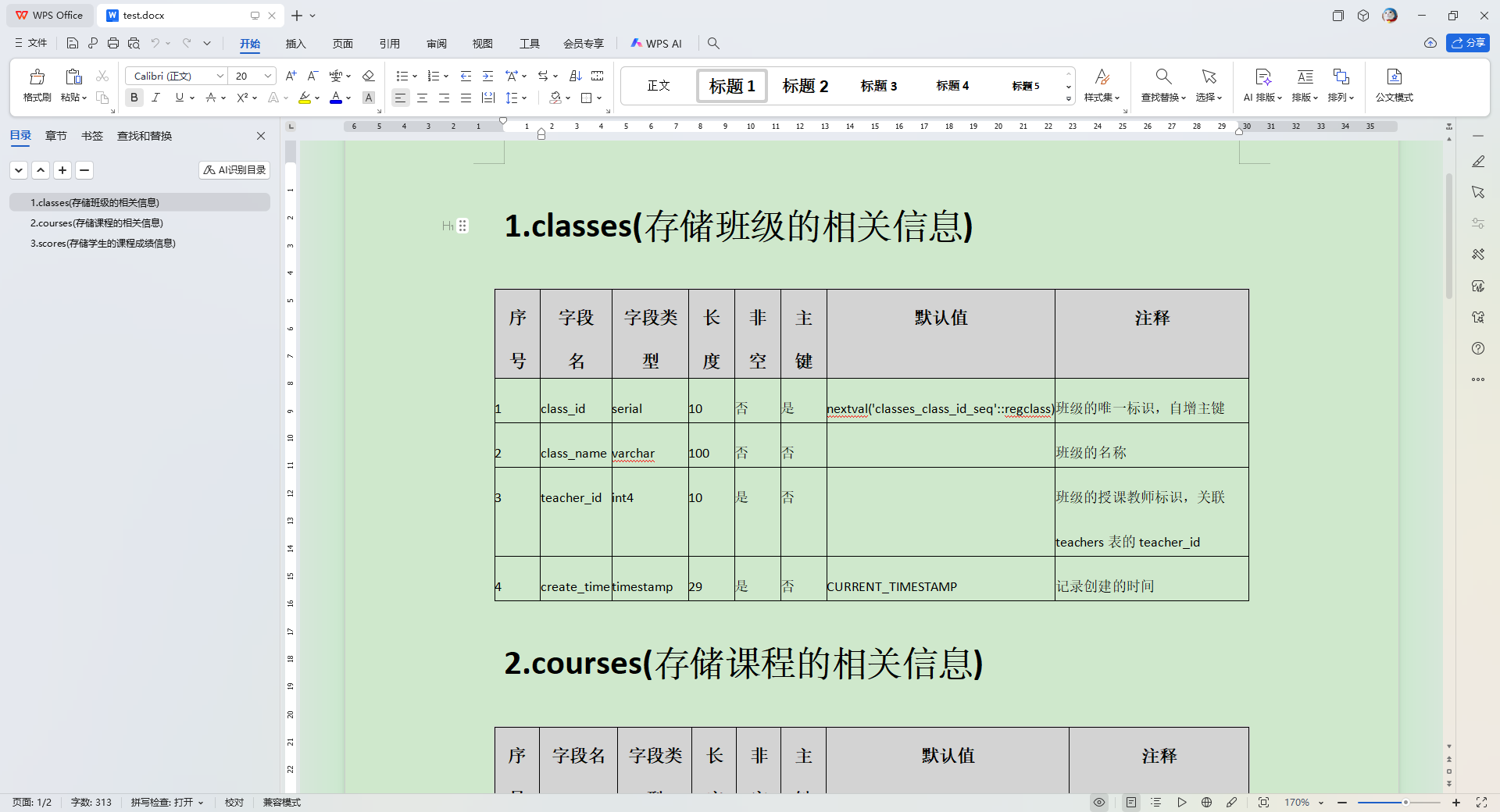

数据库不合并

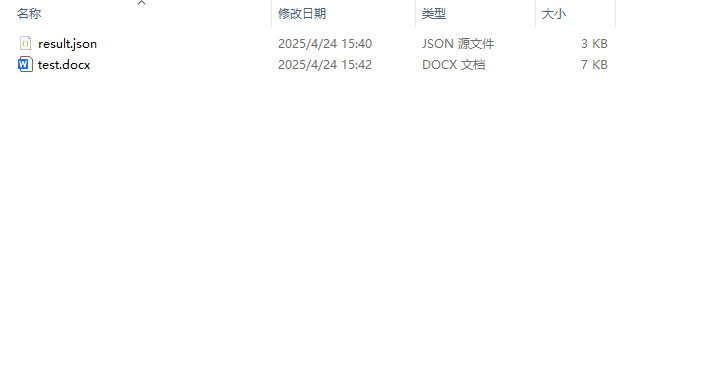

2.2.生成文件列表
3.代码文件结构
4.代码实现
4.1.dto
4.1.1.DbInfoDTO.java
package cn.nordrassil.db2doc.dto;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.util.List;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class DbInfoDTO {
private String dbName;
private String dbDescribe;
private List<TableInfo> tableInfos;
@Data
@AllArgsConstructor
@NoArgsConstructor
public static class TableInfo {
private String tableName;
private String tableDescribe;
private List<TableField> tableFields;
private List<List<String>> tableContents;
public TableInfo(String tableName, String tableDescribe, List<TableField> tableFields) {
this.tableName = tableName;
this.tableDescribe = tableDescribe;
this.tableFields = tableFields;
}
}
@Data
@AllArgsConstructor
@NoArgsConstructor
public static class TableField {
private String name;
private String type;
private Integer length;
private String allowEmpty;
private String isPrimaryKey;
private String defaultValue;
private String describe;
}
}
4.1.2.DbConnParamDTO.java
package cn.nordrassil.db2doc.dto;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class DbConnParamDTO {
private String host;
private Integer port;
private String username;
private String password;
// 随机填一个数据库即可
private String randomDatabase;
// 数据库前缀过滤
private String dbPrefixFilter;
// 等于true是只会导出第一张表
private Boolean testRun;
}
4.1.3.ExportWordParamDTO
package cn.nordrassil.db2doc.dto;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.util.List;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class ExportWordParamDTO {
// 数据信息
private List<DbInfoDTO> ds;
// 导出word模板文件
private String wordTemplateFile;
// 导出目录
private String exportFolder;
// 所有数据库是否合并到一个文档, 默认每个数据库一个文档
private Boolean merge = Boolean.FALSE;
}
4.2.util
4.2.1.CommonUtil.java
package cn.nordrassil.db2doc.util;
import java.io.*;
import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
public class CommonUtil {
private static DateTimeFormatter dateFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss.SSS");
private static DateTimeFormatter dateFormatter2 = DateTimeFormatter.ofPattern("yyyyMMdd_HHmmss");
public static String readByLineRs(String path) {
StringBuffer sb = new StringBuffer();
File file = new File(path);
BufferedReader reader = null;
String temp = null;
try {
reader = new BufferedReader(new FileReader(file));
while ((temp = reader.readLine()) != null) {
sb.append(temp).append("\n");
}
} catch (Exception e) {
e.printStackTrace();
} finally {
if (reader != null) {
try {
reader.close();
} catch (Exception e) {
e.printStackTrace();
}
}
}
return sb.toString();
}
/**
* 依次替换{}
* 例 : join("a={},b={}",1,2) => a=1,b=2
*
* @param str
* @param param
* @return
*/
public static String join(String str, Object... param) {
try {
for (Object p : param) {
String processedParam = p.toString().replace("\\", "\\\\");
str = str.replaceFirst("\\{\\}", processedParam);
}
} catch (Exception e) {
for (Object p : param) {
str = str + p;
}
}
return str;
}
public static void writeString(String content, String path) {
try {
File file = new File(path);
if (!file.exists()) {
file.createNewFile();
}
FileWriter fw = new FileWriter(file.getAbsoluteFile());
BufferedWriter bw = new BufferedWriter(fw);
bw.write(content);
bw.close();
} catch (IOException e) {
e.printStackTrace();
}
}
public static void info(String str, Object... param) {
System.out.println(LocalDateTime.now().format(dateFormatter) + "|" + join(str, param));
}
public static String getDayTime() {
return LocalDateTime.now().format(dateFormatter2);
}
public static void createDirectoryIfNotExists(String absolutePath) {
File file = new File(absolutePath);
// 获取文件所在的目录
File parentDir = file.getParentFile();
if (parentDir != null && !parentDir.exists()) {
// 创建目录
parentDir.mkdirs();
}
}
}
4.3.service
4.3.1.DbInfoExportWordService.java
package cn.nordrassil.db2doc;
import cn.nordrassil.db2doc.dto.DbInfoDTO;
import cn.nordrassil.db2doc.dto.ExportWordParamDTO;
import com.alibaba.fastjson.JSONObject;
import org.apache.poi.xwpf.usermodel.*;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTShd;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTStyles;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTTcPr;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import static cn.nordrassil.db2doc.util.CommonUtil.*;
// 参考: https://blog.csdn.net/qq_37945565/article/details/121518330
public class DbInfoExportWordService {
public static List<String> tableTitles = new ArrayList<String>() {{
add("序号");
add("字段名");
add("字段类型");
add("长度");
add("非空");
add("主键");
add("默认值");
add("注释");
}};
public static List<String> fields = new ArrayList<String>() {{
add("name");
add("type");
add("length");
add("allowEmpty");
add("isPrimaryKey");
add("defaultValue");
add("describe");
}};
public static void generateWord(ExportWordParamDTO paramDTO) throws Exception {
// 获得模板文档的整体样式
XWPFDocument template = new XWPFDocument(new FileInputStream(paramDTO.getWordTemplateFile()));
CTStyles wordStyles = template.getStyle();
int totalTableCount = 0;
int index = 1;
List<DbInfoDTO> ds = paramDTO.getDs();
XWPFDocument document = null;
boolean merge = paramDTO.getMerge() != null && paramDTO.getMerge();
if (merge) {
document = new XWPFDocument();
}
for (DbInfoDTO d : ds) {
info("执行第[{}/{}]生成word文档...表数量:{}", index, ds.size(), d.getTableInfos().size());
if (!merge) {
document = new XWPFDocument();
}
// 获取新建文档对象的样式
XWPFStyles newStyles = document.createStyles();
// 关键行// 修改设置文档样式为静态块中读取到的样式
newStyles.setStyles(wordStyles);
if (merge) {
XWPFParagraph title1 = document.createParagraph();
title1.setStyle("2");
XWPFRun titleRun1 = title1.createRun();
String dbText = index + "." + d.getDbName();
if (d.getDbDescribe() != null) {
dbText += "(" + d.getDbDescribe().replaceAll("\r\n", "").replaceAll("\r", "").replaceAll("\n", "") + ")";
}
titleRun1.setText(dbText);
}
List<DbInfoDTO.TableInfo> tableInfos = d.getTableInfos();
totalTableCount += tableInfos.size();
for (int k = 0; k < tableInfos.size(); k++) {
DbInfoDTO.TableInfo tableInfo = tableInfos.get(k);
XWPFParagraph title2 = document.createParagraph();
XWPFRun titleRun2 = title2.createRun();
String tableText;
if (merge) {
title2.setStyle("3");
tableText = index + "." + (k + 1) + "." + tableInfo.getTableName();
} else {
title2.setStyle("2");
tableText = (k + 1) + "." + tableInfo.getTableName();
}
if (tableInfo.getTableDescribe() != null) {
tableText += "(" + tableInfo.getTableDescribe().replaceAll("\r\n", "").replaceAll("\r", "").replaceAll("\n", "") + ")";
}
titleRun2.setText(tableText);
// 创建表格(第一列为序号)
List<DbInfoDTO.TableField> tableFields = tableInfo.getTableFields();
XWPFTable table = document.createTable(tableFields.size(), 8);
int titleFontSize = 10;
int textFontSize = 8;
// 设置表格标题样式
for (int i = 0; i < table.getRows().get(0).getTableCells().size(); i++) {
XWPFTableCell cell = table.getRows().get(0).getCell(i);
XWPFParagraph cellParagraph = cell.getParagraphs().get(0);
cellParagraph.setIndentationLeft(0); // 设置左侧缩进为0
cellParagraph.setIndentationRight(0); // 设置右侧缩进为0
cellParagraph.setIndentationFirstLine(0); // 设置首行缩进为0
cellParagraph.setIndentationLeft(0);
// 设置单元格背景色为灰色
CTTcPr cellPr = cell.getCTTc().addNewTcPr();
CTShd shd = cellPr.addNewShd();
shd.setFill("D3D3D3");
cellParagraph.setAlignment(ParagraphAlignment.CENTER);
XWPFRun cellRun = cellParagraph.createRun();
cellRun.setBold(true);
cellRun.setText(tableTitles.get(i));
cellRun.setFontSize(titleFontSize);
}
// 写入表格内容
for (int row = 1; row < table.getNumberOfRows(); row++) {
for (int col = 0; col < table.getRow(row).getTableCells().size(); col++) {
XWPFTableCell cell = table.getRow(row).getCell(col);
XWPFParagraph cellParagraph = cell.getParagraphs().get(0);
XWPFRun cellRun = cellParagraph.createRun();
if (col == 0) {
cellRun.setText(row + "");
} else {
DbInfoDTO.TableField tableField = tableFields.get(row - 1);
JSONObject jsonObject = JSONObject.parseObject(JSONObject.toJSONString(tableField));
cellRun.setText(jsonObject.getString(fields.get(col - 1)));
}
CTTcPr tcPr = cell.getCTTc().getTcPr();
if (tcPr == null) {
tcPr = cell.getCTTc().addNewTcPr();
}
if (!tcPr.isSetTcMar()) {
tcPr.addNewTcMar();
}
tcPr.getTcMar().addNewLeft().setW(0);
tcPr.getTcMar().addNewRight().setW(0);
tcPr.getTcMar().addNewTop().setW(0);
tcPr.getTcMar().addNewBottom().setW(0);
cellRun.setFontSize(textFontSize);
cellParagraph.setIndentationLeft(0);
// 设置段落左对齐
cellParagraph.setAlignment(ParagraphAlignment.LEFT);
// 设置左缩进为 0
cellParagraph.setIndentationLeft(0);
}
}
}
if (!merge) {
// 保存文档
String outputFile = paramDTO.getExportFolder() + File.separator + d.getDbName() + ".docx";
createDirectoryIfNotExists(outputFile);
try (FileOutputStream out = new FileOutputStream(outputFile)) {
document.write(out);
info("第[{}/{}]数据库信息生成word文档完成, 文档路径:{}", index, ds.size(), outputFile);
} catch (IOException e) {
e.printStackTrace();
}
}
index++;
}
if (merge) {
// 保存文档
String outputFile = paramDTO.getExportFolder() + File.separator + getDayTime() + "_all_db.docx";
createDirectoryIfNotExists(outputFile);
try (FileOutputStream out = new FileOutputStream(outputFile)) {
document.write(out);
info("所有数据库信息生成word文档完成, 文档路径:{}", outputFile);
} catch (IOException e) {
e.printStackTrace();
}
}
info("数据库已导出为word文档完成, 数据库数量:{}, 所有表总数量:{}", ds.size(), totalTableCount);
}
}
4.3.2.GetDbInfoService.java
package cn.nordrassil.db2doc;
import cn.nordrassil.db2doc.dto.DbConnParamDTO;
import cn.nordrassil.db2doc.dto.DbInfoDTO;
import java.util.List;
public interface GetDbInfoService {
List<DbInfoDTO> get(DbConnParamDTO dto);
}
5.依赖
5.1.mave依赖
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.83</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.28</version>
<scope>provided</scope>
</dependency>
<!-- Apache Commons Compress 用于处理多种归档文件格式 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-compress</artifactId>
<version>1.24.0</version>
</dependency>
<!-- Apache Commons IO 提供了 IO 操作的工具类 -->
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.13.0</version>
</dependency>
<dependency>
<groupId>com.github.junrar</groupId>
<artifactId>junrar</artifactId>
<version>7.5.5</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>5.2.3</version>
</dependency>
5.2.word文档模板
word/word模板.docx · 楽焫旒璡/public-share - 码云 - 开源中国
6.测试
6.1.MyTest.java
package cn.nordrassil.db2doc;
import cn.nordrassil.db2doc.dto.DbConnParamDTO;
import cn.nordrassil.db2doc.dto.DbInfoDTO;
import cn.nordrassil.db2doc.dto.ExportWordParamDTO;
import cn.nordrassil.db2doc.impl.GetDbInfoKingBaseEsService;
import cn.nordrassil.db2doc.util.CommonUtil;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import java.io.File;
import java.util.ArrayList;
import java.util.List;
public class MyTest {
public static void main(String[] args) throws Exception {
String exportFolder = System.getProperty("user.dir") + File.separator + "files";
String templateFile = "F:\\文档\\开发\\word模板.docx";
String resultFile = exportFolder + File.separator + "result.json";
//getDbInfo(resultFile);
List<DbInfoDTO> ds = readData(resultFile);
ExportWordParamDTO exportWordParamDTO = new ExportWordParamDTO(
ds, templateFile, exportFolder, true
);
//DbInfoExportWordService.generateWord(exportWordParamDTO);
}
public static void getDbInfo(String resultFile) throws Exception {
GetDbInfoService getDbInfoService = new GetDbInfoKingBaseEsService();
List<DbInfoDTO> dbInfoDTOS = getDbInfoService.get(new DbConnParamDTO(
"192.168.1.1",
5432,
"root",
"123456",
"test",
"test",
true
));
CommonUtil.writeString(JSONObject.toJSONString(dbInfoDTOS), resultFile);
}
public static List<DbInfoDTO> readData(String resultFile) {
JSONArray jas = JSONObject.parseArray(CommonUtil.readByLineRs(resultFile));
List<DbInfoDTO> ds = new ArrayList<>();
for (int i = 0; i < jas.size(); i++) {
JSONObject ja = jas.getJSONObject(i);
DbInfoDTO dbInfo = new DbInfoDTO();
dbInfo.setDbName(ja.getString("dbName"));
dbInfo.setDbDescribe(ja.getString("dbDescribe"));
List<DbInfoDTO.TableInfo> tableInfos = new ArrayList<>();
dbInfo.setTableInfos(tableInfos);
JSONArray tis = ja.getJSONArray("tableInfos");
for (int k = 0; k < tis.size(); k++) {
JSONObject ti = tis.getJSONObject(k);
DbInfoDTO.TableInfo tableInfo = new DbInfoDTO.TableInfo();
tableInfos.add(tableInfo);
tableInfo.setTableName(ti.getString("tableName"));
tableInfo.setTableDescribe(ti.getString("tableDescribe"));
JSONArray tfs = ti.getJSONArray("tableFields");
List<DbInfoDTO.TableField> tableFields = new ArrayList<>();
tableInfo.setTableFields(tableFields);
for (int j = 0; j < tfs.size(); j++) {
JSONObject tf = tfs.getJSONObject(j);
tableFields.add(new DbInfoDTO.TableField(
tf.getString("name"),
tf.getString("type"),
tf.getInteger("length"),
tf.getString("allowEmpty"),
tf.getString("isPrimaryKey"),
tf.getString("defaultValue"),
tf.getString("describe")
));
}
}
ds.add(dbInfo);
}
return ds;
}
}
