前言

彼岸花开一千年，花开花落不相见。若问花开叶落故，彼岸缘起缘又灭——《我欲封天》

$\;\\\;\\\;$

简单的设计模式

见上篇

$\;\\\;\\\;$

复杂的设计模式

13责任链

一个类跟着一个类，虽然用链表也能处理（甚至是没什么用的静态链表(数组)也行）。

但是责任链添加了处理者的类，这样实际的第三层类就不用处理set_next和handle了。

from __future__ import annotations
from abc import ABC, abstractmethod
from typing import Any, Optional



#第一层处理者
class Handler(ABC):
    @abstractmethod
    def set_next(self, handler: Handler) -> Handler:
        pass
    @abstractmethod
    def handle(self, request) -> Optional[str]:
        pass

#第2层处理者
class SomeHandler(Handler):
    _next_handler: Handler = None
    def set_next(self, handler: Handler) -> Handler:
        self._next_handler = handler
        return handler
    @abstractmethod
    def handle(self, request: Any) -> str:
        if self._next_handler:
            return self._next_handler.handle(request)
        return None



#第3层处理者
class MonkeyHandler(SomeHandler):
    def handle(self, request: Any) -> str:
        if request == "Banana":
            return f"Monkey: I'll eat the <{request}>"
        else:
            return super().handle(request)


#第3层处理者
class SquirrelHandler(SomeHandler):
    def handle(self, request: Any) -> str:
        if request == "Nut":
            return f"Squirrel: I'll eat the <{request}>"
        else:
            return super().handle(request)


#第3层处理者
class DogHandler(SomeHandler):
    def handle(self, request: Any) -> str:
        if request == "MeatBall":
            return f"Dog: I'll eat the <{request}>"
        else:
            return super().handle(request)




#客户代码
def client_code(handler: Handler) -> None:
    for food in ["Nut", "Banana", "Cup of coffee"]:
        print(f"Client: Who wants a <{food}>?")
        result = handler.handle(food)
        if result:
            print(f"  {result}", end="\n")
        else:
            print(f"  <{food}> was left untouched.", end="\n")

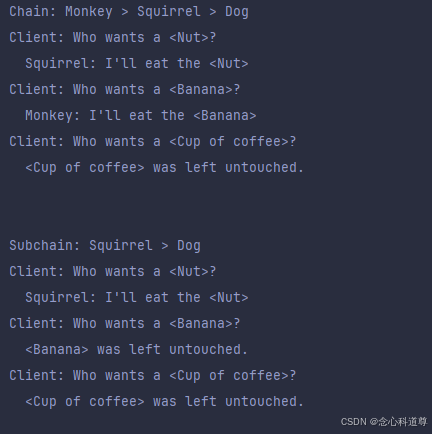

def Main():
    monkey = MonkeyHandler()
    squirrel = SquirrelHandler()
    dog = DogHandler()


    monkey.set_next(squirrel).set_next(dog)
    print("Chain: Monkey > Squirrel > Dog")

    client_code(monkey)
    print("\n")
    print("Subchain: Squirrel > Dog")
    client_code(squirrel)

if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

14迭代器

python封装迭代器的固定写法。

from __future__ import annotations
from collections.abc import Iterable, Iterator
from typing import Any




class MyIterator(Iterator):
    _position: int = None  # 当前迭代位置
    _reverse: bool = False  # 是否反向迭代

    def __init__(self, collection: WordsCollection, reverse: bool = False) -> None:
        self._collection = collection  # 关联的可迭代对象
        self._reverse = reverse  # 是否反向遍历
        self._position = -1 if reverse else 0  # 初始化位置0或-1

    def __next__(self) -> Any:
        """获取下一个元素，如果没有则抛出 StopIteration"""
        try:
            value = self._collection[self._position]      # 获取当前元素
            self._position += -1 if self._reverse else 1  # 移动位置，1往后易懂，-1往前易懂
        except IndexError:
            raise StopIteration()  # 遍历结束时抛出 StopIteration
        return value



class WordsCollection(Iterable):
    def __init__(self, collection: list[Any] | None = None) -> None:
        self._collection = collection or []
    def __getitem__(self, index: int) -> Any:
        return self._collection[index]
    def __iter__(self) -> MyIterator:
        return MyIterator(self)
    def get_reverse_iterator(self) -> MyIterator:
        return MyIterator(self, True)
    def add_item(self, item: Any) -> None:
        self._collection.append(item)



def Main():
    collection = WordsCollection()
    collection.add_item("First")
    collection.add_item("Second")
    collection.add_item("Third")

    #遍历
    print("Straight traversal:")
    print("\n".join(collection))
    print("")

    #反方向遍历
    print("Reverse traversal:")
    print("\n".join(collection.get_reverse_iterator()), end="")


if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

15备忘录

用链表和数组什么的实现也可以，这就是内存的log。如果数据量大，这个数据就要写入文件，撤销的时候从文件中恢复。

_generate_random_string() 这个让我想起了昨天看的B站视频@epcdiy，说是windows下的勒索软件加密了文件，然后up主研究发现原理就是先随机获取16个字母，然后再拿RSA加密什么的。

from __future__ import annotations
from abc import ABC, abstractmethod
from datetime import datetime
from random import sample
from string import ascii_letters




#状态持有者
class StateHolder:
    _state = None
    def __init__(self, state: str) -> None:
        self._state = state
        print(f"StateHolder: My initial state is: {self._state}")
    def run(self) -> None:
        print("StateHolder:run -> ",end="")
        self._state = self._generate_random_string(30)
        print(f"my state has changed to: {self._state}")

    #获取随机字母组合的字符串，通常做密码都会用到这种函数
    @staticmethod
    def _generate_random_string(length: int = 10) -> str:
        return "".join(sample(ascii_letters, length))
    #保存
    def save(self) -> Memento:
        return ConcreteMemento(self._state)
    #恢复
    def restore(self, memento: Memento) -> None:
        self._state = memento.get_state()
        print(f"StateHolder: My state has changed to: {self._state}")




#第一层备忘录
class Memento(ABC):
    @abstractmethod
    def get_name(self) -> str:
        pass
    @abstractmethod
    def get_date(self) -> str:
        pass

 # 第2层备忘录
class ConcreteMemento(Memento):
    def __init__(self, state: str) -> None:
        self._state = state
        self._date = str(datetime.now())[:19]
    #获取状态
    def get_state(self) -> str:
        return self._state
    #获取
    def get_name(self) -> str:
        return f"{self._date} / ({self._state[0:9]}...)"
    #获取日期
    def get_date(self) -> str:
        return self._date




#管理者
#一个链表保存N个状态，每个状态中嵌套当时的时间
class Manager:
    def __init__(self, s: StateHolder) -> None:
        self._mementos = []
        self._StateHolder = s

    #备份
    def backup(self) -> None:
        print("\nManager: Saving StateHolder's state...")
        self._mementos.append(self._StateHolder.save())
    #撤销
    def undo(self) -> None:
        if not len(self._mementos):
            return
        memento = self._mementos.pop()
        print(f"Manager: Restoring state to: {memento.get_name()}")
        try:
            self._StateHolder.restore(memento)
        except Exception:
            self.undo()
    #打印历史
    def show_history(self) -> None:
        print("Manager: Here's the list of mementos:")
        for memento in self._mementos:
            print(memento.get_name())

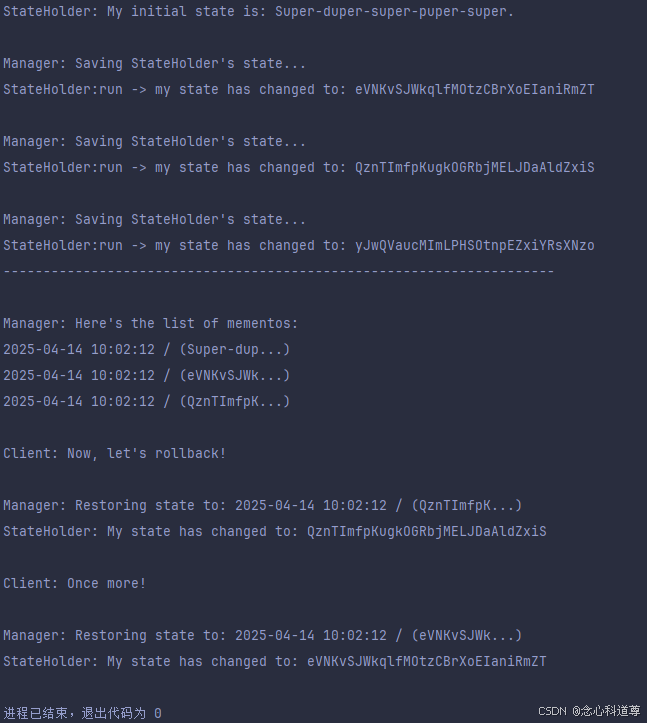

def Main():
    s = StateHolder("Super-duper-super-puper-super.")  #最初始的状态
    m = Manager(s)
    m.backup()     #备份
    s.run()

    m.backup()
    s.run()

    m.backup()
    s.run()

    print("---------------------------------------------------------------------\n")
    m.show_history()
    print("\nClient: Now, let's rollback!\n")
    m.undo()    #撤销
    print("\nClient: Once more!\n")
    m.undo()   #撤销


if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

16状态机

这不是一种好方法，前后两个状态，加上转换，这些固定在了代码中。如果状态和转换特别多，甚至有各自输入输出就完了。

我之前的博客有写过，状态要单独拎出来，其中不要写转换到哪。
写一个类为规则，一条规则传入两个状态就好。具体转换到哪，先遍历一条条规则，每个规则固定从前面状态转到后面状态，还要结合转换条件——Mealy状态机或者Moore状态机。

from __future__ import annotations
from abc import ABC, abstractmethod


#第一层状态
class State(ABC):
    @property
    def Manager(self) -> Manager:
        return self._Manager
    @Manager.setter
    def Manager(self, Manager: Manager) -> None:
        self._Manager = Manager

    @abstractmethod
    def handle1(self) -> None:
        pass
    @abstractmethod
    def handle2(self) -> None:
        pass

#第2层状态
class ConcreteStateA(State):
    def handle1(self) -> None:
        print("ConcreteStateA:handle1")
        print("\twants to change the state of the Manager.")
        self.Manager.transition_to(ConcreteStateB())
    def handle2(self) -> None:
        print("ConcreteStateA:handle2")

#第2层状态
class ConcreteStateB(State):
    def handle1(self) -> None:
        print("ConcreteStateB:handle1")
    def handle2(self) -> None:
        print("ConcreteStateB:handle2")
        print("\twants to change the state of the Manager.")
        self.Manager.transition_to(ConcreteStateA())



#管理者
class Manager:
    _state = None

    def __init__(self, state: State) -> None:
        self.transition_to(state)

    def transition_to(self, state: State):
        print(f"Manager: Transition to {type(state).__name__}")
        self._state = state
        self._state.Manager = self

    def request1(self):
        self._state.handle1()

    def request2(self):
        self._state.handle2()

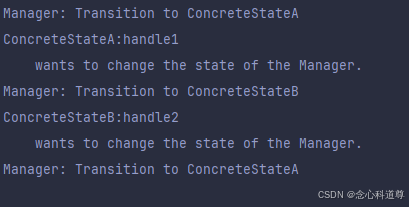

def Main():
    m = Manager(ConcreteStateA())
    m.request1()
    m.request2()

if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

17模板方法

不同具体子类的执行框架，已经在父类中固定了、

from abc import ABC, abstractmethod


#第一层人
class People(ABC):
    def template_method(self) -> None:
        self.base_operation1()
        self.required_operations1()
        self.base_operation2()
        self.hook1()
        self.required_operations2()
        self.base_operation3()
        self.hook2()
    def base_operation1(self) -> None:
        print("People:base_operation1")
    def base_operation2(self) -> None:
        print("People:base_operation2")
    def base_operation3(self) -> None:
        print("People:base_operation3")

    #抽象方法：下面两个函数必须由子类实现
    @abstractmethod
    def required_operations1(self) -> None:
        pass
    @abstractmethod
    def required_operations2(self) -> None:
        pass

    #普通函数：下面两个函数可以由父类实现，也可以被子类覆盖
    def hook1(self) -> None:
        pass
    def hook2(self) -> None:
        pass


#第二层人
class Teacher(People):
    def required_operations1(self) -> None:
        print("Teacher:required_operations1")
    def required_operations2(self) -> None:
        print("Teacher:required_operations2")

#第二层人
class Student(People):
    def required_operations1(self) -> None:
        print("Student:required_operations1")
    def required_operations2(self) -> None:
        print("Student:required_operations2")
    def hook1(self) -> None:
        print("Student:hook1")


#客户代码
def client_code(abstract_class: People) -> None:
    abstract_class.template_method()

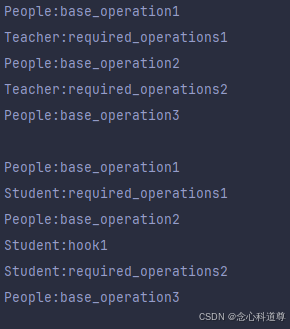

def Main():
    client_code(Teacher())
    print("")
    client_code(Student())

if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

18访问者

两棵树，一颗被访问者树，一颗访问者树。被访问者会调用访问者，即物体调用行为。

from __future__ import annotations
from abc import ABC, abstractmethod
from typing import List


# 抽象角色
class Character(ABC):
    @abstractmethod
    def accept(self, action: Action) -> None:
        pass


# 具体角色：战士
class Warrior(Character):
    def accept(self, action: Action) -> None:
        action.visit_warrior(self)

    def attack(self) -> str:
        return "Warrior: Strong attack"

    def defend(self) -> str:
        return "Warrior: Solid defense"


# 具体角色：法师
class Mage(Character):
    def accept(self, action: Action) -> None:
        action.visit_mage(self)

    def cast_spell(self) -> str:
        return "Mage: Powerful spell"

    def heal(self) -> str:
        return "Mage: Healing magic"


# 抽象行为
class Action(ABC):
    @abstractmethod
    def visit_warrior(self, character: Warrior) -> None:
        pass

    @abstractmethod
    def visit_mage(self, character: Mage) -> None:
        pass


# 具体行为：攻击行为
class AttackAction(Action):
    def visit_warrior(self, character: Warrior) -> None:
        print(f"{character.attack()} with AttackAction")

    def visit_mage(self, character: Mage) -> None:
        print(f"{character.cast_spell()} with AttackAction")


# 具体行为：防御行为
class DefendAction(Action):
    def visit_warrior(self, character: Warrior) -> None:
        print(f"{character.defend()} with DefendAction")

    def visit_mage(self, character: Mage) -> None:
        print(f"{character.heal()} with DefendAction")


# 客户端代码
def client_code(characters: List[Character], action: Action) -> None:
    for character in characters:
        character.accept(action)


# 主函数
def main():
    characters = [Warrior(), Mage()]
    print("The client code works with all characters via the base Action interface:")
    attack_action = AttackAction()
    client_code(characters, attack_action)

    print("\nIt allows the same client code to work with different types of actions:")
    defend_action = DefendAction()
    client_code(characters, defend_action)


if __name__ == "__main__":
    main()

在这里插入图片描述

$\;\\\;\\\;$

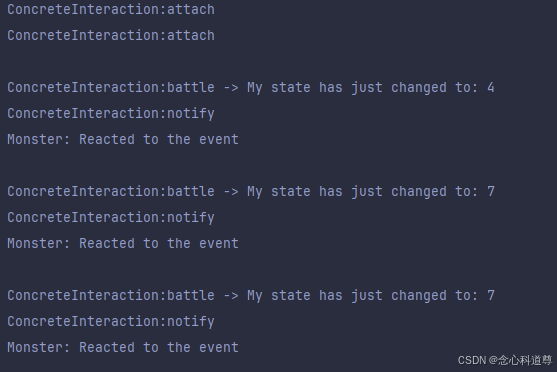

19观察者

一对多，多个观察者观察一个对象。

from __future__ import annotations
from abc import ABC, abstractmethod
from random import randrange
from typing import List


#第一层交互
class Interaction(ABC):
    @abstractmethod
    def attach(self, People: People) -> None:
        pass
    @abstractmethod
    def detach(self, People: People) -> None:
        pass
    @abstractmethod
    def notify(self) -> None:
        pass


#第2层交互
class ConcreteInteraction(Interaction):
    _state: int = None
    _Peoples: List[People] = []
    def attach(self, p: People) -> None:
        print("ConcreteInteraction:attach")
        self._Peoples.append(p)
    def detach(self, p: People) -> None:
        self._Peoples.remove(p)

    def notify(self) -> None:
        print("ConcreteInteraction:notify")
        for People in self._Peoples:
            People.update(self)

    def battle(self) -> None:
        print("\nConcreteInteraction:battle -> ",end="")
        self._state = randrange(0, 10)
        print(f"My state has just changed to: {self._state}")
        self.notify()




#第一层观察者
class People(ABC):
    @abstractmethod
    def update(self, Interaction: Interaction) -> None:
        pass

#第2层观察者
class Player(People):
    def update(self, Interaction: Interaction) -> None:
        if Interaction._state < 3:
            print("Player:update")

# 第2层观察者
class Monster(People):
    def update(self, Interaction: Interaction) -> None:
        if Interaction._state == 0 or Interaction._state >= 2:
            print("Monster: Reacted to the event")



def Main():
    Interaction = ConcreteInteraction()

    #加入玩家1
    People_a = Player()
    Interaction.attach(People_a)

    #加入玩家2
    People_b = Monster()
    Interaction.attach(People_b)

    #开始战斗
    Interaction.battle()
    Interaction.battle()
    Interaction.detach(People_a)  #移除玩家1
    #继续战斗
    Interaction.battle()


if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

20命令Shell

很多设计模式都是这种三方模式，一边的抽象树是被操作者，一边的抽象树是操作者，还有第三方类是管理者。

from __future__ import annotations
from abc import ABC, abstractmethod


#第一层命令
class Command(ABC):
    @abstractmethod
    def exec(self) -> None:
        pass

# 第2层命令
class SimpleCommand(Command):
    def __init__(self, payload: str) -> None:
        self._payload = payload
    def exec(self) -> None:
        print(f"SimpleCommand:exec -> {self._payload}")

# 第2层命令
class ComplexCommand(Command):
    def __init__(self, NPC: NPC, a: str, b: str) -> None:
        self._NPC = NPC
        self._a = a
        self._b = b
    def exec(self) -> None:
        print("ComplexCommand:exec")
        self._NPC.do_something(self._a)
        self._NPC.do_something_else(self._b)



#被操作者
class NPC:
    def do_something(self, a: str) -> None:
        print(f"\nNPC: Working on : {a}", end="")
    def do_something_else(self, b: str) -> None:
        print(f"\nNPC: Also working on : {b}", end="")




#管理者
class Manager:
    _on_start = None
    _on_finish = None
    def set_on_start(self, command: Command):
        self._on_start = command
    def set_on_finish(self, command: Command):
        self._on_finish = command
    def do_something_important(self) -> None:
        print("Manager:1")
        if isinstance(self._on_start, Command):
            self._on_start.exec()
        print("Manager:2")
        print("Manager:3")
        if isinstance(self._on_finish, Command):
            self._on_finish.exec()



def Main():
    a = Manager()
    a.set_on_start(SimpleCommand("Say Hi!"))

    r = NPC()
    a.set_on_finish(ComplexCommand(r, "Send email", "Save report"))

    a.do_something_important()

if __name__ == "__main__":
	Main()

$\;\\\;\\\;$

21策略

相当于C++ STL使用排序或者查找函数式，要传入的形参函数指针，根据用户实现的函数，来具体按什么属性查找，或者按什么顺序查找等操作。

from __future__ import annotations
from abc import ABC, abstractmethod
from typing import List



#持有一个策略实例。这个类作用是提供一个接口，让客户端可以调用策略算法
class Context():
    def __init__(self, strategy: Strategy) -> None:
        self._strategy = strategy
    @property
    def strategy(self) -> Strategy:
        return self._strategy
    @strategy.setter
    def strategy(self, strategy: Strategy) -> None:
        self._strategy = strategy

    def run(self) -> None:
        print("Context:run")
        result = self._strategy.calc(["a", "b", "c", "d", "e"])
        print(",".join(result))


#第一层策略
class Strategy(ABC):
    @abstractmethod
    def calc(self, data: List):
        pass

#第2层策略
class ConcreteStrategyA(Strategy):
    def calc(self, data: List) -> List:
        return sorted(data)

#第2层策略
class ConcreteStrategyB(Strategy):
    def calc(self, data: List) -> List:
        return reversed(sorted(data))



def Main():
    context = Context(ConcreteStrategyA())
    print("Client: Strategy is set to normal sorting.")
    context.run()
    print()

    print("Client: Strategy is set to reverse sorting.")
    context.strategy = ConcreteStrategyB()
    context.run()


if __name__ == "__main__":
	Main()

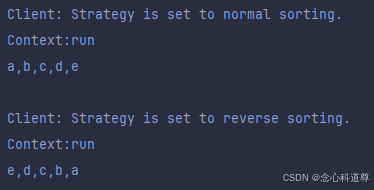

在这里插入图片描述

$\;\\\;\\\;$

22调解

组件和调解器相互调用，这样能保证解耦，即组件之间不会相互调用。

from __future__ import annotations
from abc import ABC


#第一层调解器
class Mediator(ABC):
    def notify(self, sender: object, event: str) -> None:
        pass

#第2层调解器
class ConcreteMediator(Mediator):
    def __init__(self, component1: Component1, component2: Component2) -> None:
        self._component1 = component1
        self._component1.mediator = self    #关键
        self._component2 = component2
        self._component2.mediator = self    #关键
    def notify(self, sender: object, event: str) -> None:
        if event == "A":
            self._component2.do_c()    #前面执行了A，这里就会执行C
        elif event == "D":
            self._component1.do_b()   #前面执行了D，这里就会执行B,C
            self._component2.do_c()




#第一层组件
class Component:
    def __init__(self, mediator: Mediator = None) -> None:
        self._mediator = mediator
    @property
    def mediator(self) -> Mediator:
        return self._mediator
    @mediator.setter
    def mediator(self, mediator: Mediator) -> None:
        self._mediator = mediator

#第2层组件
class Component1(Component):
    def do_a(self) -> None:
        print("Component1:do_a")
        self.mediator.notify(self, "A")
    def do_b(self) -> None:
        print("Component1:do_b")
        self.mediator.notify(self, "B")

#第2层组件
class Component2(Component):
    def do_c(self) -> None:
        print("Component1:do_c")
        self.mediator.notify(self, "C")
    def do_d(self) -> None:
        print("Component1:do_d")
        self.mediator.notify(self, "D")




def Main():
    c1 = Component1()
    c2 = Component2()
    mediator = ConcreteMediator(c1, c2)

    print("Client triggers operation A.")
    c1.do_a()
    print()

    print("Client triggers operation D.")
    c2.do_d()
if __name__ == "__main__":
	Main()

在这里插入图片描述

$\;\\\;\\\;$

23解释器

做编译器的时候用了好多次，原因是树太多了。表达式树，操作符树，类型值树，符号表树，，，，

from abc import ABC, abstractmethod
from typing import Dict


# 抽象表达式
class Expression(ABC):
    @abstractmethod
    def interpret(self, context: Dict[str, int]) -> int:
        pass


# 具体表达式：变量表达式
class VariableExpression(Expression):
    def __init__(self, variable: str) -> None:
        self.variable = variable

    def interpret(self, context: Dict[str, int]) -> int:
        return context[self.variable]


# 具体表达式：常量表达式
class LiteralExpression(Expression):
    def __init__(self, value: int) -> None:
        self.value = value

    def interpret(self, context: Dict[str, int]) -> int:
        return self.value


# 具体表达式：加法表达式
class AddExpression(Expression):
    def __init__(self, left: Expression, right: Expression) -> None:
        self.left = left
        self.right = right

    def interpret(self, context: Dict[str, int]) -> int:
        return self.left.interpret(context) + self.right.interpret(context)


# 具体表达式：减法表达式
class SubtractExpression(Expression):
    def __init__(self, left: Expression, right: Expression) -> None:
        self.left = left
        self.right = right

    def interpret(self, context: Dict[str, int]) -> int:
        return self.left.interpret(context) - self.right.interpret(context)



def Main():
    # 定义变量和常量
    x = VariableExpression("x")
    y = VariableExpression("y")
    five = LiteralExpression(5)

    # 定义表达式
    expression = AddExpression(SubtractExpression(x, y), five)

    # 上下文环境
    context = {"x": 10, "y": 3}

    # 解释并执行表达式
    result = expression.interpret(context)
    print(f"Result of the expression: {result}")


if __name__ == "__main__":
	Main()
