1. 简介
本文总结 HLS 块级控制协议，包括以下内容：
- 执行模式
- 重叠模式
- 顺序模式
- 自动重启模式
- 接口范式
- 存储器
- 串流
- 寄存器
- 对比 Vitis Kernel Flow 与 Vivado IP Flow 示例
- 了解 Wave Viewer 中的波形
原示例：
https://github.com/Xilinx/Vitis_Accel_Examples/tree/main/hello_world
https://github.com/Xilinx/Vitis_Accel_Examples/tree/main/hello_world
2. 默认接口实现
2.1 执行模式
1）Vitis kernel 或 Vivado IP 的执行模式由块级控制协议以及 HLS 设计中的子函数结构定义。
- 对于控制驱动的任务级并行（TLP），ap_ctrl_chain 和 ap_ctrl_hs 协议支持顺序执行或流水线执行。对于数据驱动的TLP，ap_ctrl_none是必需的控制协议。
- ap_ctrl_chain 控制协议是 Vitis kernel Flow 的默认协议。
- ap_ctrl_hs 块级控制协议是 Vivado IP Flow 的默认协议。
- 然而，当将 HLS 设计链接在一起时，应使用 ap_ctrl_chain，因为它能更好地支持流水线执行。
- 可以使用 INTERFACE 编译指示或指令在函数返回值（return）上指定块级控制协议。
2）重叠模式
允许在当前事务完成之前开始新事务的执行。通过函数流水线、循环回绕或数据流执行，一旦设计准备就绪，重叠的块运行就可以开始处理额外的数据。
3）顺序模式
要求当前事务完成之后，才能开始新事务的执行。
4）自动重启模式
自动重启模式允许 HLS 设计在准备好开始处理额外数据时自动重启模块。此模式同时支持重叠执行和顺序执行。自动重启是数据驱动的 TLP 设计的方法，但也可以应用于控制驱动的TLP设计。
2.2 接口范式
2.2.1 存储器
描述：内核通过存储器（如 DDR、HBM、PLRAM/BRAM/URAM）来访问数据
接口类型：ap_memory 和 AXI4 AXI4 Memory Mapped (m_axi)
2.2.2 串流
描述：数据从另一个流源（如视频处理器或其他内核）流入内核，也可以从内核流出。
接口类型：ap_fifo, AXI4-Stream (axis)
2.3.3 寄存器
描述：内核通过寄存器接口进行读写操作访问数据。
接口类型：ap_none、ap_hs、ap_ack、ap_ovld、ap_vld、AXI4-Lite adapter (s_axilite)
2.3 Vitis Kernel Flow
2.3.1 默认的协议
| C 语言实参类型 | 范式 | 接口协议 I/O/Inout |
| 标量（值传递） | 寄存器 | AXI4-Lite（s_axilite） |
| 阵列 | 存储器 | AXI4 存储器映射（m_axi） |
| 指向阵列的指针 | 存储器 | AXI4 存储器映射（m_axi） |
| 指向标量的指针 | 寄存器 | AXI4-Lite（s_axilite） |
| 引用 | 寄存器 | AXI4-Lite（s_axilite） |
| hls::stream | 串流 | AXI4-Stream（axis） |
2.3.2 vadd 代码
#include <stdint.h>
#include <hls_stream.h>
const int c_size = 4096;
static void read_input(unsigned int* in, hls::stream<unsigned int>& inStream, int size) {
mem_rd:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
inStream << in[i];
}
}
static void compute_add(hls::stream<unsigned int>& inStream1,
hls::stream<unsigned int>& inStream2,
hls::stream<unsigned int>& outStream,
int size) {
compute:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
outStream << (inStream1.read() + inStream2.read());
}
}
static void write_result(unsigned int* out, hls::stream<unsigned int>& outStream, int size) {
mem_wr:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
out[i] = outStream.read();
}
}
extern "C" {
void vadd(unsigned int* in1, unsigned int* in2, unsigned int* out, int size) {
#pragma HLS INTERFACE m_axi port = in1 bundle = gmem0 depth=c_size
#pragma HLS INTERFACE m_axi port = in2 bundle = gmem1 depth=c_size
#pragma HLS INTERFACE m_axi port = out bundle = gmem0 depth=c_size
static hls::stream<unsigned int> inStream1("input_stream_1");
static hls::stream<unsigned int> inStream2("input_stream_2");
static hls::stream<unsigned int> outStream("output_stream");
#pragma HLS dataflow
read_input(in1, inStream1, size);
read_input(in2, inStream2, size);
compute_add(inStream1, inStream2, outStream, size);
write_result(out, outStream, size);
}
}对应的 config 文件：
part=xck26-sfvc784-2LV-c
[hls]
flow_target=vitis
package.output.format=ip_catalog
package.output.syn=false
syn.file=vadd.cpp
tb.file=test.cpp
syn.top=vadd

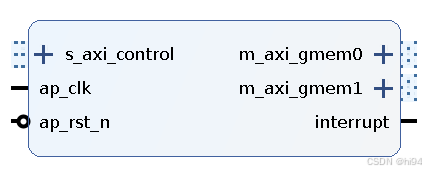

cosim.trace_level=allIP 图：
2.3.3 查看报告
================================================================
== Synthesis Summary Report of 'vadd'
================================================================
+ General Information:
* Date: xxxx
* Version: 2024.1 (Build 5069499 on May 21 2024)
* Project: vadd
* Solution: hls (Vitis Kernel Flow Target)
* Product family: zynquplus
* Target device: xck26-sfvc784-2LV-c
+ Performance & Resource Estimates:
PS: '+' for module; 'o' for loop; '*' for dataflow
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
| Modules | Issue| | Latency | Latency | Iteration| | Trip | | | | | | |
| & Loops | Type | Slack| (cycles)| (ns) | Latency | Interval| Count| Pipelined| BRAM | DSP| FF | LUT | URAM|
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
|+ vadd* | -| 0.00| 4243| 4.243e+04| -| 4173| -| dataflow| 6 (2%)| -| 3329 (1%)| 4371 (3%)| -|
| + entry_proc | -| 5.46| 0| 0.000| -| 0| -| no| -| -| 3 (~0%)| 29 (~0%)| -|
| + read_input | -| 0.00| 4172| 4.172e+04| -| 4172| -| no| -| -| 238 (~0%)| 785 (~0%)| -|
| + read_input_Pipeline_mem_rd | -| 0.00| 4099| 4.099e+04| -| 4099| -| no| -| -| 68 (~0%)| 135 (~0%)| -|
| o mem_rd | -| 7.30| 4097| 4.097e+04| 3| 1| 4096| yes| -| -| -| -| -|
| + read_input_1 | -| 0.00| 4170| 4.170e+04| -| 4170| -| no| -| -| 371 (~0%)| 258 (~0%)| -|
| o mem_rd | -| 7.30| 4168| 4.168e+04| 74| 1| 4096| yes| -| -| -| -| -|
| + compute_add | -| 2.61| 4100| 4.100e+04| -| 4100| -| no| -| -| 71 (~0%)| 261 (~0%)| -|
| + compute_add_Pipeline_compute | -| 2.61| 4098| 4.098e+04| -| 4098| -| no| -| -| 34 (~0%)| 185 (~0%)| -|
| o compute | -| 7.30| 4096| 4.096e+04| 2| 1| 4096| yes| -| -| -| -| -|
| + write_result | -| 0.00| 4170| 4.170e+04| -| 4170| -| no| -| -| 267 (~0%)| 786 (~0%)| -|
| + write_result_Pipeline_mem_wr | -| 0.00| 4099| 4.099e+04| -| 4099| -| no| -| -| 68 (~0%)| 137 (~0%)| -|
| o mem_wr | -| 7.30| 4097| 4.097e+04| 3| 1| 4096| yes| -| -| -| -| -|
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
================================================================
== HW Interfaces
================================================================
* M_AXI
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
| Interface | Read/Write | Data Width | Address Width | Latency | Offset | Register | Max Widen | Max Read | Max Write | Num Read | Num Write | Resource Estimate |
| | | (SW->HW) | | | | | Bitwidth | Burst Length | Burst Length | Outstanding | Outstanding | |
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
| m_axi_gmem0 | READ_WRITE | 32 -> 32 | 64 | 64 | slave | 0 | 512 | 16 | 16 | 16 | 16 | BRAM=4 |
| m_axi_gmem1 | READ_ONLY | 32 -> 32 | 64 | 64 | slave | 0 | 512 | 16 | 16 | 16 | 16 | BRAM=2 |
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
* S_AXILITE Interfaces
+---------------+------------+---------------+--------+----------+
| Interface | Data Width | Address Width | Offset | Register |
+---------------+------------+---------------+--------+----------+
| s_axi_control | 32 | 6 | 16 | 0 |
+---------------+------------+---------------+--------+----------+
* S_AXILITE Registers
+---------------+----------+--------+-------+--------+----------------------------------+------------------------------------------------------------------------------------+
| Interface | Register | Offset | Width | Access | Description | Bit Fields |
+---------------+----------+--------+-------+--------+----------------------------------+------------------------------------------------------------------------------------+
| s_axi_control | CTRL | 0x00 | 32 | RW | Control signals | 0=AP_START 1=AP_DONE 2=AP_IDLE 3=AP_READY 4=AP_CONTINUE 7=AUTO_RESTART 9=INTERRUPT |
| s_axi_control | GIER | 0x04 | 32 | RW | Global Interrupt Enable Register | 0=Enable |
| s_axi_control | IP_IER | 0x08 | 32 | RW | IP Interrupt Enable Register | 0=CHAN0_INT_EN 1=CHAN1_INT_EN |
| s_axi_control | IP_ISR | 0x0c | 32 | RW | IP Interrupt Status Register | 0=CHAN0_INT_ST 1=CHAN1_INT_ST |
| s_axi_control | in1_1 | 0x10 | 32 | W | Data signal of in1 | |
| s_axi_control | in1_2 | 0x14 | 32 | W | Data signal of in1 | |
| s_axi_control | in2_1 | 0x1c | 32 | W | Data signal of in2 | |
| s_axi_control | in2_2 | 0x20 | 32 | W | Data signal of in2 | |
| s_axi_control | out_r_1 | 0x28 | 32 | W | Data signal of out_r | |
| s_axi_control | out_r_2 | 0x2c | 32 | W | Data signal of out_r | |
| s_axi_control | size | 0x34 | 32 | W | Data signal of size | |
+---------------+----------+--------+-------+--------+----------------------------------+------------------------------------------------------------------------------------+
* TOP LEVEL CONTROL
+-----------+---------------+-----------+
| Interface | Type | Ports |
+-----------+---------------+-----------+
| ap_clk | clock | ap_clk |
| ap_rst_n | reset | ap_rst_n |
| interrupt | interrupt | interrupt |
| ap_ctrl | ap_ctrl_chain | |
+-----------+---------------+-----------+
================================================================
== SW I/O Information
================================================================
* Top Function Arguments
+----------+-----------+---------------+
| Argument | Direction | Datatype |
+----------+-----------+---------------+
| in1 | inout | unsigned int* |
| in2 | in | unsigned int* |
| out | inout | unsigned int* |
| size | in | int |
+----------+-----------+---------------+
* SW-to-HW Mapping
+----------+---------------+-----------+----------+-----------------------------------+
| Argument | HW Interface | HW Type | HW Usage | HW Info |
+----------+---------------+-----------+----------+-----------------------------------+
| in1 | m_axi_gmem0 | interface | | channel=0 |
| in1 | s_axi_control | register | offset | name=in1_1 offset=0x10 range=32 |
| in1 | s_axi_control | register | offset | name=in1_2 offset=0x14 range=32 |
| in2 | m_axi_gmem1 | interface | | channel=0 |
| in2 | s_axi_control | register | offset | name=in2_1 offset=0x1c range=32 |
| in2 | s_axi_control | register | offset | name=in2_2 offset=0x20 range=32 |
| out | m_axi_gmem0 | interface | | channel=0 |
| out | s_axi_control | register | offset | name=out_r_1 offset=0x28 range=32 |
| out | s_axi_control | register | offset | name=out_r_2 offset=0x2c range=32 |
| size | s_axi_control | register | | name=size offset=0x34 range=32 |
+----------+---------------+-----------+----------+-----------------------------------+
================================================================
== M_AXI Burst Information
================================================================
Note: All burst requests might be further partitioned into multiple requests during RTL generation based on max_read_burst_length or max_write_burst_length settings.
* Inferred Burst Summary
+--------------+-----------+----------+-------+--------+---------------+
| HW Interface | Direction | Length | Width | Loop | Loop Location |
+--------------+-----------+----------+-------+--------+---------------+
| m_axi_gmem0 | read | variable | 32 | mem_rd | vadd.cpp:8:5 |
| m_axi_gmem0 | write | variable | 32 | mem_wr | vadd.cpp:27:5 |
| m_axi_gmem1 | read | variable | 32 | mem_rd | vadd.cpp:8:5 |
+--------------+-----------+----------+-------+--------+---------------+
* All M_AXI Variable Accesses
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+------------------------------------------------+
| HW Interface | Variable | Access Location | Direction | Burst Status | Length | Loop | Loop Location | Resolution | Problem |
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+------------------------------------------------+
| m_axi_gmem0 | out | vadd.cpp:29:9 | write | Widen Fail | | mem_wr | vadd.cpp:27:5 | 214-234 | Sequential access length is not divisible by 2 |
| m_axi_gmem0 | out | vadd.cpp:29:9 | write | Inferred | variable | mem_wr | vadd.cpp:27:5 | | |
| m_axi_gmem0,gmem1 | in | vadd.cpp:10:11 | read | Widen Fail | | mem_rd | vadd.cpp:8:5 | 214-234 | Sequential access length is not divisible by 2 |
| m_axi_gmem0,gmem1 | in | vadd.cpp:10:11 | read | Inferred | variable | mem_rd | vadd.cpp:8:5 | | |
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+------------------------------------------------+
* Resolution URL: docs.xilinx.com/access/sources/dita/topic?Doc_Version=2024.1%20English&url=ug1448-hls-guidance&resourceid=XXX-YYY.html (replace XXX-YYY with column value)
================================================================
== Bind Op Report
================================================================
+----------------------------------+-----+--------+------------+--------+----------+---------+
| Name | DSP | Pragma | Variable | Op | Impl | Latency |
+----------------------------------+-----+--------+------------+--------+----------+---------+
| + vadd | 0 | | | | | |
| + read_input | 0 | | | | | |
| icmp_ln8_fu_94_p2 | | | icmp_ln8 | setgt | auto | 0 |
| empty_fu_104_p3 | | | empty | select | auto_sel | 0 |
| + read_input_Pipeline_mem_rd | 0 | | | | | |
| icmp_ln8_fu_98_p2 | | | icmp_ln8 | setlt | auto | 0 |
| add_ln8_fu_104_p2 | | | add_ln8 | add | fabric | 0 |
| + read_input_1 | 0 | | | | | |
| icmp_ln8_fu_112_p2 | | | icmp_ln8 | setgt | auto | 0 |
| empty_fu_122_p3 | | | empty | select | auto_sel | 0 |
| icmp_ln8_1_fu_146_p2 | | | icmp_ln8_1 | setlt | auto | 0 |
| add_ln8_fu_152_p2 | | | add_ln8 | add | fabric | 0 |
| + compute_add | 0 | | | | | |
| + compute_add_Pipeline_compute | 0 | | | | | |
| icmp_ln19_fu_81_p2 | | | icmp_ln19 | setlt | auto | 0 |
| add_ln19_fu_87_p2 | | | add_ln19 | add | fabric | 0 |
| add_ln21_fu_98_p2 | | | add_ln21 | add | fabric | 0 |
| + write_result | 0 | | | | | |
| icmp_ln27_fu_85_p2 | | | icmp_ln27 | setgt | auto | 0 |
| empty_fu_105_p3 | | | empty | select | auto_sel | 0 |
| + write_result_Pipeline_mem_wr | 0 | | | | | |
| icmp_ln27_fu_102_p2 | | | icmp_ln27 | setlt | auto | 0 |
| add_ln27_fu_108_p2 | | | add_ln27 | add | fabric | 0 |
+----------------------------------+-----+--------+------------+--------+----------+---------+
================================================================
== Storage Report
================================================================
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
| Name | Usage | Type | BRAM | URAM | Pragma | Variable | Impl | Latency | Bitwidth, Depth, |
| | | | | | | | | | Banks |
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
| + vadd | | | 6 | 0 | | | | | |
| control_s_axi_U | interface | s_axilite | | | | | | | |
| gmem0_m_axi_U | interface | m_axi | 4 | | | | | | |
| gmem1_m_axi_U | interface | m_axi | 2 | | | | | | |
| out_r_c_U | fifo channel | scalar prop | | | | out_r_c | srl | 0 | 64, 4, 1 |
| size_c1_U | fifo channel | scalar prop | | | | size_c1 | srl | 0 | 32, 2, 1 |
| inStream1_U | fifo channel | stream | | | | inStream1 | srl | 0 | 32, 2, 1 |
| inStream2_U | fifo channel | stream | | | | inStream2 | srl | 0 | 32, 2, 1 |
| size_c_U | fifo channel | scalar prop | | | | size_c | srl | 0 | 32, 2, 1 |
| outStream_U | fifo channel | stream | | | | outStream | srl | 0 | 32, 2, 1 |
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
================================================================
== Pragma Report
================================================================
* Valid Pragma Syntax
+----------------+----------------------------------------------+-----------------------------+
| Type | Options | Location |
+----------------+----------------------------------------------+-----------------------------+
| loop_tripcount | min = c_size max = c_size | vadd.cpp:9 in read_input |
| loop_tripcount | min = c_size max = c_size | vadd.cpp:20 in compute_add |
| loop_tripcount | min = c_size max = c_size | vadd.cpp:28 in write_result |
| interface | m_axi port = in1 bundle = gmem0 depth=c_size | vadd.cpp:35 in vadd |
| interface | m_axi port = in2 bundle = gmem1 depth=c_size | vadd.cpp:36 in vadd |
| interface | m_axi port = out bundle = gmem0 depth=c_size | vadd.cpp:37 in vadd |
| dataflow | | vadd.cpp:43 in vadd |
+----------------+----------------------------------------------+-----------------------------+2.4 Vivado IP Flow
2.4.1 默认的协议
| C 语言实参类型 | 支持的范式 | 默认范式 | 接口协议 | ||
| In | Out | InOut | |||
| 标量（值传递） | 寄存器 | 寄存器 | ap_none | - | - |
| 阵列 | 存储器、串流 | 存储器 | ap_memory | ap_memory | ap_memory |
| 指针 | 存储器、串流、寄存器 | 寄存器 | ap_none | ap_vld | ap_ovld |
| 引用 | 寄存器 | 寄存器 | ap_none | ap_vld | ap_vld |
| hls::stream | 串流 | 串流 | ap_fifo | ap_fifo | - |
2.4.2 vadd 代码
#include <stdint.h>
#include <hls_stream.h>
const int c_size = 4096;
static void read_input(unsigned int* in, hls::stream<unsigned int>& inStream, int size) {
#pragma HLS INTERFACE mode=ap_ctrl_chain port=return
mem_rd:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
inStream << in[i];
}
}
static void compute_add(hls::stream<unsigned int>& inStream1,
hls::stream<unsigned int>& inStream2,
hls::stream<unsigned int>& outStream,
int size) {
#pragma HLS INTERFACE mode=ap_ctrl_chain port=return
compute:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
outStream << (inStream1.read() + inStream2.read());
}
}
static void write_result(unsigned int* out, hls::stream<unsigned int>& outStream, int size) {
#pragma HLS INTERFACE mode=ap_ctrl_chain port=return
mem_wr:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
out[i] = outStream.read();
}
}
extern "C" {
void vadd(unsigned int* in1, unsigned int* in2, unsigned int* out, int size) {
//#pragma HLS INTERFACE mode=ap_ctrl_chain port=return
//#pragma HLS INTERFACE mode=s_axilite port=return bundle=control
//#pragma HLS INTERFACE mode=s_axilite port=in1 bundle=control
//#pragma HLS INTERFACE mode=s_axilite port=in2 bundle=control
//#pragma HLS INTERFACE mode=s_axilite port=out bundle=control
//#pragma HLS INTERFACE mode=s_axilite port=size bundle=control
#pragma HLS INTERFACE mode=m_axi port=in1 bundle=gmem0 depth=c_size
#pragma HLS INTERFACE mode=m_axi port=in2 bundle=gmem1 depth=c_size
#pragma HLS INTERFACE mode=m_axi port=out bundle=gmem0 depth=c_size
static hls::stream<unsigned int> inStream1("input_stream_1");
static hls::stream<unsigned int> inStream2("input_stream_2");
static hls::stream<unsigned int> outStream("output_stream");
#pragma HLS dataflow
read_input(in1, inStream1, size);
read_input(in2, inStream2, size);
compute_add(inStream1, inStream2, outStream, size);
write_result(out, outStream, size);
}
}对应的 config 文件：
part=xck26-sfvc784-2LV-c
[hls]
flow_target=vivado
package.output.format=ip_catalog
package.output.syn=false
syn.file=vadd.cpp

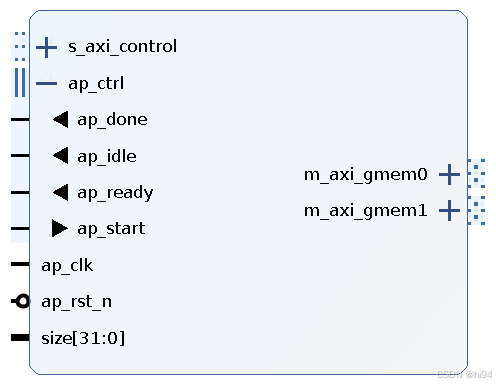

syn.top=vaddIP 图：
2.4.3 查看报告
================================================================
== Synthesis Summary Report of 'vadd'
================================================================
+ General Information:
* Date: xxxx
* Version: 2024.1 (Build 5069499 on May 21 2024)
* Project: vadd
* Solution: hls (Vivado IP Flow Target)
* Product family: zynquplus
* Target device: xck26-sfvc784-2LV-c
+ Performance & Resource Estimates:
PS: '+' for module; 'o' for loop; '*' for dataflow
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
| Modules | Issue| | Latency | Latency | Iteration| | Trip | | | | | | |
| & Loops | Type | Slack| (cycles)| (ns) | Latency | Interval| Count| Pipelined| BRAM | DSP| FF | LUT | URAM|
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
|+ vadd* | -| 0.00| 4117| 4.117e+04| -| 4110| -| dataflow| 6 (2%)| -| 3030 (1%)| 3648 (3%)| -|
| + entry_proc | -| 5.46| 0| 0.000| -| 0| -| no| -| -| 3 (~0%)| 29 (~0%)| -|
| + read_input | -| 0.00| 4109| 4.109e+04| -| 4109| -| no| -| -| 175 (~0%)| 449 (~0%)| -|
| + read_input_Pipeline_mem_rd | -| 0.00| 4099| 4.099e+04| -| 4099| -| no| -| -| 68 (~0%)| 135 (~0%)| -|
| o mem_rd | -| 7.30| 4097| 4.097e+04| 3| 1| 4096| yes| -| -| -| -| -|
| + read_input_1 | -| 0.00| 4107| 4.107e+04| -| 4107| -| no| -| -| 245 (~0%)| 258 (~0%)| -|
| o mem_rd | -| 7.30| 4105| 4.105e+04| 11| 1| 4096| yes| -| -| -| -| -|
| + compute_add | -| 2.61| 4100| 4.100e+04| -| 4100| -| no| -| -| 71 (~0%)| 261 (~0%)| -|
| + compute_add_Pipeline_compute | -| 2.61| 4098| 4.098e+04| -| 4098| -| no| -| -| 34 (~0%)| 185 (~0%)| -|
| o compute | -| 7.30| 4096| 4.096e+04| 2| 1| 4096| yes| -| -| -| -| -|
| + write_result | -| 0.00| 4107| 4.107e+04| -| 4107| -| no| -| -| 204 (~0%)| 463 (~0%)| -|
| + write_result_Pipeline_mem_wr | -| 0.00| 4099| 4.099e+04| -| 4099| -| no| -| -| 68 (~0%)| 137 (~0%)| -|
| o mem_wr | -| 7.30| 4097| 4.097e+04| 3| 1| 4096| yes| -| -| -| -| -|
+----------------------------------+------+------+---------+-----------+----------+---------+------+----------+--------+----+-----------+-----------+-----+
================================================================
== HW Interfaces
================================================================
* M_AXI
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
| Interface | Read/Write | Data Width | Address Width | Latency | Offset | Register | Max Widen | Max Read | Max Write | Num Read | Num Write | Resource Estimate |
| | | (SW->HW) | | | | | Bitwidth | Burst Length | Burst Length | Outstanding | Outstanding | |
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
| m_axi_gmem0 | READ_WRITE | 32 -> 32 | 64 | 0 | slave | 0 | 0 | 16 | 16 | 16 | 16 | BRAM=4 |
| m_axi_gmem1 | READ_ONLY | 32 -> 32 | 64 | 0 | slave | 0 | 0 | 16 | 16 | 16 | 16 | BRAM=2 |
+-------------+------------+------------+---------------+---------+--------+----------+-----------+--------------+--------------+-------------+-------------+-------------------+
* S_AXILITE Interfaces
+---------------+------------+---------------+--------+----------+
| Interface | Data Width | Address Width | Offset | Register |
+---------------+------------+---------------+--------+----------+
| s_axi_control | 32 | 6 | 16 | 0 |
+---------------+------------+---------------+--------+----------+
* S_AXILITE Registers
+---------------+----------+--------+-------+--------+----------------------+
| Interface | Register | Offset | Width | Access | Description |
+---------------+----------+--------+-------+--------+----------------------+
| s_axi_control | in1_1 | 0x10 | 32 | W | Data signal of in1 |
| s_axi_control | in1_2 | 0x14 | 32 | W | Data signal of in1 |
| s_axi_control | in2_1 | 0x1c | 32 | W | Data signal of in2 |
| s_axi_control | in2_2 | 0x20 | 32 | W | Data signal of in2 |
| s_axi_control | out_r_1 | 0x28 | 32 | W | Data signal of out_r |
| s_axi_control | out_r_2 | 0x2c | 32 | W | Data signal of out_r |
+---------------+----------+--------+-------+--------+----------------------+
* Other Ports
+------+---------+-----------+----------+
| Port | Mode | Direction | Bitwidth |
+------+---------+-----------+----------+
| size | ap_none | in | 32 |
+------+---------+-----------+----------+
* TOP LEVEL CONTROL
+-----------+------------+-----------------------------------+
| Interface | Type | Ports |
+-----------+------------+-----------------------------------+
| ap_clk | clock | ap_clk |
| ap_rst_n | reset | ap_rst_n |
| ap_ctrl | ap_ctrl_hs | ap_done ap_idle ap_ready ap_start |
+-----------+------------+-----------------------------------+
================================================================
== SW I/O Information
================================================================
* Top Function Arguments
+----------+-----------+---------------+
| Argument | Direction | Datatype |
+----------+-----------+---------------+
| in1 | inout | unsigned int* |
| in2 | in | unsigned int* |
| out | inout | unsigned int* |
| size | in | int |
+----------+-----------+---------------+
* SW-to-HW Mapping
+----------+---------------+-----------+----------+-----------------------------------+
| Argument | HW Interface | HW Type | HW Usage | HW Info |
+----------+---------------+-----------+----------+-----------------------------------+
| in1 | m_axi_gmem0 | interface | | channel=0 |
| in1 | s_axi_control | register | offset | name=in1_1 offset=0x10 range=32 |
| in1 | s_axi_control | register | offset | name=in1_2 offset=0x14 range=32 |
| in2 | m_axi_gmem1 | interface | | channel=0 |
| in2 | s_axi_control | register | offset | name=in2_1 offset=0x1c range=32 |
| in2 | s_axi_control | register | offset | name=in2_2 offset=0x20 range=32 |
| out | m_axi_gmem0 | interface | | channel=0 |
| out | s_axi_control | register | offset | name=out_r_1 offset=0x28 range=32 |
| out | s_axi_control | register | offset | name=out_r_2 offset=0x2c range=32 |
| size | size | port | | |
+----------+---------------+-----------+----------+-----------------------------------+
================================================================
== M_AXI Burst Information
================================================================
Note: All burst requests might be further partitioned into multiple requests during RTL generation based on max_read_burst_length or max_write_burst_length settings.
* Inferred Burst Summary
+--------------+-----------+----------+-------+--------+---------------+
| HW Interface | Direction | Length | Width | Loop | Loop Location |
+--------------+-----------+----------+-------+--------+---------------+
| m_axi_gmem0 | read | variable | 32 | mem_rd | vadd.cpp:10:5 |
| m_axi_gmem0 | write | variable | 32 | mem_wr | vadd.cpp:33:5 |
| m_axi_gmem1 | read | variable | 32 | mem_rd | vadd.cpp:10:5 |
+--------------+-----------+----------+-------+--------+---------------+
* All M_AXI Variable Accesses
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+-------------------------------------------------------------------------------------------------------+
| HW Interface | Variable | Access Location | Direction | Burst Status | Length | Loop | Loop Location | Resolution | Problem |
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+-------------------------------------------------------------------------------------------------------+
| m_axi_gmem0 | out | vadd.cpp:35:9 | write | Widen Fail | | mem_wr | vadd.cpp:33:5 | 214-353 | Could not widen since type i32 size is greater than or equal to the max_widen_bitwidth threshold of 0 |
| m_axi_gmem0 | out | vadd.cpp:35:9 | write | Inferred | variable | mem_wr | vadd.cpp:33:5 | | |
| m_axi_gmem0,gmem1 | in | vadd.cpp:12:11 | read | Widen Fail | | mem_rd | vadd.cpp:10:5 | 214-353 | Could not widen since type i32 size is greater than or equal to the max_widen_bitwidth threshold of 0 |
| m_axi_gmem0,gmem1 | in | vadd.cpp:12:11 | read | Inferred | variable | mem_rd | vadd.cpp:10:5 | | |
+-------------------+----------+-----------------+-----------+--------------+----------+--------+---------------+------------+-------------------------------------------------------------------------------------------------------+
* Resolution URL: docs.xilinx.com/access/sources/dita/topic?Doc_Version=2024.1%20English&url=ug1448-hls-guidance&resourceid=XXX-YYY.html (replace XXX-YYY with column value)
================================================================
== Bind Op Report
================================================================
+----------------------------------+-----+--------+-------------+--------+----------+---------+
| Name | DSP | Pragma | Variable | Op | Impl | Latency |
+----------------------------------+-----+--------+-------------+--------+----------+---------+
| + vadd | 0 | | | | | |
| + read_input | 0 | | | | | |
| icmp_ln10_fu_94_p2 | | | icmp_ln10 | setgt | auto | 0 |
| empty_fu_104_p3 | | | empty | select | auto_sel | 0 |
| + read_input_Pipeline_mem_rd | 0 | | | | | |
| icmp_ln10_fu_96_p2 | | | icmp_ln10 | setlt | auto | 0 |
| add_ln10_fu_102_p2 | | | add_ln10 | add | fabric | 0 |
| + read_input_1 | 0 | | | | | |
| icmp_ln10_fu_112_p2 | | | icmp_ln10 | setgt | auto | 0 |
| empty_fu_122_p3 | | | empty | select | auto_sel | 0 |
| icmp_ln10_1_fu_146_p2 | | | icmp_ln10_1 | setlt | auto | 0 |
| add_ln10_fu_152_p2 | | | add_ln10 | add | fabric | 0 |
| + compute_add | 0 | | | | | |
| + compute_add_Pipeline_compute | 0 | | | | | |
| icmp_ln23_fu_81_p2 | | | icmp_ln23 | setlt | auto | 0 |
| add_ln23_fu_87_p2 | | | add_ln23 | add | fabric | 0 |
| add_ln25_fu_98_p2 | | | add_ln25 | add | fabric | 0 |
| + write_result | 0 | | | | | |
| icmp_ln33_fu_85_p2 | | | icmp_ln33 | setgt | auto | 0 |
| empty_fu_105_p3 | | | empty | select | auto_sel | 0 |
| + write_result_Pipeline_mem_wr | 0 | | | | | |
| icmp_ln33_fu_100_p2 | | | icmp_ln33 | setlt | auto | 0 |
| add_ln33_fu_106_p2 | | | add_ln33 | add | fabric | 0 |
+----------------------------------+-----+--------+-------------+--------+----------+---------+
================================================================
== Storage Report
================================================================
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
| Name | Usage | Type | BRAM | URAM | Pragma | Variable | Impl | Latency | Bitwidth, Depth, |
| | | | | | | | | | Banks |
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
| + vadd | | | 6 | 0 | | | | | |
| control_s_axi_U | interface | s_axilite | | | | | | | |
| gmem0_m_axi_U | interface | m_axi | 4 | | | | | | |
| gmem1_m_axi_U | interface | m_axi | 2 | | | | | | |
| out_r_c_U | fifo channel | scalar prop | | | | out_r_c | srl | 0 | 64, 4, 1 |
| size_c1_U | fifo channel | scalar prop | | | | size_c1 | srl | 0 | 32, 2, 1 |
| inStream1_U | fifo channel | stream | | | | inStream1 | srl | 0 | 32, 2, 1 |
| inStream2_U | fifo channel | stream | | | | inStream2 | srl | 0 | 32, 2, 1 |
| size_c_U | fifo channel | scalar prop | | | | size_c | srl | 0 | 32, 2, 1 |
| outStream_U | fifo channel | stream | | | | outStream | srl | 0 | 32, 2, 1 |
+-------------------+--------------+-------------+------+------+--------+-----------+------+---------+------------------+
================================================================
== Pragma Report
================================================================
* Valid Pragma Syntax
+----------------+-----------------------------------------------+-------------------------------------+
| Type | Options | Location |
+----------------+-----------------------------------------------+-------------------------------------+
| interface | mode=ap_ctrl_chain port=return | vadd.cpp:7 in read_input, return |
| loop_tripcount | min = c_size max = c_size | vadd.cpp:11 in read_input |
| interface | mode=ap_ctrl_chain port=return | vadd.cpp:20 in compute_add, return |
| loop_tripcount | min = c_size max = c_size | vadd.cpp:24 in compute_add |
| interface | mode=ap_ctrl_chain port=return | vadd.cpp:30 in write_result, return |
| loop_tripcount | min = c_size max = c_size | vadd.cpp:34 in write_result |
| interface | mode=m_axi port=in1 bundle=gmem0 depth=c_size | vadd.cpp:41 in vadd, in1 |
| interface | mode=m_axi port=in2 bundle=gmem1 depth=c_size | vadd.cpp:42 in vadd, in2 |
| interface | mode=m_axi port=out bundle=gmem0 depth=c_size | vadd.cpp:43 in vadd, out |
| dataflow | | vadd.cpp:49 in vadd |
+----------------+-----------------------------------------------+-------------------------------------+3. 测试与波形
3.1 TestBench
#include <iostream>
#include <cstdlib>
#include <cstring>
const int TEST_SIZE = 8;
extern "C" void vadd(unsigned int* in1, unsigned int* in2, unsigned int* out, int size);
int main() {
unsigned int* in1 = new unsigned int[TEST_SIZE];
unsigned int* in2 = new unsigned int[TEST_SIZE];
unsigned int* out = new unsigned int[TEST_SIZE];
unsigned int* expected = new unsigned int[TEST_SIZE];
// 生成测试输入数据
for (int i = 0; i < TEST_SIZE; i++) {
in1[i] = i;
in2[i] = TEST_SIZE - i;
expected[i] = in1[i] + in2[i]; // 计算期望结果
}
// 调用 vadd 计算
vadd(in1, in2, out, TEST_SIZE);
vadd(in1, in2, out, TEST_SIZE);
vadd(in1, in2, out, TEST_SIZE);
vadd(in1, in2, out, TEST_SIZE);
// 验证计算结果
bool pass = true;
for (int i = 0; i < TEST_SIZE; i++) {
if (out[i] != expected[i]) {
std::cerr << "Test failed at index " << i
<< ": expected " << expected[i] << ", got " << out[i] << std::endl;
pass = false;
break; // 发现错误后立即停止
}
}
if (pass) {
std::cout << "Test passed successfully!" << std::endl;
}
// 释放内存
delete[] in1;
delete[] in2;
delete[] out;
delete[] expected;
return pass ? 0 : 1;
}

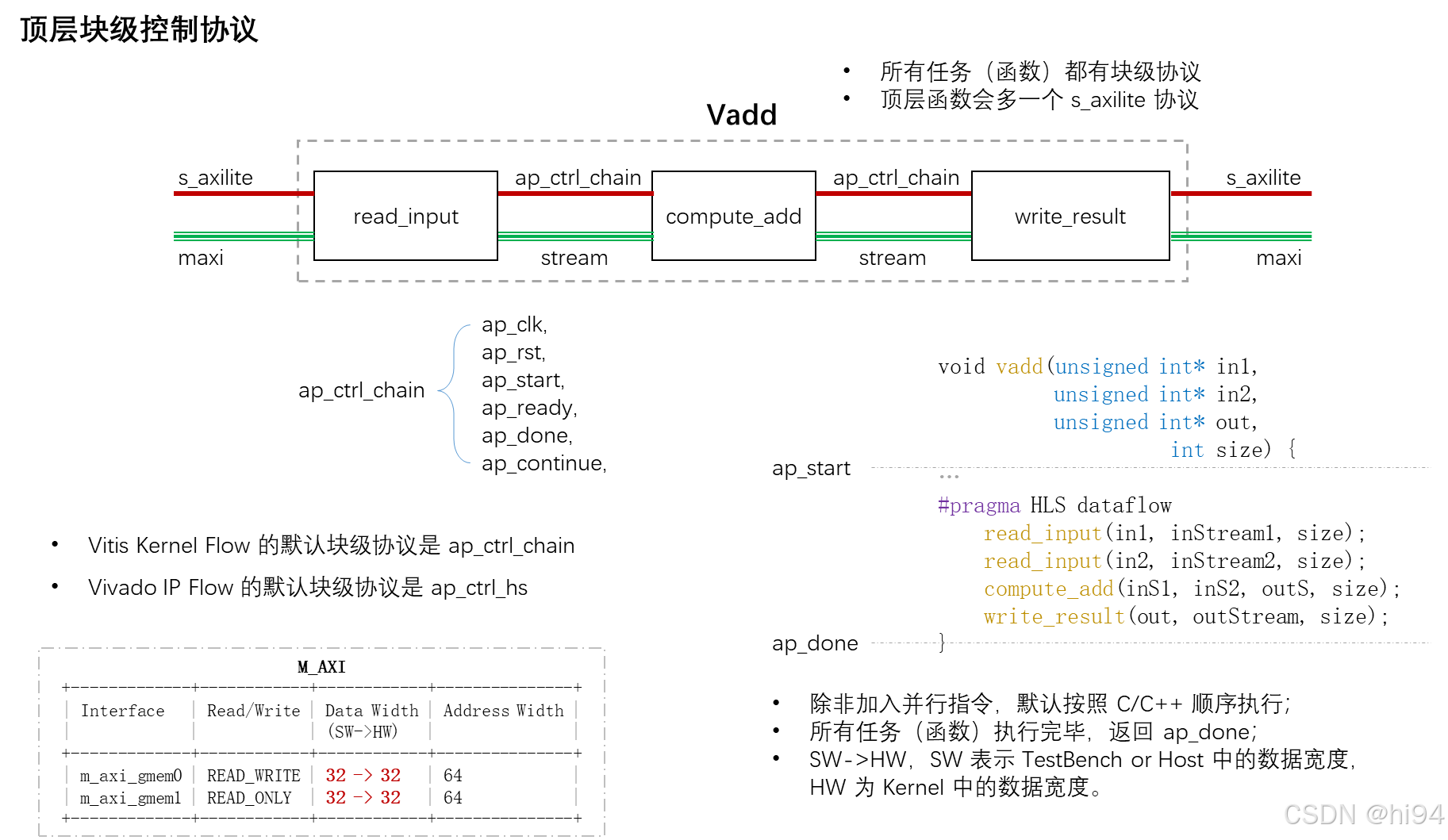

3.2 理解控制协议

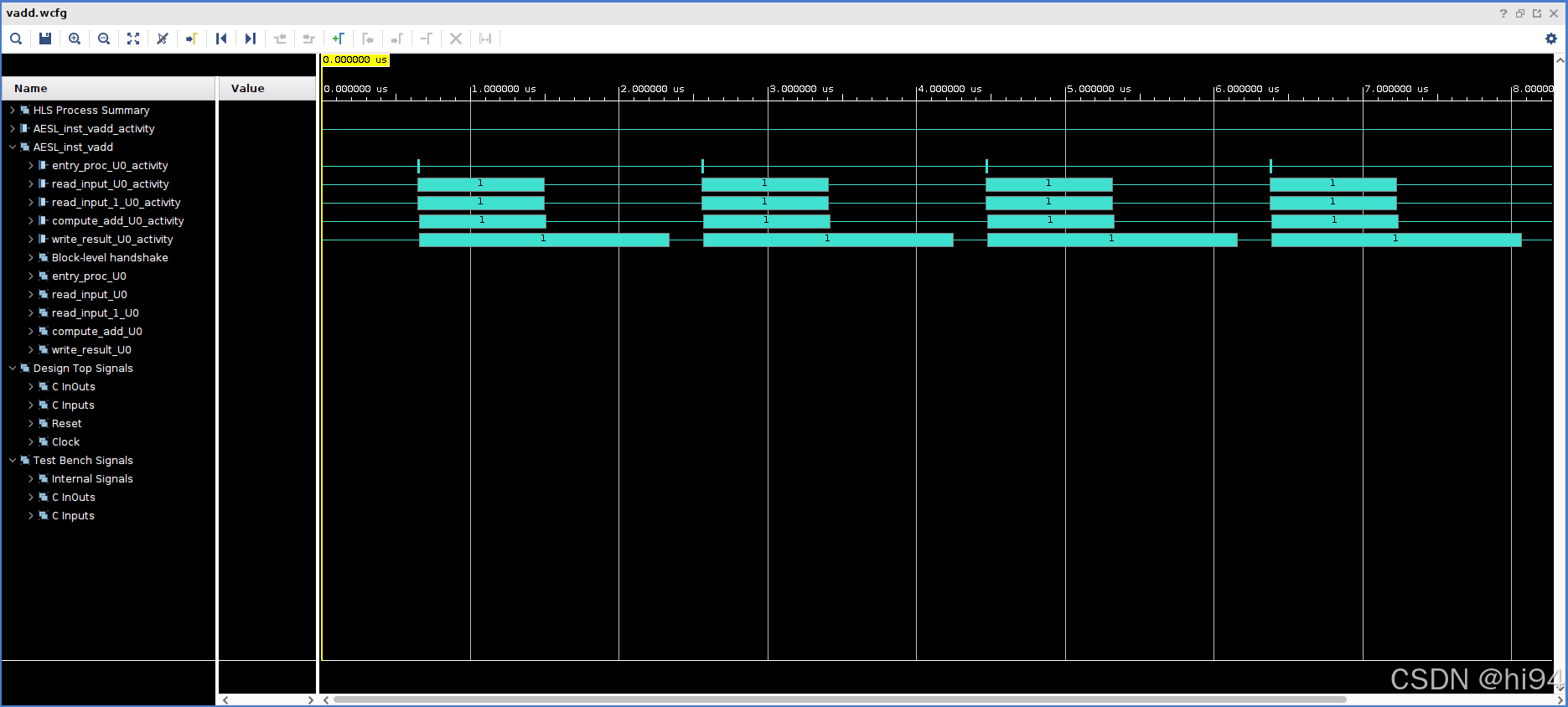

3.3 Wave Viewer
3.3.1 整体波形
通过 Wave Viewer，观察三个模块之间的块级协议是如何工作的。
3.3.2 ap_ctrl 信号
比如，ap_start ap_done ap_continue 等信号的变化。
4. 模块拆分
4.1 分析
如果将 read_input、compute_add、write_result 将失去顶层协议。
与 mm2s、s2mm 情况类似。
4.2 compute_add
#include <stdint.h>
#include <hls_stream.h>
const int c_size = 4096;
extern "C" {
void example(hls::stream<unsigned int>& inStream1,
hls::stream<unsigned int>& inStream2,
hls::stream<unsigned int>& outStream,
int size) {
#pragma HLS INTERFACE mode=ap_ctrl_chain port=return
compute:
for (int i = 0; i < size; i++) {
#pragma HLS LOOP_TRIPCOUNT min = c_size max = c_size
outStream << (inStream1.read() + inStream2.read());
}
}
}config file：
part=xck26-sfvc784-2LV-c
[hls]
flow_target=vivado
package.output.format=ip_catalog
package.output.syn=false
syn.file=compute_vadd.cpp
syn.top=example4.2 IP 图
注意：需要修改 IP 中 stream port 的 Master/Slave 属性。
5. 总结
- 区分 axis 与 ap_fifo
- #pragma HLS interface axis port=s
