此前使用的nacos版本是1.4.5，现在nacos最新版本为2.2.2，且修复了旧版本的一些安全问题，下面把详细的升级步骤记录一下，大家一起学习，亲测有效。
主要参考nacos官方升级文档：https://nacos.io/zh-cn/docs/v2/upgrading/2.0.0-upgrading.html
和官方鉴权操作：https://nacos.io/zh-cn/docs/v2/guide/user/auth.html
但是在实际操作会有一些问题，这里作补充说明。我在升级过程中遇到了2个主要的问题：
1、nacos 报错 Unknown column ‘encrypted_data_key’ in ‘field list’*
2、Unable to start embedded Tomcat
解决方法在后面的详细操作步骤中！！！

开始操作前先下载最新的nacos版本2.2.2：https://github.com/alibaba/nacos/releases
如已下载可跳过，直接到操作步骤！！！

也可以选择自己想要升级的版本，点击tags进行版本选择


选择版本后，接到最下面进行下载

好了，现在开始升级操作吧

一、停止旧节点

使用Nacos目录下nacos/bin/shutdown.sh进行停止。

二、替换文件

【先备份nacos目录下的bin、conf、target文件，防止升级失败可进行回滚操作。】
下载并解压缩nacos-server-2.0.2.tar.gz，将其下的bin，conf，target目录覆盖原Nacos1.X的安装目录下。

三、修改配置

使用startup.sh、application.properties 进行替换【代码已提供，可直接复制】，然后再修改nacos/bin/startup.sh中的JVM参数，conf/application.properties中数据库或其他相关参数。

修改启动脚本：

#!/bin/bash

# Copyright 1999-2018 Alibaba Group Holding Ltd.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at

#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

cygwin=false
darwin=false
os400=false
case "`uname`" in
CYGWIN*) cygwin=true;;
Darwin*) darwin=true;;
OS400*) os400=true;;
esac
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/opt/taobao/java
[ ! -e "$JAVA_HOME/bin/java" ] && unset JAVA_HOME

if [ -z "$JAVA_HOME" ]; then
  if $darwin; then

    if [ -x '/usr/libexec/java_home' ] ; then
      export JAVA_HOME=`/usr/libexec/java_home`

    elif [ -d "/System/Library/Frameworks/JavaVM.framework/Versions/CurrentJDK/Home" ]; then
      export JAVA_HOME="/System/Library/Frameworks/JavaVM.framework/Versions/CurrentJDK/Home"
    fi
  else
    JAVA_PATH=`dirname $(readlink -f $(which javac))`
    if [ "x$JAVA_PATH" != "x" ]; then
      export JAVA_HOME=`dirname $JAVA_PATH 2>/dev/null`
    fi
  fi
  if [ -z "$JAVA_HOME" ]; then
        error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)! jdk8 or later is better!"
  fi
fi

export SERVER="nacos-server"
export MODE="cluster"
export FUNCTION_MODE="all"
export MEMBER_LIST=""
export EMBEDDED_STORAGE=""
while getopts ":m:f:s:c:p:" opt
do
    case $opt in
        m)
            MODE=$OPTARG;;
        f)
            FUNCTION_MODE=$OPTARG;;
        s)
            SERVER=$OPTARG;;
        c)
            MEMBER_LIST=$OPTARG;;
        p)
            EMBEDDED_STORAGE=$OPTARG;;
        ?)
        echo "Unknown parameter"
        exit 1;;
    esac
done

export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=`cd $(dirname $0)/..; pwd`
export CUSTOM_SEARCH_LOCATIONS=file:${BASE_DIR}/conf/

#===========================================================================================
# JVM Configuration
#===========================================================================================
if [[ "${MODE}" == "standalone" ]]; then
    JAVA_OPT="${JAVA_OPT} -Xms8192m -Xmx8192m -Xmn4096m"
    JAVA_OPT="${JAVA_OPT} -Dnacos.standalone=true"
else
    if [[ "${EMBEDDED_STORAGE}" == "embedded" ]]; then
        JAVA_OPT="${JAVA_OPT} -DembeddedStorage=true"
    fi
    JAVA_OPT="${JAVA_OPT} -server -Xms2g -Xmx2g -Xmn1g -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"
    JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=${BASE_DIR}/logs/java_heapdump.hprof"
    JAVA_OPT="${JAVA_OPT} -XX:-UseLargePages"

fi

if [[ "${FUNCTION_MODE}" == "config" ]]; then
    JAVA_OPT="${JAVA_OPT} -Dnacos.functionMode=config"
elif [[ "${FUNCTION_MODE}" == "naming" ]]; then
    JAVA_OPT="${JAVA_OPT} -Dnacos.functionMode=naming"
fi

JAVA_OPT="${JAVA_OPT} -Dnacos.member.list=${MEMBER_LIST}"

JAVA_MAJOR_VERSION=$($JAVA -version 2>&1 | sed -E -n 's/.* version "([0-9]*).*$/\1/p')
if [[ "$JAVA_MAJOR_VERSION" -ge "9" ]] ; then
  JAVA_OPT="${JAVA_OPT} -Xlog:gc*:file=${BASE_DIR}/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m"
else
  JAVA_OPT_EXT_FIX="-Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${JAVA_HOME}/lib/ext"
  JAVA_OPT="${JAVA_OPT} -Xloggc:${BASE_DIR}/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M"
fi

JAVA_OPT="${JAVA_OPT} -Dloader.path=${BASE_DIR}/plugins,${BASE_DIR}/plugins/health,${BASE_DIR}/plugins/cmdb,${BASE_DIR}/plugins/selector"
JAVA_OPT="${JAVA_OPT} -Dnacos.home=${BASE_DIR}"
JAVA_OPT="${JAVA_OPT} -jar ${BASE_DIR}/target/${SERVER}.jar"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} --spring.config.additional-location=${CUSTOM_SEARCH_LOCATIONS}"
JAVA_OPT="${JAVA_OPT} --logging.config=${BASE_DIR}/conf/nacos-logback.xml"
JAVA_OPT="${JAVA_OPT} --server.max-http-header-size=524288"

if [ ! -d "${BASE_DIR}/logs" ]; then
  mkdir ${BASE_DIR}/logs
fi

echo "$JAVA $JAVA_OPT_EXT_FIX ${JAVA_OPT}"

if [[ "${MODE}" == "standalone" ]]; then
    echo "nacos is starting with standalone"
else
    echo "nacos is starting with cluster"
fi

# check the start.out log output file
if [ ! -f "${BASE_DIR}/logs/start.out" ]; then
  touch "${BASE_DIR}/logs/start.out"
fi
# start
echo "$JAVA $JAVA_OPT_EXT_FIX ${JAVA_OPT}" > ${BASE_DIR}/logs/start.out 2>&1 &

if [[ "$JAVA_OPT_EXT_FIX" == "" ]]; then
  nohup "$JAVA" ${JAVA_OPT} nacos.nacos >> ${BASE_DIR}/logs/start.out 2>&1 &
else
  nohup "$JAVA" "$JAVA_OPT_EXT_FIX" ${JAVA_OPT} nacos.nacos >> ${BASE_DIR}/logs/start.out 2>&1 &
fi

echo "nacos is starting，you can check the ${BASE_DIR}/logs/start.out"

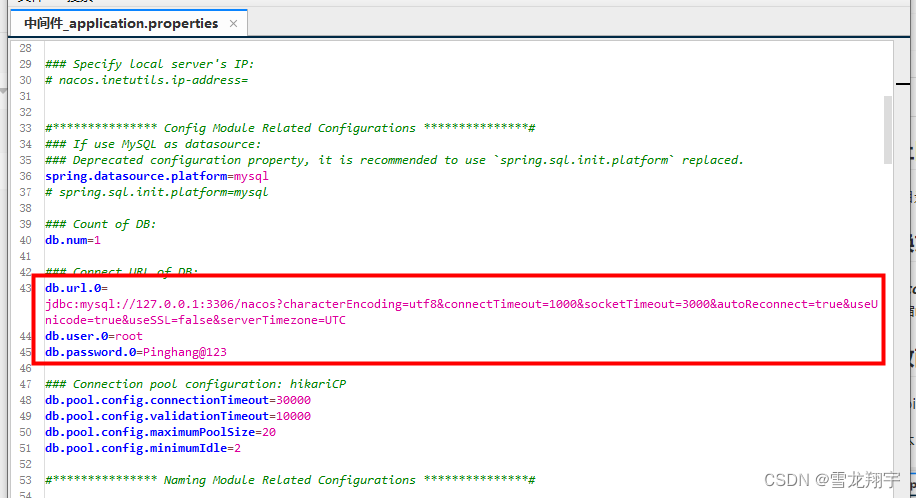

修改application.properties

主要是修改mysql数据库配置

#
# Copyright 1999-2021 Alibaba Group Holding Ltd.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

#*************** Spring Boot Related Configurations ***************#
### Default web context path:
server.servlet.contextPath=/nacos
### Include message field
server.error.include-message=ALWAYS
### Default web server port:
server.port=8848

#*************** Network Related Configurations ***************#
### If prefer hostname over ip for Nacos server addresses in cluster.conf:
# nacos.inetutils.prefer-hostname-over-ip=false

### Specify local server's IP:
# nacos.inetutils.ip-address=


#*************** Config Module Related Configurations ***************#
### If use MySQL as datasource:
### Deprecated configuration property, it is recommended to use `spring.sql.init.platform` replaced.
spring.datasource.platform=mysql
# spring.sql.init.platform=mysql

### Count of DB:
db.num=1

### Connect URL of DB:
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
db.user.0=xxxxx
db.password.0=xxxxx

### Connection pool configuration: hikariCP
db.pool.config.connectionTimeout=30000
db.pool.config.validationTimeout=10000
db.pool.config.maximumPoolSize=20
db.pool.config.minimumIdle=2

#*************** Naming Module Related Configurations ***************#

### If enable data warmup. If set to false, the server would accept request without local data preparation:
# nacos.naming.data.warmup=true

### If enable the instance auto expiration, kind like of health check of instance:
# nacos.naming.expireInstance=true
nacos.naming.empty-service.auto-clean=true
nacos.naming.empty-service.clean.initial-delay-ms=50000
nacos.naming.empty-service.clean.period-time-ms=30000

### Add in 2.0.0
### The interval to clean empty service, unit: milliseconds.
# nacos.naming.clean.empty-service.interval=60000

### The expired time to clean empty service, unit: milliseconds.
# nacos.naming.clean.empty-service.expired-time=60000

### The interval to clean expired metadata, unit: milliseconds.
# nacos.naming.clean.expired-metadata.interval=5000

### The expired time to clean metadata, unit: milliseconds.
# nacos.naming.clean.expired-metadata.expired-time=60000

### The delay time before push task to execute from service changed, unit: milliseconds.
# nacos.naming.push.pushTaskDelay=500

### The timeout for push task execute, unit: milliseconds.
# nacos.naming.push.pushTaskTimeout=5000

### The delay time for retrying failed push task, unit: milliseconds.
# nacos.naming.push.pushTaskRetryDelay=1000

### Since 2.0.3
### The expired time for inactive client, unit: milliseconds.
# nacos.naming.client.expired.time=180000

#*************** CMDB Module Related Configurations ***************#
### The interval to dump external CMDB in seconds:
# nacos.cmdb.dumpTaskInterval=3600

### The interval of polling data change event in seconds:
# nacos.cmdb.eventTaskInterval=10

### The interval of loading labels in seconds:
# nacos.cmdb.labelTaskInterval=300

### If turn on data loading task:
# nacos.cmdb.loadDataAtStart=false


#*************** Metrics Related Configurations ***************#
### Metrics for prometheus
#management.endpoints.web.exposure.include=*

### Metrics for elastic search
management.metrics.export.elastic.enabled=false
#management.metrics.export.elastic.host=http://localhost:9200

### Metrics for influx
management.metrics.export.influx.enabled=false
#management.metrics.export.influx.db=springboot
#management.metrics.export.influx.uri=http://localhost:8086
#management.metrics.export.influx.auto-create-db=true
#management.metrics.export.influx.consistency=one
#management.metrics.export.influx.compressed=true

#*************** Access Log Related Configurations ***************#
### If turn on the access log:
server.tomcat.accesslog.enabled=true

### The access log pattern:
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i

### The directory of access log:
server.tomcat.basedir=file:.

#*************** Access Control Related Configurations ***************#
### If enable spring security, this option is deprecated in 1.2.0:
#spring.security.enabled=false

### The ignore urls of auth
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**

### The auth system to use, currently only 'nacos' and 'ldap' is supported:
nacos.core.auth.system.type=nacos

### If turn on auth system:
nacos.core.auth.enabled=false

### Turn on/off caching of auth information. By turning on this switch, the update of auth information would have a 15 seconds delay.
nacos.core.auth.caching.enabled=true

### Since 1.4.1, Turn on/off white auth for user-agent: nacos-server, only for upgrade from old version.
#nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.enable.userAgentAuthWhite=true

### Since 1.4.1, worked when nacos.core.auth.enabled=true and nacos.core.auth.enable.userAgentAuthWhite=false.
### The two properties is the white list for auth and used by identity the request from other server.
nacos.core.auth.server.identity.key=
nacos.core.auth.server.identity.value=

### worked when nacos.core.auth.system.type=nacos
### The token expiration in seconds:
nacos.core.auth.plugin.nacos.token.cache.enable=false
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
### The default token (Base64 String):
nacos.core.auth.plugin.nacos.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789

### worked when nacos.core.auth.system.type=ldap，{0} is Placeholder,replace login username
#nacos.core.auth.ldap.url=ldap://localhost:389
#nacos.core.auth.ldap.basedc=dc=example,dc=org
#nacos.core.auth.ldap.userDn=cn=admin,${nacos.core.auth.ldap.basedc}
#nacos.core.auth.ldap.password=admin
#nacos.core.auth.ldap.userdn=cn={0},dc=example,dc=org
#nacos.core.auth.ldap.filter.prefix=uid
#nacos.core.auth.ldap.case.sensitive=true


#*************** Istio Related Configurations ***************#
### If turn on the MCP server:
nacos.istio.mcp.server.enabled=false

#*************** Core Related Configurations ***************#

### set the WorkerID manually
# nacos.core.snowflake.worker-id=

### Member-MetaData
# nacos.core.member.meta.site=
# nacos.core.member.meta.adweight=
# nacos.core.member.meta.weight=

### MemberLookup
### Addressing pattern category, If set, the priority is highest
# nacos.core.member.lookup.type=[file,address-server]
## Set the cluster list with a configuration file or command-line argument
# nacos.member.list=192.168.16.101:8847?raft_port=8807,192.168.16.101?raft_port=8808,192.168.16.101:8849?raft_port=8809
## for AddressServerMemberLookup
# Maximum number of retries to query the address server upon initialization
# nacos.core.address-server.retry=5
## Server domain name address of [address-server] mode
#address.server.domain=jmenv.tbsite.net
## Server port of [address-server] mode
#address.server.port=8080
## Request address of [address-server] mode
#address.server.url=/nacos/serverlist

#*************** JRaft Related Configurations ***************#

### Sets the Raft cluster election timeout, default value is 5 second
# nacos.core.protocol.raft.data.election_timeout_ms=5000
### Sets the amount of time the Raft snapshot will execute periodically, default is 30 minute
# nacos.core.protocol.raft.data.snapshot_interval_secs=30
### raft internal worker threads
# nacos.core.protocol.raft.data.core_thread_num=8
### Number of threads required for raft business request processing
# nacos.core.protocol.raft.data.cli_service_thread_num=4
### raft linear read strategy. Safe linear reads are used by default, that is, the Leader tenure is confirmed by heartbeat
# nacos.core.protocol.raft.data.read_index_type=ReadOnlySafe
### rpc request timeout, default 5 seconds
# nacos.core.protocol.raft.data.rpc_request_timeout_ms=5000

#*************** Distro Related Configurations ***************#

### Distro data sync delay time, when sync task delayed, task will be merged for same data key. Default 1 second.
# nacos.core.protocol.distro.data.sync.delayMs=1000

### Distro data sync timeout for one sync data, default 3 seconds.
# nacos.core.protocol.distro.data.sync.timeoutMs=3000

### Distro data sync retry delay time when sync data failed or timeout, same behavior with delayMs, default 3 seconds.
# nacos.core.protocol.distro.data.sync.retryDelayMs=3000

### Distro data verify interval time, verify synced data whether expired for a interval. Default 5 seconds.
# nacos.core.protocol.distro.data.verify.intervalMs=5000

### Distro data verify timeout for one verify, default 3 seconds.
# nacos.core.protocol.distro.data.verify.timeoutMs=3000

### Distro data load retry delay when load snapshot data failed, default 30 seconds.
# nacos.core.protocol.distro.data.load.retryDelayMs=30000

### enable to support prometheus service discovery
#nacos.prometheus.metrics.enabled=true

### Since 2.3
#*************** Grpc Configurations ***************#

## sdk grpc(between nacos server and client) configuration
## Sets the maximum message size allowed to be received on the server.
#nacos.remote.server.grpc.sdk.max-inbound-message-size=10485760

## Sets the time(milliseconds) without read activity before sending a keepalive ping. The typical default is two hours.
#nacos.remote.server.grpc.sdk.keep-alive-time=7200000

## Sets a time(milliseconds) waiting for read activity after sending a keepalive ping. Defaults to 20 seconds.
#nacos.remote.server.grpc.sdk.keep-alive-timeout=20000


## Sets a time(milliseconds) that specify the most aggressive keep-alive time clients are permitted to configure. The typical default is 5 minutes
#nacos.remote.server.grpc.sdk.permit-keep-alive-time=300000

## cluster grpc(inside the nacos server) configuration
#nacos.remote.server.grpc.cluster.max-inbound-message-size=10485760

## Sets the time(milliseconds) without read activity before sending a keepalive ping. The typical default is two hours.
#nacos.remote.server.grpc.cluster.keep-alive-time=7200000

## Sets a time(milliseconds) waiting for read activity after sending a keepalive ping. Defaults to 20 seconds.
#nacos.remote.server.grpc.cluster.keep-alive-timeout=20000

## Sets a time(milliseconds) that specify the most aggressive keep-alive time clients are permitted to configure. The typical default is 5 minutes
#nacos.remote.server.grpc.cluster.permit-keep-alive-time=300000

四、数据库表字段添加

nacos 报错 Unknown column ‘encrypted_data_key’ in ‘field list’
看提示是数据表缺少encrypted_data_key字段，那就手动为据表添加该字段
为保证用户敏感配置数据的安全，Nacos 提供了配置加密的新特性。降低了用户使用的风险，也不需要再对配置进行单独的加密处理。
数据库表 config_info、config_info_beta、his_config_info中需要新增字段 encrypted_data_key ，用来存储每一个配置项加密使用的秘钥。新版本的默认创建表的sql中已经添加该字段。

ALTER TABLE config_info ADD COLUMN `encrypted_data_key` text NOT NULL COMMENT '秘钥';
ALTER TABLE his_config_info ADD COLUMN `encrypted_data_key` text NOT NULL COMMENT '秘钥';
ALTER TABLE config_info_beta ADD COLUMN `encrypted_data_key` text NOT NULL COMMENT '秘钥';

五、启动Nacos2.x

进入Nacos目录下nacos/bin/startup.sh 进行启动
命令：sh startup.sh 默认是集群模式下的启动
如果是单机版使用命令：sh startup.sh -m standalone
否则会有会有异常：
