Linux|gitlab|二进制快速安装部署gitlab-ce教程

news2025/4/2 12:10:02

一、

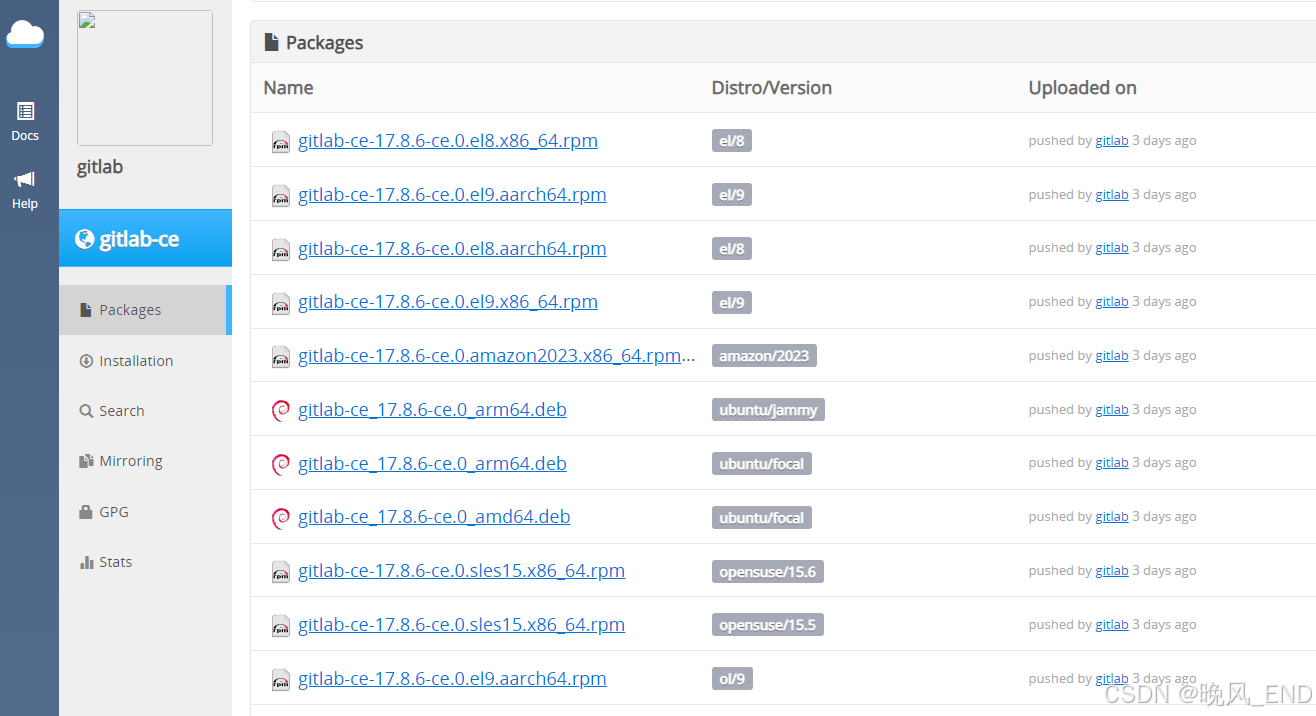

gitlab二进制文件下载地址:

官方网站:

gitlab/gitlab-ce - Packages · packages.gitlab.com

清华镜像站:

Index of /gitlab-ce/yum/ | 清华大学开源软件镜像站 | Tsinghua Open Source Mirror

gitlab分为ce也就是社区版本和ee版本,也就是企业版,当然现在选择的是社区版啦,这里说明一下,gitlab是用ruby语言写的,因此,初始化的时候会看到非常多的ruby脚本在执行

🆗,还有什么fips版本,什么是fips?合规监管要求其必须使用符合FIPS规范。FIPS 140-2和 FIPS 140-3 定义了用于计算机和电信系统以及保护敏感信息的网络系统中的加密模块的安全要求,也就是这样的版本更加安全,同时意味着更多的麻烦,部署方面的麻烦,fips版本下载地址:

gitlab/gitlab-fips - Packages · packages.gitlab.com

本次部署使用的是gitlab-ce-17.7.7-ce.0.el7.x86_64.rpm ,在centos7操作系统下部署成功

二、

安装部署流程

1、

yum安装gitlab-ce-17.7.7

上传gitlab-ce-17.7.7-ce.0.el7.x86_64.rpm,配置yum源,至少需要阿里云的base源,epel源,如果实在是懒得配置yum,可以使用离线安装源

离线yum安装源下载地址:

通过网盘分享的文件:gitlab-install
链接: https://pan.baidu.com/s/1mLDg6T6UjH5crsQwYaepsg?pwd=y71m 提取码: y71m

配置离线yum源,gitlab-install文件夹放置到root目录下

[gitlab]
name=gitlab Repository (x86_64)
baseurl=file:///root/gitlab-install
enabled=1
gpgcheck=0

安装命令为:

 yum install /root/gitlab-install/gitlab-ce-17.7.7-ce.0.e


依赖的rpm包如下;

 audit-libs-python      x86_64 2.8.5-4.el7     base_x86_64            76 k
 checkpolicy            x86_64 2.5-8.el7       base_x86_64           295 k
 libcgroup              x86_64 0.41-21.el7     base_x86_64            66 k
 libsemanage-python     x86_64 2.5-14.el7      base_x86_64           113 k
 policycoreutils-python x86_64 2.5-34.el7      base_x86_64           457 k
 python-IPy             noarch 0.75-6.el7      base_x86_64            32 k
 setools-libs           x86_64 3.3.8-4.el7     base_x86_64           620 k
Updating for dependencies:
 policycoreutils        x86_64 2.5-34.el7      base_x86_64           917 k

重要提示如下:

Thank you for installing GitLab!
GitLab was unable to detect a valid hostname for your instance.
Please configure a URL for your GitLab instance by setting `external_url`
configuration in /etc/gitlab/gitlab.rb file.
Then, you can start your GitLab instance by running the following command:
  sudo gitlab-ctl reconfigure

For a comprehensive list of configuration options please see the Omnibus GitLab readme
https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/README.md

Help us improve the installation experience, let us know how we did with a 1 minute survey:
https://gitlab.fra1.qualtrics.com/jfe/form/SV_6kVqZANThUQ1bZb?installation=omnibus&release=17-7

以上提示意思是external_url需要设置,配置文件是/etc/gitlab/gitlab.rb,gitlab的启动命令是gitlab-ctl reconfigure

2、

gitlab配置文件的修改

主要是external_url的定义,这里采用服务器IP+端口的形式就可以了,如果不想gitlab默认在80端口启动,我这里修改为19000端口启动:

external_url 'http://192.168.123.14:19000'

3、

初始化和启动gitlab

gitlab是默认安装在/opt目录下的,查看/opt/gitlab/version-manifest.txt ,可以看到gitlab使用的组件有哪些

对该文件分析,可以得出gitlab是一个软件集合,有非常多的组件组合而成,这些组件都是内置形式放在/opt/gitlab/embedded 这个目录下,很多组件是大家很熟悉的,比如postgresql数据库,redis数据库,nginx等等,pg数据库版本是比较高的哦,应该是14版本

service是服务配置文件存放目录,由于还没有初始化,也就是gitlab-ctl reconfigure命令还没执行,因此,现在是没有什么文件的

bin目录是gitlab的命令行工具,其中包括gitlab-ctl这个命令

[root@centos14 ~]# cat /opt/gitlab/version-manifest.txt
gitlab-ce 17.7.7

Component                    Installed Version                          Version GUID
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
alertmanager                 v0.27.0                                    git:0aa3c2aad14cff039931923ab16b26b7481783b5
bzip2                        1.0.8                                      sha512:083f5e675d73f3233c7930ebe20425a533feedeaaa9d8cc86831312a6581cefbe6ed0d08d2fa89be81082f2a5abdabca8b3c080bf97218a1bd59dc118a30b9f3
cacerts                      2022.07.19                                 sha256:6ed95025fba2aef0ce7b647607225745624497f876d74ef6ec22b26e73e9de77
chef-acme                    v4.1.6                                     git:c670bfbcdd7957fa052872c23e38dfba7eef02dc
chef-gem                     18.3.0
compat_resource              v12.19.1                                   git:e36200f6b804915b68a4ce74c8b7a293c041d9fe
config_guess                 c9092d05347c925a26f6887980e185206e13f9d6   git:00b15927496058d23e6258a28d8996f87cf1f191
curl                         curl-8_11_0                                git:b1ef0e1a01c0bb6ee5367bd9c186a603bde3615a
docker-distribution-pruner   v0.2.0                                     git:a796e3670d508529da84ac66f242d87ff7803609
exiftool                     12.99                                      git:4981552ec9bf94a0b5a64a06919b5e4f797c208e
git                          v17.7.7                                    git:c1e7db8408da156064fd6eadfa625bccf25b0309
git-filter-repo              v2.47.0
gitaly                       v17.7.7                                    git:c1e7db8408da156064fd6eadfa625bccf25b0309
gitlab-backup-cli            11bd2a07e00a1c1de5d6a7dfe4301fe4
gitlab-config-template       17.7.7
gitlab-cookbooks             17.7.7
gitlab-ctl                   17.7.7
gitlab-exporter              15.0.0
gitlab-healthcheck           0060154a010637bec197fb38217ddcbc
gitlab-kas                   v17.7.7                                    git:627b1fb728ba5e6b760b034e89f8e7b92803516c
gitlab-pages                 v17.7.7                                    git:c51b9359e4eb1ab417717ac841fb2859219d7828

初始化gitlab

这里的初始化其实就是载入/etc/gitlab/gitlab.rb配置文件,并依据此配置文件生成各个组件的配置文件,命令为gitlab-ctl reconfigure,但gitlab-ctl还没有加入系统环境变量,因此,使用全路径:

/opt/gitlab/bin/gitlab-ctl reconfigure

初始化完成后的日志结尾如下:

[2025-03-29T14:06:22+08:00] INFO: execute[reload all sysctl conf] ran successfully
    - execute sysctl -e --system
[2025-03-29T14:06:22+08:00] INFO: directory[/var/opt/gitlab/gitlab-workhorse/sockets] sending restart action to runit_service[gitlab-workhorse] (delayed)
Recipe: gitlab::gitlab-workhorse
  * runit_service[gitlab-workhorse] action restart (up to date)
[2025-03-29T14:06:23+08:00] INFO: version_file[Create version file for NGINX] sending restart action to runit_service[nginx] (delayed)
Recipe: nginx::enable
  * runit_service[nginx] action restart (up to date)
[2025-03-29T14:06:23+08:00] INFO: env_dir[/opt/gitlab/etc/node-exporter/env] sending restart action to runit_service[node-exporter] (delayed)
Recipe: monitoring::node-exporter
  * runit_service[node-exporter] action restart (up to date)
[2025-03-29T14:06:24+08:00] INFO: env_dir[/opt/gitlab/etc/gitlab-exporter/env] sending restart action to runit_service[gitlab-exporter] (delayed)
Recipe: monitoring::gitlab-exporter
  * runit_service[gitlab-exporter] action restart (up to date)
[2025-03-29T14:06:24+08:00] INFO: env_dir[/opt/gitlab/etc/redis-exporter/env] sending restart action to runit_service[redis-exporter] (delayed)
Recipe: monitoring::redis-exporter
  * runit_service[redis-exporter] action restart (up to date)
[2025-03-29T14:06:25+08:00] INFO: env_dir[/opt/gitlab/etc/prometheus/env] sending restart action to runit_service[prometheus] (delayed)
Recipe: monitoring::prometheus
  * runit_service[prometheus] action restart (up to date)
[2025-03-29T14:06:25+08:00] INFO: file[Prometheus config] sending run action to execute[reload prometheus] (delayed)
  * execute[reload prometheus] action run[2025-03-29T14:06:26+08:00] INFO: execute[reload prometheus] ran successfully

    - execute /opt/gitlab/bin/gitlab-ctl hup prometheus
[2025-03-29T14:06:26+08:00] INFO: env_dir[/opt/gitlab/etc/alertmanager/env] sending restart action to runit_service[alertmanager] (delayed)
Recipe: monitoring::alertmanager
  * runit_service[alertmanager] action restart (up to date)
[2025-03-29T14:06:26+08:00] INFO: env_dir[/opt/gitlab/etc/postgres-exporter/env] sending restart action to runit_service[postgres-exporter] (delayed)
Recipe: monitoring::postgres-exporter
  * runit_service[postgres-exporter] action restart (up to date)
[2025-03-29T14:06:27+08:00] INFO: Cinc Client Run complete in 180.963016661 seconds

Running handlers:
[2025-03-29T14:06:27+08:00] INFO: Running report handlers
Running handlers complete
[2025-03-29T14:06:27+08:00] INFO: Report handlers complete
Infra Phase complete, 581/1612 resources updated in 03 minutes 02 seconds

Deprecations:
Your OS, centos-7.7.1908, will be deprecated soon.
Starting with GitLab 17.8, packages will not be built for it.
Switch or upgrade to a supported OS, see https://docs.gitlab.com/ee/administration/package_information/supported_os.html for more information.

Update the configuration in your gitlab.rb file or GITLAB_OMNIBUS_CONFIG environment.


Notes:
Default admin account has been configured with following details:
Username: root
Password: You didn't opt-in to print initial root password to STDOUT.
Password stored to /etc/gitlab/initial_root_password. This file will be cleaned up in first reconfigure run after 24 hours.

NOTE: Because these credentials might be present in your log files in plain text, it is highly recommended to reset the password following https://docs.gitlab.com/ee/security/reset_user_password.html#reset-your-root-password.

gitlab Reconfigured!

初始化主要做的工作就是启动各个内置服务,比如Prometheus,postgresql,redis等等组件,并告诉你密码存放在了/etc/gitlab/initial_root_password这个文件内,查看此文件:

[root@centos14 bin]# cat /etc/gitlab/initial_root_password
# WARNING: This value is valid only in the following conditions
#          1. If provided manually (either via `GITLAB_ROOT_PASSWORD` environment variable or via `gitlab_rails['initial_root_password']` setting in `gitlab.rb`, it was provided before database was seeded for the first time (usually, the first reconfigure run).
#          2. Password hasn't been changed manually, either via UI or via command line.
#
#          If the password shown here doesn't work, you must reset the admin password following https://docs.gitlab.com/ee/security/reset_user_password.html#reset-your-root-password.

Password: OlS0EtPMZJAfKMVAq5bVsgO1OA5D5HYxeZ+SPgqjE=111

# NOTE: This file will be automatically deleted in the first reconfigure run after 24 hours.

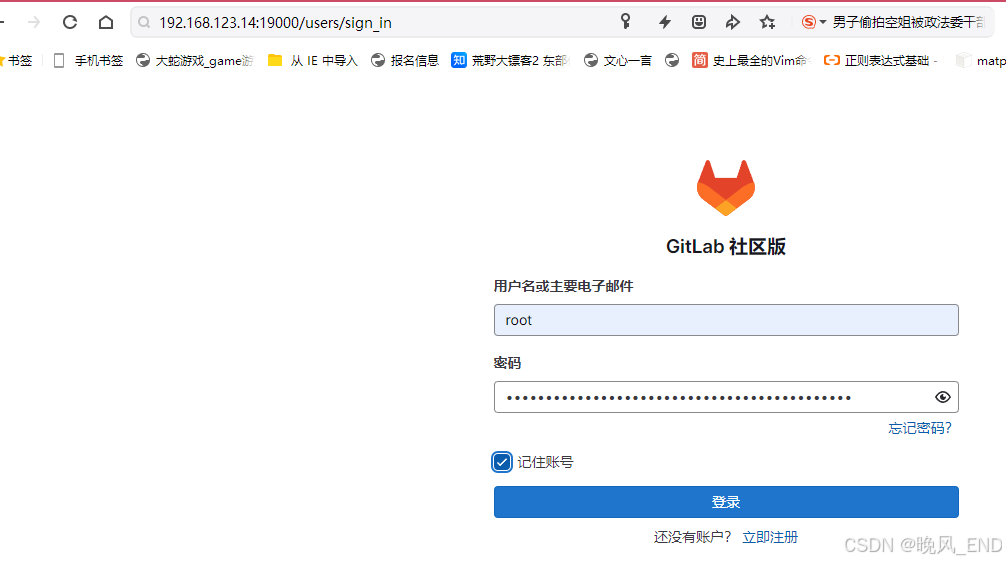

打开浏览器,输入前面设定的extend-url,也就是192.168.123.14:19000 ,账号root,密码如上,就可以访问自己搭建的gitlab了:

🆗,如果需要启用https,那么,/etc/gitlab/gitlab.rb这个文件内的external_url 'http://192.168.123.14:19000' 修改为external_url 'https://192.168.123.14:19000' ,并再次执行初始化就可以以https登陆了

注意,这里密码不会在改变了,除非你更改了密码

如果启用https的时候使用的是IP,那么,会报个错,但不影响使用,最好还是使用域名:

Running handlers:
[2025-03-29T14:15:59+08:00] ERROR: Running exception handlers
There was an error running gitlab-ctl reconfigure:

letsencrypt_certificate[192.168.123.14] (letsencrypt::http_authorization line 6) had an error: Acme::Client::Error::RejectedIdentifier: acme_certificate[staging] (letsencrypt::http_authorization line 43) had an error: Acme::Client::Error::RejectedIdentifier: Invalid identifiers requested :: Cannot issue for "192.168.123.14": The ACME server can not issue a certificate for an IP address

3、

gitlab的启动,重启等管理

Service Management Commands:
  graceful-kill
    Attempt a graceful stop, then SIGKILL the entire process group.
  hup
    Send the services a HUP.
  int
    Send the services an INT.
  kill
    Send the services a KILL.
  once
    Start the services if they are down. Do not restart them if they stop.
  restart
    Stop the services if they are running, then start them again.
  restart-except
    Restart all services except: service_name ...
  service-list
    List all the services (enabled services appear with a *.)
  start
    Start services if they are down, and restart them if they stop.
  status
    Show the status of all the services.
  stop
    Stop the services, and do not restart them.
  tail
    Watch the service logs of all enabled services.
  term
    Send the services a TERM.
  usr1
    Send the services a USR1.
  usr2
    Send the services a USR2.

根据以上,可以得出,启动,重启,可以使用stop,restart,start等等参数,例如,停止gitlab;

[root@centos14 bin]# /opt/gitlab/bin/gitlab-ctl stop
ok: down: alertmanager: 1s, normally up
ok: down: crond: 0s, normally up
ok: down: gitaly: 1s, normally up
ok: down: gitlab-exporter: 0s, normally up
ok: down: gitlab-kas: 0s, normally up
ok: down: gitlab-workhorse: 1s, normally up
ok: down: logrotate: 0s, normally up
ok: down: nginx: 1s, normally up
ok: down: node-exporter: 0s, normally up
ok: down: postgres-exporter: 1s, normally up
ok: down: postgresql: 0s, normally up
ok: down: prometheus: 0s, normally up
ok: down: puma: 0s, normally up
ok: down: redis: 0s, normally up
ok: down: redis-exporter: 1s, normally up
ok: down: registry: 0s, normally up
ok: down: sidekiq: 0s, normally up

启动gitlab:

[root@centos14 bin]# /opt/gitlab/bin/gitlab-ctl start
ok: run: alertmanager: (pid 14237) 0s
ok: run: crond: (pid 14247) 0s
ok: run: gitaly: (pid 14256) 1s
ok: run: gitlab-exporter: (pid 14276) 0s
ok: run: gitlab-kas: (pid 14287) 0s
ok: run: gitlab-workhorse: (pid 14297) 0s
ok: run: logrotate: (pid 14307) 0s
ok: run: nginx: (pid 14313) 1s
ok: run: node-exporter: (pid 14330) 0s
ok: run: postgres-exporter: (pid 14336) 1s
ok: run: postgresql: (pid 14343) 0s
ok: run: prometheus: (pid 14362) 1s
ok: run: puma: (pid 14372) 0s
ok: run: redis: (pid 14377) 0s
ok: run: redis-exporter: (pid 14393) 1s
ok: run: registry: (pid 14402) 0s
ok: run: sidekiq: (pid 14411) 1s

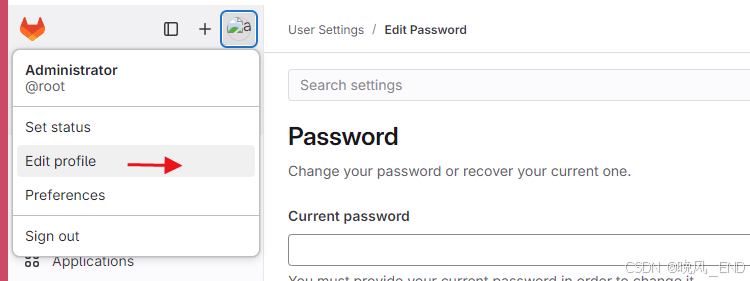

更改密码:

+号旁边的图标,选择edit profile,然后选择password就可以更改密码了

🆗,gitlab这就部署好了!!!!!

本文来自互联网用户投稿,该文观点仅代表作者本人,不代表本站立场。本站仅提供信息存储空间服务,不拥有所有权,不承担相关法律责任。如若转载,请注明出处:http://www.coloradmin.cn/o/2324573.html

如若内容造成侵权/违法违规/事实不符,请联系多彩编程网进行投诉反馈,一经查实,立即删除!

相关文章

NixVis 开源轻量级 Nginx 日志分析工具

NixVis NixVis 是一款基于 Go 语言开发的、开源轻量级 Nginx 日志分析工具,专为自部署场景设计。它提供直观的数据可视化和全面的统计分析功能,帮助您实时监控网站流量、访问来源和地理分布等关键指标,无需复杂配置即可快速部署使用。 演示…

vscode正则表达式使用

小标题 ^\d.\d.\d\s.*$ ^表示匹配字符串的开头。\d\.\d\.\d表示匹配一到多个数字,接着一个小数点,再接着一到多个数字,然后又一个小数点和一到多个数字,用来匹配类似 “2.1.1” 这样的标题号部分。\s表示匹配一个空格。.*表示匹配…

OpenAI API - Realtime 实时

文章目录 实时 API(Beta)使用实时API入门示例应用合作伙伴集成 用例通过 WebRTC 连接概述连接详情创建一个临时token发送和接收事件 使用 WebSockets 连接概述连接详情 实时对话Beta实时语音到语音会话会话生命周期事件文本输入和输出音频输入和输出语音…

PE文件(十三)资源表

所谓的资源也就是我们之前学的MFC中的对话框,按钮,编辑框之类的东西。不仅MFC有资源,我们平时熟悉的控制台程序也有资源 当我们平时写一些程序或者木马时,我们通常对其定义一个随机的名称或者路径,然后再向外界进行释…

丝杆升降机行程控制:精准运行的奥秘

丝杆升降机作为机械传动领域的 “得力干将”,在环保设备、工业生产线、建筑施工等众多场景中发挥着关键作用。其能够实现重物的升降、平移等操作,而行程控制对于丝杆升降机而言,就如同给机器设定了行动边界,不仅关乎设备能否精准达…

力扣.旋转矩阵Ⅱ

59. 螺旋矩阵 II - 力扣&#xff08;LeetCode&#xff09; 代码区&#xff1a; class Solution {const int MAX25; public:vector<vector<int>> generateMatrix(int n) {vector<vector<int>> ans;vector<int> hang;int len_nn;int arry[25][25]…

HFSS 使用入门

资源 下载资源&#xff1a; https://download.csdn.net/download/wangjun_huster/90547193 下载破解&#xff1a; https://download.csdn.net/download/wangjun_huster/90547551 安装 https://www.bilibili.com/list/ml3403866295?oid925751664&bvidBV1CT4y1u7LB 入门…

对内核fork进程中写时复制的理解记录

前言 文章写于学习Redis时对aof后台重写中写时复制的疑问 一、感到不理解的歧义 在部分技术文档中&#xff08;以小林的文章为例&#xff09;&#xff0c;对写时复制后的内存权限存在如歧义&#xff1a; ! 二、正确技术表述 根据Linux内核实现&#xff08;5.15版本&#x…

HarmonyOS-ArkUI Navigation (导航组件)-第一部分

导航组件主要实现页面间以及组件内部的界面跳转&#xff0c;支持在不同的组件间进行参数的传递&#xff0c;提供灵活的跳转栈操作&#xff0c;从而便捷的实现对不同页面的访问和复用。 我们之前学习过Tabs组件&#xff0c;这个组件里面也有支持跳转的方式&#xff0c;Navigati…

【磁盘扩容】linux磁盘扩容

一、新磁盘分区 1、新磁盘在接入服务器后&#xff0c;很好辨认 使用fdisk -l命令&#xff0c;查看&#xff1a; 或者使用 lsblk -f 其中sdb,sdc, sda都是挂载硬盘&#xff0c;sr0为DVD光盘&#xff0c;很明显sdc没有进行任何的挂载&#xff0c;确定sdc为新磁盘 2、格式化新…

详解CountDownLatch底层源码

大家好&#xff0c;我是此林。 今天来分享一下CountDownLatch的底层源码。 CountDownLatch 是 Java 并发包 (java.util.concurrent) 中的线程之间同步工具类&#xff0c;主要用于协调多个线程的执行顺序。其核心思想是通过计数器实现线程间的"等待-唤醒"机制&#…

Python基于EdgeTTS库文本转语音

EdgeTTS&#xff0c;支持粤语等各种方言&#xff0c;无需部署无需Key&#xff0c;完全免费&#xff0c;太香了 因为其底层是使用微软 Edge 的在线语音合成服务&#xff0c;所以不需要下载任何模型&#xff0c;甚至连 api_key 都给你省了&#xff0c;简直不要太良心~ 关键是&a…

MFC案例:利用计时器(Timer)动态绘制正弦曲线

这是一个基于对话框的MFC程序&#xff0c;运行效果是在只画出I、IV象限的坐标系中绘制出红、蓝、绿各相差PI/2的三条正弦曲线&#xff0c;计时器运行一个周期曲线在X轴移动一个像素&#xff08;对应1度&#xff09;&#xff0c;Y轴显示正弦值&#xff08;150个像素代表1&#x…

解析 HTML 网站架构规范

2025/3/28 向全栈工程师迈进&#xff01; 一、网页基本的组成部分 网页的外观多种多样&#xff0c;但是除了全屏视频或游戏&#xff0c;或艺术作品页面&#xff0c;或只是结构不当的页面以外&#xff0c;都倾向于使用类似的标准组件。 1.1页眉 通常横跨于整个页面顶部有一…

Kubernetes》》K8S》》Deployment 、Pod、Rs 、部署 nginx

Deployment deployment文档说明 kubectl get rs,deployment,pods 删除pod 、deployment 、service # 如果只删除pod&#xff0c;deployment会自动重建&#xff0c;所以应该先删除deployment。 # 下面演示的是删除所有deployment&#xff0c;可以指定只删除某个 # 删除所有…

链表(C++)

这是本人第二次学习链表&#xff0c;第一次学习链表是在大一上的C语言课上&#xff0c;首次接触&#xff0c;感到有些难&#xff1b;第二次是在大一下学习数据结构时&#xff08;就是这次&#xff09;&#xff0c;使用C再次理解链表。同时&#xff0c;这也是开启数据结构学习写…

nginx 设置隐藏版本号

Nginx默认会在Server头里包含版本信息&#xff0c;比如“nginx/1.18.0”&#xff0c;这可能存在安全隐患&#xff0c;因为攻击者知道了版本号后&#xff0c;可以针对特定版本的漏洞进行攻击。所以&#xff0c;隐藏版本号是一个常见的安全措施。 可通过在http块里加上server_to…

29_项目

目录 http.js 1、先注册账号 register.html 2、再登录 login.html 3、首页 index.html 4 详情 details.html cart.html css index.css register.css details.css 演示 进阶 http.js let baseURL "http://localhost:8888"; let resgiterApi baseURL &…

排序算法1--插入排序

目录 1.常见排序算法 2.排序算法的预定函数 2.1交换函数 2.2测试算法运行时间的函数 3.插入排序 3.1直接插入排序 3.2希尔排序 3.3插入排序的时间复杂度分析 4.总结 1.常见排序算法 我将分别讲解五种排序算法&#xff0c;但是不代表只有五种固定的代码&#xff0c;之后…

业之峰与宏图智能战略携手,开启家装数字化新篇章

3月8日&#xff0c;业之峰装饰集团董事长张钧携高管团队与宏图智能董事长庭治宏及核心团队&#xff0c;在业之峰总部隆重举行了战略合作签约仪式&#xff0c;标志着双方将携手探索业之峰的数字化转型之路&#xff0c;共同推动家装行业的变革与发展。 近年来&#xff0c;家装行业…
