创建型模式-简单工厂-工厂方法-抽象工厂

news2024/11/17 9:29:59

简单工厂模式

例题
在这里插入图片描述

uml
在这里插入图片描述

代码

package simpleFactory;

import java.lang.management.OperatingSystemMXBean;
import java.util.Scanner;

//定义Person
class Person{
public void say(){}

}
class Man extends Person{
public void say()
{
System.out.println("I am a man");
}

};

class Woman extends Person{
public void say()
{
System.out.println("I am a woman");
}

};

class Robot extends Person{
public void say()
{
System.out.println("I am a robot");
}

}

//定义简单工厂
class Factory{
public static Person createPerson(String op)
{
Person person =null;
switch (op)
{
case "M":
person = new Man();
break;
case "W" :
person = new Woman();
break;
case "R" :
person = new Robot();
break;
}

return person;
}

}




public class Test {
public static void main(String[] args) {
System.out.println("请输入:1.M 2.W 3.R");
Scanner sc= new Scanner(System.in);

String s=sc.next();

Person person = Factory.createPerson(s);

person.say();

}
}

总结
简单工厂模式,工厂返回产品

工厂方法模式

例题
在这里插入图片描述

uml
在这里插入图片描述

代码

package factoryMethod;


import java.util.Scanner;

class Person{
public void say(){};
}
class Man extends Person {
public void say()
{
System.out.println("I am a man");
}
};

class Woman extends Person {
public void say()
{
System.out.println("I am a woman");
}

};

class Robot extends Person {
public void say()
{
System.out.println("I am a robot");
}

}


//创建工厂接口
interface Factory{
Person createPerson();
}

class WomanFac implements Factory{

@Override
public Person createPerson() {
return new Woman();
}
}
class ManFac implements Factory{

@Override
public Person createPerson() {
return new Man();
}
}
class RobotFac implements Factory{

@Override
public Person createPerson() {
return new Robot();
}
}



public class Test2 {
public static void main(String[] args) {
System.out.println("请输入:1.M 2.W 3.R");
Scanner sc= new Scanner(System.in);
String op=sc.next();
Factory fac = null;
switch (op)
{
case "M":
fac = new ManFac();
break;
case "W" :
fac = new WomanFac();
break;
case "R" :
fac = new RobotFac();
break;
}

Person p=fac.createPerson();
p.say();
}
}

总结
一个工厂接口,多个工厂类去实现该接口,这样可以将返回的不同产品进行不同包装

抽象工厂模式

例题
在这里插入图片描述

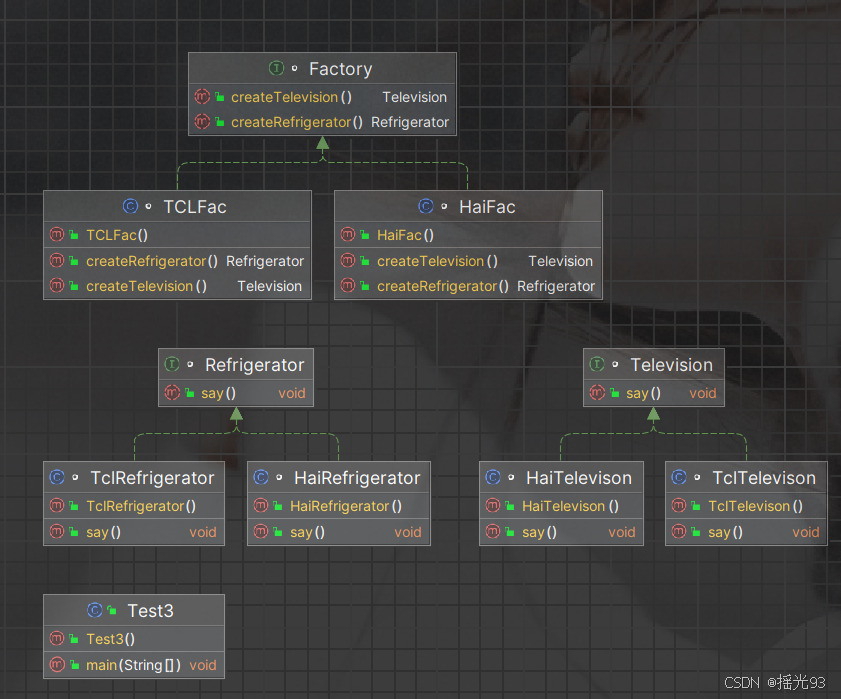

uml

代码

package abstractFactory;
interface Refrigerator{
void say();
}
class HaiRefrigerator implements Refrigerator{

@Override  ![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/6f1e676ac852447db913289060c01250.png#pic_center)

public void say() {
System.out.println("我是海尔冰箱");
}
}

class TclRefrigerator implements Refrigerator{

@Override
public void say() {
System.out.println("我是TCL冰箱");
}
}

interface Television {
void say();
}
class HaiTelevison implements Television{

@Override
public void say() {
System.out.println("我是海尔电视机");
}
}
class TclTelevison implements Television{

@Override
public void say() {
System.out.println("我是TCL电视机");
}
}

interface Factory{
Refrigerator createRefrigerator();
Television createTelevision();
}

class HaiFac implements Factory{

@Override
public Refrigerator createRefrigerator() {
return new HaiRefrigerator();
}

@Override
public Television createTelevision() {
return new HaiTelevison();
}
}

class TCLFac implements Factory{

@Override
public Refrigerator createRefrigerator() {
return new TclRefrigerator();
}

@Override
public Television createTelevision() {
return new TclTelevison();
}
}





public class Test3 {
public static void main(String[] args) {
// Factory fac=new TCLFac();
//抽象工厂接口
Factory fac=new HaiFac();
//抽象产品接口
Refrigerator refrigerator = fac.createRefrigerator();
Television television = fac.createTelevision();

refrigerator.say();
television.say();
}
}
