一、Log and Monitor

1.1 Log

1.1.1 容器级别

docker命令查看

docker ps --->containerid
docker logs containerid --->查看容器的日志情况

kubectl命令查看

kubectl logs -f <pod-name> -c <container-name>

1.1.2 Pod级别

kubectl describe pod springboot-demo-68b89b96b6-sl8bq

当然，kubectl describe除了能够查看pod的日志信息，还能查看比如Node、RC、Service、Namespace等信
息。
注意：要是想查看指定命名空间之下的，可以-n=namespace

1.1.3 组件服务级别

比如kube-apiserver、kube-schedule、kubelet、kube-proxy、kube-controller-manager等

可以使用journalctl进行查看

journalctl -u kubelet

1.1.4 LogPilot + ES + Kibana

网址：https://github.com/AliyunContainerService/log-pilot

在这里插入图片描述

部署logpilot

(1)创建log-pilot.yaml

---
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
  name: log-pilot
  namespace: kube-system
  labels:
    k8s-app: log-pilot
    kubernetes.io/cluster-service: "true"
spec:
  template:
    metadata:
      labels:
        k8s-app: log-es
        kubernetes.io/cluster-service: "true"
        version: v1.22
    spec:
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
      - name: log-pilot
        image: registry.cn-hangzhou.aliyuncs.com/log-monitor/log-pilot:0.9-filebeat
        resources:
          limits:
            memory: 200Mi
          requests:
            cpu: 100m
            memory: 200Mi
        env:
          - name: "FILEBEAT_OUTPUT"
            value: "elasticsearch"
          - name: "ELASTICSEARCH_HOST"
            value: "elasticsearch-api"
          - name: "ELASTICSEARCH_PORT"
            value: "9200"
          - name: "ELASTICSEARCH_USER"
            value: "elastic"
          - name: "ELASTICSEARCH_PASSWORD"
            value: "changeme"
        volumeMounts:
        - name: sock
          mountPath: /var/run/docker.sock
        - name: root
          mountPath: /host
          readOnly: true
        - name: varlib
          mountPath: /var/lib/filebeat
        - name: varlog
          mountPath: /var/log/filebeat
        securityContext:
          capabilities:
            add:
            - SYS_ADMIN
      terminationGracePeriodSeconds: 30
      volumes:
      - name: sock
        hostPath:
          path: /var/run/docker.sock
      - name: root
        hostPath:
          path: /
      - name: varlib
        hostPath:
          path: /var/lib/filebeat
          type: DirectoryOrCreate
      - name: varlog
        hostPath:
          path: /var/log/filebeat
          type: DirectoryOrCreate

命令：

kubectl apply -f log-pilot.yaml

(2)查看pod和daemonset的信息

kubectl get pods -n kube-system
kubectl get pods -n kube-system -o wide | grep log
kubectl get ds -n kube-system

部署elasticsearch

(1)创建elasticsearch.yaml

---
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch-api
  namespace: kube-system
  labels:
    name: elasticsearch
spec:
  selector:
    app: es
  ports:
  - name: transport
    port: 9200
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch-discovery
  namespace: kube-system
  labels:
    name: elasticsearch
spec:
  selector:
    app: es
  ports:
  - name: transport
    port: 9300
    protocol: TCP
---
apiVersion: apps/v1beta1
kind: StatefulSet
metadata:
  name: elasticsearch
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
spec:
  replicas: 3
  serviceName: "elasticsearch-service"
  selector:
    matchLabels:
      app: es
  template:
    metadata:
      labels:
        app: es
    spec:
      tolerations:
      - effect: NoSchedule
        key: node-role.kubernetes.io/master
      initContainers:
      - name: init-sysctl
        image: busybox:1.27
        command:
        - sysctl
        - -w
        - vm.max_map_count=262144
        securityContext:
          privileged: true
      containers:
      - name: elasticsearch
        image: registry.cn-hangzhou.aliyuncs.com/log-monitor/elasticsearch:v5.5.1
        ports:
        - containerPort: 9200
          protocol: TCP
        - containerPort: 9300
          protocol: TCP
        securityContext:
          capabilities:
            add:
              - IPC_LOCK
              - SYS_RESOURCE
        resources:
          limits:
            memory: 4000Mi
          requests:
            cpu: 100m
            memory: 2000Mi
        env:
          - name: "http.host"
            value: "0.0.0.0"
          - name: "network.host"
            value: "_eth0_"
          - name: "cluster.name"
            value: "docker-cluster"
          - name: "bootstrap.memory_lock"
            value: "false"
          - name: "discovery.zen.ping.unicast.hosts"
            value: "elasticsearch-discovery"
          - name: "discovery.zen.ping.unicast.hosts.resolve_timeout"
            value: "10s"
          - name: "discovery.zen.ping_timeout"
            value: "6s"
          - name: "discovery.zen.minimum_master_nodes"
            value: "2"
          - name: "discovery.zen.fd.ping_interval"
            value: "2s"
          - name: "discovery.zen.no_master_block"
            value: "write"
          - name: "gateway.expected_nodes"
            value: "2"
          - name: "gateway.expected_master_nodes"
            value: "1"
          - name: "transport.tcp.connect_timeout"
            value: "60s"
          - name: "ES_JAVA_OPTS"
            value: "-Xms2g -Xmx2g"
        livenessProbe:
          tcpSocket:
            port: transport
          initialDelaySeconds: 20
          periodSeconds: 10
        volumeMounts:
        - name: es-data
          mountPath: /data
      terminationGracePeriodSeconds: 30
      volumes:
      - name: es-data
        hostPath:
          path: /es-data

命令：

kubectl apply -f elasticsearch.yaml
kubectl get pods -n kube-system
kubectl get pods -n kube-system -o wide | grep ela

(2)查看kube-system下的svc

kubectl get svc -n kube-system

elasticsearch-api ClusterIP 10.106.65.2 <none> 9200/TCP
elasticsearch-discovery ClusterIP 10.101.117.180 <none> 9300/TCP
kube-dns ClusterIP 10.96.0.10 <none>

(3)查看kube-system下的statefulset

kubectl get statefulset -n kube-system

NAME READY AGE
elasticsearch 3/3 106s

部署kibana

(1)创建kibana.yaml

kibana主要是对外提供访问的，所以这边需要配置Service和Ingress
前提： 要有Ingress Controller的支持，比如Nginx Controller

---
# Deployment
apiVersion: apps/v1beta1
kind: Deployment
metadata:
  name: kibana
  namespace: kube-system
  labels:
    component: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
     component: kibana
  template:
    metadata:
      labels:
        component: kibana
    spec:
      containers:
      - name: kibana
        image: registry.cn-hangzhou.aliyuncs.com/log-monitor/kibana:v5.5.1
        env:
        - name: CLUSTER_NAME
          value: docker-cluster
        - name: ELASTICSEARCH_URL
          value: http://elasticsearch-api:9200/
        resources:
          limits:
            cpu: 1000m
          requests:
            cpu: 100m
        ports:
        - containerPort: 5601
          name: http
---
# Service
apiVersion: v1
kind: Service
metadata:
  name: kibana
  namespace: kube-system
  labels:
    component: kibana
spec:
  selector:
    component: kibana
  ports:
  - name: http
    port: 80
    targetPort: http
---
# Ingress
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kibana
  namespace: kube-system
spec:
  rules:
  - host: log.k8s.itcrazy2016.com
    http:
      paths:
      - path: /
        backend:
          serviceName: kibana
          servicePort: 80

命令：

kubectl apply -f kibana.yaml

(2)查看pod和deployment的信息

kubectl get pods -n kube-system | grep ki
kubectl get deploy -n kube-system

(3)配置Ingress需要的域名

打开windows上的hosts文件

# 注意这边是worker01的IP
121.41.10.126 kibana.jack.com

(4)在windows访问kibana.jack.com

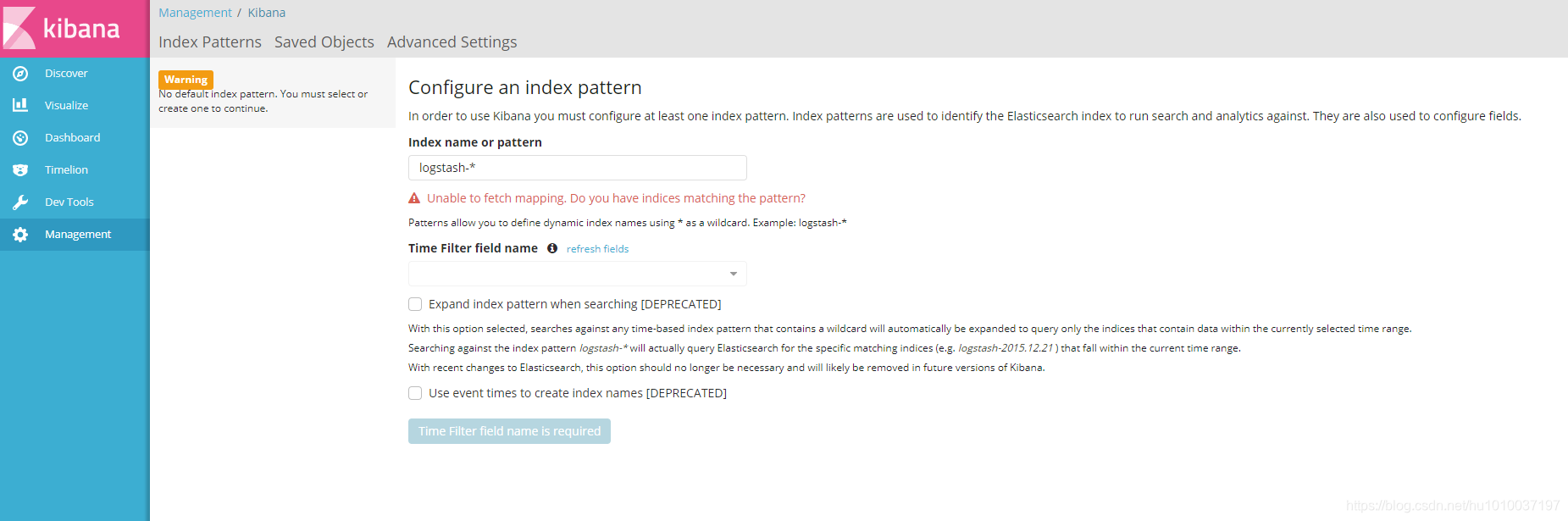

在这里插入图片描述

1.2 Monitor

1.2.1 Prometheus简介

官网：https://prometheus.io/
github ：https://github.com/kubernetes/kubernetes/tree/master/cluster/addons/prometheus

1.2.2 Prometheus架构

在这里插入图片描述

1.2.3 Prometheus知识普及

支持pull、push数据添加方式
支持k8s服务发现
提供查询语言PromQL
时序(time series)是由名字(Metric)以及一组key/value标签定义的
数据类型

1.2.4 数据采集

2.2.4.1 服务器数据

通过NodeExporter：https://github.com/prometheus/node_exporter

在这里插入图片描述

2.2.4.2 组件数据

ETCD：https://ip:2379/metrics
APIServer：https://ip:6443/metrics
ControllerManager：https://ip:10252/metrics
Scheduler：https://ip:10251/metrics

2.2.4.3 容器数据

在这里插入图片描述

1.2.5 Prometheus + Grafana

在master上创建prometheus目录

网盘/课堂源码/*.yaml

namespace.yaml
node-exporter.yaml
prometheus.yaml
grafana.yaml
ingress.yaml

(1)创建命名空间ns-monitor

namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: ns-monitor
  labels:
    name: ns-monitor

命令：

kubectl apply -f namespace.yaml
kubectl get namespace

(2)创建node-exporter

node-exporter.yaml

kind: DaemonSet
apiVersion: apps/v1beta2
metadata:
  labels:
    app: node-exporter
  name: node-exporter
  namespace: ns-monitor
spec:
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: node-exporter
  template:
    metadata:
      labels:
        app: node-exporter
    spec:
      containers:
        - name: node-exporter
          image: prom/node-exporter:v0.16.0
          ports:
            - containerPort: 9100
              protocol: TCP
              name:	http
      hostNetwork: true
      hostPID: true
      tolerations:
        - effect: NoSchedule
          operator: Exists

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: node-exporter
  name: node-exporter-service
  namespace: ns-monitor
spec:
  ports:
    - name:	http
      port: 9100
      nodePort: 31672
      protocol: TCP
  type: NodePort
  selector:
    app: node-exporter

命令：

kubectl apply -f node-exporter.yaml
kubectl get pod -n ns-monitor
kubectl get svc -n ns-monitor
kubectl get ds -n ns-monitor
win浏览器访问集群任意一个ip，比如http://121.41.10.126:31672 查看结果 # 这边是http协议，不能用https

(3)部署prometheus pod（包含rbac认证、ConfigMap等）

创建prometheus.yaml：

注意：记得修改prometheus.yaml文件中的ip为master的ip和path[PV需要使用到]

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: prometheus
rules:
  - apiGroups: [""] # "" indicates the core API group
    resources:
      - nodes
      - nodes/proxy
      - services
      - endpoints
      - pods
    verbs:
      - get
      - watch
      - list
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - watch
      - list
  - nonResourceURLs: ["/metrics"]
    verbs:
      - get
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus
  namespace: ns-monitor
  labels:
    app: prometheus
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: prometheus
subjects:
  - kind: ServiceAccount
    name: prometheus
    namespace: ns-monitor
roleRef:
  kind: ClusterRole
  name: prometheus
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-conf
  namespace: ns-monitor
  labels:
    app: prometheus
data:
  prometheus.yml: |-
    # my global config
    global:
      scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
      evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
      # scrape_timeout is set to the global default (10s).

    # Alertmanager configuration
    alerting:
      alertmanagers:
      - static_configs:
        - targets:
          # - alertmanager:9093

    # Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
    rule_files:
      # - "first_rules.yml"
      # - "second_rules.yml"

    # A scrape configuration containing exactly one endpoint to scrape:
    # Here it's Prometheus itself.
    scrape_configs:
      # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
      - job_name: 'prometheus'

        # metrics_path defaults to '/metrics'
        # scheme defaults to 'http'.

        static_configs:
          - targets: ['localhost:9090']
      - job_name: 'grafana'
        static_configs:
          - targets:
              - 'grafana-service.ns-monitor:3000'

      - job_name: 'kubernetes-apiservers'

        kubernetes_sd_configs:
        - role: endpoints

        # Default to scraping over https. If required, just disable this or change to
        # `http`.
        scheme: https

        # This TLS & bearer token file config is used to connect to the actual scrape
        # endpoints for cluster components. This is separate to discovery auth
        # configuration because discovery & scraping are two separate concerns in
        # Prometheus. The discovery auth config is automatic if Prometheus runs inside
        # the cluster. Otherwise, more config options have to be provided within the
        # <kubernetes_sd_config>.
        tls_config:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
          # If your node certificates are self-signed or use a different CA to the
          # master CA, then disable certificate verification below. Note that
          # certificate verification is an integral part of a secure infrastructure
          # so this should only be disabled in a controlled environment. You can
          # disable certificate verification by uncommenting the line below.
          #
          # insecure_skip_verify: true
        bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

        # Keep only the default/kubernetes service endpoints for the https port. This
        # will add targets for each API server which Kubernetes adds an endpoint to
        # the default/kubernetes service.
        relabel_configs:
        - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
          action: keep
          regex: default;kubernetes;https

      # Scrape config for nodes (kubelet).
      #
      # Rather than connecting directly to the node, the scrape is proxied though the
      # Kubernetes apiserver.  This means it will work if Prometheus is running out of
      # cluster, or can't connect to nodes for some other reason (e.g. because of
      # firewalling).
      - job_name: 'kubernetes-nodes'

        # Default to scraping over https. If required, just disable this or change to
        # `http`.
        scheme: https

        # This TLS & bearer token file config is used to connect to the actual scrape
        # endpoints for cluster components. This is separate to discovery auth
        # configuration because discovery & scraping are two separate concerns in
        # Prometheus. The discovery auth config is automatic if Prometheus runs inside
        # the cluster. Otherwise, more config options have to be provided within the
        # <kubernetes_sd_config>.
        tls_config:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
        bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

        kubernetes_sd_configs:
        - role: node

        relabel_configs:
        - action: labelmap
          regex: __meta_kubernetes_node_label_(.+)
        - target_label: __address__
          replacement: kubernetes.default.svc:443
        - source_labels: [__meta_kubernetes_node_name]
          regex: (.+)
          target_label: __metrics_path__
          replacement: /api/v1/nodes/${1}/proxy/metrics

      # Scrape config for Kubelet cAdvisor.
      #
      # This is required for Kubernetes 1.7.3 and later, where cAdvisor metrics
      # (those whose names begin with 'container_') have been removed from the
      # Kubelet metrics endpoint.  This job scrapes the cAdvisor endpoint to
      # retrieve those metrics.
      #
      # In Kubernetes 1.7.0-1.7.2, these metrics are only exposed on the cAdvisor
      # HTTP endpoint; use "replacement: /api/v1/nodes/${1}:4194/proxy/metrics"
      # in that case (and ensure cAdvisor's HTTP server hasn't been disabled with
      # the --cadvisor-port=0 Kubelet flag).
      #
      # This job is not necessary and should be removed in Kubernetes 1.6 and
      # earlier versions, or it will cause the metrics to be scraped twice.
      - job_name: 'kubernetes-cadvisor'

        # Default to scraping over https. If required, just disable this or change to
        # `http`.
        scheme: https

        # This TLS & bearer token file config is used to connect to the actual scrape
        # endpoints for cluster components. This is separate to discovery auth
        # configuration because discovery & scraping are two separate concerns in
        # Prometheus. The discovery auth config is automatic if Prometheus runs inside
        # the cluster. Otherwise, more config options have to be provided within the
        # <kubernetes_sd_config>.
        tls_config:
          ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
        bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

        kubernetes_sd_configs:
        - role: node

        relabel_configs:
        - action: labelmap
          regex: __meta_kubernetes_node_label_(.+)
        - target_label: __address__
          replacement: kubernetes.default.svc:443
        - source_labels: [__meta_kubernetes_node_name]
          regex: (.+)
          target_label: __metrics_path__
          replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

      # Scrape config for service endpoints.
      #
      # The relabeling allows the actual service scrape endpoint to be configured
      # via the following annotations:
      #
      # * `prometheus.io/scrape`: Only scrape services that have a value of `true`
      # * `prometheus.io/scheme`: If the metrics endpoint is secured then you will need
      # to set this to `https` & most likely set the `tls_config` of the scrape config.
      # * `prometheus.io/path`: If the metrics path is not `/metrics` override this.
      # * `prometheus.io/port`: If the metrics are exposed on a different port to the
      # service then set this appropriately.
      - job_name: 'kubernetes-service-endpoints'

        kubernetes_sd_configs:
        - role: endpoints

        relabel_configs:
        - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
          action: keep
          regex: true
        - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
          action: replace
          target_label: __scheme__
          regex: (https?)
        - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
          action: replace
          target_label: __metrics_path__
          regex: (.+)
        - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
          action: replace
          target_label: __address__
          regex: ([^:]+)(?::\d+)?;(\d+)
          replacement: $1:$2
        - action: labelmap
          regex: __meta_kubernetes_service_label_(.+)
        - source_labels: [__meta_kubernetes_namespace]
          action: replace
          target_label: kubernetes_namespace
        - source_labels: [__meta_kubernetes_service_name]
          action: replace
          target_label: kubernetes_name

      # Example scrape config for probing services via the Blackbox Exporter.
      #
      # The relabeling allows the actual service scrape endpoint to be configured
      # via the following annotations:
      #
      # * `prometheus.io/probe`: Only probe services that have a value of `true`
      - job_name: 'kubernetes-services'

        metrics_path: /probe
        params:
          module: [http_2xx]

        kubernetes_sd_configs:
        - role: service

        relabel_configs:
        - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_probe]
          action: keep
          regex: true
        - source_labels: [__address__]
          target_label: __param_target
        - target_label: __address__
          replacement: blackbox-exporter.example.com:9115
        - source_labels: [__param_target]
          target_label: instance
        - action: labelmap
          regex: __meta_kubernetes_service_label_(.+)
        - source_labels: [__meta_kubernetes_namespace]
          target_label: kubernetes_namespace
        - source_labels: [__meta_kubernetes_service_name]
          target_label: kubernetes_name

      # Example scrape config for probing ingresses via the Blackbox Exporter.
      #
      # The relabeling allows the actual ingress scrape endpoint to be configured
      # via the following annotations:
      #
      # * `prometheus.io/probe`: Only probe services that have a value of `true`
      - job_name: 'kubernetes-ingresses'

        metrics_path: /probe
        params:
          module: [http_2xx]

        kubernetes_sd_configs:
          - role: ingress

        relabel_configs:
          - source_labels: [__meta_kubernetes_ingress_annotation_prometheus_io_probe]
            action: keep
            regex: true
          - source_labels: [__meta_kubernetes_ingress_scheme,__address__,__meta_kubernetes_ingress_path]
            regex: (.+);(.+);(.+)
            replacement: ${1}://${2}${3}
            target_label: __param_target
          - target_label: __address__
            replacement: blackbox-exporter.example.com:9115
          - source_labels: [__param_target]
            target_label: instance
          - action: labelmap
            regex: __meta_kubernetes_ingress_label_(.+)
          - source_labels: [__meta_kubernetes_namespace]
            target_label: kubernetes_namespace
          - source_labels: [__meta_kubernetes_ingress_name]
            target_label: kubernetes_name

      # Example scrape config for pods
      #
      # The relabeling allows the actual pod scrape endpoint to be configured via the
      # following annotations:
      #
      # * `prometheus.io/scrape`: Only scrape pods that have a value of `true`
      # * `prometheus.io/path`: If the metrics path is not `/metrics` override this.
      # * `prometheus.io/port`: Scrape the pod on the indicated port instead of the
      # pod's declared ports (default is a port-free target if none are declared).
      - job_name: 'kubernetes-pods'

        kubernetes_sd_configs:
        - role: pod

        relabel_configs:
        - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
          action: keep
          regex: true
        - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
          action: replace
          target_label: __metrics_path__
          regex: (.+)
        - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
          action: replace
          regex: ([^:]+)(?::\d+)?;(\d+)
          replacement: $1:$2
          target_label: __address__
        - action: labelmap
          regex: __meta_kubernetes_pod_label_(.+)
        - source_labels: [__meta_kubernetes_namespace]
          action: replace
          target_label: kubernetes_namespace
        - source_labels: [__meta_kubernetes_pod_name]
          action: replace
          target_label: kubernetes_pod_name
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-rules
  namespace: ns-monitor
  labels:
    app: prometheus
data:
  cpu-usage.rule: |
    groups:
      - name: NodeCPUUsage
        rules:
          - alert: NodeCPUUsage
            expr: (100 - (avg by (instance) (irate(node_cpu{name="node-exporter",mode="idle"}[5m])) * 100)) > 75
            for: 2m
            labels:
              severity: "page"
            annotations:
              summary: "{{$labels.instance}}: High CPU usage detected"
              description: "{{$labels.instance}}: CPU usage is above 75% (current value is: {{ $value }})"
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: "prometheus-data-pv"
  labels:
    name: prometheus-data-pv
    release: stable
spec:
  capacity:
    storage: 5Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Recycle
  nfs:
    path: /nfs/data/prometheus
    server: 121.41.10.13

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: prometheus-data-pvc
  namespace: ns-monitor
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
  selector:
    matchLabels:
      name: prometheus-data-pv
      release: stable

---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
  labels:
    app: prometheus
  name: prometheus
  namespace: ns-monitor
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      serviceAccountName: prometheus
      securityContext:
        runAsUser: 0
      containers:
        - name: prometheus
          image: prom/prometheus:latest
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - mountPath: /prometheus
              name: prometheus-data-volume
            - mountPath: /etc/prometheus/prometheus.yml
              name: prometheus-conf-volume
              subPath: prometheus.yml
            - mountPath: /etc/prometheus/rules
              name: prometheus-rules-volume
          ports:
            - containerPort: 9090
              protocol: TCP
      volumes:
        - name: prometheus-data-volume
          persistentVolumeClaim:
            claimName: prometheus-data-pvc
        - name: prometheus-conf-volume
          configMap:
            name: prometheus-conf
        - name: prometheus-rules-volume
          configMap:
            name: prometheus-rules
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---
kind: Service
apiVersion: v1
metadata:
  annotations:
    prometheus.io/scrape: 'true'
  labels:
    app: prometheus
  name: prometheus-service
  namespace: ns-monitor
spec:
  ports:
    - port: 9090
      targetPort: 9090
  selector:
    app: prometheus
  type: NodePort

命令：

kubectl apply -f grafana.yaml
kubectl get pod -n ns-monitor
kubectl get svc -n ns-monitor
win浏览器访问集群任意一个ip:32405/graph/login
比如http://121.41.10.126:32727用户名密码:admin

(5)增加域名访问[没有域名好像没有灵魂]

创建ingress.yaml

前提：配置好ingress controller和域名解析

apiVersion: v1
kind: PersistentVolume
metadata:
  name: "grafana-data-pv"
  labels:
    name: grafana-data-pv
    release: stable
spec:
  capacity:
    storage: 5Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Recycle
  nfs:
    path: /nfs/data/grafana
    server: 121.41.10.13
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-data-pvc
  namespace: ns-monitor
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
  selector:
    matchLabels:
      name: grafana-data-pv
      release: stable
---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
  labels:
    app: grafana
  name: grafana
  namespace: ns-monitor
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      securityContext:
        runAsUser: 0
      containers:
        - name: grafana
          image: grafana/grafana:latest
          imagePullPolicy: IfNotPresent
          env:
            - name: GF_AUTH_BASIC_ENABLED
              value: "true"
            - name: GF_AUTH_ANONYMOUS_ENABLED
              value: "false"
          readinessProbe:
            httpGet:
              path: /login
              port: 3000
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-data-volume
          ports:
            - containerPort: 3000
              protocol: TCP
      volumes:
        - name: grafana-data-volume
          persistentVolumeClaim:
            claimName: grafana-data-pvc
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: grafana
  name: grafana-service
  namespace: ns-monitor
spec:
  ports:
    - port: 3000
      targetPort: 3000
  selector:
    app: grafana
  type: NodePort

命令：

kubectl apply -f ingress.yaml
kubectl get ingress -n ns-monitor
kubectl describe ingress -n ns-monitor

(6)直接通过域名访问即可

二、Trouble Shooting（问题排查）

2.1 Master

master上的组件共同组成了控制平面

01 若apiserver出问题了
会导致整个K8s集群不可以使用，因为apiserver是K8s集群的大脑
02 若etcd出问题了
apiserver和etcd则无法通信，kubelet也无法更新所在node上的状态
03 当scheduler或者controller manager出现问题时
会导致deploy，pod，service等无法正常运行

解决方案： 出现问题时，监听到自动重启或者搭建高可用的master集群

2.2 Worker

worker节点挂掉或者上面的kubelet服务出现问题时，w上的pod则无法正常运行。

2.3 Addons

dns和网络插件比如calico发生问题时，集群内的网络无法正常通信，并且无法根据服务名称进行解析。

2.4 系统问题排查

查看Node的状态

kubectl get nodes
kubectl describe node-name

查看集群master和worker组件的日志

journalctl -u apiserver
journalctl -u scheduler
journalctl -u kubelet
journalctl -u kube-proxy
...

2.5 Pod的问题排查

K8s中最小的操作单元是Pod，最重要的操作也是Pod，其他资源的排查可以参照Pod问题的排查

(1)查看Pod运行情况

kubectl get pods -n namespace

(2)查看Pod的具体描述，定位问题

kubectl describe pod pod-name -n namespace

(3)检查Pod对应的yaml是否有误

kubectl get pod pod-name -o yaml

(4)查看Pod日志

kubectl logs ...

Pod可能会出现哪些问题及解决方案

01 处于Pending状态
说明Pod还没有被调度到某个node上，可以describe一下详情。可能因为资源不足，端口被占用等。

02 处于Waiting/ContainerCreating状态
可能因为镜像拉取失败，或者是网络插件的问题，比如calico，或者是容器本身的问题，可以检查一下容器的yaml文
件内容和Dockerfile的书写。

03 处于ImagePullBackOff状态
镜像拉取失败，可能是镜像不存在，或者没有权限拉取。

04 处于CrashLoopBackOff状态
Pod之前启动成功过，但是又失败了，不断在重启。

05 处于Error状态
有些内容不存在，比如ConfigMap，PV，没有权限等，需要创建一下。

06 处于Terminating状态
说明Pod正在停止

07 处于Unknown状态
说明K8s已经失去对Pod的管理监听。
