Chapter11-最常用的消费类

11.1 整体流程

我们使用 DefaultMQPushConsumer 的时候，一般流程是设置好 GroupName 、NameServer 地址，以及订阅的 Topic 名称，然后填充Message 处理函数，最后调用 start （）。

11.1.1 上层接口类

DefaultMQPushConsumer 类在 org. apache.rocketmq. client. consumer 包中，这个类担任着上层接口的角色，具体实现都在 DefaultMQPushConsumerlmpl 类中

    public DefaultMQPushConsumerImpl(DefaultMQPushConsumer defaultMQPushConsumer, RPCHook rpcHook) {
        this.defaultMQPushConsumer = defaultMQPushConsumer;
        this.rpcHook = rpcHook;
        this.pullTimeDelayMillsWhenException = defaultMQPushConsumer.getPullTimeDelayMillsWhenException();
    }

    /**
     * Constructor specifying consumer group.
     *
     * @param consumerGroup Consumer group.
     */
    public DefaultMQPushConsumer(final String consumerGroup) {
        this(null, consumerGroup, null, new AllocateMessageQueueAveragely());
    }

我们常用的是最后这个构造函数，只传入一个 consumer Group 名称作为参数，这个构造函数会把 RPCHook 设为空，把负载均衡策略设置成平均策略。在构造函数的实现中，主要工作是创建 DefaultMQPushConsumerlmpl 对象。

11.1.2 DefaultMQPushConsumer 的实现者

DefaultMQPushConsumerlmpl 具体实现了 DefaultMQPushConsumer 的业务逻辑， DefaultMQPushConsumerlmpl.java 在 org. apache.rocketmq.client.impl. consumer 这个包里，本节接下来从 start 方法着手分析。首先是初始化 MQClientinstance ，并且设置好 rebalance 策略和 pullAPIWraper ，有这些结构后才能发送 pull 请求获取消息。

//参见org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl#start
//  switch 的CREATE_JUST 语句块

// 初始化MQClientInstance
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);

                this.rebalanceImpl.setConsumerGroup(this.defaultMQPushConsumer.getConsumerGroup());
                this.rebalanceImpl.setMessageModel(this.defaultMQPushConsumer.getMessageModel());
                this.rebalanceImpl.setAllocateMessageQueueStrategy(this.defaultMQPushConsumer.getAllocateMessageQueueStrategy());

this.rebalanceImpl.setmQClientFactory(this.mQClientFactory);
                // 初始化 PullAPIWrapper
if (this.pullAPIWrapper == null) {
    this.pullAPIWrapper = new PullAPIWrapper(
        mQClientFactory,
        this.defaultMQPushConsumer.getConsumerGroup(), isUnitMode());
}
this.pullAPIWrapper.registerFilterMessageHook(filterMessageHookList);

// 确定 OffsetStore 。 OffsetStore 里存储的是当前消费者所消费的消息
在队列中的偏移量
if (this.defaultMQPushConsumer.getOffsetStore() != null) {
                    this.offsetStore = this.defaultMQPushConsumer.getOffsetStore();
                } else {
                    switch (this.defaultMQPushConsumer.getMessageModel()) {
                        case BROADCASTING:
                            this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                            break;
                        case CLUSTERING:
                            this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                            break;
                        default:
                            break;
                    }
                    this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);
                }
                this.offsetStore.load();

根据消费消息方式的不同， OffsetStore 的类型也不同。如果是 BROADCASTING模式，使用的是 LocalFileOffsetStore, Offset 存到本地；如果是 CLUSTERING模式，使用的是 RemoteBrokerOffsetStore, Offset 存到 Broker 机器上。

//然后是初始化 consumeMessageService ，根据对消息顺序需求的不同，使用不同的 Service 类型
if (this.getMessageListenerInner() instanceof MessageListenerOrderly) {
                    this.consumeOrderly = true;
                    this.consumeMessageService =
                        new ConsumeMessageOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
                    //POPTODO reuse Executor ?
                    this.consumeMessagePopService = new ConsumeMessagePopOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
                } else if (this.getMessageListenerInner() instanceof MessageListenerConcurrently) {
                    this.consumeOrderly = false;
                    this.consumeMessageService =
                        new ConsumeMessageConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
                    //POPTODO reuse Executor ?
                    this.consumeMessagePopService =
                        new ConsumeMessagePopConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
                }

this.consumeMessageService.start();
 // POPTODO
this.consumeMessagePopService.start();

最后调用 MQClientlnstance 的 start 方法，开始获取数据。

mQClientFactory.start();
log.info("the consumer [{}] start OK.", this.defaultMQPushConsumer.getConsumerGroup());
this.serviceState = ServiceState.RUNNING;
break;

11.1.3 获取消息逻辑

获取消息的逻辑实现在 public void pullMessage ( finalPullRequestpullRequest) 函数中，这是一个很大的函数，前半部分是进行一些判断，是进行流量控制的逻辑（见代码清单 11-5 ）；中间是对返回消息结果做处理的逻辑；后面是发送获取消息请求的逻辑。

        long cachedMessageCount = processQueue.getMsgCount().get();
        long cachedMessageSizeInMiB = processQueue.getMsgSize().get() / (1024 * 1024);
        // 检查个数
        if (cachedMessageCount > this.defaultMQPushConsumer.getPullThresholdForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_CACHE_FLOW_CONTROL);
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                    "the cached message count exceeds the threshold {}, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                    this.defaultMQPushConsumer.getPullThresholdForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }
        // 检查总大小
        if (cachedMessageSizeInMiB > this.defaultMQPushConsumer.getPullThresholdSizeForQueue()) {
            this.executePullRequestLater(pullRequest, PULL_TIME_DELAY_MILLS_WHEN_CACHE_FLOW_CONTROL);
            if ((queueFlowControlTimes++ % 1000) == 0) {
                log.warn(
                    "the cached message size exceeds the threshold {} MiB, so do flow control, minOffset={}, maxOffset={}, count={}, size={} MiB, pullRequest={}, flowControlTimes={}",
                    this.defaultMQPushConsumer.getPullThresholdSizeForQueue(), processQueue.getMsgTreeMap().firstKey(), processQueue.getMsgTreeMap().lastKey(), cachedMessageCount, cachedMessageSizeInMiB, pullRequest, queueFlowControlTimes);
            }
            return;
        }

通过判断未处理消息的个数和总大小来控制是否继续请求消息。对于顺序消息还有一些特殊判断逻辑。

if (!this.consumeOrderly){

    }else{
    // 顺序消息
}

获取的消息返回后，根据返回状态，调用相应的回调处理方法。

PullCallback pullCallback = new PullCallback() {
    ... ...};
// 具体判断见代码块
switch (pullResult.getPullStatus()) {
    case FOUND:
        ... ...
         break;
    case NO_NEW_MSG:
    case NO_MATCHED_MSG:

最后是发送获取消息请求，

    try {
            this.pullAPIWrapper.pullKernelImpl(
                pullRequest.getMessageQueue(),
                subExpression,
                subscriptionData.getExpressionType(),
                subscriptionData.getSubVersion(),
                pullRequest.getNextOffset(),
                this.defaultMQPushConsumer.getPullBatchSize(),
                this.defaultMQPushConsumer.getPullBatchSizeInBytes(),
                sysFlag,
                commitOffsetValue,
                BROKER_SUSPEND_MAX_TIME_MILLIS,
                CONSUMER_TIMEOUT_MILLIS_WHEN_SUSPEND,
                CommunicationMode.ASYNC,
                pullCallback
            );
        } catch (Exception e) {
            log.error("pullKernelImpl exception", e);
            this.executePullRequestLater(pullRequest, pullTimeDelayMillsWhenException);
        }

这三个阶段不停地循环执行，直到程序被停止

11.2 消息的并发处理

11.2.1 并发处理过程

处理效率的高低是反应 Consumer 实现好坏的重要指标，本节以 ConsumeMessageConcurrentlyService 类为例来分析 RocketMQ 的实现方式。 ConsumeMessageConcurrentlyService 类在 org.apache.rocketmq.client.impl.consumer 包中。

这个类定义了三个线程池，一个主线程池用来正常执行收到的消息，用户可以自定义通过 consumeThreadMin 和 consumeThreadMax 来自定义线程个数。另外两个都是单线程的线程池，一个用来执行推迟消费的消息，另一个用来定期清理超时消息（ 15 分钟）。

org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService

public ConsumeMessageConcurrentlyService(DefaultMQPushConsumerImpl defaultMQPushConsumerImpl,
        MessageListenerConcurrently messageListener) {
        this.defaultMQPushConsumerImpl = defaultMQPushConsumerImpl;
        this.messageListener = messageListener;

        this.defaultMQPushConsumer = this.defaultMQPushConsumerImpl.getDefaultMQPushConsumer();
        this.consumerGroup = this.defaultMQPushConsumer.getConsumerGroup();
        this.consumeRequestQueue = new LinkedBlockingQueue<>();

        String consumerGroupTag = (consumerGroup.length() > 100 ? consumerGroup.substring(0, 100) : consumerGroup) + "_";
        this.consumeExecutor = new ThreadPoolExecutor(
            this.defaultMQPushConsumer.getConsumeThreadMin(),
            this.defaultMQPushConsumer.getConsumeThreadMax(),
            1000 * 60,
            TimeUnit.MILLISECONDS,
            this.consumeRequestQueue,
            new ThreadFactoryImpl("ConsumeMessageThread_" + consumerGroupTag));

        this.scheduledExecutorService = Executors.newSingleThreadScheduledExecutor(new ThreadFactoryImpl("ConsumeMessageScheduledThread_" + consumerGroupTag));
        this.cleanExpireMsgExecutors = Executors.newSingleThreadScheduledExecutor(new ThreadFactoryImpl("CleanExpireMsgScheduledThread_" + consumerGroupTag));
    }

从 Broker 获取到一批消息以后，根据 BatchSize 的设置，把一批消息封装到一个 ConsumeRequest 中，然后把这个 ConsumeRequest 提交到consumeExecutor 线程池中执行。

    @Override
    public void submitConsumeRequest(
        final List<MessageExt> msgs,
        final ProcessQueue processQueue,
        final MessageQueue messageQueue,
        final boolean dispatchToConsume) {
        final int consumeBatchSize = this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize();
        if (msgs.size() <= consumeBatchSize) {
            ConsumeRequest consumeRequest = new ConsumeRequest(msgs, processQueue, messageQueue);
            try {
                this.consumeExecutor.submit(consumeRequest);
            } catch (RejectedExecutionException e) {
                this.submitConsumeRequestLater(consumeRequest);
            }
        } else {
            for (int total = 0; total < msgs.size(); ) {
                List<MessageExt> msgThis = new ArrayList<>(consumeBatchSize);
                for (int i = 0; i < consumeBatchSize; i++, total++) {
                    if (total < msgs.size()) {
                        msgThis.add(msgs.get(total));
                    } else {
                        break;
                    }
                }

                ConsumeRequest consumeRequest = new ConsumeRequest(msgThis, processQueue, messageQueue);
                try {
                    this.consumeExecutor.submit(consumeRequest);
                } catch (RejectedExecutionException e) {
                    for (; total < msgs.size(); total++) {
                        msgThis.add(msgs.get(total));
                    }

                    this.submitConsumeRequestLater(consumeRequest);
                }
            }
        }
    }

消息的处理结果可能有不同的值，主要的两个是 CONSUME SUCCESS 和 RECONSUME LATER 。如果消费不成功，要把消息提交到上面说的scheduledExecutorService 线程池中， 5 秒后再执行；如果消费模式是 CLUSTERING模式，未消费成功的消息会先被发送回 Broker ，供这个 ConsumerGroup 里的其他 Consumer 消费，如果发送回 Broker 失败，再调用阻CONSUME_LATER

    public void processConsumeResult(
        final ConsumeConcurrentlyStatus status,
        final ConsumeConcurrentlyContext context,
        final ConsumeRequest consumeRequest
    ) {
        int ackIndex = context.getAckIndex();

        if (consumeRequest.getMsgs().isEmpty())
            return;
        // 消息的处理结果可能有不同的值，主要的两个是 CONSUME_SUCCESS 和 RECONSUME_LATER
        switch (status) {
            case CONSUME_SUCCESS:
                if (ackIndex >= consumeRequest.getMsgs().size()) {
                    ackIndex = consumeRequest.getMsgs().size() - 1;
                }
                int ok = ackIndex + 1;
                int failed = consumeRequest.getMsgs().size() - ok;
                this.getConsumerStatsManager().incConsumeOKTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), ok);
                this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), failed);
                break;
            case RECONSUME_LATER:
                ackIndex = -1;
                this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(),
                    consumeRequest.getMsgs().size());
                break;
            default:
                break;
        }

        switch (this.defaultMQPushConsumer.getMessageModel()) {
            case BROADCASTING:
                for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
                    MessageExt msg = consumeRequest.getMsgs().get(i);
                    log.warn("BROADCASTING, the message consume failed, drop it, {}", msg.toString());
                }
                break;
            case CLUSTERING:
                List<MessageExt> msgBackFailed = new ArrayList<>(consumeRequest.getMsgs().size());
                for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
                    MessageExt msg = consumeRequest.getMsgs().get(i);
                    // Maybe message is expired and cleaned, just ignore it.
                    if (!consumeRequest.getProcessQueue().containsMessage(msg)) {
                        log.info("Message is not found in its process queue; skip send-back-procedure, topic={}, "
                                + "brokerName={}, queueId={}, queueOffset={}", msg.getTopic(), msg.getBrokerName(),
                            msg.getQueueId(), msg.getQueueOffset());
                        continue;
                    }
                    boolean result = this.sendMessageBack(msg, context);
                    if (!result) {
                        msg.setReconsumeTimes(msg.getReconsumeTimes() + 1);
                        msgBackFailed.add(msg);
                    }
                }

                if (!msgBackFailed.isEmpty()) {
                    consumeRequest.getMsgs().removeAll(msgBackFailed);

                    this.submitConsumeRequestLater(msgBackFailed, consumeRequest.getProcessQueue(), consumeRequest.getMessageQueue());
                }
                break;
            default:
                break;
        }

        long offset = consumeRequest.getProcessQueue().removeMessage(consumeRequest.getMsgs());
        if (offset >= 0 && !consumeRequest.getProcessQueue().isDropped()) {
            this.defaultMQPushConsumerImpl.getOffsetStore().updateOffset(consumeRequest.getMessageQueue(), offset, true);
        }
    }

处理逻辑是用户自定义的，当消息量大的时候，处理逻辑执行效率的高低影响系统的吞吐量。可以把多条消息组合起来处理，或者提高线程数，以提高系统的吞吐量。

11.2.2 ProcessQueue 对象

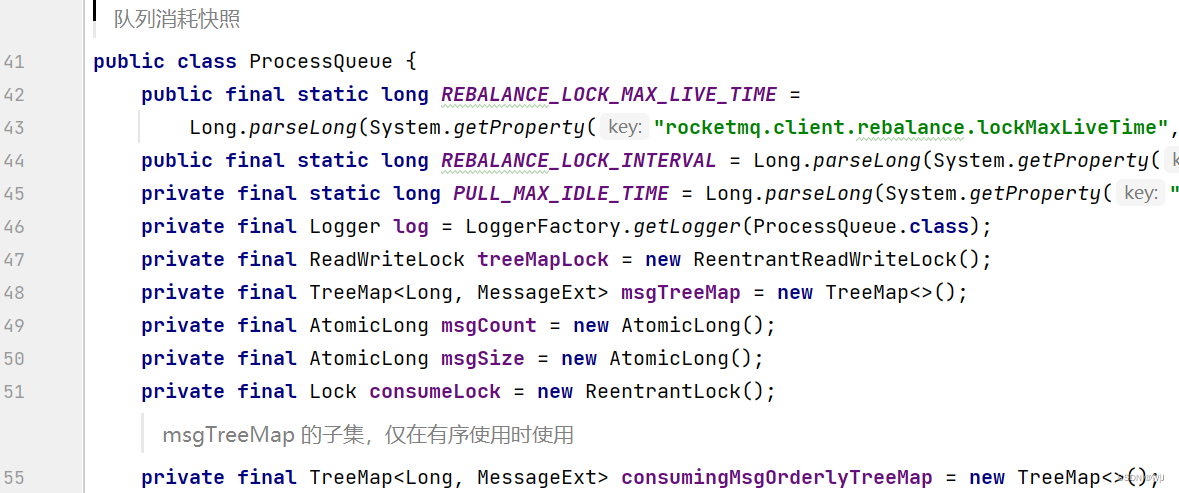

在前面的源码中，有个 Process Queue 类型的对象，这个对象的功能是什么呢？从 Broker 获得的消息，因为是提交到线程池里并行执行，很难监控和控制执行状态，比如如何获得当前消息堆积的数量，如何解决处理超时情况等。RocketMQ 定义了一个快照类 Process Queue 来解决这些问题，在 Push Consumer 运行的时候，每个 Message Queue 都会有一个对应的 Process Queue 对象，保存了这个 Message Queue 消息处理状态的快照。Process Queue 对象里主要的内容是一个 TreeMap 和一个读写锁。 TreeMap里以 Message Queue 的 Offset 作为 Key，以消息内容的引用为 Value ，保存了所有从 MessageQueue 获取到但是还未被处理的消息，读写锁控制着多个线程对 TreeMap 对象的并发访问。

有了 ProcessQueue 对象，可以随时停止、启动消息的消费，同时也可用于帮助实现顺序消费消息。顺序消息是通过 ConsumeMessage-OrderlyService 类实现的，主要流程和 ConsumeMessageConcurrentlyService 类似，区别只是在对并发消费的控制上。

11.3 生产者消费者的底层类

MQClientinstance 是客户端各种类型的 Consumer 和 Producer 的底层类。这个类首先从 NameServer 获取并保存各种配置信息，比如 Topic 的 Route 信息。同时 MQClientlnstance 还会通过 MQClientAPIImpl 类实现消息的收发，也就是从 Broker 获取消息或者发送消息到 Broker 。既然 MQClientinstance 实现的是底层通信功能和获取并保存元数据的功能，就没必要每个 Consumer 或 Producer 都创建一个对象，一个 MQClientlnstance对象可以被多个 Consumer 或 Producer 公用。 RocketMQ 通过一个工厂类达到共用 MQClientlnstance 的目的。

// org.apache.rocketmq.client.consumer.DefaultMQPushConsumer#start L737
//    org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl#start L915
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);

注意， MQClientlnstance 是通过工厂类被创建的，并不是一个单例模式，有些情况下需要创建多个实例。

    public MQClientInstance getOrCreateMQClientInstance(final ClientConfig clientConfig, RPCHook rpcHook) {
        // clientld 的 格式是“ clientlp ”＋ ＠ ＋“ InstanceName ” InstanceName  有默认值
        String clientId = clientConfig.buildMQClientId();
        MQClientInstance instance = this.factoryTable.get(clientId);
        if (null == instance) {
            instance =
                new MQClientInstance(clientConfig.cloneClientConfig(),
                    this.factoryIndexGenerator.getAndIncrement(), clientId, rpcHook);
            MQClientInstance prev = this.factoryTable.putIfAbsent(clientId, instance);
            if (prev != null) {
                instance = prev;
                log.warn("Returned Previous MQClientInstance for clientId:[{}]", clientId);
            } else {
                log.info("Created new MQClientInstance for clientId:[{}]", clientId);
            }
        }

        return instance;
    }

普通情况下，一个用到 RocketMQ 客户端的 Java 程序，或者说一个JVM 进程只要有一个 MQClientlnstance 实例就够了。这时候创建一个或多个Consumer 或者 Producer ，底层使用的是同一个 MQClientlnstance 实例。

在 quick start 文档中创建一个 DefaultMQPushConsumer 来接收消息，没有设置这个 Consumer 的 InstanceName 参数（通过 setlnstanceName 函数进行设置），这个时候 InstanceName 的值是默认的 “ DEFAULT ” 。实际创建的MQClientlnstance 个数由设定的逻辑进行控制。

// org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl#start
public synchronized void start() throws MQClientException {
        switch (this.serviceState) {
            case CREATE_JUST:
                log.info("the consumer [{}] start beginning. messageModel={}, isUnitMode={}", this.defaultMQPushConsumer.getConsumerGroup(),
                    this.defaultMQPushConsumer.getMessageModel(), this.defaultMQPushConsumer.isUnitMode());
                this.serviceState = ServiceState.START_FAILED;

                this.checkConfig();

                this.copySubscription();
                // MQC!ientlnstance 个数由设定的逻辑
                if (this.defaultMQPushConsumer.getMessageModel() == MessageModel.CLUSTERING) {
                    this.defaultMQPushConsumer.changeInstanceNameToPID();
                }

                this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);

                this.rebalanceImpl.setConsumerGroup(this.defaultMQPushConsumer.getConsumerGroup());
                this.rebalanceImpl.setMessageModel(this.defaultMQPushConsumer.getMessageModel());
                this.rebalanceImpl.setAllocateMessageQueueStrategy(this.defaultMQPushConsumer.getAllocateMessageQueueStrategy());
                this.rebalanceImpl.setmQClientFactory(this.mQClientFactory);

                if (this.pullAPIWrapper == null) {
                    this.pullAPIWrapper = new PullAPIWrapper(
                        mQClientFactory,
                        this.defaultMQPushConsumer.getConsumerGroup(), isUnitMode());
                }
                this.pullAPIWrapper.registerFilterMessageHook(filterMessageHookList);

                if (this.defaultMQPushConsumer.getOffsetStore() != null) {
                    this.offsetStore = this.defaultMQPushConsumer.getOffsetStore();
                } else {
                    switch (this.defaultMQPushConsumer.getMessageModel()) {
                        case BROADCASTING:
                            this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                            break;
                        case CLUSTERING:
                            this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
                            break;
                        default:
                            break;
                    }
                    this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);
                }
                this.offsetStore.load();

                if (this.getMessageListenerInner() instanceof MessageListenerOrderly) {
                    this.consumeOrderly = true;
                    this.consumeMessageService =
                        new ConsumeMessageOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
                    //POPTODO reuse Executor ?
                    this.consumeMessagePopService = new ConsumeMessagePopOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
                } else if (this.getMessageListenerInner() instanceof MessageListenerConcurrently) {
                    this.consumeOrderly = false;
                    this.consumeMessageService =
                        new ConsumeMessageConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
                    //POPTODO reuse Executor ?
                    this.consumeMessagePopService =
                        new ConsumeMessagePopConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
                }

                this.consumeMessageService.start();
                // POPTODO
                this.consumeMessagePopService.start();

                boolean registerOK = mQClientFactory.registerConsumer(this.defaultMQPushConsumer.getConsumerGroup(), this);
                if (!registerOK) {
                    this.serviceState = ServiceState.CREATE_JUST;
                    this.consumeMessageService.shutdown(defaultMQPushConsumer.getAwaitTerminationMillisWhenShutdown());
                    throw new MQClientException("The consumer group[" + this.defaultMQPushConsumer.getConsumerGroup()
                        + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                        null);
                }

                mQClientFactory.start();
                log.info("the consumer [{}] start OK.", this.defaultMQPushConsumer.getConsumerGroup());
                this.serviceState = ServiceState.RUNNING;
                break;
            case RUNNING:
            case START_FAILED:
            case SHUTDOWN_ALREADY:
                throw new MQClientException("The PushConsumer service state not OK, maybe started once, "
                    + this.serviceState
                    + FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
                    null);
            default:
                break;
        }

        this.updateTopicSubscribeInfoWhenSubscriptionChanged();
        this.mQClientFactory.checkClientInBroker();
        this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
        this.mQClientFactory.rebalanceImmediately();
    }

    public void changeInstanceNameToPID() {
        if (this.instanceName.equals("DEFAULT")) {
            this.instanceName = UtilAll.getPid() + "#" + System.nanoTime();
        }
    }

从 InstanceName 的创建逻辑就可以看出，如果创建 Consumer 或者 Producer类型的时候不手动指定 InstanceName ，进程中只会有一个 MQClientlnstance对象。

有些情况下只有一个 MQClientlnstance 对象是不够的，比如一个 Java 程序需要连接两个 RoceketMQ 集群 ，从一个集群读取消息，发送到另一个集群，一个 MQClientlnstance 对象无法支持这种场景。 这种情况下一定要手动指定不同的 InstanceName ，底层会创建两个 MQClientlnstance 对象。

11.3.2 MQClientlnstance 类的功能

首先来看一下 MQClientlnstance 类的 Start 函数，从 Start 函数中的逻辑能大致了解 MQClientlnstance 类的功能

Start 函数中的 MQClientAPIImpl 对象用来负责底层消息通信，然后启动pullMessageService 和 rebalanceService 。在类的成员变量中，用 topicRouteTable 、brokerAddrTable 等来存储从 NameServer 中获得的集群状态信息，并通过一个Scheduled Task 来维护这些信息。

org.apache.rocketmq.client.impl.factory.MQClientInstance#startScheduledTask

从代码中可以看出， MQClientlnstance 会定时进行如下几个操作:获取NameServer 地址、更新 TopicRoute 信息、清理离线的 Broker 和保存消费者的Offset 。
