路由过滤实验

news2025/4/19 15:01:43

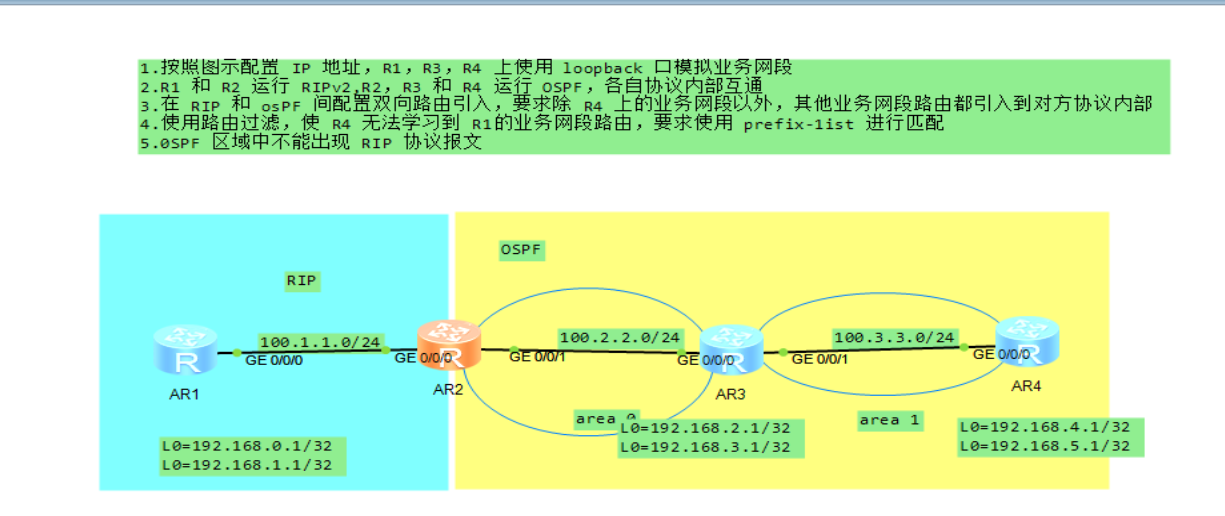

实验拓扑以及要求

在这里插入图片描述

此实验总结

1.ip-prefix 拒绝192.168.4.1 32,这样写的话并不会匹配192.168.4.1 32,需要加上范围less-eq 32,也就是说,192.168.4.1 32只是规则的范围,匹配还是得写范围
2.router-policy适合用在边界路由器引入
filter-policy都可以用

配置IP

配置ospf,rip

R1
rip 1
 undo summary
 version 2
 network 100.0.0.0
 network 192.168.0.0
 network 192.168.1.0

R2
rip 1
 undo summary
 version 2
 network 100.0.0.0
 silent-interface GigabitEthernet0/0/0
 import-route ospf 1 route-policy aaa

R3
ospf 1 router-id 2.2.2.2
 import-route rip 1
 area 0.0.0.0
  network 100.2.2.0 0.0.0.255


R4
ospf 1 router-id 4.4.4.4
 filter-policy ip-prefix bb import
 area 0.0.0.1
  network 100.3.3.0 0.0.0.255
  network 192.168.4.1 0.0.0.0
  network 192.168.5.1 0.0.0.0

双向引入,过滤R4业务网段

引入在上面的试图已经复制了

R2
[r2-rip-1]dis route-policy aaa//路由策略
Route-policy : aaa
  permit : 10 (matched counts: 7)
    Match clauses :
      if-match ip-prefix bb
[r2-rip-1]dis ip ip-prefix bb//地址前置列表匹配
Prefix-list bb
Permitted 7
Denied 4
        index: 10               deny    192.168.4.1/32          ge  32  le  32
        index: 20               deny    192.168.5.1/32          ge  32  le  32
        index: 30               permit  0.0.0.0/0               le  32

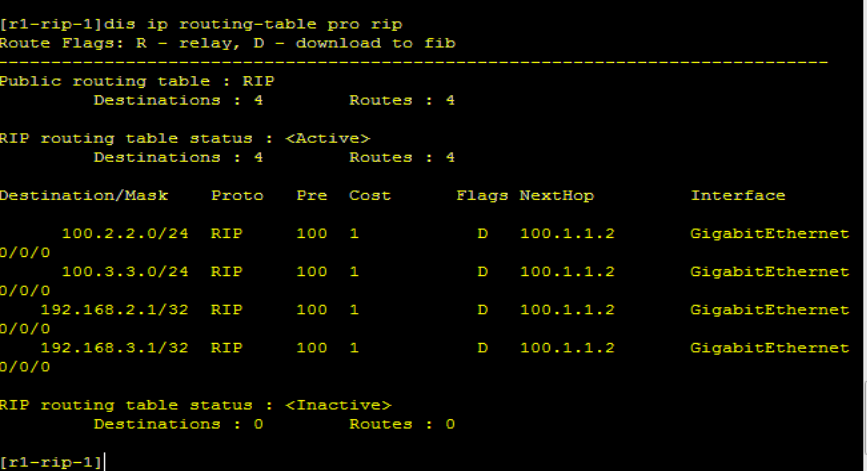

在这里插入图片描述
R1没有R4的环回

R4不学习R1网段

R4
filter-policy ip-prefix bb import

[r4-ospf-1]dis ip ip-prefix bb
Prefix-list bb
Permitted 7
Denied 2
        index: 10               deny    192.168.0.1/32          ge  32  le  32
        index: 20               deny    192.168.1.1/32          ge  32  le  32
        index: 30               permit  0.0.0.0/0               le  32
