[Python] 企业内部应用接入钉钉登录，端内免登录+浏览器授权登录

news2025/4/14 15:33:25

[Python] 为企业网站应用接入钉钉鉴权，实现钉钉客户端内自动免登授权，浏览器中手动钉钉授权登录两种逻辑。
在这里插入图片描述

操作步骤

企业内部获得 开发者权限，没有的话先申请。

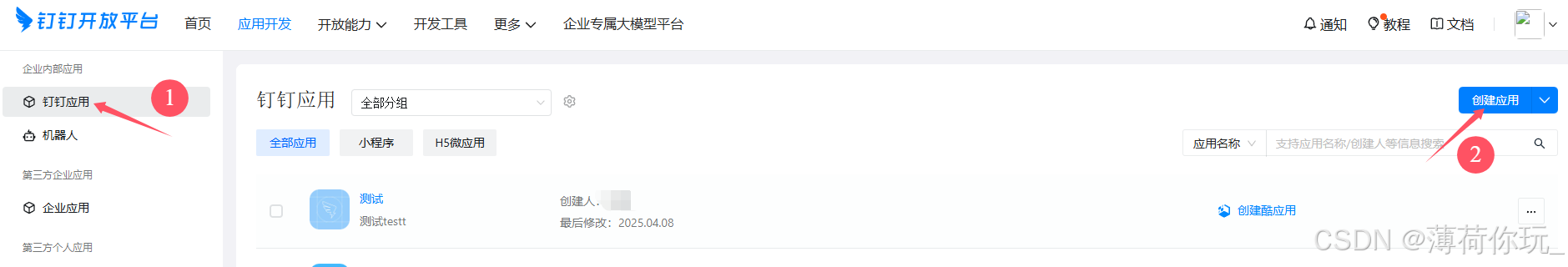

访问钉钉开放平台-应用开发创建一个 企业内部应用-钉钉应用。

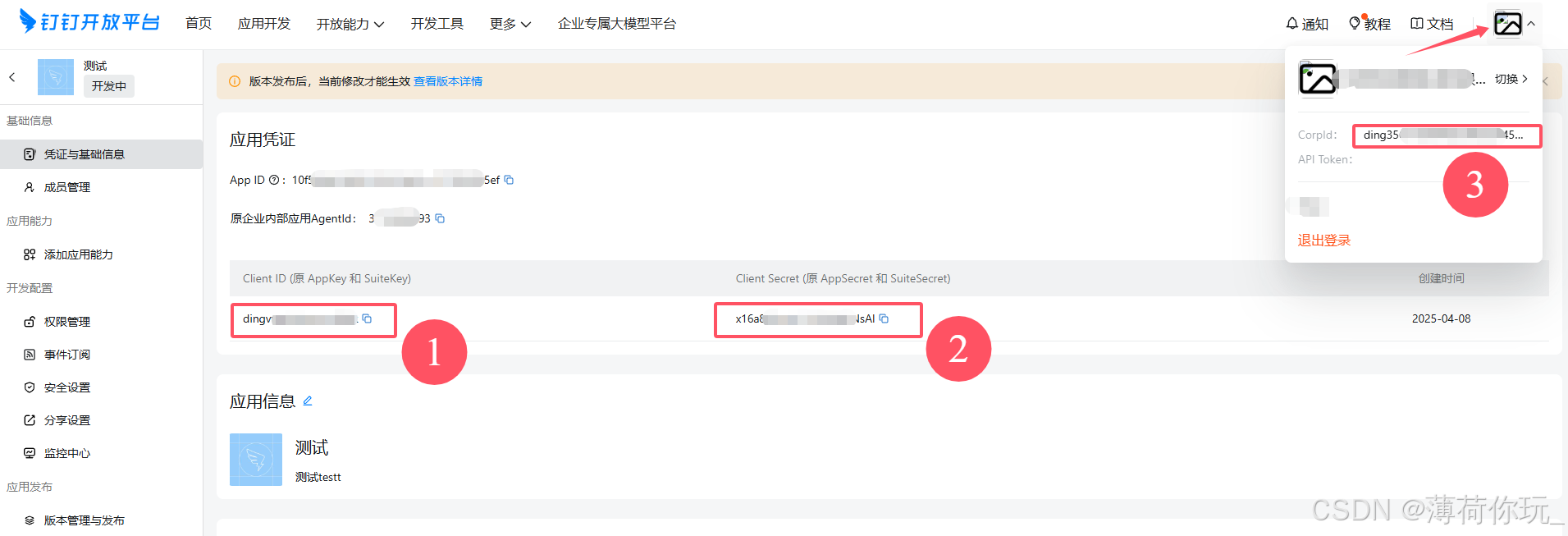

打开应用详情页，获取 Client ID、Client Secret、CorpId 备用，获取方式如下图所示。
编写代码，搭建相应服务（见下方示例代码）

示例代码（以Flask作为后端）：

- `templates/auth.html`

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>auth</title>
    <script src="https://g.alicdn.com/dingding/dingtalk-jsapi/3.0.25/dingtalk.open.js"></script>
    <script>
        // 检查是否在钉钉环境中
        function isDingTalk() {
            return /DingTalk/.test(navigator.userAgent);
        }

        if (isDingTalk()) {
            dd.ready(function () {
                dd.runtime.permission.requestAuthCode({
                    corpId: "dingxxxxxxxxxx", // 企业id
                    onSuccess: function (info) {
                        console.log(info);
                        location.href = "/demo/oauth_redirect?code=" + info.code + "&url=" + location.href;
                    }
                });
            });
        } else {
            location.href = "/demo/oauth_redirect?url=" + location.href;
        }
    </script>
</head>
<body>
</body>
</html>

需修改：corpId: "dingxxxxxxxxxx" 替换为真实的CorpId

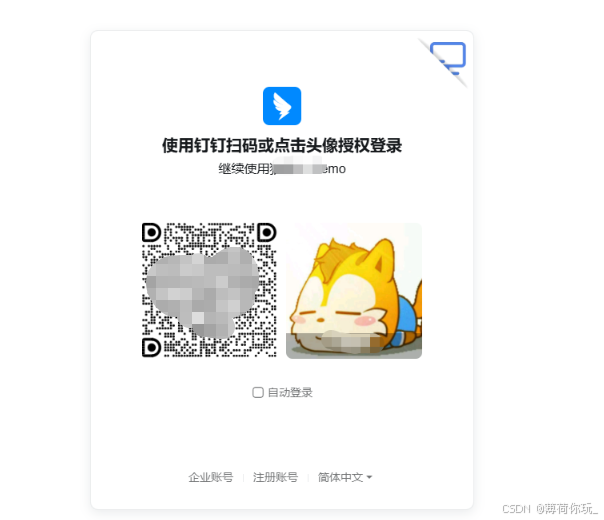

代码逻辑：若在钉钉端内，则借助钉钉免登码完成登录。反之，则跳转钉钉授权页面进行授权登录（授权页面重定向由后端控制，当然直接写在前端也可以）

- `app.py`

# -*- coding: utf-8 -*-
# Author: 薄荷你玩
import glob
import html
import json
import os
import random
import re
import time
import traceback
from datetime import datetime
from typing import List, Union
from flask import Flask, request, jsonify, Response, render_template, make_response, session
from utils import dingtalk_api

app = Flask(__name__, static_folder='static')

# 设置一个密钥用于加密会话数据
app.secret_key = '123456'

@app.after_request
def add_cors_headers(response):
    response.headers['Access-Control-Allow-Origin'] = '*'  # 允许所有来源的跨域请求
    response.headers['Access-Control-Allow-Methods'] = 'GET, POST, OPTIONS'  # 允许的 HTTP 方法
    response.headers['Access-Control-Allow-Headers'] = '*'  # 允许的请求头
    return response

@app.route("/demo")
def demo():
    if 'user' in session:
        return render_template('index.html', user=session['user'])
	    # <span style="float: right; display: flex;  align-items: center; gap: 5px;">你好，{{user.name}} <img src="{{user.avatar}}" width="25"/></span>
    return render_template('auth.html')

@app.route("/demo/oauth_redirect")
def demo_oauth_redirect():
    code = request.args.get("code")
    url = request.args.get("url")
    if not code:
        # 重定向到钉钉授权登录页
        redirect_uri = url.split("demo")[0] + "demo/oauth-web"
        client_id = "dingyyyyyyyyyy"  # Client ID
        return app.redirect(f"https://login.dingtalk.com/oauth2/auth?redirect_uri={redirect_uri}&response_type=code&client_id={client_id}&scope=openid&state={url}&prompt=consent")
    else:
        user_info = dingtalk_api.x_get_user_info_by_app_code(code)
        if user_info['success']:
            session['user'] = user_info['data']
            return app.redirect(url)
        else:
            return user_info["msg"]

@app.route("/demo/oauth-web")
def demo_oauth_web():
    """ 钉钉回调URL，配置到钉钉开发平台 """
    code = request.args.get("code")
    state = request.args.get("state")
    user_info = dingtalk_api.x_get_user_info_by_web_code(code)
    if user_info['success']:
        session['user'] = user_info['data']
        return app.redirect(state)
    return user_info["msg"]

@app.errorhandler(500)
def internal_server_error(error):
    # 获取完整的 traceback 信息
    traceback_info = traceback.format_exc()

    # 返回具体的错误内容和完整的 traceback
    response = result_map(500, False, str(error), traceback_info)
    return jsonify(response), 500

if __name__ == '__main__':
    app.run(host="0.0.0.0", port=5000)

需修改：client_id = "dingyyyyyyyyyy" 替换为真实的Client ID

- `utils/dingtalk_api.py`

# -*- coding: utf-8 -*-
# Author: 薄荷你玩
# Date: 2025/04/07

import requests

DINGTALK_DOMAIN = "https://api.dingtalk.com"
CorpId = "dingxxxxxxxxxx"  # 企业ID
ClientId = "dingyyyyyyyyyy"  # Client ID
ClientSecret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"  # Client Secret


def user_info(name, avatar, unionid):
    return {
        "success": True,
        "data": {
            "name": name,
            "avatar": avatar,
            "unionid": unionid
        }
    }


def get_user_token_by_web_code(code):
    """
    获取用户Token--access_token，根据web端钉钉授权code
    :param code:
    :return:
    """
    url = DINGTALK_DOMAIN + f"/v1.0/oauth2/userAccessToken"
    headers = {
        "Content-Type": "application/json"
    }
    data = {
        "clientId": ClientId,
        "clientSecret": ClientSecret,
        "code": code,
        "refreshToken": "",
        "grantType": "authorization_code"
    }

    response = requests.post(url, json=data, headers=headers)
    res = response.json()
    print(res)
    return res


def get_user_info_by_access_token(access_token):
    """
    获取用户通讯录个人信息
    :param access_token:
    :return:
    """
    url = DINGTALK_DOMAIN + f"/v1.0/contact/users/me"
    headers = {
        "Content-Type": "application/json",
        "x-acs-dingtalk-access-token": access_token
    }
    response = requests.get(url, headers=headers)
    res = response.json()
    print(res)
    return res


def x_get_user_info_by_web_code(code):
    res = get_user_token_by_web_code(code)
    if "accessToken" in res.keys():
        res = get_user_info_by_access_token(res["accessToken"])
        if "nick" in res.keys():
            return user_info(name=res['nick'], avatar=res['avatarUrl'], unionid=res['unionId'])
    return {"success": False, "msg": res}


# 钉钉企业内部免登
def get_access_token():
    url = DINGTALK_DOMAIN + f"/v1.0/oauth2/{CorpId}/token"
    headers = {
        "Content-Type": "application/json"
    }
    data = {
        "client_id": ClientId,
        "client_secret": ClientSecret,
        "grant_type": "client_credentials"
    }

    response = requests.post(url, json=data, headers=headers)
    res = response.json()
    print(res)
    return res


def get_user_id_by_code(access_token, code):
    """通过免登码获取用户userid(v2)"""
    url = f"https://oapi.dingtalk.com/topapi/v2/user/getuserinfo?access_token={access_token}"
    headers = {
        "Content-Type": "application/json"
    }
    data = {
        "code": code
    }

    response = requests.post(url, json=data, headers=headers)
    res = response.json()
    print(res)
    return res


def get_user_info_by_user_id(access_token, userid):
    """通过免登码获取用户userid(v2)"""
    url = f"https://oapi.dingtalk.com/topapi/v2/user/get?access_token={access_token}"
    headers = {
        "Content-Type": "application/json"
    }
    data = {
        "userid": userid
    }
    response = requests.post(url, json=data, headers=headers)
    res = response.json()
    print(res)
    return res


def x_get_user_info_by_app_code(code):
    access_token = get_access_token()['access_token']
    res = get_user_id_by_code(access_token, code)
    if "result" in res.keys():
        user_id = res["result"]["userid"]
        res = get_user_info_by_user_id(access_token, user_id)
        if "result" in res.keys():
            return user_info(name=res['result']['name'], avatar=res['result']['avatar'],
                             unionid=res['result']['unionid'])
    return {"success": False, "msg": res}


if __name__ == '__main__':
    # res = x_get_user_info_by_app_code("{钉钉端内-免登码}")
    res = x_get_user_info_by_web_code("{钉钉web授权码}")
    print(res)

需修改：

CorpId = "dingxxxxxxxxxx"  # 企业ID
ClientId = "dingyyyyyyyyyy"  # Client ID
ClientSecret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"  # Client Secret

替换为真实的ID或秘钥

配置回调域名，如下图所示，填写用户授权后的回调地址（如：http://192.168.2.1:5000/demo/oauth-web），实际使用中换成正式的服务域名。
配置完成后，钉钉内访问 /demo （如：http://192.168.2.1:5000/demo）即可自动登录（获取姓名和头像等信息）；浏览器访问会自动跳转钉钉授权登录页面，授权后完成登录。
