RabbitMQ应用2

一.实际业务逻辑
- 订单系统中使用MQ（不写订单系统逻辑）
- 1.项目的创建和准备
- 2.代码实现
- - Controller
  - Configuration
  - properties
- 二.物流系统使用MQ（不实现物流系统业务）
- 1.项目创建同订单（一样）
- 2.代码实现
- - properties
  - Listener
- 使用对象来发送接收消息
- - 生产者（订单）代码
  - 消费者（物流）代码

一.实际业务逻辑

订单系统中使用MQ（不写订单系统逻辑）

1.项目的创建和准备

先把空项目创建好

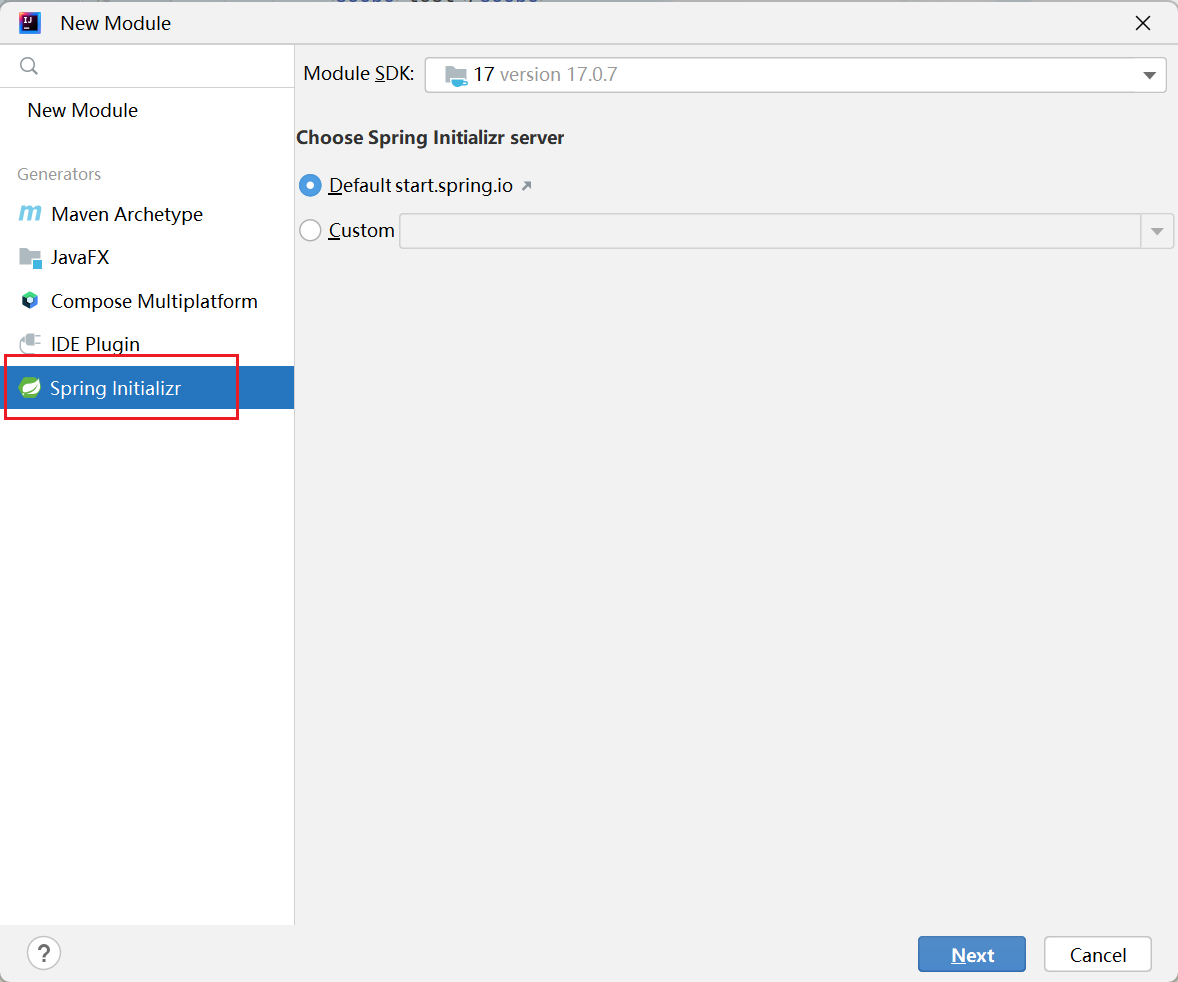

在空项目中创建其他的spring项目

在这里插入图片描述

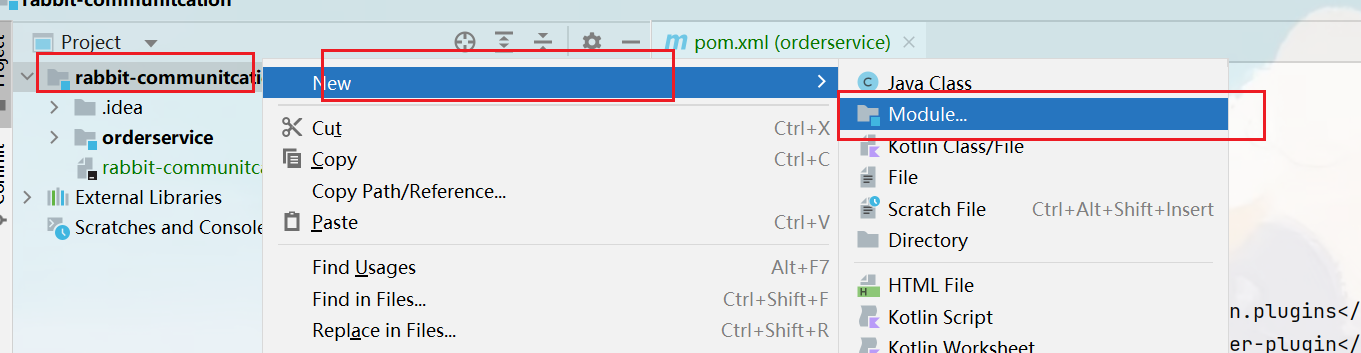

创建新的spring项目在这个空项目中

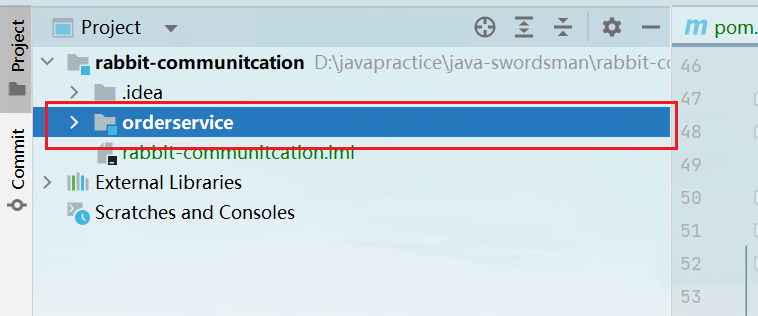

项目创建好会出现一个文件包

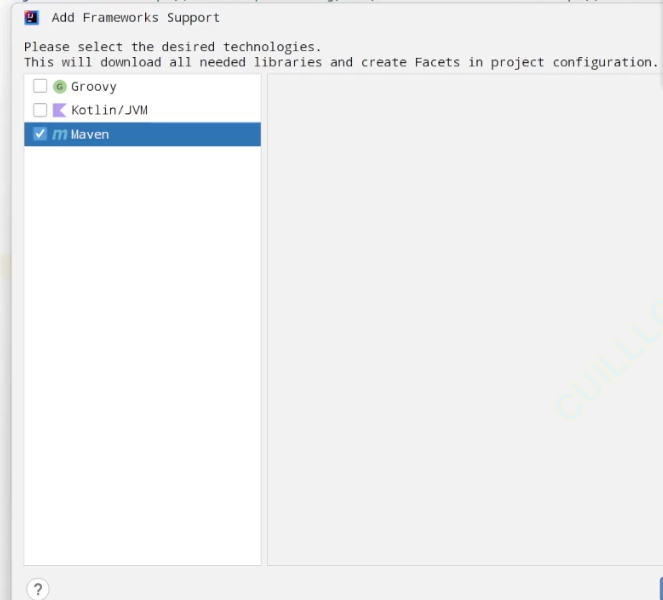

有些情况下需要手动添加Maven
在里面选择Maven后，项目就能够使用XML配置文件了

2.代码实现

Controller

package com.example.orderservice.controller;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.UUID;

@RequestMapping("/order")
@RestController
public class OrderController {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @RequestMapping("/create")
    public String create() {
        String orderId = UUID.randomUUID().toString();
        rabbitTemplate.convertAndSend("","order.create","订单信息，订单ID: " + orderId);
        return "ok";
    }
}

Configuration

package com.example.orderservice.config;

import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.amqp.core.QueueBuilder;


@Configuration
public class RabbitMQConfig {

    @Bean("orderQueue")
    public Queue orderQueue() {
        return QueueBuilder.durable("order.create").build();
    }
}

properties

spring.application.name=orderservice
spring.rabbitmq.addresses=amqp://账号:密码@IP:端口号/虚拟机

二.物流系统使用MQ（不实现物流系统业务）

1.项目创建同订单（一样）

2.代码实现

properties

spring.application.name=logistics
server.port=9090
spring.rabbitmq.addresses=amqp://账号:密码@IP:端口号/虚拟机

Listener

package com.example.logistics.listener;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
public class OrderListener {
    @RabbitListener(queues = "order.create")
    public void handMessage(String orderInfo) {
        System.out.println("接收到订单消息: " + orderInfo);
    }
}

使用对象来发送接收消息

生产者（订单）代码

Controller

@RequestMapping("/order")
@RestController
public class OrderController {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @RequestMapping("/create")
    public String create() {
        String orderId = UUID.randomUUID().toString();
        rabbitTemplate.convertAndSend("","order.create","订单信息，订单ID: " + orderId);
        return "ok";
    }


    @RequestMapping("/create2")
    public String create2() {
        OrderInfo orderInfo = new OrderInfo();
        orderInfo.setOrderId(UUID.randomUUID().toString());
        orderInfo.setName("商品 "  + new Random().nextInt(100));
        rabbitTemplate.convertAndSend("","order.create", orderInfo);
        return "ok2";
    }
}

Configuration

@Configuration
public class RabbitMQConfig {

    @Bean("orderQueue")
    public Queue orderQueue() {
        return QueueBuilder.durable("order.create").build();
    }

    @Bean
    public Jackson2JsonMessageConverter jackson2JsonMessageConverter() {
        return new Jackson2JsonMessageConverter();
    }

    @Bean
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory, Jackson2JsonMessageConverter jackson2JsonMessageConverter) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(jackson2JsonMessageConverter);
        return rabbitTemplate;
    }
}

model

@Data
public class OrderInfo implements Serializable {
    private String OrderId;
    private String name;
}

消费者（物流）代码

Listener

@Component
@RabbitListener(queues = "order.create")
public class OrderListener {
    @RabbitHandler
    public void handMessage1(String orderInfo) {
        System.out.println("接收到订单消息String: " + orderInfo);
    }

    @RabbitHandler
    public void handMessage2(OrderInfo orderInfo) {
        System.out.println("接收到订单消息OrderInfo: " + orderInfo);
    }

}

Configuration

@Configuration
public class RabbitMQConfig {
    @Bean
    public Jackson2JsonMessageConverter jackson2JsonMessageConverter() {
        return new Jackson2JsonMessageConverter();
    }

    @Bean
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory, Jackson2JsonMessageConverter jackson2JsonMessageConverter) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(jackson2JsonMessageConverter);
        return rabbitTemplate;
    }
}
