代码
1.主界面分析(组件)
JFrame:最外层的窗体
JMenuBar:最上层的菜单
JLabel:管理文字和图片的容器
1.界面
--关闭模式--
-
DO_NOTHING_ON_CLOSE
:当用户尝试关闭窗口时,程序什么都不做。 -
HIDE_ON_CLOSE
:当用户尝试关闭窗口时,窗口会被隐藏起来,但不会被销毁。 -
DISPOSE_ON_CLOSE
:当用户尝试关闭窗口时,窗口会被销毁,释放掉所有相关的资源。 -
EXIT_ON_CLOSE
:当用户尝试关闭窗口时,整个程序会直接退出。
public interface WindowConstants
{
/**
* 什么都不做的默认窗口关闭操作。
*/
public static final int DO_NOTHING_ON_CLOSE = 0;
/**
* 隐藏窗口的默认窗口关闭操作。
*/
public static final int HIDE_ON_CLOSE = 1;
/**
* 销毁窗口的默认窗口关闭操作。
* <p>
* <b>注意</b>:当 Java 虚拟机(VM)中的最后一个可显示窗口被销毁时,虚拟机可能会终止。更多信息请参见
* <a href="../../java/awt/doc-files/AWTThreadIssues.html">
* AWT 线程问题</a>。
* @see java.awt.Window#dispose()
* @see JInternalFrame#dispose()
*/
public static final int DISPOSE_ON_CLOSE = 2;
/**
* 退出应用程序的默认窗口关闭操作。尝试在支持此功能的窗口(如
* <code>JFrame</code>)上设置此值时,可能会根据
* <code>SecurityManager</code> 抛出 <code>SecurityException</code>。
* 建议仅在应用程序中使用此选项。
*
* @since 1.4
* @see JFrame#setDefaultCloseOperation
*/
public static final int EXIT_ON_CLOSE = 3;
}
代码展示
package com.scarelf.ui;
import javax.swing.*;
import java.awt.*;
public class GameJFrame extends JFrame {
public GameJFrame() {
//设置界面的宽高
this.setSize(603,680);
//设置界面的标题
this.setTitle("拼图单机版 v1.0");
//设置界面置顶
this.setAlwaysOnTop(true);
//设置界面居中
this.setLocationRelativeTo(null);
//设置关闭模式
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
//让界面显示出来,建议写在最后
setVisible(true);
}
}

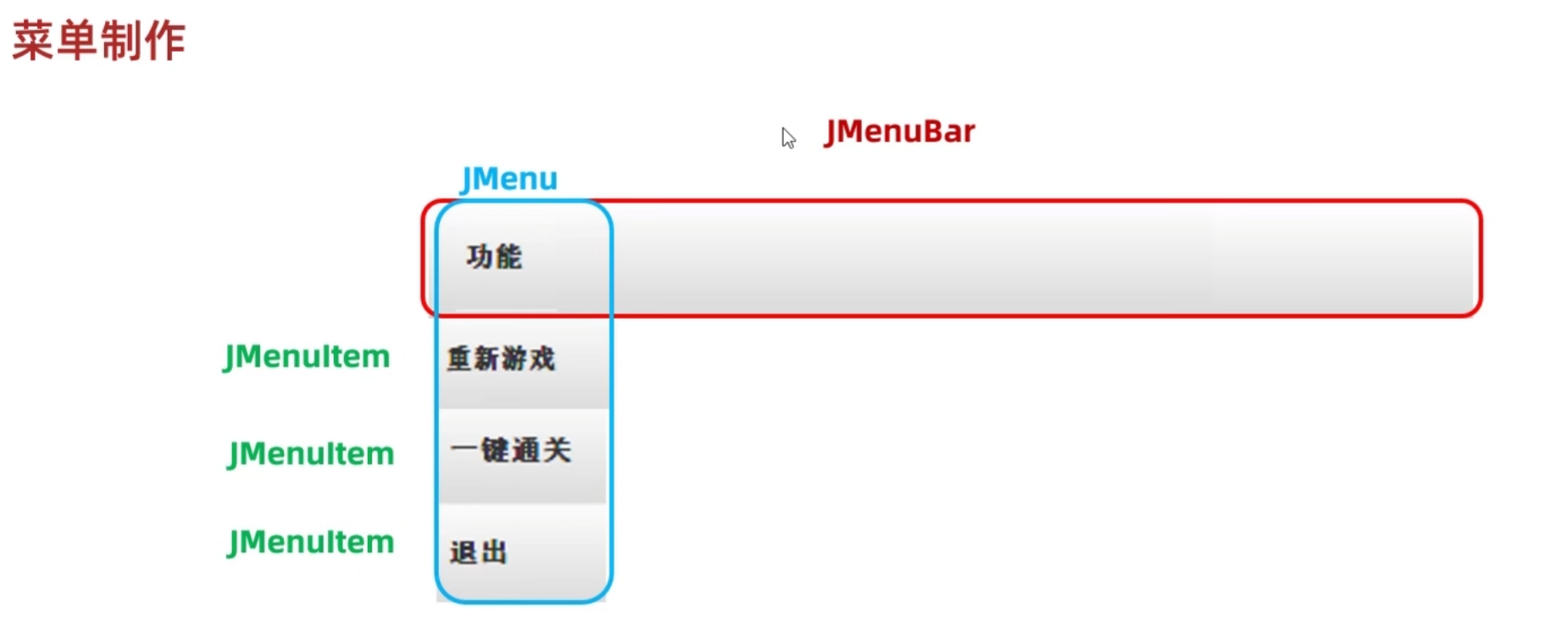

2.菜单
//初始化菜单
//创建整个的菜单对象
JMenuBar jMenuBar = new JMenuBar();
//创建菜单上面的两个选项对象
JMenu functionJMenu = new JMenu("功能");
JMenu aboutJMenu = new JMenu("关于制作人");
JMenu rechargeJMenu = new JMenu("充值选项");
//创建选项下面的条目对象
JMenuItem replayItem = new JMenuItem("重新游戏");
JMenuItem reLoginItem = new JMenuItem("重新登录");
JMenuItem closeItem = new JMenuItem("关闭游戏");
JMenuItem accountItem = new JMenuItem("公众号");
JMenuItem QQItem = new JMenuItem("制作人QQ");
JMenuItem wepayItem = new JMenuItem("微信支付");
//将每个选项下面的条目添加到选项当中
functionJMenu.add(replayItem);
functionJMenu.add(reLoginItem);
functionJMenu.add(closeItem);
aboutJMenu.add(accountItem);
aboutJMenu.add(QQItem);
rechargeJMenu.add(wepayItem);
//将菜单里面的两个选项添加到菜单当中
jMenuBar.add(functionJMenu);
jMenuBar.add(aboutJMenu);
jMenuBar.add(rechargeJMenu);
//给整个界面设置菜单
this.setJMenuBar(jMenuBar);
3.添加图片

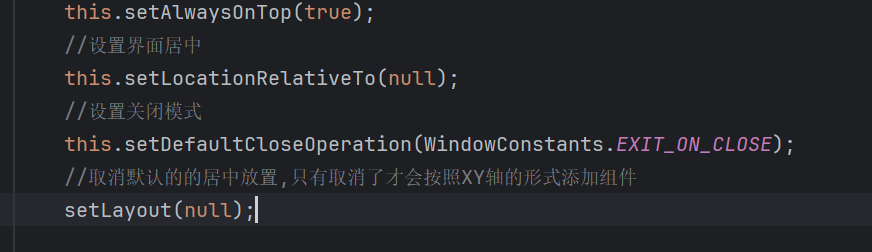

- 取消默认的居中放置
- 创建一个图片ImageIcon的对象
- 创建一个JLabel的对象(管理容器)

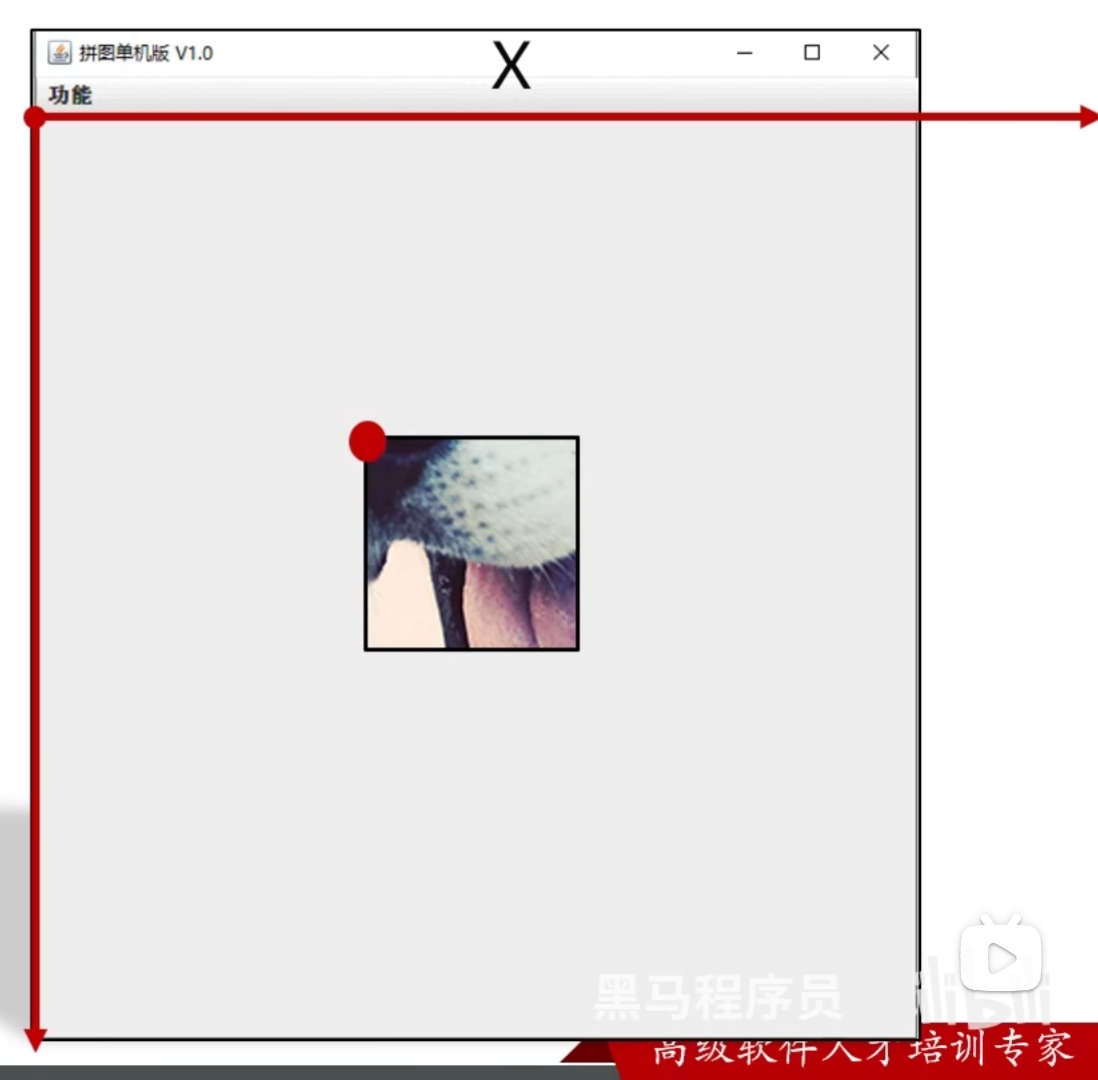

- 指定图片位置
- 把管理容器添加到界面中
前提
private void initImage() {
int number = 1;
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 4; j++) {
//创建一个JLabel的对象(管理容器)
JLabel jLabel1 = new JLabel(path + num + ".jpg");
//指定图片位置
jLabel1.setBounds(105*j,105*i,105,105);
//把管理容器添加到界面中
//this.add(jLabel1);
this.getContentPane().add(jLabel1);
}
number++;
}
}
4.打乱图片顺序
(1)测试类
package Test;
import java.util.Random;
public class 打乱 {
public static void main(String[] args) {
//需求:
//把一个一维数组中的数据:0~15打乱顺序
//让后再按照4个一组的方式添加到二维数组当中去
int [] tempArr = {0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15};
Random r = new Random();
for (int i = 0; i < tempArr.length; i++) {
int index = r.nextInt(tempArr.length);
int temp = tempArr[index];
tempArr[index] = tempArr[i];
tempArr[i] = temp;
}
int [][]data = new int [4][4];
for (int i = 0; i < tempArr.length; i++) {
data[i/4][i%4] = tempArr[i];
}
}
}
(2)修改
把data定义在成员变量当中,因为initData和initImage都会用到此数据
private void initImage() {
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 4; j++) {
int num = data[i][j];
//创建一个JLabel的对象(管理容器)
JLabel jLabel1 =new JLabel(path+ num + ".jpg");
//指定图片位置
jLabel1.setBounds(105*j,105*i,105,105);
//把管理容器添加到界面中
//this.add(jLabel1);
this.getContentPane().add(jLabel1);
}
}
}
5.事件
事件是可以被组件识别的操作
当你对组件干了某件事情之后,就会执行对应的代码
- 事件源:按钮,图片,窗体
- 事件:某些操作(鼠标点击,鼠标划入)
- 绑定监听:当时间源上发生了某个事件,则执行某段代码
KeyListener //键盘监听
MouseListener //鼠标监听
ActionListener //动作监听(鼠标的单击和空格)
(1)ActionListener
package Test;
import javax.swing.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class thingTest1 {
public static void main(String[] args) {
JFrame jFrame = new JFrame();
jFrame.setSize(603,680);
jFrame.setTitle("事件演示");
jFrame.setAlwaysOnTop(true);
jFrame.setLocationRelativeTo(null);
jFrame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
jFrame.setLayout(null);
//创建一个按钮对象
JButton jtb = new JButton("按钮1");
//设置位置和宽高
jtb.setBounds(0,0,100,50);
//给按钮添加动作监听
//jtb:组件对象,表示你要给那个组件添加事件
//addActionListener:表示我要给组件添加哪一个事件监听(动作监听)
//参数:表示事件被触发时候要执行的代码
//jtb.addActionListener(new MyActionListener());
//使用匿名内部类
jtb.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
System.out.println("按钮1被点击了");
}
});
//把按钮添加到界面当中
jFrame.getContentPane().add(jtb);
jFrame.setVisible(true);
}
}
package Test;//下同
public class MyJFrameTest {
public static void main(String[] args) {
new MyJFrame();
}
}
-----------------------------------------------------------------------------------------
package Test;
import javax.swing.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.util.Random;
public class MyJFrame extends JFrame implements ActionListener {
JButton jtb1 = new JButton("按钮1");
JButton jtb2 = new JButton("按钮2");
public MyJFrame() {
this.setSize(603,680);
this.setTitle("事件测试类 2");
this.setAlwaysOnTop(true);
this.setLocationRelativeTo(null);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
this.setLayout(null);
jtb1.setBounds(0,0,100,50);
jtb1.addActionListener(this);
jtb2.setBounds(100,0,100,50);
jtb2.addActionListener(this);
//把按钮添加到界面当中
this.getContentPane().add(jtb1);
this.getContentPane().add(jtb2);
this.setVisible(true);
}
@Override
public void actionPerformed(ActionEvent e) {
Object source = e.getSource();
if(source == jtb1){
jtb1.setSize(200,200);
}else if(source == jtb2){
Random r = new Random();
jtb2.setLocation(r.nextInt(500),r.nextInt(500));
}
}
}
(2)鼠标监听
package Test;
import javax.swing.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.MouseEvent;
import java.awt.event.MouseListener;
public class MyJFrame2 extends JFrame implements MouseListener {
JButton jtb1 = new JButton("按钮1");
public MyJFrame2() {
this.setSize(603,680);
this.setTitle("事件测试类 2");
this.setAlwaysOnTop(true);
this.setLocationRelativeTo(null);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
this.setLayout(null);
jtb1.setBounds(0,0,100,50);
jtb1.addMouseListener(this);
//把按钮添加到界面当中
this.getContentPane().add(jtb1);
this.setVisible(true);
}
@Override
public void mouseClicked(MouseEvent e) {
System.out.println("点击");
}
@Override
public void mousePressed(MouseEvent e) {
System.out.println("按住不松");
}
@Override
public void mouseReleased(MouseEvent e) {
System.out.println("松开");
}
@Override
public void mouseEntered(MouseEvent e) {
System.out.println("划入");
}
@Override
public void mouseExited(MouseEvent e) {
System.out.println("划出");
}
}
(3)键盘监听
package Test;
import javax.swing.*;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;
import java.awt.event.KeyListener;
public class MyJFrame3 extends JFrame implements KeyListener {
JButton jtb1 = new JButton("button");
public MyJFrame3() {
this.setSize(603,680);
this.setTitle("MyJFrame3");
this.setAlwaysOnTop(true);
this.setLocationRelativeTo(null);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
this.setLayout(null);
jtb1.setBounds(0,0,100,50);
jtb1.addKeyListener(this);
this.getContentPane().add(jtb1);
this.setVisible(true);
}
@Override
public void keyTyped(KeyEvent e) {
}
@Override
public void keyPressed(KeyEvent e) {
System.out.println("按下不松");
}
@Override
public void keyReleased(KeyEvent e) {
int code = e.getKeyCode();
System.out.println(code);
}
}
6.美化界面
1.将15张小图片移动到界面的中央偏下方
2.添加背景图片
细节:代码中后添加的,塞在下面
3.添加图片的边框
jLabel.setBoreder(new BevelBorder(1));
4.优化路径
- 从盘符开始的:绝对路径
- 非盘符开始的:相对路径
private void initImage() {
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 4; j++) {
int num = data[i][j];
//创建一个JLabel的对象(管理容器)
JLabel jLabel1 =new JLabel(path + num + ".jpg");
//指定图片位置
jLabel1.setBounds(105*j + 83,105*i + 105,105,105);
//给图片添加边框
//0:表示让图片凸起来
//1:表示让图片凹下去
jLabel1.setBorder(new BevelBorder(BevelBorder.LOWERED));
//把管理容器添加到界面中
//this.add(jLabel1);
this.getContentPane().add(jLabel1);
}
}
//添加背景图
JLabel background = new JLabel(new ImageIcon("image/background.png"));
background.setBounds(40, 40, 800, 600);
//把背景图添加到界面当中
this.getContentPane().add(background);
}
7.上下移动
1.本类实现KeyListener接口,并重写所有抽象方法
2.给整个界面添加键盘监听事件
3.统计一下空白方块对应的数字0在二维数组中的位置
4.Bug修复
- 当空白方块在最下方时,无法再次进行上移
- 当空白方块在最上方时,无法再次进行下移
- 当空白方块在最左方时,无法再次进行右移
- 当空白方块在最右方时,无法再次进行左移
因为东西实在太多了所以就把改变的部分发出来,最后我再展示源码
...
public class GameJFrame extends JFrame implements KeyListener {
...
int x = 0;
int y = 0;
public GameJFrame() {
//设置界面
initJFrame();
//设置菜单
initJMenuBar();
//初始化数据(打乱)
initData();
//初始化图片
initImage();
//让界面显示出来,建议写在最后
setVisible(true);
}
private void initData() {
...
for (int i = 0; i < tempArr.length; i++) {
if(tempArr[i] == 0){
x = i / 4;
y = i % 4;
}else{
data[i/4][i%4] = tempArr[i];
}
}
}
private void initImage() {
//清空原本已经出现的所有图片
this.getContentPane().removeAll();
...
//刷新一下界面
this.getContentPane().repaint();
}
private void initJMenuBar(){
...
}
private void initJFrame(){
...
//给整个界面添加键盘监听事件
this.addKeyListener(this);
}
@Override
public void keyTyped(KeyEvent e) {
}
@Override
public void keyPressed(KeyEvent e) {
}
@Override
public void keyReleased(KeyEvent e) {
//对上, 下, 左, 右进行判断
//左: 37 上: 38 右: 39 下: 40
int code = e.getKeyCode();
if(code == 37){
if(y == 3){
return;
}
data[x][y]=data[x][y+1];
data[x][y+1]=0;
y++;
initImage();
}else if(code == 38){
if(x == 3){
return;
}
//逻辑:把空白方块下方的数字往上移动
//x, y 表示空白方块
//x+1, y 表示空白方块下方的数字
//把空白方块下方的数字赋值给空白方块
data[x][y]=data[x+1][y];
data[x+1][y]=0;
x++;
//调用方法按照最新的数字加载图片
initImage();
}else if(code == 39){
if(y == 0){
return;
}
data[x][y]=data[x][y-1];
data[x][y-1]=0;
y--;
initImage();
}else if(code == 40){
if(x == 0){
return;
}
data[x][y]=data[x-1][y];
data[x-1][y]=0;
x--;
initImage();
}
}
}
8.查看完整图片
String path = "images";
//按下不松时会调用这个方法
@Override
public void keyPressed(KeyEvent e) {
int code = e.getKeyCode();
if(code == 65){
//把界面中所有的图片全部删除
this.getContentPane().removeAll();
//加载一张完整的图片
JLabel all = new JLabel(new ImageIcon(path + "all.jpg"));
all.setBounds(83, 134, 420, 420);
this.getContentPane().add(all);
//添加背景图
JLabel background = new JLabel(new ImageIcon("image/background.png"));
background.setBounds(40, 40, 800, 600);
//把背景图添加到界面当中
this.getContentPane().add(background);
//刷新一下界面
this.getContentPane().repaint();
}
}
9.作弊码
}else if(code == 65){
initImage();
}else if(code == 87){
data =new int [][]{
{1, 2, 3, 4},
{5, 6, 7, 8},
{9, 10, 11, 12},
{13, 14, 15, 0}
};
initImage();
}

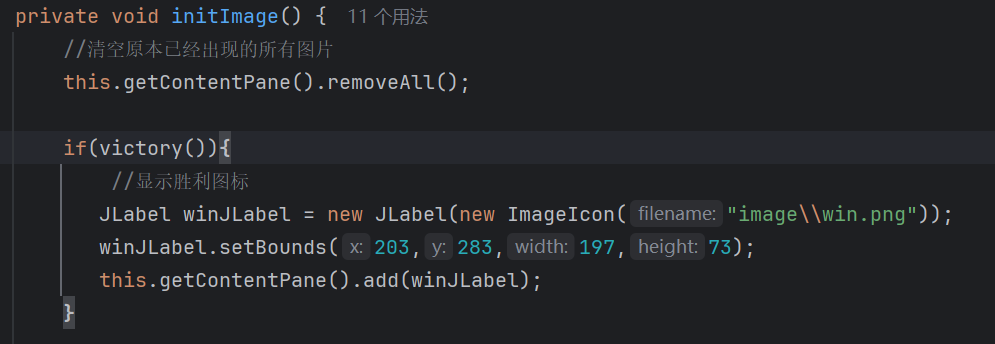

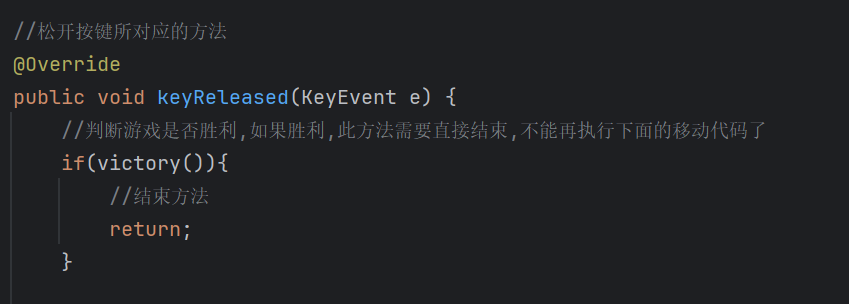

10.判断胜利
//判断data数组中的数据是否跟win数组中相同
//如果全部相同,返回true,否则返回false
public boolean victory(){
for (int i = 0; i < data.length; i++) {
for (int j = 0; j < data.length; j++) {
if(data[i][j] != win[i][j]){
return false;
}
}
}
return true;
}
11.记步功能
JLabel stepCount = new JLabel("步数" + step);
stepCount.setBounds(50,30,100,20);
this.getContentPane().add(stepCount);
...
x++;
step++;
initImage();
...
12.JMenuBar相关事件
if(obj == replayItem){
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if(obj == reLoginItem){
//关闭当前界面
this.setVisible(false);
//打开登录界面
new LoginJFrame();
}else if(obj == closeItem){
//直接关闭虚拟机即可
System.exit(0);
}else if(obj == accountItem){
//创建一个弹框对象
JDialog jDialog = new JDialog();
//创建一个管理图片的容器对象JLabel
JLabel jLabel = new JLabel(new ImageIcon( "image\\img_1.png"));
//设置位置和宽高
jLabel.setBounds(0,0,getWidth(),getHeight());
//把图片添加到弹框当中
jDialog.getContentPane().add(jLabel);
//给弹框设置大小
jDialog.setSize(500,500);
//让弹框置顶
jDialog.setAlwaysOnTop(true);
//让弹框居中
jDialog.setLocationRelativeTo(null);
//弹框不关闭则无法操作下面的界面
jDialog.setModal(true);
//让弹框显示出来
jDialog.setVisible(true);
...
因为下面的一部分都是网课上面留的作业,因为本人实力有限,怕误导大家,所以我写得解释就比较少了,虽然最终代码可以运行,但是自己心里也不是十拿九稳
13.更换图片
需要知道在更换图片中更换图片是JMenu,而其下面的分类是JMenuItem
...
JMenuItem animal = new JMenuItem("动物");
JMenuItem girl = new JMenuItem("女性");
JMenuItem sport = new JMenuItem("运动");
...
//创建更换图片
JMenu changeImage = new JMenu("更换图片");
...
changeImage.add(animal);
changeImage.add(girl);
changeImage.add(sport);
...
else if(obj == animal){
//选择随机图片
Random r = new Random();
int index =r.nextInt(8) + 1;
path = "image\\animal\\animal"+ index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if(obj == girl){
//选择随机图片
Random r = new Random();
int index =r.nextInt(13)+1;
path = "image\\girl\\girl" + index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if (obj == sport){
//选择随机图片
Random r = new Random();
int index =r.nextInt(10)+1;
path = "image\\sport\\sport" + index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}
14.登录界面
(1)提前设置账号密码
//创建一个集合存储正确的用户名和密码
static ArrayList<User> allUsers = new ArrayList<>();
static {
allUsers.add(new User("ccc","123456"));
allUsers.add(new User("bbb","123456"));
allUsers.add(new User("aaa","123456"));
}
...
...
private static class User {
static String username;
static String password;
public User() {
}
public User(String username, String password) {
this.username = username;
this.password = password;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
}
(2)明文显示的输入框和密文显示的输入框
JTextField username = new JTextField();
JPasswordField password = new JPasswordField();
(3)设置弹窗方法
private void showJDialog(String contnet) {
JDialog dialog = new JDialog();
dialog.setSize(200, 150);
dialog.setAlwaysOnTop(true);
dialog.setLocationRelativeTo(null);
dialog.setModal(true);
JLabel label = new JLabel(contnet);
label.setBounds(0, 0, 200, 150);
dialog.getContentPane().add(label);
dialog.setVisible(true);
}
(4)对按钮的操作美化等
@Override
public void mousePressed(MouseEvent e) {
Object source =e.getSource();
if(source ==login) {
login.setIcon(new ImageIcon("image\\login\\登录按下.png"));
} else if(source ==register){
register.setIcon(new ImageIcon("image\\login\\注册按下.png"));
}
}
@Override
public void mouseReleased(MouseEvent e) {
Object source =e.getSource();
if(source ==login) {
login.setIcon(new ImageIcon("image\\login\\登录按钮.png"));
} else if(source ==register){
register.setIcon(new ImageIcon("image\\login\\注册按钮.png"));
}
}
(5)对有事件交互的变量定义在成员变量的地方
JButton register = new JButton();
JButton login = new JButton();
String codeStr = CodeUtil.getCode();
JLabel rightCode = new JLabel(codeStr);
JTextField username = new JTextField();
JPasswordField password = new JPasswordField();
JTextField code = new JTextField();
其中对验证码的要求是定义一个工具类,而且需要点击就会改变
package CodeUtil;
import java.util.ArrayList;
import java.util.Random;
public class CodeUtil {
public static String getCode(){
//1.创建一个集合
ArrayList<Character> list = new ArrayList<>();
//2,添加字母a - z, A - Z
for (int i = 0; i < 26; i++) {
list.add((char) ('a' + i));
list.add((char) ('A' + i));
}
//3.生成四个随机字母
String result ="";
Random r = new Random();
for (int i = 0; i < 4; i++) {
int index0 = r.nextInt(list.size());
result += list.get(index0);
}
//4.在后面添加数字
int number = r.nextInt(10);
result = result + number;
//5.把字符串变成字符数组
char[] chars = result.toCharArray();
//6.打乱顺序
int index = r.nextInt(chars.length);
char temp = chars[4];
chars[4] = chars[index];
chars[index] = temp;
//7.把字符数组变回字符串
String code = new String(chars);
return code;
}
}
(6)对账号和密码进行判断
@Override
public void mouseClicked(MouseEvent e) {
Object source =e.getSource();
if(source ==rightCode){
String code = CodeUtil.getCode();
rightCode.setText(code);
}else if(source ==login){
//获取两个文本输入框中的内容
String usernameInput = this.username.getText();
String passwordInput = this.password.getText();
//获取用户输入的验证码
String codeInput = code.getText();
User userInfo = new User(usernameInput,passwordInput);
if(codeInput.length() == 0){
showJDialog("验证码不能为空");
}else if(usernameInput.length() == 0 ||passwordInput.length() == 0){
showJDialog("用户名或者密码为空");
}else if(codeInput.equals(rightCode.getText())){
showJDialog("验证码输入错误");
}else if(contains(userInfo)){
this.setVisible(false);
new GameJFrame();
}else {
showJDialog("用户名或密码错误");
}
}else if(source ==register){
this.setVisible(false);
new Registerjframe();
}
}
public boolean contains(User userInput){
for (int i = 0; i < allUsers.size(); i++) {
User rightUser = allUsers.get(i);
if(userInput.getUsername().equals(rightUser.getUsername()) &&
userInput.getPassword().equals(rightUser.getPassword())){
return true;
}
}
return false;
}
因为注册需要其他知识点所以在这个还没有写出来,下面展示所有代码
源码
package com.scarelf.ui;
import javax.swing.*;
import javax.swing.border.BevelBorder;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;
import java.awt.event.KeyListener;
import java.util.Random;
public class GameJFrame extends JFrame implements KeyListener, ActionListener {
//创建一个二维数组:用来管理数据
//加载图片的时候,会根据二维数组中的数据进行加载
int [][]data = new int [4][4];
//记录空白方块在二维数组中的位置
int x = 0;
int y = 0;
String path = "image\\animal\\animal3\\";
//定义一个二维数组,存储正确的数据
int [][] win = {
{1, 2, 3, 4},
{5, 6, 7, 8},
{9, 10, 11, 12},
{13, 14, 15, 0}
};
//定义变量用来统计步数
int step = 0;
//创建选项下面的条目对象
JMenuItem replayItem = new JMenuItem("重新游戏");
JMenuItem reLoginItem = new JMenuItem("重新登录");
JMenuItem closeItem = new JMenuItem("关闭游戏");
JMenuItem accountItem = new JMenuItem("二维码");
JMenuItem QQItem = new JMenuItem("制作人QQ");
JMenuItem wePayItem = new JMenuItem("微信支付");
JMenuItem animal = new JMenuItem("动物");
JMenuItem girl = new JMenuItem("女性");
JMenuItem sport = new JMenuItem("运动");
public GameJFrame() {
//设置界面
initJFrame();
//设置菜单
initJMenuBar();
//初始化数据(打乱)
initData();
//初始化图片
initImage();
//让界面显示出来,建议写在最后
setVisible(true);
}
private void initData() {
int [] tempArr = {0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15};
Random r = new Random();
for (int i = 0; i < tempArr.length; i++) {
int index = r.nextInt(tempArr.length);
int temp = tempArr[index];
tempArr[index] = tempArr[i];
tempArr[i] = temp;
}
for (int i = 0; i < tempArr.length; i++) {
if(tempArr[i] == 0){
x = i / 4;
y = i % 4;
}
data[i/4][i%4] = tempArr[i];
}
}
private void initImage() {
//清空原本已经出现的所有图片
this.getContentPane().removeAll();
if(victory()){
//显示胜利图标
JLabel winJLabel = new JLabel(new ImageIcon("image\\win.png"));
winJLabel.setBounds(203,283,197,73);
this.getContentPane().add(winJLabel);
}
JLabel stepCount = new JLabel("步数" + step);
stepCount.setBounds(50,30,100,20);
this.getContentPane().add(stepCount);
//先加载的图片在上方,后加载的图片塞在下面
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 4; j++) {
int num = data[i][j];
//创建一个JLabel的对象(管理容器)
JLabel jLabel1 =new JLabel( new ImageIcon(path + num + ".jpg"));
//指定图片位置
jLabel1.setBounds(105*j + 83,105*i + 134,105,105);
//给图片添加边框
//0:表示让图片凸起来
//1:表示让图片凹下去
jLabel1.setBorder(new BevelBorder(BevelBorder.LOWERED));
//把管理容器添加到界面中
//this.add(jLabel1);
this.getContentPane().add(jLabel1);
}
}
//添加背景图
JLabel background = new JLabel(new ImageIcon( "image/background.png"));
background.setBounds(40, 40, 508, 560);
//把背景图添加到界面当中
this.getContentPane().add(background);
//刷新一下界面
this.getContentPane().repaint();
}
private void initJMenuBar(){
//初始化菜单
//创建整个的菜单对象
JMenuBar jMenuBar = new JMenuBar();
//创建菜单上面的两个选项对象
JMenu functionJMenu = new JMenu("功能");
JMenu aboutJMenu = new JMenu("关于我");
JMenu rechargeJMenu = new JMenu("充值选项");
//创建更换图片
JMenu changeImage = new JMenu("更换图片");
//给条目绑定事件
replayItem.addActionListener(this);
reLoginItem.addActionListener(this);
closeItem.addActionListener(this);
animal.addActionListener(this);
girl.addActionListener(this);
sport.addActionListener(this);
accountItem.addActionListener(this);
QQItem.addActionListener(this);
wePayItem.addActionListener(this);
//将每个选项下面的条目添加到选项当中
functionJMenu.add(changeImage);
functionJMenu.add(replayItem);
functionJMenu.add(reLoginItem);
functionJMenu.add(closeItem);
changeImage.add(animal);
changeImage.add(girl);
changeImage.add(sport);
aboutJMenu.add(accountItem);
aboutJMenu.add(QQItem);
rechargeJMenu.add(wePayItem);
//将菜单里面的两个选项添加到菜单当中
jMenuBar.add(functionJMenu);
jMenuBar.add(aboutJMenu);
jMenuBar.add(rechargeJMenu);
//给整个界面设置菜单
this.setJMenuBar(jMenuBar);
}
private void initJFrame(){
//设置界面的宽高
this.setSize(603,680);
//设置界面的标题
this.setTitle("拼图单机版 v1.0");
//设置界面置顶
this.setAlwaysOnTop(true);
//设置界面居中
this.setLocationRelativeTo(null);
//设置关闭模式
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
//取消默认的的居中放置,只有取消了才会按照XY轴的形式添加组件
setLayout(null);
//给整个界面添加键盘监听事件
this.addKeyListener(this);
}
@Override
public void keyTyped(KeyEvent e) {
}
//按下不松时会调用这个方法
@Override
public void keyPressed(KeyEvent e) {
int code = e.getKeyCode();
if(code == 65){
//把界面中所有的图片全部删除
this.getContentPane().removeAll();
//加载一张完整的图片
JLabel all = new JLabel(new ImageIcon(path + "all.jpg"));
all.setBounds(83, 134, 420, 420);
this.getContentPane().add(all);
//添加背景图
JLabel background = new JLabel(new ImageIcon( "image/background.png"));
background.setBounds(40, 40, 508, 560);
//把背景图添加到界面当中
this.getContentPane().add(background);
//刷新一下界面
this.getContentPane().repaint();
}
}
//松开按键所对应的方法
@Override
public void keyReleased(KeyEvent e) {
//判断游戏是否胜利,如果胜利,此方法需要直接结束,不能再执行下面的移动代码了
if(victory()){
//结束方法
return;
}
//对上, 下, 左, 右进行判断
//左: 37 上: 38 右: 39 下: 40
int code = e.getKeyCode();
if(code == 37){
if(y == 3){
return;
}
data[x][y]=data[x][y+1];
data[x][y+1]=0;
y++;
step++;
initImage();
}else if(code == 38){
if(x == 3){
return;
}
//逻辑:把空白方块下方的数字往上移动
//x, y 表示空白方块
//x+1, y 表示空白方块下方的数字
//把空白方块下方的数字赋值给空白方块
data[x][y]=data[x+1][y];
data[x+1][y]=0;
x++;
step++;
//调用方法按照最新的数字加载图片
initImage();
}else if(code == 39){
if(y == 0){
return;
}
data[x][y]=data[x][y-1];
data[x][y-1]=0;
y--;
step++;
initImage();
}else if(code == 40){
if(x == 0){
return;
}
data[x][y]=data[x-1][y];
data[x-1][y]=0;
x--;
step++;
initImage();
}else if(code == 65){
initImage();
}else if(code == 87){
data =new int [][]{
{1, 2, 3, 4},
{5, 6, 7, 8},
{9, 10, 11, 12},
{13, 14, 15, 0}
};
initImage();
}
}
@Override
public void actionPerformed(ActionEvent e) {
//获取当前被点击的条目对象
Object obj = e.getSource();
if(obj == replayItem){
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if(obj == reLoginItem){
//关闭当前界面
this.setVisible(false);
//打开登录界面
new LoginJFrame();
}else if(obj == closeItem){
//直接关闭虚拟机即可
System.exit(0);
}else if(obj == accountItem){
//创建一个弹框对象
JDialog jDialog = new JDialog();
//创建一个管理图片的容器对象JLabel
JLabel jLabel = new JLabel(new ImageIcon( "image\\img_1.png"));
//设置位置和宽高
jLabel.setBounds(0,0,getWidth(),getHeight());
//把图片添加到弹框当中
jDialog.getContentPane().add(jLabel);
//给弹框设置大小
jDialog.setSize(500,500);
//让弹框置顶
jDialog.setAlwaysOnTop(true);
//让弹框居中
jDialog.setLocationRelativeTo(null);
//弹框不关闭则无法操作下面的界面
jDialog.setModal(true);
//让弹框显示出来
jDialog.setVisible(true);
}else if(obj == QQItem){
//创建一个弹框对象
JDialog jDialog = new JDialog();
//创建一个管理图片的容器对象JLabel
JLabel jLabel = new JLabel("2190144173");
//设置位置和宽高
jLabel.setBounds(200,0,getWidth(),getHeight());
//把图片添加到弹框当中
jDialog.getContentPane().add(jLabel);
//给弹框设置大小
jDialog.setSize(300,75);
//让弹框置顶
jDialog.setAlwaysOnTop(true);
//让弹框居中
jDialog.setLocationRelativeTo(null);
//弹框不关闭则无法操作下面的界面
jDialog.setModal(true);
//让弹框显示出来
jDialog.setVisible(true);
}else if(obj == wePayItem){
//创建一个弹框对象
JDialog jDialog = new JDialog();
//创建一个管理图片的容器对象JLabel
JLabel jLabel = new JLabel(new ImageIcon("image\\img.png"));
//设置位置和宽高
jLabel.setBounds(0,0,getWidth(),getHeight());
//把图片添加到弹框当中
jDialog.getContentPane().add(jLabel);
//给弹框设置大小
jDialog.setSize(500,500);
//让弹框置顶
jDialog.setAlwaysOnTop(true);
//让弹框居中
jDialog.setLocationRelativeTo(null);
//弹框不关闭则无法操作下面的界面
jDialog.setModal(true);
//让弹框显示出来
jDialog.setVisible(true);
}else if(obj == animal){
//选择随机图片
Random r = new Random();
int index =r.nextInt(8) + 1;
path = "image\\animal\\animal"+ index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if(obj == girl){
//选择随机图片
Random r = new Random();
int index =r.nextInt(13)+1;
path = "image\\girl\\girl" + index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}else if (obj == sport){
//选择随机图片
Random r = new Random();
int index =r.nextInt(10)+1;
path = "image\\sport\\sport" + index + "\\";
//再次打乱二维数组中的数据
initData();
//计步器清零
step = 0;
//重新加载图片
initImage();
}
}
//判断data数组中的数据是否跟win数组中相同
//如果全部相同,返回true,否则返回false
public boolean victory(){
for (int i = 0; i < data.length; i++) {
for (int j = 0; j < data.length; j++) {
if(data[i][j] != win[i][j]){
return false;
}
}
}
return true;
}
}
package com.scarelf.ui;
import CodeUtil.CodeUtil;
import javax.swing.*;
import java.awt.event.*;
import java.security.PrivateKey;
import java.util.ArrayList;
public class LoginJFrame extends JFrame implements KeyListener, MouseListener {
//创建一个集合存储正确的用户名和密码
static ArrayList<User> allUsers = new ArrayList<>();
static {
allUsers.add(new User("lihaihang","123456"));
allUsers.add(new User("gongxiaofan","123456"));
allUsers.add(new User("wujunfeng","123456"));
}
JButton register = new JButton();
JButton login = new JButton();
String codeStr = CodeUtil.getCode();
JLabel rightCode = new JLabel(codeStr);
JTextField username = new JTextField();
JPasswordField password = new JPasswordField();
JTextField code = new JTextField();
public LoginJFrame() {
initJFrame();
//在这个界面中添加内容
initView();
//让当前界面显示出来
this.setVisible(true);
}
private void initView() {
//1.添加用户名文字
JLabel usernameText = new JLabel(new ImageIcon("image\\login\\用户名.png"));
usernameText.setBounds(116, 135, 47, 17);
this.getContentPane().add(usernameText);
//2.添加用户名输入框
username.setBounds(195, 134, 200, 30);
this.getContentPane().add(username);
//3.添加密码文字
JLabel passwordText = new JLabel(new ImageIcon("image\\login\\密码.png"));
passwordText.setBounds(130, 195, 32, 16);
this.getContentPane().add(passwordText);
//4.密码输入框
password.setBounds(195, 195, 200, 30);
this.getContentPane().add(password);
//验证码提示
JLabel codeText = new JLabel(new ImageIcon("image\\login\\验证码.png"));
codeText.setBounds(133, 256, 50, 30);
this.getContentPane().add(codeText);
//验证码输入框
code.setBounds(195, 256, 100, 30);
this.getContentPane().add(code);
//位置和宽高
rightCode.setBounds(300, 256, 50, 30);
this.getContentPane().add(rightCode);
//添加监视功能
rightCode.addMouseListener(this);
// 5.添加登录按钮
login.setBounds(123, 310, 128, 47);
login.setIcon(new ImageIcon("image\\login\\登录按钮.png"));
login.setBorderPainted(false);
login.setContentAreaFilled(false);
this.getContentPane().add(login);
login.addMouseListener(this);
//添加注册按钮
register.setBounds(256, 310, 128, 47);
register.setIcon(new ImageIcon("image\\login\\注册按钮.png"));
register.setBorderPainted(false);
register.setContentAreaFilled(false);
this.getContentPane().add(register);
register.addMouseListener(this);
//7.添加背景图片
JLabel backgroundImage = new JLabel(new ImageIcon("image\\login\\background.png"));
backgroundImage.setBounds(0, 0, 470, 390);
this.getContentPane().add(backgroundImage);
}
private void initJFrame () {
setSize(488, 430);
//设置界面的标题
this.setTitle("拼图 登录");
//设置界面置顶
this.setAlwaysOnTop(true);
//设置界面居中
this.setLocationRelativeTo(null);
//设置关闭模式
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
//取消内部默认布局
this.setLayout(null);
}
public void initImage(){
JLabel userImage = new JLabel(new ImageIcon("./image/user.jpg"));
userImage.setBounds(0, 0, 470, 390);
}
@Override
public void keyTyped(KeyEvent e) {
}
@Override
public void keyPressed(KeyEvent e) {
}
@Override
public void keyReleased(KeyEvent e) {
}
@Override
public void mouseClicked(MouseEvent e) {
Object source =e.getSource();
if(source ==rightCode){
String code = CodeUtil.getCode();
rightCode.setText(code);
}else if(source ==login){
//获取两个文本输入框中的内容
String usernameInput = this.username.getText();
String passwordInput = this.password.getText();
//获取用户输入的验证码
String codeInput = code.getText();
User userInfo = new User(usernameInput,passwordInput);
if(codeInput.length() == 0){
showJDialog("验证码不能为空");
}else if(usernameInput.length() == 0 ||passwordInput.length() == 0){
showJDialog("用户名或者密码为空");
}else if(codeInput.equals(rightCode.getText())){
showJDialog("验证码输入错误");
}else if(contains(userInfo)){
this.setVisible(false);
new GameJFrame();
}else {
showJDialog("用户名或密码错误");
}
}else if(source ==register){
this.setVisible(false);
new Registerjframe();
}
}
public boolean contains(User userInput){
for (int i = 0; i < allUsers.size(); i++) {
User rightUser = allUsers.get(i);
if(userInput.getUsername().equals(rightUser.getUsername()) &&
userInput.getPassword().equals(rightUser.getPassword())){
return true;
}
}
return false;
}
private void showJDialog(String contnet) {
JDialog dialog = new JDialog();
dialog.setSize(200, 150);
dialog.setAlwaysOnTop(true);
dialog.setLocationRelativeTo(null);
dialog.setModal(true);
JLabel label = new JLabel(contnet);
label.setBounds(0, 0, 200, 150);
dialog.getContentPane().add(label);
dialog.setVisible(true);
}
@Override
public void mousePressed(MouseEvent e) {
Object source =e.getSource();
if(source ==login) {
login.setIcon(new ImageIcon("image\\login\\登录按下.png"));
} else if(source ==register){
register.setIcon(new ImageIcon("image\\login\\注册按下.png"));
}
}
@Override
public void mouseReleased(MouseEvent e) {
Object source =e.getSource();
if(source ==login) {
login.setIcon(new ImageIcon("image\\login\\登录按钮.png"));
} else if(source ==register){
register.setIcon(new ImageIcon("image\\login\\注册按钮.png"));
}
}
@Override
public void mouseEntered(MouseEvent e) {
}
@Override
public void mouseExited(MouseEvent e) {
}
private static class User {
static String username;
static String password;
public User() {
}
public User(String username, String password) {
this.username = username;
this.password = password;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
}
}
package com.scarelf.ui;
import javax.swing.*;
public class Registerjframe extends JFrame {
public Registerjframe() {
setSize(488, 500);
//设置界面的标题
this.setTitle("拼图 注册");
//设置界面置顶
this.setAlwaysOnTop(true);
//设置界面居中
this.setLocationRelativeTo(null);
//设置关闭模式
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
//让界面显示出来,建议写在最后
setVisible(true);
}
}
package CodeUtil;
import java.util.ArrayList;
import java.util.Random;
public class CodeUtil {
public static String getCode(){
//1.创建一个集合
ArrayList<Character> list = new ArrayList<>();
//2,添加字母a - z, A - Z
for (int i = 0; i < 26; i++) {
list.add((char) ('a' + i));
list.add((char) ('A' + i));
}
//3.生成四个随机字母
String result ="";
Random r = new Random();
for (int i = 0; i < 4; i++) {
int index0 = r.nextInt(list.size());
result += list.get(index0);
}
//4.在后面添加数字
int number = r.nextInt(10);
result = result + number;
//5.把字符串变成字符数组
char[] chars = result.toCharArray();
//6.打乱顺序
int index = r.nextInt(chars.length);
char temp = chars[4];
chars[4] = chars[index];
chars[index] = temp;
//7.把字符数组变回字符串
String code = new String(chars);
return code;
}
}
import com.scarelf.ui.GameJFrame;
import com.scarelf.ui.LoginJFrame;
import com.scarelf.ui.Registerjframe;
public class Main {
public static void main(String[] args) {
//new GameJFrame();
new LoginJFrame();
//new registerJFrame();
}
}
打包
之后学习打包exe安装包,因为涉及软件什么的太多知识点,所以直接放原视频了有需要的可以自己查看,在此不再提及
阶段项目-11-游戏打包成exe安装包_哔哩哔哩_bilibilihttps://www.bilibili.com/video/BV17F411T7Ao?p=154
- 将代码打包成jar包。
- 整合资源文件
- 将jar包打包成exe
- 将jdk、资源文件、jar包转换后的exe三者再次打包成最终的exe。
