一、文章摘要
状态空间模型（State-Space Model, SS）是一种广泛应用于控制系统、信号处理和系统建模的数学表示方式。MATLAB 提供的 ss 类用于描述线性时不变（LTI）系统的状态空间表示。本类实现了 LTI 系统的构造、属性设置、变换以及数学运算，并支持连续和离散系统的建模。该类允许用户创建模型、访问状态变量、执行系统转换（如最小实现或显式转换）等功能。
本文将详细介绍 ss 类的数学模型、关键公式，并对 MATLAB 代码进行逐行详细注释，以帮助读者理解 ss 的工作原理及其在优化和建模中的应用。
二、状态空间模型的数学定义
状态空间模型由以下微分方程（连续时间）或差分方程（离散时间）描述：

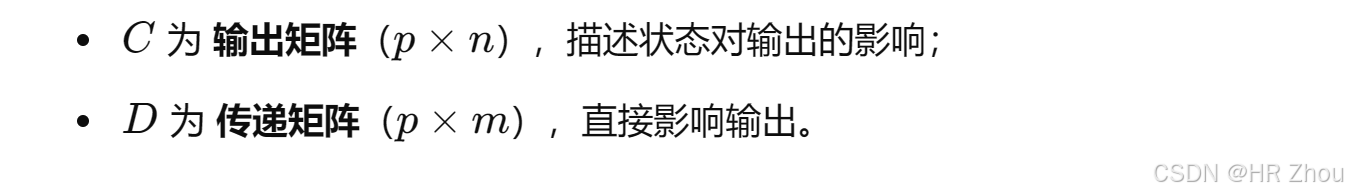

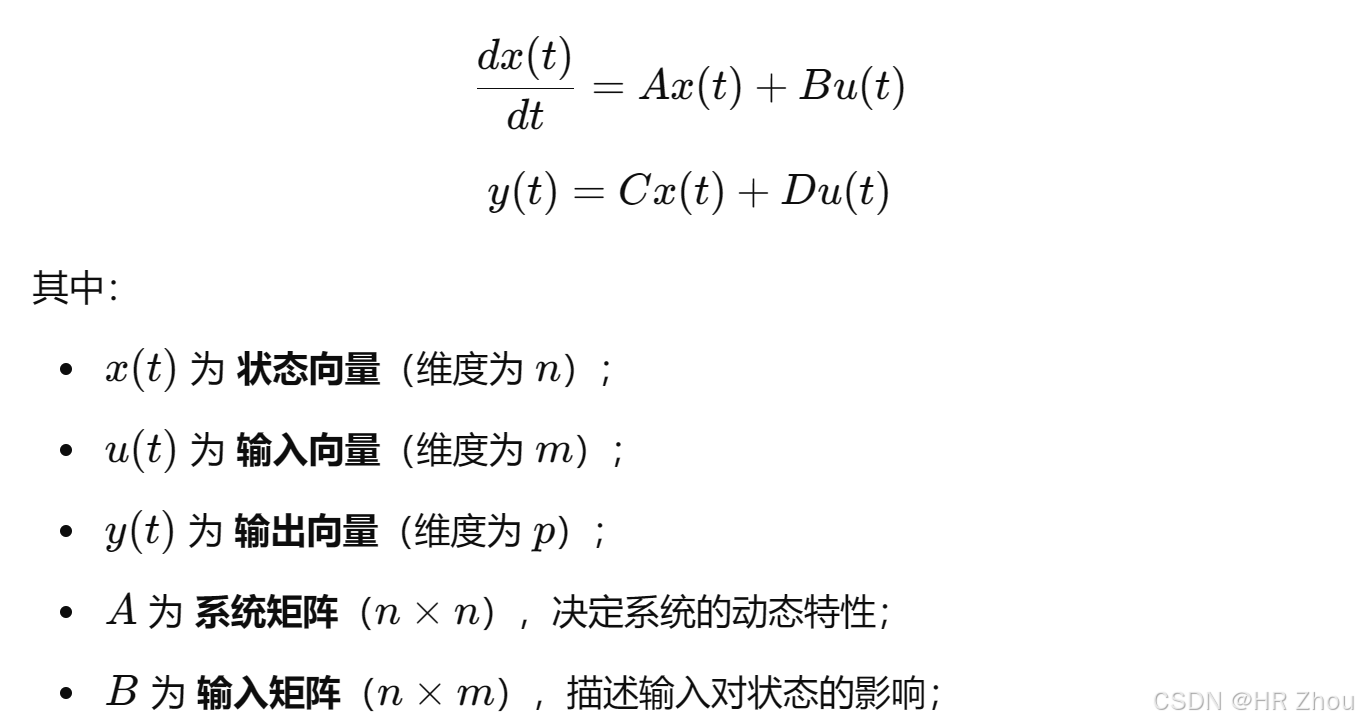

1. 连续时间状态空间方程
2. 离散时间状态空间方程
三、MATLAB ss 类的详细解析
MATLAB 提供了 ss 类来构造和操作状态空间模型，该类支持：
- 创建单个状态空间模型或模型数组；
- 转换其他模型格式（如传递函数、零极点-增益）为状态空间形式；
- 计算状态空间系统的最小实现；
- 访问和修改系统矩阵 A,B,C,DA, B, C, DA,B,C,D 以及其他相关属性。
四、MATLAB ss 代码详细注释
1. ss 类的定义
classdef (CaseInsensitiveProperties, TruncatedProperties, SupportExtensionMethods, ...
InferiorClasses = {? matlab.graphics.axis.Axes, ? matlab.ui.control.UIAxes}) ...
ss < numlti & StateSpaceModel
代码解析
-
ss类继承了numlti和StateSpaceModel，意味着ss继承了 LTI 系统的一般行为，并特化为状态空间模型。 -
CaseInsensitiveProperties：允许不区分大小写地访问类属性。 -
TruncatedProperties：支持自动补全属性名。 -
SupportExtensionMethods：支持扩展方法。 -
InferiorClasses：定义ss对 MATLAB 其他类（如Axes和UIAxes）的优先级较低，使得在绘图时Axes类的行为不会被ss覆盖。
2. ss 类的构造函数
function sys = ss(varargin)
代码解析
-
ss构造函数支持多种输入方式，包括：-
直接传入 A,B,C,DA, B, C, DA,B,C,D 矩阵；
-
仅传入 DDD（表示纯增益系统）；
-
通过参数对形式 (
Name-Value Pairs) 进行系统初始化。
-
3. ss 类的属性定义
properties (Access = public, Dependent)
A
B
C
D
E
Scaled
StateName
StatePath
StateUnit
InternalDelay
end
代码解析
-
A, B, C, D：状态空间方程中的四个核心矩阵。 -
E：描述符状态空间模型的附加矩阵（可选）。 -
Scaled：控制是否自动缩放系统的状态变量以提高数值稳定性。 -
StateName：存储各个状态变量的名称（用于可读性）。 -
InternalDelay：用于存储系统内部的延迟信息（如输入、输出或状态的延迟）。
4. get 与 set 方法
function Value = get.A(sys)
Value = localGetABCDE(sys.Data_,'a',[0,0]);
end
function sys = set.A(sys,Value)
sys = localSetABCDE(sys,'a',Value);
end
代码解析
-
get.A方法：获取A矩阵的值，调用localGetABCDE处理数据。 -
set.A方法：修改A矩阵的值，并调用localSetABCDE进行验证和数据更新。
5. 状态空间转换
function sys = convert(X,varargin)
if isnumeric(X) || isa(X,'StaticModel')
sys = ss(double(X)); % 处理静态模型
elseif isa(X,'DynamicSystem')
sys = copyMetaData(X,ss_(X,varargin{:})); % 处理动态系统
else
error('Invalid conversion to ss')
end
end
代码解析
-
convert方法用于将其他类型的系统（如传递函数tf或零极点-增益zpk）转换为ss。 -
当输入为数值或静态模型时，直接转换为
ss。 -
当输入为动态系统时，复制元数据并调用
ss_()进行转换。
6. balred 方法（平衡降阶）
function [sys,INFO] = reduceBT(sys,orders,BalInfo,MatchDC)
Dss = sys.Data_;
Dr = repmat(Dss,numel(orders),1);
for ct=1:numel(orders)
Dr(ct) = balred(Dss,orders(ct),BalInfo,MatchDC);
end
sys.Data_ = Dr;
end
代码解析
-
reduceBT实现了 基于平衡截断（Balanced Truncation, BT） 的模型降阶（Model Reduction）。 -
orders代表降阶的目标维度。 -
balred进行平衡变换并截断低能量的状态。
7. 状态反馈与状态观测
function [K,CL,Gamma] = lqr(sys,Q,R,N)
[K,~,Gamma] = lqr(sys.A,sys.B,Q,R,N);
CL = ss(sys.A-sys.B*K,sys.B,sys.C,sys.D,sys.Ts);
end
代码解析
-
lqr计算最优状态反馈增益 KKK，并返回闭环系统CL及性能指标Gamma。
五、总结
总体代码：
classdef (CaseInsensitiveProperties, TruncatedProperties, SupportExtensionMethods, ...
InferiorClasses = {? matlab.graphics.axis.Axes, ? matlab.ui.control.UIAxes}) ...
ss < numlti & StateSpaceModel
%SS State-space models.
%
% Construction:
% SYS = SS(A,B,C,D) creates an object SYS representing the continuous-
% time state-space model
% dx/dt = Ax(t) + Bu(t)
% y(t) = Cx(t) + Du(t)
% You can set D=0 to mean the zero matrix of appropriate size. SYS is
% of type SS when A,B,C,D are dense numeric arrays, of type GENSS when
% A,B,C,D depend on tunable parameters (see REALP and GENMAT), and
% of type USS when A,B,C,D are uncertain matrices (requires Robust
% Control Toolbox). Use SPARSS when A,B,C,D are sparse matrices.
%
% SYS = SS(A,B,C,D,Ts) creates a discrete-time state-space model with
% sample time Ts (set Ts=-1 if the sample time is undetermined).
%
% SYS = SS(D) specifies a static gain matrix D.
%
% You can set additional model properties by using name/value pairs.
% For example,
% sys = ss(-1,2,1,0,'InputDelay',0.7,'StateName','position')
% also sets the input delay and the state name. Type "properties(ss)"
% for a complete list of model properties, and type
% help ss.<PropertyName>
% for help on a particular property. For example, "help ss.StateName"
% provides information about the "StateName" property.
%
% Arrays of state-space models:
% You can create arrays of state-space models by using ND arrays for
% A,B,C,D. The first two dimensions of A,B,C,D define the number of
% states, inputs, and outputs, while the remaining dimensions specify
% the array sizes. For example,
% sys = ss(rand(2,2,3,4),[2;1],[1 1],0)
% creates a 3x4 array of SISO state-space models. You can also use
% indexed assignment and STACK to build SS arrays:
% sys = ss(zeros(1,1,2)) % create 2x1 array of SISO models
% sys(:,:,1) = rss(2) % assign 1st model
% sys(:,:,2) = ss(-1) % assign 2nd model
% sys = stack(1,sys,rss(5)) % add 3rd model to array
%
% Conversion:
% SYS = SS(SYS) converts any dynamic system SYS to the state-space
% representation. The resulting model SYS is always of class SS.
%
% SYS = SS(SYS,'min') computes a minimal realization of SYS.
%
% SYS = SS(SYS,'explicit') computes an explicit realization (E=I) of SYS.
% An error is thrown if SYS is improper.
%
% See also DSS, DELAYSS, RSS, DRSS, SPARSS, MECHSS, SSDATA, TF, ZPK, FRD, GENSS, USS, DYNAMICSYSTEM.
% Author(s): A. Potvin, P. Gahinet
% Copyright 1986-2020 The MathWorks, Inc.
% Add static method to be included for compiler
%#function ltipack.utValidateTs
%#function ss.loadobj
%#function ss.make
%#function ss.convert
%#function ss.checkABCDE
% Public properties with restricted value
properties (Access = public, Dependent)
% State matrix A.
%
% Set this property to a square matrix with as many rows as states, for
% example, sys.a = [-1 3;0 -5] for a second-order model "sys".
A
% Input-to-state matrix B.
%
% Set this property to a matrix with as many rows as states and as many
% columns as inputs, for example, sys.b = [0;1] for a single-input,
% second-order system "sys".
B
% State-to-output matrix C.
%
% Set this property to a matrix with as many rows as outputs and as many
% columns as states, for example, sys.c = [1 -1] for a single-output,
% second-order system "sys".
C
% Feedthrough matrix D.
%
% Set this property to a matrix with as many rows as outputs and as many
% columns as inputs, for example, sys.d = [1 0] for a single-output,
% two-input system "sys".
D
% E matrix for implicit (descriptor) state-space models.
%
% By default E=[], meaning that the state equation is explicit. To
% specify an implicit state equation E dx/dt = A x + B u, set this
% property to a square matrix of the same size as A. Note that E
% may be singular, for example, when modeling a pure derivative
% element in state-space form. See DSS for more details on descriptor
% state-space models.
E
% Enables/disables auto-scaling (logical, default = false).
%
% When Scaled=false, most numerical algorithms acting on this system
% automatically rescale the state vector to improve numerical accuracy.
% You can disable such auto-scaling by setting Scaled=true. See PRESCALE
% for more details on scaling issues.
Scaled
% State names (cell array of char vectors, default = '' for all states).
%
% This property can be set to:
% * A char vector for first-order models, for example, 'position'
% * A cell array of char vectors for models with two or more states,
% for example, {'position' ; 'velocity'}
% Use the empty char array '' for unnamed states.
StateName
% State paths (cell array of char vectors, default = '' for all states).
%
% In the linearization of a Simulink model, each state originates from
% a particular Simulink block, and this property gives the full pathname
% of the block associated with each state.
StatePath
% State units (cell array of char vectors, default = '' for all states).
%
% Use this property to keep track of the units each state is expressed in.
% It can be set to:
% * A char vector for first-order models, for example, 'm/s'
% * A cell array of char vectors for models with two or more states,
% for example, {'m' ; 'm/s'}
StateUnit
% Internal delays (numeric vector, default = []).
%
% Internal delays arise, for example, when closing feedback loops with
% delays or connecting delay systems in series or parallel. See the
% documentation for details. For continuous-time systems, internal delays
% are expressed in the time unit specified by the "TimeUnit" property.
% For discrete-time systems, internal delays are expressed as integer
% multiples of the sampling period "Ts", for example, InternalDelay=3
% means a delay of three sampling periods.
%
% You can modify the values of internal delays but the number of entries
% in sys.InternalDelay cannot change (structural property of the model).
InternalDelay
end
% OBSOLETE PROPERTIES
properties (Access = public, Dependent, Hidden)
% Obsolete property for state-space models.
IODelayMatrix
end
% TYPE MANAGEMENT IN BINARY OPERATIONS
methods (Static, Hidden)
function T = toClosed(~)
T = 'ss';
end
function T = superiorTypes()
T = {'ss'};
end
function A = getAttributes(A)
% Override default attributes
A.Varying = false;
A.Structured = false;
A.FRD = false;
A.Sparse = false;
end
function T = toStructured()
% Use virtual class to ensure op(ss,uss)=uss
T = 'neutral_genss';
end
function T = toVarying()
T = 'ltvss';
end
function T = toFRD()
T = 'frd';
end
function T = toSparse()
T = 'sparss';
end
end
methods
function sys = ss(varargin)
% String support, revisit
varargin = controllib.internal.util.hString2Char(varargin);
ni = nargin;
% Handle conversion SS(SYS) where SYS is a class with constructor named "ss"
% (no ss() converter can be defined for such class)
if ni>0 && isa(varargin{1},'StateSpaceModel')
sys0 = varargin{1};
try
switch ni
case 1
if isa(sys0,'ss') % Optimization for SYS of class @ss
sys = sys0;
else
sys = copyMetaData(sys0,ss_(sys0)); % e.g., ltiblock.ss
end
case 2
optflag = ltipack.matchKey(varargin{2},{'minimal','explicit'});
sys = copyMetaData(sys0,ss_(sys0,optflag));
otherwise
error(message('Control:ltiobject:construct1','ss'))
end
return
catch ME
throw(ME)
end
end
% Dissect input list
DataInputs = 0;
LtiInput = 0;
PVStart = ni+1;
for ct=1:ni
nextarg = varargin{ct};
if isa(nextarg,'struct') || isa(nextarg,'lti')
% LTI settings inherited from other model
LtiInput = ct; PVStart = ct+1; break
elseif ischar(nextarg)
PVStart = ct; break
else
DataInputs = DataInputs+1;
end
end
% Handle bad calls
if PVStart==1
if ni==1
% Bad conversion
error(message('Control:ltiobject:construct3','ss'))
elseif ni>0
error(message('Control:general:InvalidSyntaxForCommand','ss','ss'))
end
elseif DataInputs>5
error(message('Control:general:InvalidSyntaxForCommand','ss','ss'))
end
% Process numerical data
try
switch DataInputs
case 0
if ni
error(message('Control:ltiobject:construct4','ss'))
else
% Empty model
a = []; b = []; c = []; d = [];
end
case 1
% Gain matrix
a = [];
d = ss.checkABCDE(varargin{1},'D');
[Ny,Nu,~] = size(d);
b = zeros(0,Nu);
c = zeros(Ny,0);
% Optimization for fast pre-allocation
CheckData = ~allfinite(d);
% Handle ss(1,'explicit')
if ni==2 && ~isempty(ltipack.matchKey(varargin{2},{'minimal','explicit'}))
ni = ni-1; % ignore flag
end
case {2,3}
error(message('Control:general:InvalidSyntaxForCommand','ss','ss'))
otherwise
% A,B,C,D specified: validate data
a = ss.checkABCDE(varargin{1},'A');
b = ss.checkABCDE(varargin{2},'B');
c = ss.checkABCDE(varargin{3},'C');
d = ss.checkABCDE(varargin{4},'D');
CheckData = true;
end
% Sample time
if DataInputs==5
% Discrete SS
Ts = ltipack.utValidateTs(varargin{5});
else
Ts = 0;
end
catch ME
throw(ME)
end
% Determine I/O and array size
if ni>0
Ny = max(size(c,1),size(d,1));
Nu = max(size(b,2),size(d,2));
ArraySize = ltipack.getLTIArraySize(2,a,b,c,d);
if isempty(ArraySize)
error(message('Control:ltiobject:ss1'))
end
else
Ny = 0; Nu = 0; ArraySize = [1 1];
end
Nsys = prod(ArraySize);
sys.IOSize_ = [Ny Nu];
% Create @ssdata object array
% RE: Inlined for optimal speed
if Nsys==1
Data = ltipack.ssdata(a,b,c,d,[],Ts);
else
Data = ltipack.ssdata.array(ArraySize);
Delay = ltipack.utDelayStruct(Ny,Nu,true);
for ct=1:Nsys
Data(ct).a = a(:,:,min(ct,end));
Data(ct).b = b(:,:,min(ct,end));
Data(ct).c = c(:,:,min(ct,end));
Data(ct).d = d(:,:,min(ct,end));
Data(ct).e = [];
Data(ct).Ts = Ts;
Data(ct).Delay = Delay;
end
end
sys.Data_ = Data;
% Process additional settings and validate system
% Note: Skip when just constructing empty instance for efficiency
if ni>0
try
% User-defined properties
Settings = cell(1,0);
if LtiInput
% Properties inherited from other system
arg = varargin{LtiInput};
if isa(arg,'lti')
arg = getSettings(arg);
end
% @ss does not inherit internal delays (including IODelay)
arg = rmfield(arg,intersect(fieldnames(arg),{'IODelay','FrequencyUnit'}));
Settings = [Settings , lti.struct2pv(arg)];
end
[pvpairs,iodSettings] = LocalCheckDelaySettings(varargin(:,PVStart:ni));
Settings = [Settings , pvpairs];
% Apply settings except IODelay
if ~isempty(Settings)
sys = fastSet(sys,Settings{:});
end
% Consistency check
if CheckData || ~isempty(Settings)
sys = checkConsistency(sys);
end
% I/O delay settings. Must be done after data checks to prevent errors in
% setIODelay when A,B,C are not properly formatted (e.g., A=B=C=[] and D=1)
if ~isempty(iodSettings)
sys = fastSet(sys,iodSettings{:});
end
catch ME
throw(ME)
end
end
end
%---------------- GET/SET ------------------------------------------
function Value = get.A(sys)
% GET method for a property
Value = localGetABCDE(sys.Data_,'a',[0,0]);
end
function Value = get.B(sys)
% GET method for b property
Value = localGetABCDE(sys.Data_,'b',[0,sys.IOSize_(2)]);
end
function Value = get.C(sys)
% GET method for c property
Value = localGetABCDE(sys.Data_,'c',[sys.IOSize_(1),0]);
end
function Value = get.D(sys)
% GET method for d property
Value = localGetABCDE(sys.Data_,'d',sys.IOSize_);
end
function Value = get.E(sys)
% GET method for e property
Value = localGetABCDE(sys.Data_,'e',[0,0]);
end
function sys = set.A(sys,Value)
% SET method for a property
sys = localSetABCDE(sys,'a',Value);
end
function sys = set.B(sys,Value)
% SET method for b property
sys = localSetABCDE(sys,'b',Value);
end
function sys = set.C(sys,Value)
% SET method for c property
sys = localSetABCDE(sys,'c',Value);
end
function sys = set.D(sys,Value)
% SET method for d property
sys = localSetABCDE(sys,'d',Value);
end
function sys = set.E(sys,Value)
% SET method for e property (cannot change state size)
Value = ss.checkABCDE(Value,'E');
Data = ltipack.utCheckAssignValueSize(sys.Data_,Value,2);
for ct=1:numel(Data)
Data(ct).e = Value(:,:,min(ct,end));
if sys.CrossValidation_
Data(ct) = checkData(Data(ct)); % Quick validation
end
end
sys.Data_ = Data;
end
function Value = get.Scaled(sys)
% GET method for Scaled property
% True if all models are scaled, false otherwise
Value = true;
Data = sys.Data_;
for ct=1:numel(Data)
if ~Data(ct).Scaled
Value = false; break
end
end
end
function sys = set.Scaled(sys,Value)
% SET method for Scaled property
if ~(isscalar(Value) && (islogical(Value) || isnumeric(Value)))
error(message('Control:ltiobject:setSS4'))
end
Value = logical(Value);
Data = sys.Data_;
for ct=1:numel(Data)
Data(ct).Scaled = Value;
end
sys.Data_ = Data;
end
function Value = get.StateName(sys)
% GET method for StateName property
Value = cellstr(ltipack.SystemArray.getStateInfo(sys.Data_,'StateName'));
end
function Value = get.StatePath(sys)
% GET method for StatePath property
Value = cellstr(ltipack.SystemArray.getStateInfo(sys.Data_,'StatePath'));
end
function Value = get.StateUnit(sys)
% GET method for StateUnit property
Value = cellstr(ltipack.SystemArray.getStateInfo(sys.Data_,'StateUnit'));
end
function sys = set.StateName(sys,Value)
% SET method for StateName property
Data = sys.Data_;
nsys = numel(Data);
if nsys>0
Value = ltipack.mustBeStringVector(Value,'StateName',false);
nx = size(Data(1).a,1);
for ct=1:nsys
if size(Data(ct).a,1)~=nx
% Not supported for varying state dimension
error(message('Control:ltiobject:setSS2'))
end
end
for ct=1:nsys
Data(ct).StateName = Value;
if sys.CrossValidation_
Data(ct) = checkData(Data(ct));
end
end
sys.Data_ = Data;
end
end
function sys = set.StatePath(sys,Value)
% SET method for StatePath property
Data = sys.Data_;
nsys = numel(Data);
if nsys>0
Value = ltipack.mustBeStringVector(Value,'StatePath',false);
% Replace carriage returns by blanks
Value = regexprep(Value,'\n',' ');
nx = size(Data(1).a,1);
for ct=1:nsys
if size(Data(ct).a,1)~=nx
% Not supported for varying state dimension
error(message('Control:ltiobject:setSS2'))
end
end
for ct=1:nsys
Data(ct).StatePath = Value;
if sys.CrossValidation_
Data(ct) = checkData(Data(ct));
end
end
sys.Data_ = Data;
end
end
function sys = set.StateUnit(sys,Value)
% SET method for StateUnit property
Data = sys.Data_;
nsys = numel(Data);
if nsys>0
Value = ltipack.mustBeStringVector(Value,'StateUnit',false);
nx = size(Data(1).a,1);
for ct=1:nsys
if size(Data(ct).a,1)~=nx
% Not supported for varying state dimension
error(message('Control:ltiobject:setSS5'))
end
end
for ct=1:nsys
Data(ct).StateUnit = Value;
if sys.CrossValidation_
Data(ct) = checkData(Data(ct));
end
end
sys.Data_ = Data;
end
end
function Value = get.InternalDelay(sys)
% GET method for InternalDelay property
Data = sys.Data_;
Nsys = numel(Data);
if Nsys==0
Value = zeros(0,1);
elseif Nsys==1
Value = Data.Delay.Internal;
else
RefValue = Data(1).Delay.Internal;
ndf = length(RefValue);
Value = zeros([ndf 1 size(Data)]);
isUniform = true;
for ct=1:Nsys
Df = Data(ct).Delay.Internal;
isUniform = isUniform && isequal(Df,RefValue);
if length(Df)==ndf
Value(:,ct) = Df;
else
error(message('Control:ltiobject:get5'))
end
end
if isUniform
Value = Value(:,1);
end
end
end
function sys = set.InternalDelay(sys,Value)
% SET method for InternalDelay property
if ~(isnumeric(Value) && isreal(Value) && allfinite(Value) && all(Value(:)>=0))
error(message('Control:ltiobject:setLTI1','InternalDelay'))
else
Value = double(full(Value));
end
Data = ltipack.utCheckAssignValueSize(sys.Data_,Value,2);
for ct=1:numel(Data)
NewValue = Value(:,:,min(ct,end));
if numel(NewValue)~=numel(Data(ct).Delay.Internal)
error(message('Control:ltiobject:setSS3'))
elseif sys.CrossValidation_
Data(ct).Delay.Internal = ...
ltipack.util.checkInternalDelay(NewValue,Data(ct).Ts);
else
Data(ct).Delay.Internal = NewValue;
end
end
sys.Data_ = Data;
end
function Value = get.IODelayMatrix(sys)
% GET method for IODelay property
Value = getIODelay(sys);
end
function sys = set.IODelayMatrix(sys,Value)
% SET method for IODelay property
sys = setIODelay(sys,Value);
end
end
methods (Hidden)
function sys = utSimplifyDelay(sys)
% Replaces internal delays by input or output delays when possible
% (used by SCD)
sys.Data_ = simplifyDelay(sys.Data_);
end
function [sys,isProper] = ioderiv(sys,r)
% Multiplies SYS by (s+r) or (z+r) (used by PID tool)
[sys.Data_,isProper] = ioderiv(sys.Data_,r);
end
function sys = augmentMPCPlantModel(sys, b)
% Add an "offset" signal to the plant model used by MPC object
[ny, nu] = size(sys);
data = sys.Data_;
data = utGrowIO(data, ny, nu+1);
data.b(:, nu+1) = b;
sys.Data_ = data;
end
function [a,b1,b2,c1,c2,d11,d12,d21,d22,Ts] = titodata(P,nY,nU)
% Extract data for two-input, two-output system
% [y1;y2] = D * [u1;u2]
% NY and NU are the sizes of y2 and u2.
Dss = P.Data_;
[a,b1,b2,c1,c2,d11,d12,d21,d22] = titodata(Dss,nY,nU);
Ts = Dss.Ts;
end
% MUSYN support
function P = sector2gain(P,F,ny,nu)
% Transforms the problem
%
% Find K such that [T1(jw);I]' Q(jw) [T1(jw);I] < 0, T1 = LFT(P1,K)
%
% into the HINFSYN problem
%
% Find K such that || T2 ||oo < 1 , T2 = LFT(P2,K) .
%
% T2 is related to T1 by
%
% T2 = Z1/Z2, [Z1;Z2] = F [T1;I]
%
% where
%
% Q(s) = F(s)' J F(s), J = diag(I,-I), F bi-stable
%
% is the J-spectral factorization of Q.
P.Data_ = sector2gain(P.Data_,F.Data_,ny,nu);
end
% MOR API
function BalInfo = runBT(sys,Options)
% Called by PROCESS
BalInfo = hsvd(sys.Data_,Options);
end
function [sys,INFO] = reduceBT(sys,orders,BalInfo,MatchDC)
% Called by GETROM
nsys = numel(orders);
Dss = sys.Data_;
Dr = repmat(Dss,nsys,1);
if nargout>1
INFO = struct('PL',cell(nsys,1),'PR',[]);
for ct=1:nsys
[Dr(ct),INFO(ct)] = balred(Dss,orders(ct),BalInfo,MatchDC);
end
else
for ct=1:nsys
Dr(ct) = balred(Dss,orders(ct),BalInfo,MatchDC);
end
end
sys.Data_ = Dr;
end
function ModalInfo = runMT(sys,Options)
% Called by PROCESS
ModalInfo = modsepMOR(sys.Data_,Options);
end
function [sys,INFO] = reduceMT(sys,select,ModalInfo,MatchDC)
% Called by GETROM
if isa(ModalInfo,'mor.util.ModalDecompositionCache')
% Select modal components
MC = ModalInfo.Component(select,:);
d = ModalInfo.Feedthrough;
if isempty(MC)
Dr = createGain(sys.Data_,zeros(size(d)));
else
Dr = modsum(MC);
end
if MatchDC
s = ModalInfo.DCFrequency; % complex
X = ModalInfo.Component(~select);
for ct=1:numel(X)
d = d + evalfr(X(ct),s);
end
if ~allfinite(d)
error(message('Control:transformation:MODALROM18'))
end
end
Dr.d = d;
jsel = getSelectedCol(ModalInfo,select);
INFO = struct('PL',ModalInfo.TL(:,jsel),'PR',ModalInfo.TR(:,jsel));
else
% Modal split
G = ModalInfo.SchurQZ;
p = ModalInfo.Mode;
e = p(select,:);
% For real problems, selected modes should be self-conjugate
if ModalInfo.REAL && ~isequal(sort(e(imag(e)>0)),sort(conj(e(imag(e)<0))))
error(message('Control:transformation:MODALROM20'))
end
% Perform split
RegionFcn = @(p) 2-(ismember(p,e));
[H,~,Info2] = modsepREG(G,2,RegionFcn,ltioptions.modalsep);
Dr = H(1);
% Adjust feedthrough
if MatchDC
DCcorr = evalfr(H(2),ModalInfo.DCFrequency);
if ~allfinite(DCcorr)
error(message('Control:transformation:MODALROM18'))
end
Dr.d = G.d + DCcorr;
else
Dr.d = G.d;
end
% Projectors
PL = ModalInfo.TL*Info2.TL';
PR = ModalInfo.TR*Info2.TR;
nsel = numel(e);
INFO = struct('PL',PL(:,1:nsel),'PR',PR(:,1:nsel));
end
sys.Data_ = Dr;
end
end
methods (Access = protected)
%% INPUTOUTPUTMODEL ABSTRACT INTERFACE
function displaySize(sys,sizes)
% Displays SIZE information in SIZE(SYS)
ny = sizes(1);
nu = sizes(2);
nx = order(sys);
if isempty(nx)
nx = 0;
end
if length(sizes)==2
disp(getString(message('Control:ltiobject:SizeSS1',ny,nu,nx)))
else
ArrayDims = sprintf('%dx',sizes(3:end));
if all(nx(:)==nx(1))
disp(getString(message('Control:ltiobject:SizeSS2',...
ArrayDims(1:end-1),ny,nu,nx(1))))
else
disp(getString(message('Control:ltiobject:SizeSS3',...
ArrayDims(1:end-1),ny,nu,min(nx(:)),max(nx(:)))))
end
end
end
%% DATA ABSTRACTION INTERFACE
function sys = indexasgn_(sys,indices,rhs,ioSize,ArrayMask)
% Data management in SYS(indices) = RHS.
% ioSize is the new I/O size and ArrayMask tracks which
% entries in the resulting system array have been reassigned.
% Construct template initial value for new entries in system array
D0 = ltipack.ssdata([],zeros(0,ioSize(2)),zeros(ioSize(1),0),...
zeros(ioSize),[],sys.Ts);
% Update data
sys.Data_ = ltipack.reassignData(sys.Data_,indices,rhs.Data_,ioSize,ArrayMask,D0);
% Update sampling grid
if numel(indices)>2 && ~(isempty(sys.SamplingGrid_) && isempty(rhs.SamplingGrid_))
sys.SamplingGrid_ = reassign(sys.SamplingGrid_,indices(3:end),rhs.SamplingGrid_,size(sys.Data_));
end
end
function [rsys,Info] = balred_(sys,orders,Info,Options)
% BALRED support (obsolete)
R = reducespec(sys,'balanced');
R.Options = mapOptions(R.Options,Options);
if isempty(Info)
R = process(R);
else
R = setBalredInfo(R,Info);
end
rsys = getrom(R,Order=orders,Method=Options.StateProjection);
Info = getBalredInfo(R);
end
function [sys,nx] = augstate_(sys)
[sys,nx] = augstate_@ltipack.SystemArray(sys);
sys = augmentOutput(sys,sys.StateName,sys.StateUnit,'states');
end
function [sys,offset,xkeep] = sminrealXC_(sys,offset)
try
[sys.Data_,offset,xkeep] = sminrealXC(sys.Data_,offset);
catch
error(message('Control:transformation:sminreal2'))
end
end
vsys = ssInterpolant_(asys,offsets,varargin)
end
%% STATIC METHODS
methods(Static, Hidden)
sys = loadobj(s)
function sys = make(D,IOSize)
% Constructs SS model from ltipack.ssdata instance
sys = ss;
sys.Data_ = D;
if nargin>1
sys.IOSize_ = IOSize; % support for empty model arrays
else
sys.IOSize_ = iosize(D(1));
end
end
function sys = convert(X,varargin)
% Safe conversion to SS.
%
% X = SS.CONVERT(X) safely converts the variable X to SS even when
% X is a static model (in which case SS(X) returns a GENSS or USS
% model rather than an SS model). This method is used in indexed
% assignments and conversions from LTIBLOCK.SS to SS.
%
% X = SS.CONVERT(X,OPT) further specifies an option for the
% DynamicSystem/ss converter.
if isnumeric(X) || isa(X,'StaticModel')
% Work around ss(GENMAT) yielding a GENSS
sys = ss(double(X));
elseif isa(X,'DynamicSystem')
% DynamicSystem subclass
sys = copyMetaData(X,ss_(X,varargin{:}));
else
error(message('Control:transformation:ss2',class(X)))
end
end
function C = makeC(C,TU)
% Applies ss.make to each entry of the cell array C.
% Used by uncertainty analysis functions
for ct=1:numel(C)
V = C{ct};
if isa(V,'ltipack.ssdata')
C{ct} = setTimeUnit_(ss.make(V),TU);
end
end
end
function S = makeS(S,TU)
% Applies ss.make to each field of a struct array S.
% Used by uncertainty analysis functions
S = cell2struct(ss.makeC(struct2cell(S),TU),fieldnames(S),1);
end
function M = checkABCDE(M,MatrixName)
% Checks A,B,C,D,E data is of proper type
if isnumeric(M)
if ~(strcmp(MatrixName,'D') || allfinite(M))
error(message('Control:ltiobject:ssProperties6',MatrixName))
end
% Convert to full double
if issparse(M)
warning(message('Control:ltiobject:SSSparse2Full',MatrixName))
M = full(M);
end
M = double(M);
elseif ~isa(M,'StaticModel')
if isa(M,'InputOutputModel')
error(message('Control:lftmodel:ss1',MatrixName))
else
error(message('Control:ltiobject:ssProperties6',MatrixName))
end
end
end
function [sys,offsets] = c2do(sys,offsets,Ts,options)
% C2D discretization with offsets (assumes no delays)
IMPULSE = strcmp(options.Method,'impulse');
NOT_TUSTIN = ~strcmp(options.Method,'tustin');
Data = sys.Data_;
for ct=1:numel(Data)
D = Data(ct);
[nyz,nuw] = size(D.d);
% Attach consolidated offsets
[dx0,x0,u0,y0] = ltvpack.expandOffsets(offsets(ct).dx,offsets(ct).x,...
offsets(ct).u,offsets(ct).y,size(D.a,1),nuw,nyz);
if IMPULSE
% Absorb input offset into dx,y
D.f = dx0 - D.a * x0 - D.b * u0;
D.g = y0 - D.c * x0 - D.d * u0;
offsets(ct).u = [];
else
% Input offset unchanged for ZOH/Tustin
D.f = dx0 - D.a * x0;
D.g = y0 - D.c * x0;
end
% ZOH/IMP require explicit model -> E must be invertible for
% state consistency
if NOT_TUSTIN
D = des2exp(D,true);
if ~isfinite(D)
error(message('Control:transformation:c2d25'))
end
end
% Discretize with offsets
D = c2d(D,Ts,options);
% Detach and store discrete offsets
offsets(ct).x = [];
offsets(ct).dx = D.f;
offsets(ct).y = D.g;
D.f = []; D.g = [];
Data(ct) = D;
end
sys.Data_ = Data;
end
function [sys,offsets] = d2co(sys,offsets,options)
% D2C conversion with offsets (assumes no delays)
sw = ctrlMsgUtils.SuspendWarnings; %#ok<NASGU>
NOT_TUSTIN = ~strcmp(options.Method,'tustin');
Data = sys.Data_;
nsys = numel(Data);
nx = zeros(nsys,1);
for ct=1:nsys
D = Data(ct);
% Attach consolidated offsets (input offset unchanged)
[dx0,x0,~,y0] = ltvpack.expandOffsets(offsets(ct).dx,offsets(ct).x,...
[],offsets(ct).y,size(D.a,1),0,size(D.d,1));
D.f = dx0 - D.a * x0;
D.g = y0 - D.c * x0;
% ZOH requires explicit model -> E must be invertible for
% state consistency
if NOT_TUSTIN
D = des2exp(D,true);
if ~isfinite(D)
error(message('Control:transformation:c2d25'))
end
end
% Convert with offsets
D = d2c(D,options);
nx(ct) = size(D.a,1);
% Detach and store continuous offsets
offsets(ct).x = [];
offsets(ct).dx = D.f;
offsets(ct).y = D.g;
D.f = []; D.g = [];
Data(ct) = D;
end
sys.Data_ = Data;
if NOT_TUSTIN && any(diff(nx(:)))
error(message('Control:transformation:d2c13','D2C'))
end
end
function [sys,offsets] = d2do(sys,offsets,Ts,options)
% D2D resampling with offsets (assumes no delays)
sw = ctrlMsgUtils.SuspendWarnings; %#ok<NASGU>
NOT_TUSTIN = ~strcmp(options.Method,'tustin');
Data = sys.Data_;
nsys = numel(Data);
nx = zeros(nsys,1);
for ct=1:nsys
D = Data(ct);
% Attach consolidated offsets (input offset unchanged)
[dx0,x0,~,y0] = ltvpack.expandOffsets(offsets(ct).dx,offsets(ct).x,...
[],offsets(ct).y,size(D.a,1),0,size(D.d,1));
D.f = dx0 - D.a * x0;
D.g = y0 - D.c * x0;
% ZOH requires explicit model
if NOT_TUSTIN
D = des2exp(D,true);
if ~isfinite(D)
error(message('Control:transformation:c2d25'))
end
end
% Convert with offsets
D = d2d(D,Ts,options);
nx(ct) = size(D.a,1);
% Detach and store resampled offsets
offsets(ct).x = [];
offsets(ct).dx = D.f;
offsets(ct).y = D.g;
D.f = []; D.g = [];
Data(ct) = D;
end
sys.Data_ = Data;
if NOT_TUSTIN && any(diff(nx(:)))
error(message('Control:transformation:d2c13','D2D'))
end
end
end
end
%--------------------- Local Functions --------------------------------
function [pvp,iodpvp] = LocalCheckDelaySettings(pvp)
% Pulls out IODelay settings, throws error when setting InternalDelays
if any(strncmpi(pvp(1:2:end),'int',3))
error(message('Control:ltiobject:ss2'))
end
idx = find(strncmpi(pvp(1:2:end),'io',2));
iodpvp = cell(1,0);
for ct=length(idx):-1:1
k = 2*idx(ct)-1;
iodpvp = [iodpvp , pvp(k:min(k+1:end))]; %#ok<AGROW>
pvp = [pvp(1:k-1) , pvp(k+2:end)];
end
end
function Value = localGetABCDE(Data,ABCDE,DefaultSize)
% Return nominal values of A, B, C, D, or E
tmp = cell(1,6);
iselect = find(ABCDE=='abcd e');
ArraySize = size(Data);
if isempty(Data)
% Empty array
Value = zeros([DefaultSize,ArraySize]);
elseif isscalar(Data)
[tmp{:}] = getABCDE(Data);
Value = tmp{iselect};
else
ValueArray = cell(ArraySize);
for ct=1:numel(Data)
[tmp{:}] = getABCDE(Data(ct));
ValueArray{ct} = tmp{iselect};
end
% Replace E=[] by identity of proper size if some E's are non-empty
if strcmp(ABCDE,'e') && ~all(cellfun(@isempty,ValueArray(:)))
for ct=1:numel(Data)
if isempty(ValueArray{ct})
ValueArray{ct} = eye(size(Data(ct).a));
end
end
end
% Turn into ND array
try
Value = cat(3,ValueArray{:});
Value = reshape(Value,[size(Value,1) size(Value,2) ArraySize]);
catch %#ok<CTCH>
% A,B,C,E cannot be represented as ND arrays
error(message('Control:ltiobject:get4',upper(ABCDE)))
end
end
end
%%%%%%%%
function sys = localSetABCDE(sys,Property,Value)
% SET function for A,B,C,D
Value = ss.checkABCDE(Value,upper(Property));
% Check compatibility of RHS with model array sizes
Data = ltipack.utCheckAssignValueSize(sys.Data_,Value,2);
sv = size(Value);
SameSize = (~isempty(Data) && isequal(sv(1:2),size(Data(1).(Property))));
for ct=1:numel(Data)
if isempty(Data(ct).Delay.Internal)
Data(ct).(Property) = Value(:,:,min(ct,end));
else
error(message('Control:ltiobject:setSS1',Property))
end
if SameSize && sys.CrossValidation_
Data(ct) = checkData(Data(ct)); % Quick validation
end
end
sys.Data_ = Data;
if ~SameSize && sys.CrossValidation_
% Note: Full validation needed because a single assignment can change I/O size,
% e.g., sys = ss; sys.a = [1 2;3 4]
% sys = ss(1); sys.d = [1 2;3 4]
% sys = ss(1,[],[],[]); sys.b = 1;
sys = checkConsistency(sys);
end
end
ss 类提供了一种高效的方式来创建和操作状态空间模型，它支持：
- 状态方程建模（适用于连续和离散系统）。
- 自动数值优化（如最小实现、显式变换）。
- LQR 反馈设计与模型降阶（如平衡截断）。
![[Windows] 图吧工具箱](https://i-blog.csdnimg.cn/direct/b97547508f4044f18465d162b2d1a5ef.png)
