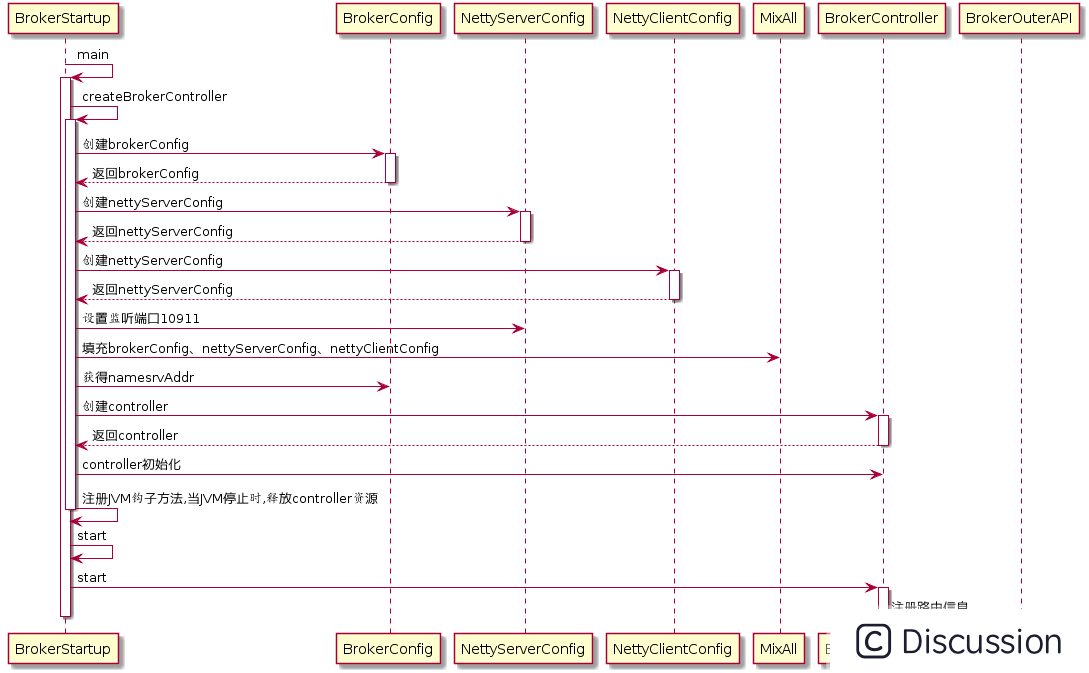

Broker启动流程:BrokerStartup#main
java public static void main(String[] args) { //手动指定了 nameServer start(createBrokerController(args)); }
java public static BrokerController start(BrokerController controller) { try { //启动brokerController controller.start(); return controller; } catch (Throwable e) { e.printStackTrace(); System.exit(-1); } return null; }
1.创建brokercontroller
```java public static BrokerController createBrokerController(String[] args) { System.setProperty(RemotingCommand.REMOTINGVERSIONKEY, Integer.toString(MQVersion.CURRENTVERSION)); if (null == System.getProperty (NettySystemConfig.COMROCKETMQREMOTINGSOCKETSNDBUFSIZE)){ NettySystemConfig.socketSndbufSize = 131072; } if (null == System.getProperty (NettySystemConfig.COMROCKETMQREMOTINGSOCKETRCVBUFSIZE)){ NettySystemConfig.socketRcvbufSize = 131072; } try { //PackageConflictDetect.detectFastjson(); Options options = ServerUtil.buildCommandlineOptions(new Options()); commandLine = ServerUtil .parseCmdLine("mqbroker", args, buildCommandlineOptions(options), new PosixParser()); if (null == commandLine) { System.exit(-1); } final BrokerConfig brokerConfig = new BrokerConfig(); final NettyServerConfig nettyServerConfig = new NettyServerConfig(); final NettyClientConfig nettyClientConfig = new NettyClientConfig(); nettyClientConfig.setUseTLS (Boolean.parseBoolean(System.getProperty(TLSENABLE, String.valueOf(TlsSystemConfig.tlsMode == TlsMode.ENFORCING)))); nettyServerConfig.setListenPort(10911); final MessageStoreConfig messageStoreConfig = new MessageStoreConfig(); if (BrokerRole.SLAVE == messageStoreConfig.getBrokerRole()) { int ratio = messageStoreConfig.getAccessMessageInMemoryMaxRatio() - 10; messageStoreConfig.setAccessMessageInMemoryMaxRatio(ratio); }
//-c 解析配置文件填充配置类 if (commandLine.hasOption('c')) { String file = commandLine.getOptionValue('c'); if (file != null) { configFile = file; InputStream in = new BufferedInputStream (new FileInputStream(file)); properties = new Properties(); properties.load(in); properties2SystemEnv(properties); MixAll.properties2Object(properties, brokerConfig); MixAll.properties2Object(properties, nettyServerConfig); MixAll.properties2Object(properties, nettyClientConfig); MixAll.properties2Object(properties, messageStoreConfig); BrokerPathConfigHelper.setBrokerConfigPath(file); in.close(); } } MixAll.properties2Object (ServerUtil.commandLine2Properties(commandLine), brokerConfig); //获取Broker的安装地址 if (null == brokerConfig.getRocketmqHome()) { System.exit(-2); } //获取配置中的nameServer的地址 String namesrvAddr = brokerConfig.getNamesrvAddr(); if (null != namesrvAddr) { try { String[] addrArray = namesrvAddr.split(";"); for (String addr : addrArray) { RemotingUtil.string2SocketAddress(addr); } } catch (Exception e) { System.out.printf( System.exit(-3); } } //判断broker的主从角色 switch (messageStoreConfig.getBrokerRole()) { case ASYNCMASTER: case SYNCMASTER: //MixAll.MASTERID = 0 代表是master brokerConfig.setBrokerId(MixAll.MASTERID); break; case SLAVE: //SLAVEID不能小于等于0 if (brokerConfig.getBrokerId() <= 0) { System.out.printf("Slave's brokerId must be > 0"); System.exit(-3); } break; default: break; } messageStoreConfig.setHaListenPort (nettyServerConfig.getListenPort() + 1); LoggerContext lc = (LoggerContext) LoggerFactory.getILoggerFactory(); JoranConfigurator configurator = new JoranConfigurator(); configurator.setContext(lc); lc.reset(); configurator.doConfigure (brokerConfig.getRocketmqHome() + "/conf/logbackbroker.xml"); if (commandLine.hasOption('p')) { InternalLogger console = InternalLoggerFactory .getLogger(LoggerName.BROKERCONSOLENAME); MixAll.printObjectProperties(console, brokerConfig); MixAll.printObjectProperties(console, nettyServerConfig); MixAll.printObjectProperties(console, nettyClientConfig); MixAll.printObjectProperties(console, messageStoreConfig); System.exit(0); } else if (commandLine.hasOption('m')) { InternalLogger console = InternalLoggerFactory .getLogger(LoggerName.BROKERCONSOLENAME); MixAll.printObjectProperties(console, brokerConfig, true); MixAll.printObjectProperties(console, nettyServerConfig, true); MixAll.printObjectProperties(console, nettyClientConfig, true); MixAll.printObjectProperties(console, messageStoreConfig, true); System.exit(0); } log = InternalLoggerFactory .getLogger(LoggerName.BROKERLOGGER_NAME); MixAll.printObjectProperties(log, brokerConfig); MixAll.printObjectProperties(log, nettyServerConfig); MixAll.printObjectProperties(log, nettyClientConfig); MixAll.printObjectProperties(log, messageStoreConfig); final BrokerController controller = new BrokerController( brokerConfig, nettyServerConfig, nettyClientConfig, messageStoreConfig); controller.getConfiguration().registerConfig(properties); //初始化brokerController boolean initResult = controller.initialize(); if (!initResult) { controller.shutdown(); System.exit(-3); } Runtime.getRuntime().addShutdownHook(new Thread(new Runnable() { private volatile boolean hasShutdown = false; private AtomicInteger shutdownTimes = new AtomicInteger(0); @Override public void run() { synchronized (this) { log.info("Shutdown hook was invoked, {}"); if (!this.hasShutdown) { this.hasShutdown = true; long beginTime = System.currentTimeMillis(); controller.shutdown(); long consumingTimeTotal = System.currentTimeMillis() - beginTime; log.info ("Shutdown hook over, consuming total time(ms): {}"); } } } }, "ShutdownHook")); return controller; } catch (Throwable e) { e.printStackTrace(); System.exit(-1); } return null; } ```
```java public BrokerController( final BrokerConfig brokerConfig, final NettyServerConfig nettyServerConfig, final NettyClientConfig nettyClientConfig, final MessageStoreConfig messageStoreConfig) {
this.brokerConfig = brokerConfig;
this.nettyServerConfig = nettyServerConfig;
this.nettyClientConfig = nettyClientConfig;
this.messageStoreConfig = messageStoreConfig;
this.consumerOffsetManager = new ConsumerOffsetManager(this);
this.topicConfigManager = new TopicConfigManager(this);
//处理拉取消息请求的线程
this.pullMessageProcessor = new PullMessageProcessor(this);
//挂住拉取消息请求的线程
this.pullRequestHoldService = new PullRequestHoldService(this);
//监听器 有消息来了就可以通过 pullRequestHoldService 返回响应结果
this.messageArrivingListener = new
NotifyMessageArrivingListener(this.pullRequestHoldService);
this.consumerIdsChangeListener = new DefaultConsumerIdsChangeListener(this);
this.consumerManager = new ConsumerManager(this.consumerIdsChangeListener);
this.consumerFilterManager = new ConsumerFilterManager(this);
this.producerManager = new ProducerManager();
this.clientHousekeepingService = new ClientHousekeepingService(this);
this.broker2Client = new Broker2Client(this);
this.subscriptionGroupManager = new SubscriptionGroupManager(this);
this.brokerOuterAPI = new BrokerOuterAPI(nettyClientConfig);
this.filterServerManager = new FilterServerManager(this);
this.slaveSynchronize = new SlaveSynchronize(this);
this.sendThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getSendThreadPoolQueueCapacity());
this.pullThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getPullThreadPoolQueueCapacity());
this.queryThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getQueryThreadPoolQueueCapacity());
this.clientManagerThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getClientManagerThreadPoolQueueCapacity());
this.consumerManagerThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getConsumerManagerThreadPoolQueueCapacity());
//心跳
this.heartbeatThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getHeartbeatThreadPoolQueueCapacity());
this.endTransactionThreadPoolQueue = new LinkedBlockingQueue<Runnable>(this.brokerConfig.getEndTransactionPoolQueueCapacity());
this.brokerStatsManager = new BrokerStatsManager(this.brokerConfig.getBrokerClusterName());
this.setStoreHost(new InetSocketAddress(this.getBrokerConfig().getBrokerIP1(), this.getNettyServerConfig().getListenPort()));
this.brokerFastFailure = new BrokerFastFailure(this);
this.configuration = new Configuration(
log,
BrokerPathConfigHelper.getBrokerConfigPath(),
this.brokerConfig, this.nettyServerConfig, this.nettyClientConfig, this.messageStoreConfig
);
}```
创建配置类
初始化配置主要任务是根据 properties 文件以及命令行参数值，创建了以下配置类：
•nettyServerConfig：封装了作为消息队列服务器的配置信息
•nettyClientConfig：封装了作为NameServer客户端配置信息
•brokerConfig：封装了 Broker 配置信息
•messageStoreConfig：封装了 RocketMQ 存储系统的配置信息
2.初始化Controller
```java public boolean initialize() throws CloneNotSupportedException { boolean result = this.topicConfigManager.load(); /* 主题配置加载 这一步主要是加载 topics.json 文件 并解析生成 TopicConfigSerializerWrapper 对象 并 set 进 topicConfigTable 中。 / result = result && this.consumerOffsetManager.load(); / 消费者订阅组加载： 这一步主要是加载 consumerOffset.json 文件 并解析生成 ConsumerOffsetManager 对象，并替换 offsetTable 成员值。 / result = result && this.subscriptionGroupManager.load(); / 消费者过滤管理加载： 这一步主要是加载 consumerFilter.json 文件，并解析生成 ConsumerFilterManager 对象 */ result = result && this.consumerFilterManager.load();
if (result) {
try {
/***
messageStore 消息存储初始化:
这一步主要是创建了 DefaultMessageStore 对象
这是 Broker 消息寸处的核心实现
创建该对象时也会启动很多相关服务线程，用于管理 store 的存储。
***/
this.messageStore =new DefaultMessageStore
(this.messageStoreConfig,
this.brokerStatsManager,
this.messageArrivingListener,
this.brokerConfig);
if (messageStoreConfig.isEnableDLegerCommitLog()) {
DLedgerRoleChangeHandler roleChangeHandler =
new DLedgerRoleChangeHandler
(this, (DefaultMessageStore) messageStore);
((DLedgerCommitLog)((DefaultMessageStore)messageStore)
.getCommitLog())
.getdLedgerServer()
.getdLedgerLeaderElector()
.addRoleChangeHandler(roleChangeHandler);
}
this.brokerStats =
new BrokerStats((DefaultMessageStore) this.messageStore);
//load plugin
MessageStorePluginContext context =
new MessageStorePluginContext
(messageStoreConfig, brokerStatsManager, messageArrivingListener, brokerConfig);
this.messageStore = MessageStoreFactory.build
(context, this.messageStore);
this.messageStore.getDispatcherList().addFirst
(new CommitLogDispatcherCalcBitMap
(this.brokerConfig, this.consumerFilterManager));
} catch (IOException e) {
result = false;
log.error("Failed to initialize", e);
}
}
/***
messageStore加载
1.延迟消息加载：加载 delayOffset.json 文件
解析生成DelayOffsetSerializerWrapper，并加入offsetTable中
2.commitLog加载
MappfileQueue映射文件队列加载，加载定义的storePath目录文件
3.consumeQueue加载
***/
result = result && this.messageStore.load();
if (result) {
/***
创建nettyRemotingServer：根据前面初始化好的nettyConfig创建远程通讯服务
根据brokerConfig初始化各种线程池：
1.初始化发送消息线程池
2.初始化拉取消息线程池
3.初始化broker管理线程池
4.初始化client管理线程池
5.初始化消费者管理线程池
把这些线程池注册到nettyRemotingServer中
***/
this.remotingServer = new
NettyRemotingServer(this.nettyServerConfig,
this.clientHousekeepingService);
NettyServerConfig fastConfig = (NettyServerConfig)
this.nettyServerConfig.clone();
fastConfig.setListenPort(nettyServerConfig.getListenPort() - 2);
this.fastRemotingServer = new NettyRemotingServer
(fastConfig, this.clientHousekeepingService);
//发消息线程池
this.sendMessageExecutor = new BrokerFixedThreadPoolExecutor(
//Math.min(Runtime.getRuntime().availableProcessors(), 4);
//默认是核心数和4 取最小的那个
this.brokerConfig.getSendMessageThreadPoolNums(),
this.brokerConfig.getSendMessageThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.sendThreadPoolQueue,
new ThreadFactoryImpl("SendMessageThread_"));
//拉消息线程池
this.pullMessageExecutor =
//16 + Runtime.getRuntime().availableProcessors() * 2;
new BrokerFixedThreadPoolExecutor(
this.brokerConfig.getPullMessageThreadPoolNums(),
this.brokerConfig.getPullMessageThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.pullThreadPoolQueue,
new ThreadFactoryImpl("PullMessageThread_"));
//查询消息线程池
this.queryMessageExecutor = new BrokerFixedThreadPoolExecutor(
this.brokerConfig.getQueryMessageThreadPoolNums(),
this.brokerConfig.getQueryMessageThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.queryThreadPoolQueue,
new ThreadFactoryImpl("QueryMessageThread_"));
//broker线程池
this.adminBrokerExecutor =
Executors.newFixedThreadPool
(this.brokerConfig.getAdminBrokerThreadPoolNums(),
new ThreadFactoryImpl("AdminBrokerThread_"));
//管理客户端
this.clientManageExecutor = new ThreadPoolExecutor( this.brokerConfig.getClientManageThreadPoolNums(), this.brokerConfig.getClientManageThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.clientManagerThreadPoolQueue,
new ThreadFactoryImpl("ClientManageThread_"));
//心跳
this.heartbeatExecutor = new BrokerFixedThreadPoolExecutor(
this.brokerConfig.getHeartbeatThreadPoolNums(),
this.brokerConfig.getHeartbeatThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.heartbeatThreadPoolQueue,
new ThreadFactoryImpl("HeartbeatThread_", true));
//事务消息线程池
this.endTransactionExecutor = new BrokerFixedThreadPoolExecutor(
this.brokerConfig.getEndTransactionThreadPoolNums(),
this.brokerConfig.getEndTransactionThreadPoolNums(),
1000 * 60,
TimeUnit.MILLISECONDS,
this.endTransactionThreadPoolQueue,
new ThreadFactoryImpl("EndTransactionThread_"));
this.consumerManageExecutor = Executors.newFixedThreadPool
(this.brokerConfig.getConsumerManageThreadPoolNums(),
new ThreadFactoryImpl("ConsumerManageThread_"));
this.registerProcessor();
final long initialDelay = UtilAll.computNextMorningTimeMillis()
- System.currentTimeMillis();
final long period = 1000 * 60 * 60 * 24;
//开启定时记录 Broker 的状态(消息拉取时间总和、消息发送总和等)
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.getBrokerStats().record();
} catch (Throwable e) {
log.error("schedule record error.", e);
}
}
}, initialDelay, period, TimeUnit.MILLISECONDS);
//每5s持久化一次消息消费进度到consumerOffse.json文件
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.consumerOffsetManager.persist();
} catch (Throwable e) {
log.error("schedule persist consumerOffset error.", e);
}
}
}, 1000 * 10, this.brokerConfig.getFlushConsumerOffsetInterval(),TimeUnit.MILLISECONDS);
//消息过滤持久化，定时向 consumerFilter.json 文件写入消费者过滤器信息
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.consumerFilterManager.persist();
} catch (Throwable e) {
log.error("schedule persist consumer filter error.", e);
}
}
}, 1000 * 10, 1000 * 10, TimeUnit.MILLISECONDS);
//定时禁用消费慢的消费者以保护 Broker
//可以设置 disableConsumeIfConsumerReadSlowly 属性，默认 false
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.protectBroker();
} catch (Throwable e) {
log.error("protectBroker error.", e);
}
}
}, 3, 3, TimeUnit.MINUTES);
//定时打印 Send、Pull、Query、Transaction 信息
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.printWaterMark();
} catch (Throwable e) {
log.error("printWaterMark error.", e);
}
}
}, 10, 1, TimeUnit.SECONDS);
//定时打印已存储在提交日志中但尚未调度到消费队列的字节数
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
log.info("dispatch behind commit log {} bytes");
} catch (Throwable e) {
log.error("schedule dispatchBehindBytes error.", e);
}
}
}, 1000 * 10, 1000 * 60, TimeUnit.MILLISECONDS);
//定时获取 namserver 地址
if (this.brokerConfig.getNamesrvAddr() != null) {
this.brokerOuterAPI.updateNameServerAddressList
(this.brokerConfig.getNamesrvAddr());
} else if (this.brokerConfig.isFetchNamesrvAddrByAddressServer()) {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.brokerOuterAPI.fetchNameServerAddr();
} catch (Throwable e) {
log.error("ScheduledTask fetchNameServerAddr exception", e);
}
}
}, 1000 * 10, 1000 * 60 * 2, TimeUnit.MILLISECONDS);
}
if (!messageStoreConfig.isEnableDLegerCommitLog()) {
//如果是从服务器：
//定时从主服务器获取 TopicConfig、ConsumerOffset、DelayOffset、
//SubscriptionGroupConfig 等信息
if (BrokerRole.SLAVE == this.messageStoreConfig.getBrokerRole()) {
if (this.messageStoreConfig.getHaMasterAddress() != null &&
this.messageStoreConfig.getHaMasterAddress().length() >= 6){
this.messageStore.updateHaMasterAddress
(this.messageStoreConfig.getHaMasterAddress());
this.updateMasterHAServerAddrPeriodically = false;
} else {
this.updateMasterHAServerAddrPeriodically = true;
}
//如果是主服务器：定时打印从服务器落后的字节数
} else {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.printMasterAndSlaveDiff();
} catch (Throwable e) {
log.error("schedule printMasterAndSlaveDiff error.", e);
}
}
}, 1000 * 10, 1000 * 60, TimeUnit.MILLISECONDS);
}
}
if (TlsSystemConfig.tlsMode != TlsMode.DISABLED) {
// Register a listener to reload SslContext
try {
fileWatchService = new FileWatchService(
new String[] {
TlsSystemConfig.tlsServerCertPath,
TlsSystemConfig.tlsServerKeyPath,
TlsSystemConfig.tlsServerTrustCertPath
},
new FileWatchService.Listener() {
boolean certChanged, keyChanged = false;
@Override
public void onChanged(String path) {
if (path.equals(TlsSystemConfig.tlsServerTrustCertPath)) {
log.info("The trust certificate changed," +
"reload the sslcontext");
reloadServerSslContext();
}
if (path.equals(TlsSystemConfig.tlsServerCertPath)) {
certChanged = true;
}
if (path.equals(TlsSystemConfig.tlsServerKeyPath)) {
keyChanged = true;
}
if (certChanged && keyChanged) {
log.info("The certificate and private key changed," +
"reload the ssl context");
certChanged = keyChanged = false;
reloadServerSslContext();
}
}
private void reloadServerSslContext() {
((NettyRemotingServer) remotingServer).loadSslContext();
((NettyRemotingServer) fastRemotingServer).loadSslContext();
}
});
} catch (Exception e) {
log.warn("FileWatchService created error, " +
"can't load the certificate dynamically");
}
}
initialTransaction();
initialAcl();
initialRpcHooks();
}
return result;
}```
创建加载消息存储服务
messageStore
创建NettyRemotingServer
初始化定时任务
在线程池注册完后，就会开启各种定时任务
3.启动brokercontroller
```java public void start() throws Exception { /* messageStore启动会启动启动各类线程服务: 1)启动刷盘任务线程 2)启动commitLog线程
3)启动存储存储统计服务线程storeStateService
4)启动延迟定时消息服务线程 5)启动消息分发到各种Consumer queue服务线程reputMessageService
6)启动HA主从同步线程 / if (this.messageStore != null) { this.messageStore.start(); } / 启动netty服务： remotingServer启动：启动远程通讯服务 / if (this.remotingServer != null) { this.remotingServer.start(); } / 启动netty服务： fastRemotingServer启动：启动远程通讯服务 */ if (this.fastRemotingServer != null) { this.fastRemotingServer.start(); }
if (this.fileWatchService != null) {
this.fileWatchService.start();
}
/***
启动netty服务：
broker对外API启动：启动client远程通讯服务
***/
if (this.brokerOuterAPI != null) {
this.brokerOuterAPI.start();
}
/***
pullRequestHolderService使拉取消息保持长轮询任务启动
***/
if (this.pullRequestHoldService != null) {
this.pullRequestHoldService.start();
}
/***
ClientHouseKeepingService线程定时清除不活动链接任务启动
***/
if (this.clientHousekeepingService != null) {
this.clientHousekeepingService.start();
}
/***
过滤服务器任务启动
***/
if (this.filterServerManager != null) {
this.filterServerManager.start();
}
if (!messageStoreConfig.isEnableDLegerCommitLog()) {
startProcessorByHa(messageStoreConfig.getBrokerRole());
handleSlaveSynchronize(messageStoreConfig.getBrokerRole());
}
/***
注册Broker信息到所有的NameServer 这里的all指的是NameServer
***/
this.registerBrokerAll(true, false, true);
/***
每隔30s上报Broker信息到NameServer
***/
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
//进入registerBrokerAll
BrokerController.this.registerBrokerAll
(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
/***
第一次延迟10秒启动 因为在前面已经调用了一次registerBrokerAll
private int registerNameServerPeriod = 1000 * 30;
先和10秒取大,再和60秒取小 发现最后得到的结果就是30
这个虽然可以配置 但是rocket已经限制了这个间隔的最大值和最小值 在 10 - 60秒之间
***/
}, 1000 * 10,
Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)),
TimeUnit.MILLISECONDS);
if (this.brokerStatsManager != null) {
this.brokerStatsManager.start();
}
if (this.brokerFastFailure != null) {
this.brokerFastFailure.start();
}
}```
启动brokercontroller
1.路由注册
Broker发送心跳包
RocketMQ路由注册是通过Broker与NameServer的心跳功能实现的。Broker启动时向集群中所有的NameServer发送心跳信息，Broker每隔30s向集群中所有NameServer发送心跳包也就是4次，NameServer收到心跳包时会更新brokerLiveTable缓存中BrokerLiveInfo的lastUpdataTimeStamp信息，然后NameServer每隔10s扫描brokerLiveTable，如果连续120S没有收到心跳包，NameServer将移除Broker的路由信息同时关闭Socket连接。
代码：BrokerController#start
java public void start() throws Exception { //忽略一大堆校验 //注册Broker信息 this.registerBrokerAll(true, false, true); //每隔30s上报Broker信息到NameServer this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() { @Override public void run() { try { //进入registerBrokerAll //false 发送的不是单向消息 BrokerController.this .registerBrokerAll(true, false, brokerConfig.isForceRegister()); } catch (Throwable e) { log.error("registerBrokerAll Exception", e); } } //第一次延迟10秒 //private int registerNameServerPeriod = 1000 * 30; //30秒是根据和10秒取大,60秒取小比较获得到的 //仔细想的话 rocket已经限制了这个间隔的最大值和最小值 是不是？ }, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS); }
BrokerController#registerBrokerAll
这里的all指的是所有的nameServer，也就是需要往所有的NS上报自己的信息。

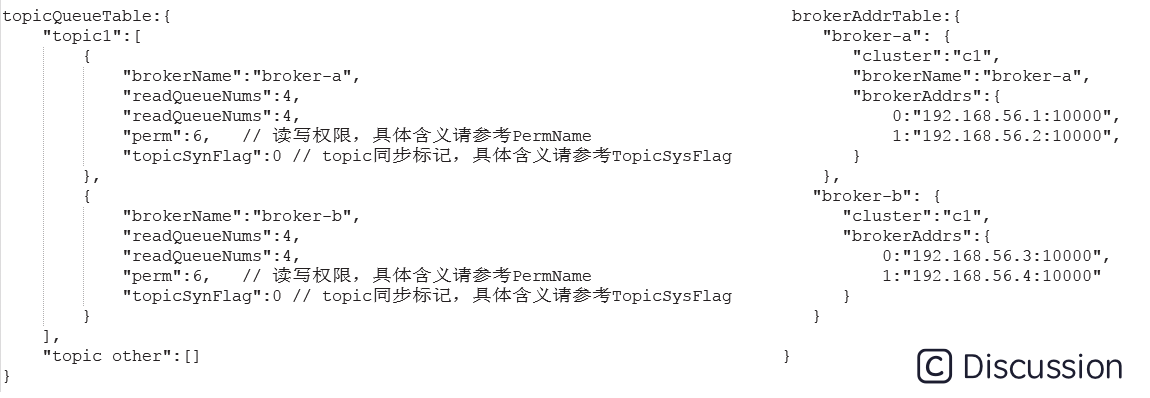

```java /* topicQueueTable:Topic消息队列路由信息，消息发送时根据路由表进行负载均衡
brokerAddrTable:Broker基础信息，包括brokerName、所属集群名称、主备Broker地址
clusterAddrTable:Broker集群信息，存储集群中所有Broker名称
brokerLiveTable:Broker状态信息，NameServer每次收到心跳包是会替换该信息
filterServerTable:Broker上的FilterServer列表，用于类模式消息过滤。
*/
//false 发送的不是单向消息 public synchronized void registerBrokerAll(final boolean checkOrderConfig, boolean oneway, boolean forceRegister) { TopicConfigSerializeWrapper topicConfigWrapper = this.getTopicConfigManager().buildTopicConfigSerializeWrapper(); if (!PermName.isWriteable(this.getBrokerConfig().getBrokerPermission()) || !PermName.isReadable(this.getBrokerConfig().getBrokerPermission())) { ConcurrentHashMap
topicConfigTable = new ConcurrentHashMap
(); for (TopicConfig topicConfig :
topicConfigWrapper.getTopicConfigTable().values()) { TopicConfig tmp =new TopicConfig(topicConfig.getTopicName(), topicConfig.getReadQueueNums(), topicConfig.getWriteQueueNums(), this.brokerConfig.getBrokerPermission());
topicConfigTable.put(topicConfig.getTopicName(), tmp);
}
topicConfigWrapper.setTopicConfigTable(topicConfigTable);
}
if (forceRegister || needRegister(this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.brokerConfig.getRegisterBrokerTimeoutMills())) {
//doRegisterBrokerAll
doRegisterBrokerAll(checkOrderConfig, oneway, topicConfigWrapper);
}
}```
BrokerOuterAPI#doRegisterBrokerAll
```java private void doRegisterBrokerAll(boolean checkOrderConfig, boolean oneway, TopicConfigSerializeWrapper topicConfigWrapper) { //获得nameServer地址信息 nameServer地址信息是从broker的config文件加载得到的 //this.brokerOuterAPI.updateNameServerAddressList // (this.brokerConfig.getNamesrvAddr()); List nameServerAddressList = this.remotingClient.getNameServerAddressList(); //遍历所有nameserver列表 if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
//封装请求头
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
//封装请求体
RegisterBrokerBody requestBody = new RegisterBrokerBody();
requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
requestBody.setFilterServerList(filterServerList);
final byte[] body = requestBody.encode(compressed);
final int bodyCrc32 = UtilAll.crc32(body);
requestHeader.setBodyCrc32(bodyCrc32);
final CountDownLatch countDownLatch = new
CountDownLatch(nameServerAddressList.size());
//for循环遍历所有的nameServer地址
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
//向NameServer注册
RegisterBrokerResult result
= registerBroker
(namesrvAddr,oneway, timeoutMills,requestHeader,body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker to nameServer {} OK");
} catch (Exception e) {
log.warn("registerBroker Exception");
} finally {
countDownLatch.countDown();
}
}
});
}
try {
countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
} catch (InterruptedException e) {
}} ```
代码：BrokerOutAPI#registerBroker
java if (oneway) {//oneway=false try { //oneway值为false,表示单向通信,Broker不关心NameServer的返回,也不会触发任何回调函数。 // true 表示双向通信,Broker关心NameServer的返回,会触发回调函数。 this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills); } catch (RemotingTooMuchRequestException e) { // Ignore } return null; } //实际是走的这里 RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, timeoutMills);
2.NameServer处理心跳包,更新路由信息
org.apache.rocketmq.namesrv.processor.DefaultRequestProcessor网路处理类解析请求类型，如果请求类型是为REGISTER_BROKER，则将请求转发到RouteInfoManager#regiesterBroker
DefaultRequestProcessor#processRequest
java //判断是注册Broker信息 case RequestCode.REGISTER_BROKER: Version brokerVersion = MQVersion.value2Version(request.getVersion()); if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) { return this.registerBrokerWithFilterServer(ctx, request); } else { //注册Broker信息 return this.registerBroker(ctx, request); }
DefaultRequestProcessor#registerBroker
java RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().registerBroker( requestHeader.getClusterName(), requestHeader.getBrokerAddr(), requestHeader.getBrokerName(), requestHeader.getBrokerId(), requestHeader.getHaServerAddr(), topicConfigWrapper, null, ctx.channel() );

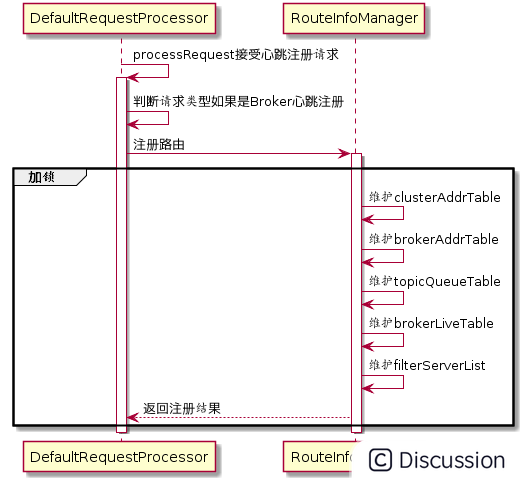

代码：RouteInfoManager#registerBroker
维护路由信息
java //加锁 this.lock.writeLock().lockInterruptibly(); //维护clusterAddrTable Set<String> brokerNames = this.clusterAddrTable.get(clusterName); if (null == brokerNames) { brokerNames = new HashSet<String>(); this.clusterAddrTable.put(clusterName, brokerNames); } brokerNames.add(brokerName);
java //维护brokerAddrTable BrokerData brokerData = this.brokerAddrTable.get(brokerName); //第一次注册,则创建brokerData if (null == brokerData) { registerFirst = true; brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>()); this.brokerAddrTable.put(brokerName, brokerData); } //非第一次注册,更新Broker Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs(); Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator(); while (it.hasNext()) { Entry<Long, String> item = it.next(); if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) { it.remove(); } } String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr); registerFirst = registerFirst || (null == oldAddr);
java //维护topicQueueTable if (null != topicConfigWrapper && MixAll.MASTER_ID == brokerId) { if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion()) || registerFirst) { ConcurrentMap<String, TopicConfig> tcTable = topicConfigWrapper.getTopicConfigTable(); if (tcTable != null) { for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) { this.createAndUpdateQueueData(brokerName, entry.getValue()); } } } }
代码：RouteInfoManager#createAndUpdateQueueData
java private void createAndUpdateQueueData(final String brokerName, final TopicConfig topicConfig) { //创建QueueData QueueData就是topicQueueTable对应的List中的元素 QueueData queueData = new QueueData(); queueData.setBrokerName(brokerName); queueData.setWriteQueueNums(topicConfig.getWriteQueueNums()); queueData.setReadQueueNums(topicConfig.getReadQueueNums()); queueData.setPerm(topicConfig.getPerm()); queueData.setTopicSynFlag(topicConfig.getTopicSysFlag()); //获得topicQueueTable中队列集合 List<QueueData> queueDataList = this.topicQueueTable.get(topicConfig.getTopicName()); //topicQueueTable为空,则直接添加queueData到队列集合 if (null == queueDataList) { queueDataList = new LinkedList<QueueData>(); queueDataList.add(queueData); this.topicQueueTable.put(topicConfig.getTopicName(), queueDataList); log.info("new topic registered, {} {}", topicConfig.getTopicName(), queueData); } else { //判断是否是新的队列 boolean addNewOne = true; Iterator<QueueData> it = queueDataList.iterator(); while (it.hasNext()) { QueueData qd = it.next(); //如果brokerName相同,代表不是新的队列 if (qd.getBrokerName().equals(brokerName)) { if (qd.equals(queueData)) { addNewOne = false; } else { log.info("topic changed, {} OLD: {} NEW: {}", topicConfig.getTopicName(), qd, queueData); it.remove(); } } } //如果是新的队列,则添加队列到queueDataList if (addNewOne) { queueDataList.add(queueData); } } }
java //维护brokerLiveTable BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,new BrokerLiveInfo( System.currentTimeMillis(), topicConfigWrapper.getDataVersion(), channel, haServerAddr));
```java //维护filterServerList if (filterServerList != null) { if (filterServerList.isEmpty()) { this.filterServerTable.remove(brokerAddr); } else { this.filterServerTable.put(brokerAddr, filterServerList); } }
if (MixAll.MASTERID != brokerId) { String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTERID); if (masterAddr != null) { BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr); if (brokerLiveInfo != null) { result.setHaServerAddr(brokerLiveInfo.getHaServerAddr()); result.setMasterAddr(masterAddr); } } } ```
3.NameServer 路由删除
Broker每隔30s向NameServer发送一个心跳包，心跳包包含BrokerId，Broker地址，Broker名称，Broker所属集群名称、Broker关联的FilterServer列表。但是如果Broker宕机，NameServer无法收到心跳包，此时NameServer如何来剔除这些失效的Broker呢？NameServer会每隔10s扫描brokerLiveTable状态表，如果BrokerLive的lastUpdateTimestamp的时间戳距当前时间超过120s，则认为Broker失效，移除该Broker，关闭与Broker连接，同时更新topicQueueTable、brokerAddrTable、brokerLiveTable、filterServerTable。
RocketMQ有两个触发点来删除路由信息
NameServer定期扫描
- NameServer定期扫描brokerLiveTable检测上次心跳包与当前系统的时间差，如果时间超过120s，则需要移除broker。
Broker正常关闭
- Broker在正常关闭的情况下，会执行unregisterBroker指令
这两种方式路由删除的方法都是一样的，就是从相关路由表中删除与该broker相关的信息。
代码：NamesrvController#initialize
```java //每隔10s扫描一次为活跃Broker this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.scanNotActiveBroker();
}}, 5, 10, TimeUnit.SECONDS); ```
代码：RouteInfoManager#scanNotActiveBroker
java public void scanNotActiveBroker() { //获得brokerLiveTable Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator(); //遍历brokerLiveTable while (it.hasNext()) { Entry<String, BrokerLiveInfo> next = it.next(); long last = next.getValue().getLastUpdateTimestamp(); //如果收到心跳包的时间距当时时间是否超过120s if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) { //关闭连接 RemotingUtil.closeChannel(next.getValue().getChannel()); //移除broker it.remove(); //维护路由表 this.onChannelDestroy(next.getKey(), next.getValue().getChannel()); } } }
代码：RouteInfoManager#onChannelDestroy
java //申请写锁,根据brokerAddress从brokerLiveTable和filterServerTable移除 this.lock.writeLock().lockInterruptibly(); this.brokerLiveTable.remove(brokerAddrFound); this.filterServerTable.remove(brokerAddrFound);
java //维护brokerAddrTable String brokerNameFound = null; boolean removeBrokerName = false; Iterator<Entry<String, BrokerData>> itBrokerAddrTable =this.brokerAddrTable.entrySet().iterator(); //遍历brokerAddrTable while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) { BrokerData brokerData = itBrokerAddrTable.next().getValue(); //遍历broker地址 Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator(); while (it.hasNext()) { Entry<Long, String> entry = it.next(); Long brokerId = entry.getKey(); String brokerAddr = entry.getValue(); //根据broker地址移除brokerAddr if (brokerAddr.equals(brokerAddrFound)) { brokerNameFound = brokerData.getBrokerName(); it.remove(); log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed", brokerId, brokerAddr); break; } } //如果当前主题只包含待移除的broker,则移除该topic if (brokerData.getBrokerAddrs().isEmpty()) { removeBrokerName = true; itBrokerAddrTable.remove(); log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed", brokerData.getBrokerName()); } }
```java //维护clusterAddrTable if (brokerNameFound != null && removeBrokerName) { Iterator >> it = this.clusterAddrTable.entrySet().iterator(); //遍历clusterAddrTable while (it.hasNext()) { Entry > entry = it.next(); //获得集群名称 String clusterName = entry.getKey(); //获得集群中brokerName集合 Set brokerNames = entry.getValue(); //从brokerNames中移除brokerNameFound boolean removed = brokerNames.remove(brokerNameFound); if (removed) { log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed", brokerNameFound, clusterName);
if (brokerNames.isEmpty()) {
log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
clusterName);
//如果集群中不包含任何broker,则移除该集群
it.remove();
}
break;
}
}} ```
java //维护topicQueueTable队列 if (removeBrokerName) { //遍历topicQueueTable Iterator<Entry<String, List<QueueData>>> itTopicQueueTable = this.topicQueueTable.entrySet().iterator(); while (itTopicQueueTable.hasNext()) { Entry<String, List<QueueData>> entry = itTopicQueueTable.next(); //主题名称 String topic = entry.getKey(); //队列集合 List<QueueData> queueDataList = entry.getValue(); //遍历该主题队列 Iterator<QueueData> itQueueData = queueDataList.iterator(); while (itQueueData.hasNext()) { //从队列中移除为活跃broker信息 QueueData queueData = itQueueData.next(); if (queueData.getBrokerName().equals(brokerNameFound)) { itQueueData.remove(); log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed", topic, queueData); } } //如果该topic的队列为空,则移除该topic if (queueDataList.isEmpty()) { itTopicQueueTable.remove(); log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed", topic); } } }
java //释放写锁 finally { this.lock.writeLock().unlock(); }
