RenderStage::drawInner

void RenderStage::drawInner(osg::RenderInfo& renderInfo,RenderLeaf*& previous, bool& doCopyTexture)
{
    struct SubFunc
    {
        static void applyReadFBO(bool& apply_read_fbo,
            const FrameBufferObject* read_fbo, osg::State& state)
        {
            if (read_fbo->isMultisample())
            {
                OSG_WARN << "Attempting to read from a"
                    " multisampled framebuffer object. Set a resolve"
                    " framebuffer on the RenderStage to fix this." << std::endl;
            }

            if (apply_read_fbo)
            {
                // Bind the monosampled FBO to read from
                // ogl操作：
				//创建一个新的fbo
				//遍历设置的_attachments,编译纹理
				//ext->glBindFramebuffer(READ_FRAMEBUFFER, fboID);
				//调用glDrawBuffers(GLsizei n, const GLenum *bufs);，指定在一个渲染操作中输出到多个颜色缓冲区的目标
				//遍历设置的_attachments,添加附件
                read_fbo->apply(state, FrameBufferObject::READ_FRAMEBUFFER);
                apply_read_fbo = false;
            }
        }
    };

    osg::State& state = *renderInfo.getState();

    osg::GLExtensions* ext = _fbo.valid() ? state.get<osg::GLExtensions>() : 0;
    // 判断显示卡是否支持FBO
    bool fbo_supported = ext && ext->isFrameBufferObjectSupported;

	// 详见RenderStage::runCameraSetUp
    bool using_multiple_render_targets = fbo_supported && _fbo->hasMultipleRenderingTargets();

    if (!using_multiple_render_targets)
    {
        #if !defined(OSG_GLES1_AVAILABLE) && !defined(OSG_GLES2_AVAILABLE) && !defined(OSG_GLES3_AVAILABLE)

            if( getDrawBufferApplyMask() )
                state.glDrawBuffer(_drawBuffer);

            if( getReadBufferApplyMask() )
                state.glReadBuffer(_readBuffer);

        #endif
    }

    if (fbo_supported)
    {
    	// ogl操作：
		//创建一个新的fbo
		//遍历设置的_attachments,编译纹理
		//ext->glBindFramebuffer(READ_FRAMEBUFFER, fboID);
		//调用glDrawBuffers(GLsizei n, const GLenum *bufs);，指定在一个渲染操作中输出到多个颜色缓冲区的目标
		//遍历设置的_attachments,添加附件
        _fbo->apply(state);
    }

    // do the drawing itself.
    RenderBin::draw(renderInfo,previous);


    if(state.getCheckForGLErrors()!=osg::State::NEVER_CHECK_GL_ERRORS)
    {
        if (state.checkGLErrors("after RenderBin::draw(..)"))
        {
            if ( ext )
            {
                GLenum fbstatus = ext->glCheckFramebufferStatus(GL_FRAMEBUFFER_EXT);
                if ( fbstatus != GL_FRAMEBUFFER_COMPLETE_EXT )
                {
                    OSG_NOTICE<<"RenderStage::drawInner(,) FBO status = 0x"<<std::hex<<fbstatus<<std::dec<<std::endl;
                }
            }
        }
    }

	// 以下是copy纹理,写image,生成mipmap等操作
    const FrameBufferObject* read_fbo = fbo_supported ? _fbo.get() : 0;
    bool apply_read_fbo = false;

	//glBlitFramebuffer用于在帧缓冲对象之间快速复制像素数据
    if (fbo_supported && _resolveFbo.valid() && ext->glBlitFramebuffer)
    {
        GLbitfield blitMask = 0;
        bool needToBlitColorBuffers = false;

        //find which buffer types should be copied
        for (FrameBufferObject::AttachmentMap::const_iterator
            it = _resolveFbo->getAttachmentMap().begin(),
            end =_resolveFbo->getAttachmentMap().end(); it != end; ++it)
        {
            switch (it->first)
            {
            case Camera::DEPTH_BUFFER:
                blitMask |= GL_DEPTH_BUFFER_BIT;
                break;
            case Camera::STENCIL_BUFFER:
                blitMask |= GL_STENCIL_BUFFER_BIT;
                break;
            case Camera::PACKED_DEPTH_STENCIL_BUFFER:
                blitMask |= GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT;
                break;
            case Camera::COLOR_BUFFER:
                blitMask |= GL_COLOR_BUFFER_BIT;
                break;
            default:
                needToBlitColorBuffers = true;
                break;
            }
        }

        // Bind the resolve framebuffer to blit into.
        _fbo->apply(state, FrameBufferObject::READ_FRAMEBUFFER);
        _resolveFbo->apply(state, FrameBufferObject::DRAW_FRAMEBUFFER);// 如果不使用MSFBO则为0

        if (blitMask)
        {
            // Blit to the resolve framebuffer.
            // Note that (with nvidia 175.16 windows drivers at least) if the read
            // framebuffer is multisampled then the dimension arguments are ignored
            // and the whole framebuffer is always copied.
            // 将READ_FRAMEBUFFER拷贝到DRAW_FRAMEBUFFER
            ext->glBlitFramebuffer(
                static_cast<GLint>(_viewport->x()), static_cast<GLint>(_viewport->y()),
                static_cast<GLint>(_viewport->x() + _viewport->width()), static_cast<GLint>(_viewport->y() + _viewport->height()),
                static_cast<GLint>(_viewport->x()), static_cast<GLint>(_viewport->y()),
                static_cast<GLint>(_viewport->x() + _viewport->width()), static_cast<GLint>(_viewport->y() + _viewport->height()),
                blitMask, GL_NEAREST);
        }

#if !defined(OSG_GLES1_AVAILABLE) && !defined(OSG_GLES2_AVAILABLE) && !defined(OSG_GLES3_AVAILABLE)
		// 拷贝多传输颜色附件
        if (needToBlitColorBuffers)
        {
            for (FrameBufferObject::AttachmentMap::const_iterator
                it = _resolveFbo->getAttachmentMap().begin(),
                end =_resolveFbo->getAttachmentMap().end(); it != end; ++it)
            {
                osg::Camera::BufferComponent attachment = it->first;
                if (attachment >=osg::Camera::COLOR_BUFFER0)
                {
                    state.glReadBuffer(GL_COLOR_ATTACHMENT0_EXT + (attachment - osg::Camera::COLOR_BUFFER0));
                    state.glDrawBuffer(GL_COLOR_ATTACHMENT0_EXT + (attachment - osg::Camera::COLOR_BUFFER0));

                    ext->glBlitFramebuffer(
                        static_cast<GLint>(_viewport->x()), static_cast<GLint>(_viewport->y()),
                        static_cast<GLint>(_viewport->x() + _viewport->width()), static_cast<GLint>(_viewport->y() + _viewport->height()),
                        static_cast<GLint>(_viewport->x()), static_cast<GLint>(_viewport->y()),
                        static_cast<GLint>(_viewport->x() + _viewport->width()), static_cast<GLint>(_viewport->y() + _viewport->height()),
                        GL_COLOR_BUFFER_BIT, GL_NEAREST);
                }
            }
            // reset the read and draw buffers?  will comment out for now with the assumption that
            // the buffers will be set explicitly when needed elsewhere.
            // glReadBuffer(GL_COLOR_ATTACHMENT0_EXT);
            // glDrawBuffer(GL_COLOR_ATTACHMENT0_EXT);
        }
#endif

        apply_read_fbo = true;
        read_fbo = _resolveFbo.get();

        using_multiple_render_targets = read_fbo->hasMultipleRenderingTargets();
    }

    // now copy the rendered image to attached texture.
    if (doCopyTexture)
    {
        if (read_fbo) SubFunc::applyReadFBO(apply_read_fbo, read_fbo, state);
        copyTexture(renderInfo);
    }

	//如果有设置附件的image，则将附件读入image中
    for(std::map< osg::Camera::BufferComponent, Attachment>::const_iterator itr = _bufferAttachmentMap.begin();
        itr != _bufferAttachmentMap.end();
        ++itr)
    {
        if (itr->second._image.valid())
        {
            if (read_fbo) SubFunc::applyReadFBO(apply_read_fbo, read_fbo, state);

            #if !defined(OSG_GLES1_AVAILABLE) && !defined(OSG_GLES2_AVAILABLE)

                if (using_multiple_render_targets)
                {
                    int attachment=itr->first;
                    if (attachment==osg::Camera::DEPTH_BUFFER || attachment==osg::Camera::STENCIL_BUFFER) {
                        // assume first buffer rendered to is the one we want
                        glReadBuffer(read_fbo->getMultipleRenderingTargets()[0]);
                    } else {
                        glReadBuffer(GL_COLOR_ATTACHMENT0_EXT + (attachment - osg::Camera::COLOR_BUFFER0));
                    }
                } else {
                    if (_readBuffer != GL_NONE)
                    {
                        glReadBuffer(_readBuffer);
                    }
                }

            #endif

            GLenum pixelFormat = itr->second._image->getPixelFormat();
            if (pixelFormat==0) pixelFormat = _imageReadPixelFormat;
            if (pixelFormat==0) pixelFormat = GL_RGB;

            GLenum dataType = itr->second._image->getDataType();
            if (dataType==0) dataType = _imageReadPixelDataType;
            if (dataType==0) dataType = GL_UNSIGNED_BYTE;

            itr->second._image->readPixels(static_cast<int>(_viewport->x()),
                                           static_cast<int>(_viewport->y()),
                                           static_cast<int>(_viewport->width()),
                                           static_cast<int>(_viewport->height()),
                                           pixelFormat, dataType);
        }
    }

    if (fbo_supported)
    {
    	// 是否需要解除绑定回复默认帧缓冲区
        if (getDisableFboAfterRender())
        {
            // switch off the frame buffer object
            GLuint fboId = state.getGraphicsContext() ? state.getGraphicsContext()->getDefaultFboId() : 0;
            ext->glBindFramebuffer(GL_FRAMEBUFFER_EXT, fboId);
        }

        doCopyTexture = true;
    }

    if (fbo_supported && _camera.valid())
    {
        // now generate mipmaps if they are required.
        const osg::Camera::BufferAttachmentMap& bufferAttachments = _camera->getBufferAttachmentMap();
        for(osg::Camera::BufferAttachmentMap::const_iterator itr = bufferAttachments.begin();
            itr != bufferAttachments.end();
            ++itr)
        {
            if (itr->second._texture.valid() && itr->second._mipMapGeneration)
            {
                state.setActiveTextureUnit(0);//设置当前纹理单元
                state.applyTextureAttribute(0, itr->second._texture.get());
                //用于生成指定纹理的多级渐进纹理（Mipmap）:void glGenerateMipmap(GLenum target);
                //target:GL_TEXTURE_2D,GL_TEXTURE_CUBE_MAP,GL_TEXTURE_3D
                ext->glGenerateMipmap(itr->second._texture->getTextureTarget());
            }
        }
    }
}

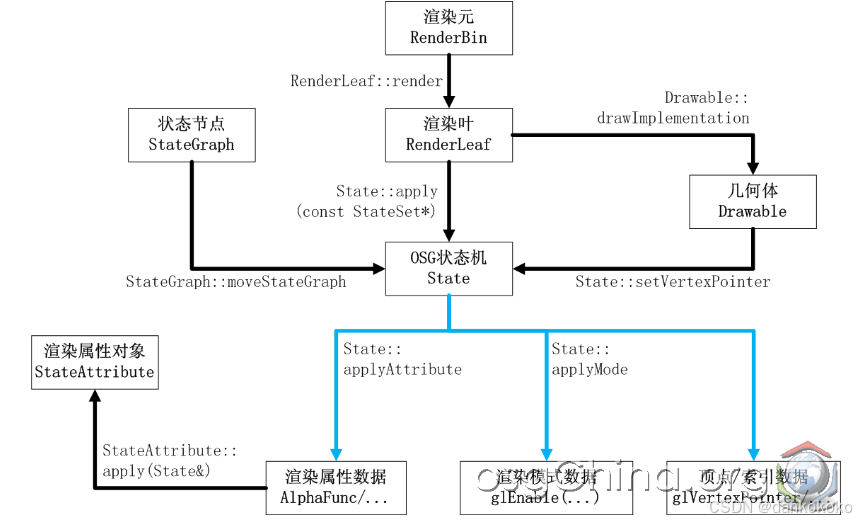

OSG渲染后台关系图

• 如果我们需要自己创建新的派生自Drawable的对象（就像osgText中所实现的），drawable几何体对象的具体实现在于drawImplementation函数。
• 如果想自己创建一种新的渲染属性（派生自StateAttribute），渲染属性的具现函数为StateAttribute::apply(State&)，所有的渲染属性都重写了这一函数，以实现自己的功能。

• OSG渲染后台与用户层的接口是摄像机类（Camera）。场景中至少有一个主摄像机，它关联了一个图形设备（GraphicsContext，通常是窗口），以及一个渲染器（Renderer）；我们可以在场景树中（或者别的视图View中，对于复合视景器而言）添加更多的摄像机，它们可以关联相同的或者其它的图形设备，但都会配有单独的渲染器，用以保存该摄像机的筛选设置、显示器设置等信息。
• 场景筛选和绘制的工作由渲染器来完成，而图形设备GraphicsContext则负责根据不同时机的选择，调用渲染器的相关函数。例如在单线程模式中，ViewerBase::renderingTraversals函数依次执行Renderer::cull和Renderer::draw函数（后者通过GraphicsContext::runOperations调用），而在多线程模型中调用者的关系将更加错综复杂。
• OSG渲染后台的调度中心是场景视图（SceneView），它负责保存和执行筛选访问器（CullVisitor）。CullVisitor负责遍历并裁减场景，同时在遍历过程中构建对于场景绘制至关重要的渲染树和状态树；生成的状态树以StateGraph为根节点和各级子节点（其中保存场景树的渲染状态StateSet数据），以RenderLeaf为末端叶节点的内容（其中保存场景树中的几何体Drawable对象）；渲染树则以RenderStage为根节点，RenderBin为各级子节点，根据渲染顺序和方法的设定，状态树中的节点和渲染叶（RenderLeaf）被记录到RenderStage和各级RenderBin中；SceneView负责保存和维护状态树和渲染树。
• 绘制场景时，渲染树中的各级节点将取出保存的渲染叶数据，传递给OSG状态机（State），其中OSG状态机（State）是OpenGL状态机制的封装和实现，也是场景绘制的核心元件。状态机取得渲染叶中的几何数据之后，再向根部遍历状态树，取得该几何体绘制相关的所有渲染状态设置，并亲自或者交由StateAttribute派生类完成渲染状态的实际设定，以及场景元素的实际绘制工作。此时用到的就已经是我们耳熟能详的各种OpenGL函数了。

OSG的渲染流程

1、渲染树的作用是遍历各个渲染元（RenderBin），并按照指定的顺序执行其中各个渲染叶的渲染函数（RenderLeaf::render）。

2、状态树保存了从根节点到当前渲染叶的路径，遍历这条路径并收集所有的渲染属性数据，通过StateGraph::moveStateGraph关闭父节点所有状态，并打开当前节点所有状态，即可获得当前渲染叶渲染所需的所有OpenGL状态数据。

3、渲染叶的渲染函数（RenderLeaf::render）负责向状态机（osg::State）传递渲染状态数据，进而由渲染属性类本身完成参数在OpenGL中的注册和加载工作（StateAttribute::apply）；渲染叶还负责调用几何体（Drawable）的绘制函数（drawImplementation），传递顶点和索引数据并完成场景的绘制工作。

RenderBin::draw(renderInfo,previous)

void RenderBin::draw(osg::RenderInfo& renderInfo,RenderLeaf*& previous)
{
    renderInfo.pushRenderBin(this);

    if (_drawCallback.valid())
    {
        _drawCallback->drawImplementation(this,renderInfo,previous);
    }
    else drawImplementation(renderInfo,previous);

    renderInfo.popRenderBin();
}

RenderBin::drawImplementation

void RenderBin::drawImplementation(osg::RenderInfo& renderInfo,RenderLeaf*& previous)
{
    osg::State& state = *renderInfo.getState();

    // OSG_NOTICE<<"begin RenderBin::drawImplementation "<<className()<<" sortMode "<<getSortMode()<<std::endl;


    unsigned int numToPop = (previous ? StateGraph::numToPop(previous->_parent) : 0);
    if (numToPop>1) --numToPop;
    unsigned int insertStateSetPosition = state.getStateSetStackSize() - numToPop;

    if (_stateset.valid())
    {
        state.insertStateSet(insertStateSetPosition, _stateset.get());
    }

	// 遍历所有的子渲染元（RenderBin::_bins），其中渲染顺序号小于0的渲染元将在这里执行它们的RenderBin::draw函数，
	// 由于draw函数内部调用了drawImplementation，因此这构成了一个递归调用，直至渲染树遍历至末端节点。
	// 在用户程序中，渲染顺序号的设置使用StateSet::setRenderBinDetails函数（RenderBinList的key）。
    // draw first set of draw bins.
    RenderBinList::iterator rbitr;
    for(rbitr = _bins.begin();
        rbitr!=_bins.end() && rbitr->first<0;
        ++rbitr)
    {
        rbitr->second->draw(renderInfo,previous);
    }

	// 遍历当前RenderBin所保存的所有渲染叶（RenderBin::_renderLeafList），执行RenderLeaf::render函数，实现场景的绘制。
	// 通常只有被设置为“DepthSortedBin”的渲染元会选择保存渲染叶而非状态节点（StateGraph），因为这样便于按照深度值排序对象。
    // draw fine grained ordering.
    for(RenderLeafList::iterator rlitr= _renderLeafList.begin();
        rlitr!= _renderLeafList.end();
        ++rlitr)
    {
        RenderLeaf* rl = *rlitr;
        rl->render(renderInfo,previous);
        previous = rl;
    }


    bool draw_forward = true; //(_sortMode!=SORT_BY_STATE) || (state.getFrameStamp()->getFrameNumber() % 2)==0;

	// 遍历当前RenderBin所保存的所有状态节点（RenderBin::_stateGraphList），
 	// 获取其中保存的RenderLeaf对象（保存为StateGraph::_leaves），并执行其render函数。
    // draw coarse grained ordering.
    if (draw_forward)
    {
        for(StateGraphList::iterator oitr=_stateGraphList.begin();
            oitr!=_stateGraphList.end();
            ++oitr)
        {

            for(StateGraph::LeafList::iterator dw_itr = (*oitr)->_leaves.begin();
                dw_itr != (*oitr)->_leaves.end();
                ++dw_itr)
            {
                RenderLeaf* rl = dw_itr->get();
                rl->render(renderInfo,previous);
                previous = rl;

            }
        }
    }
    else
    {
        for(StateGraphList::reverse_iterator oitr=_stateGraphList.rbegin();
            oitr!=_stateGraphList.rend();
            ++oitr)
        {

            for(StateGraph::LeafList::iterator dw_itr = (*oitr)->_leaves.begin();
                dw_itr != (*oitr)->_leaves.end();
                ++dw_itr)
            {
                RenderLeaf* rl = dw_itr->get();
                rl->render(renderInfo,previous);
                previous = rl;

            }
        }
    }

	//遍历所有的子渲染元（RenderBin::_bins），其中渲染顺序号大于0的渲染元此时才执行它们的RenderBin::draw函数。
    // draw post bins.
    for(;
        rbitr!=_bins.end();
        ++rbitr)
    {
        rbitr->second->draw(renderInfo,previous);
    }

    if (_stateset.valid())
    {
        state.removeStateSet(insertStateSetPosition);
        // state.apply();
    }


    // OSG_NOTICE<<"end RenderBin::drawImplementation "<<className()<<std::endl;
}

• 由此可知，渲染树中最先被绘制的将是那些顺序号小于0的末端RenderBin节点，其次则依次是顺序号等于0的末端节点，大于0的末端节点，小于0的倒数第二级节点……而作为渲染树根节点的RenderStage中保存的数据将最后被渲染。
• 渲染树同一层中不可能存在渲染顺序号相同的渲染元，因为使用setRenderBinDetails设置了相同数字参量的StateSet对象被构建成状态节点（StateGraph）之后，将插入到同一个RenderBin中，而不同name则是不同层级的renderbin。

RenderLeaf::render

• 渲染叶RenderLeaf是OSG渲染后台中几何体（Drawable）对象的唯一管理者。
• 而这里的render函数主要负责获取之前保存的Drawable指针，并将它们传递给负责渲染状态处理的State类，以及执行Drawable::draw函数。

void RenderLeaf::render(osg::RenderInfo& renderInfo,RenderLeaf* previous)
{
    osg::State& state = *renderInfo.getState();

    // don't draw this leaf if the abort中止 rendering flag has been set.
    if (state.getAbortRendering())
    {
        //cout << "early abort"<<endl;
        return;
    }

    if (previous)
    {
        // apply matrices if required.
        state.applyProjectionMatrix(_projection.get());
        state.applyModelViewMatrix(_modelview.get());

		// 如果当前渲染叶与上一次处理的渲染叶父节点不同，则需要遍历状态树中相应的路径，
		// 并更新State状态机中保存的渲染状态数据（采用std::map类型，分别名为_modeMap和_attributeMap）。
        // apply state if required.
        StateGraph* prev_rg = previous->_parent;
        StateGraph* prev_rg_parent = prev_rg->_parent;
        StateGraph* rg = _parent;
        if (prev_rg_parent!=rg->_parent)
        {
        // 它负责清除上一次使用的各种渲染状态，再沿着状态树中的路径，依次添加当前渲染叶所需的数据。
        // 最后执行函数State::apply(const StateSet*)，由OSG状态机处理并执行相应的OpenGL指令。
            StateGraph::moveStateGraph(state,prev_rg_parent,rg->_parent);

            // send state changes and matrix changes to OpenGL.
            state.apply(rg->getStateSet());

        }
        else if (rg!=prev_rg)
        {

            // send state changes and matrix changes to OpenGL.
            state.apply(rg->getStateSet());

        }

		// 设置着色器osg内置变量
        // if we are using osg::Program which requires OSG's generated uniforms to track
        // modelview and projection matrices then apply them now.
        if (state.getUseModelViewAndProjectionUniforms()) state.applyModelViewAndProjectionUniformsIfRequired();

		// 执行此渲染叶所保存的Drawable对象的draw函数，完成几何体的绘制。
		// Geometry对象将在这一函数中（实际上是Drawable::drawImplementation）向状态机传递顶点和索引数据，
		// 并交由状态机对象来完成几何数据的绘制。
        // draw the drawable
        _drawable->draw(renderInfo);
    }
    else
    {
        // apply matrices if required.
        state.applyProjectionMatrix(_projection.get());
        state.applyModelViewMatrix(_modelview.get());

        // apply state if required.
        StateGraph::moveStateGraph(state,NULL,_parent->_parent);

        state.apply(_parent->getStateSet());

        // if we are using osg::Program which requires OSG's generated uniforms to track
        // modelview and projection matrices then apply them now.
        if (state.getUseModelViewAndProjectionUniforms()) state.applyModelViewAndProjectionUniformsIfRequired();

        // draw the drawable
        _drawable->draw(renderInfo);
    }

    if (_dynamic)
    {
        state.decrementDynamicObjectCount();
    }

    // OSG_NOTICE<<"RenderLeaf "<<_drawable->getName()<<" "<<_depth<<std::endl;
}

osg::State::apply(const StateSet*)

Drawable::draw(RenderInfo& renderInfo)

inline void Drawable::draw(RenderInfo& renderInfo) const
{
    State& state = *renderInfo.getState();
    bool useVertexArrayObject = state.useVertexArrayObject(_useVertexArrayObject);
    if (useVertexArrayObject)
    {
        unsigned int contextID = renderInfo.getContextID();

        VertexArrayState* vas = _vertexArrayStateList[contextID].get();
        if (!vas)
        {
            _vertexArrayStateList[contextID] = vas = createVertexArrayState(renderInfo);
        }
        else
        {
            // vas->setRequiresSetArrays(getDataVariance()==osg::Object::DYNAMIC);
        }

        State::SetCurrentVertexArrayStateProxy setVASProxy(state, vas);

		// 但凡是使用ogl核心模式，都要使用vao
        state.bindVertexArrayObject(vas);

        drawInner(renderInfo);

        vas->setRequiresSetArrays(getDataVariance()==osg::Object::DYNAMIC);

        return;
    }

    // TODO, add check against whether VAO is active and supported
    if (state.getCurrentVertexArrayState())
    {
        //OSG_NOTICE<<"state.getCurrentVertexArrayState()->getVertexArrayObject()="<< state.getCurrentVertexArrayState()->getVertexArrayObject()<<std::endl;
        state.bindVertexArrayObject(state.getCurrentVertexArrayState());
    }

	// 使用显示列表
#ifdef OSG_GL_DISPLAYLISTS_AVAILABLE
    if (!state.useVertexBufferObject(_supportsVertexBufferObjects && _useVertexBufferObjects) && _useDisplayList)
    {
        // get the contextID (user defined ID of 0 upwards) for the
        // current OpenGL context.
        unsigned int contextID = renderInfo.getContextID();

        // get the globj for the current contextID.
        GLuint& globj = _globjList[contextID];

        if( globj == 0 )
        {
            // compile the display list
            globj = generateDisplayList(contextID, getGLObjectSizeHint());
            glNewList( globj, GL_COMPILE );

            drawInner(renderInfo);

            glEndList();
        }

        // call the display list
        glCallList( globj);
    }
    else
#endif
    {
        // if state.previousVertexArrayState() is different than currentVertexArrayState bind current

        // OSG_NOTICE<<"Fallback drawInner()........................"<<std::endl;

        drawInner(renderInfo);
    }
}
#endif

Drawable::drawInner(RenderInfo& renderInfo)

inline void drawInner(RenderInfo& renderInfo) const
        {
            if (_drawCallback.valid())
                _drawCallback->drawImplementation(renderInfo,this);
            else
                drawImplementation(renderInfo);
        }

Drawable::drawImplementation

 /** drawImplementation(RenderInfo&) is a pure virtual method for the actual implementation of OpenGL drawing calls, such as vertex arrays and primitives, that
          * must be implemented in concrete subclasses of the Drawable base class, examples include osg::Geometry and osg::ShapeDrawable.
          * drawImplementation(RenderInfo&) is called from the draw(RenderInfo&) method, with the draw method handling management of OpenGL display lists,
          * and drawImplementation(RenderInfo&) handling the actual drawing itself.
          * renderInfo : The osg::RenderInfo object that encapsulates the current rendering information including the osg::State OpenGL state for the current graphics context. */

 virtual void drawImplementation(RenderInfo& /*renderInfo*/) const {}
