前言
0.96寸OLED屏是一个很常见的显示模块，其驱动方式在用采IIC通讯时，常用软件IIC进行通讯。然而，软件IIC驱动OLED，尤其是一次性刷新OLED所有显存的方式较为耗时，占用大量CPU资源，影响系统实时性。下面将使用STM32硬件IIC+DMA的方式驱动OLED屏，使用快速模式的硬件IIC+DMA进行数据传输，实现OLED屏快速刷新的同时大大降低了CPU资源，增加系统实时性（尤其是在裸机开发当中）。
STM32cubeMX配置+KEIL源码测试。
一、软件IIC与硬件IIC
1、软件IIC
CPU资源占用高：需通过IO口模拟SCL/SDA时序，占用大量时钟周期（如0.96寸OLED全屏刷新一次需10ms以上），不适合需要高实时性的应用场景。
时序稳定性差：延时函数精度不足易导致通信失败，且通讯速率难以控制。
代码冗余：需自行实现起始/停止信号、ACK检测等逻辑。
2、硬件IIC
硬件处理：硬件IIC直接由STM32的IIC外设完成，无需CPU频繁干预，自动处理时序，减少CPU干预。
支持多模式：标准模式（100kHz）与快速模式（400kHz），后者适用于高速设备,即速度可调。
DMA可以助力：结合DMA后，数据传输完全由硬件完成，进一步减轻CPU负担。
| 特性 | 中断IIC | DMA+IIC |
| CPU占用 | 每个字节收/发完成都触发中断，频繁占用CPU | 仅初始化+传输完成才会中断，CPU几乎空闲 |
| 传输效率 | 较低，中断处理延迟累积 | 较高，DMA硬件直连内存与外设 |
二、STM32CubeMX配置+KEIL配置

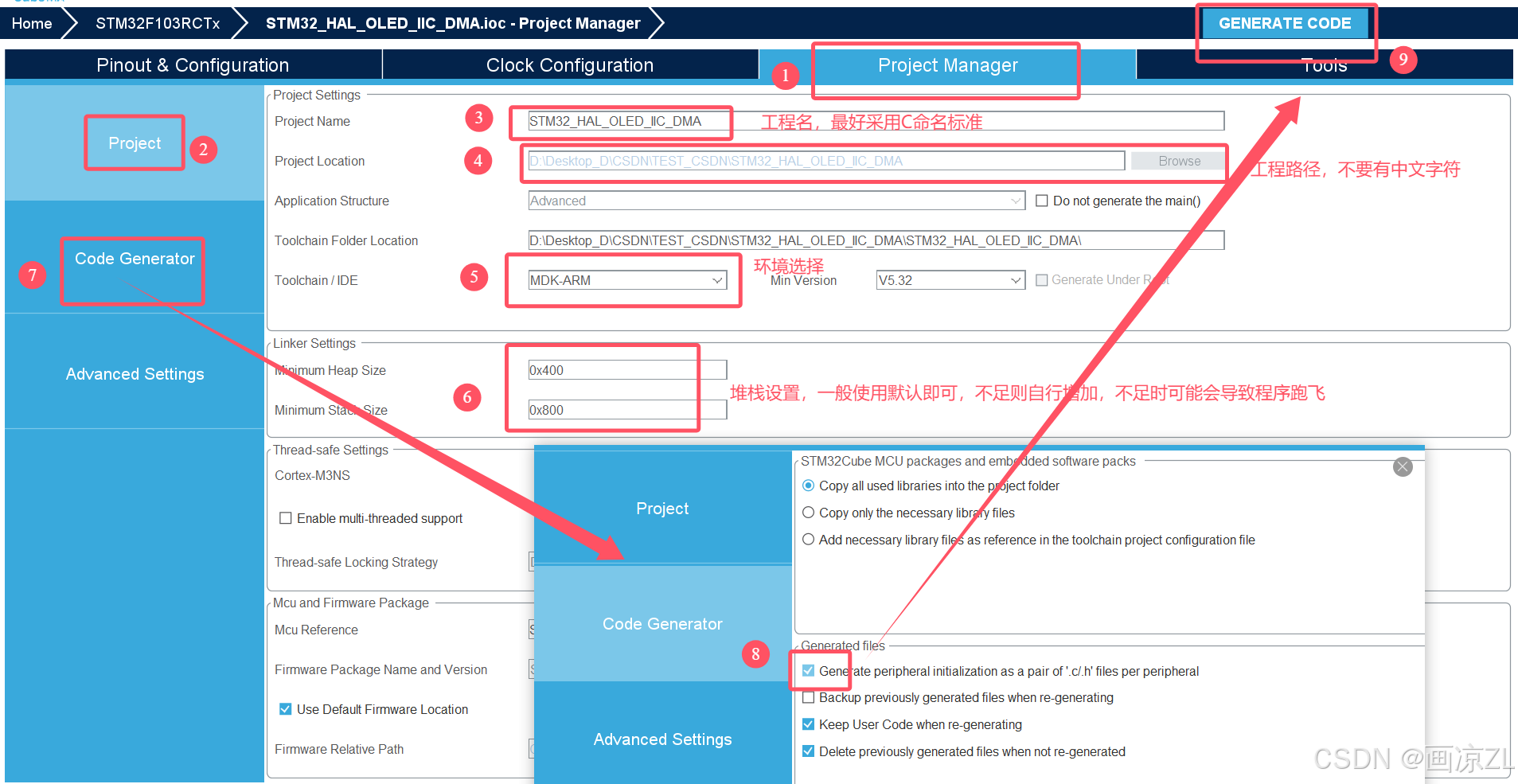

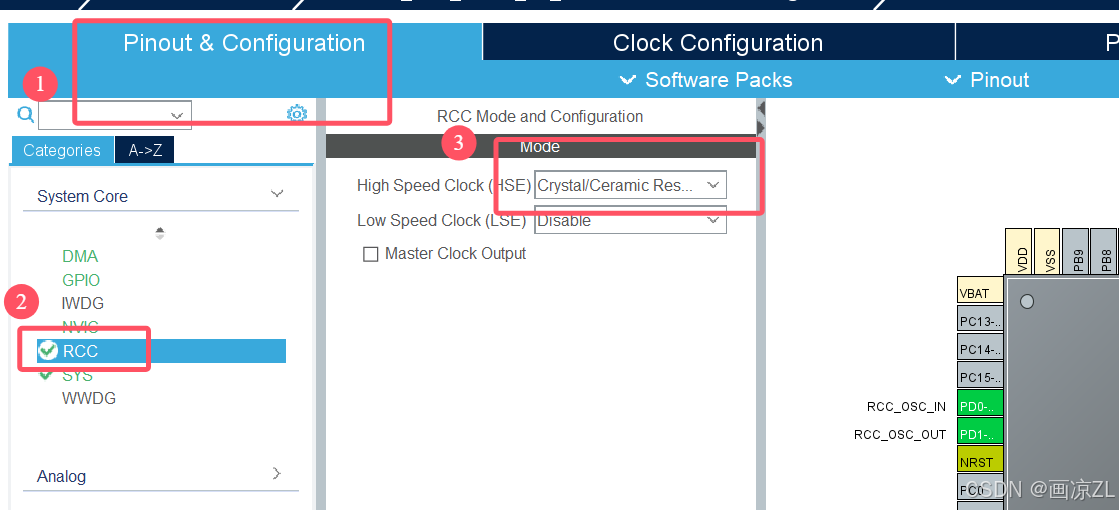

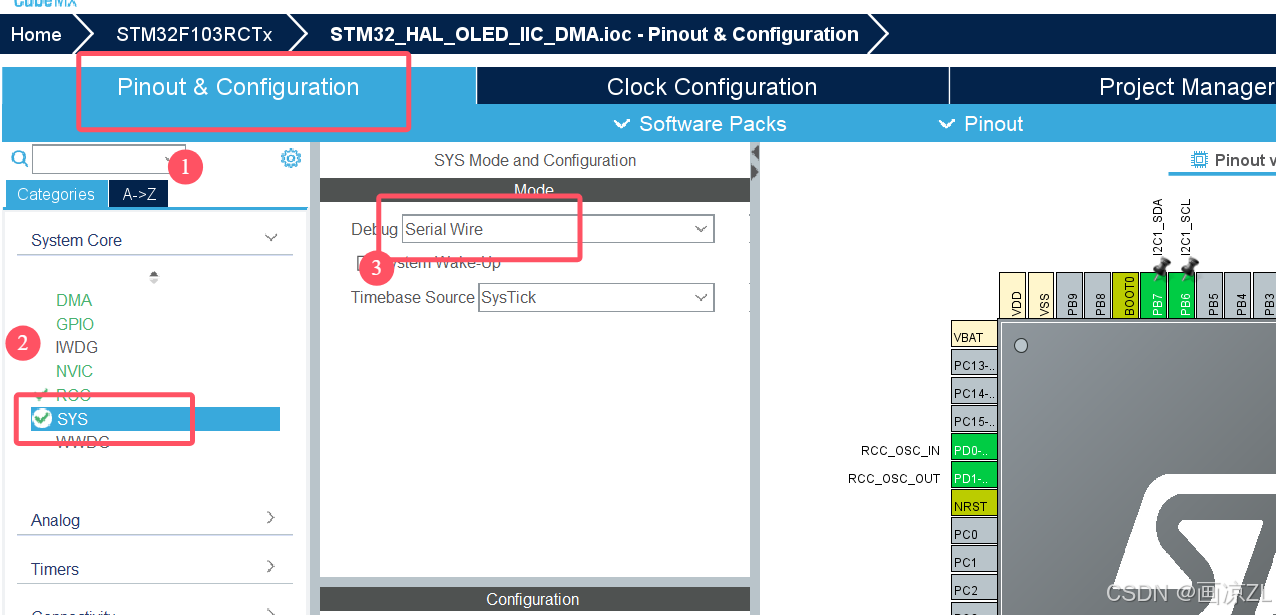

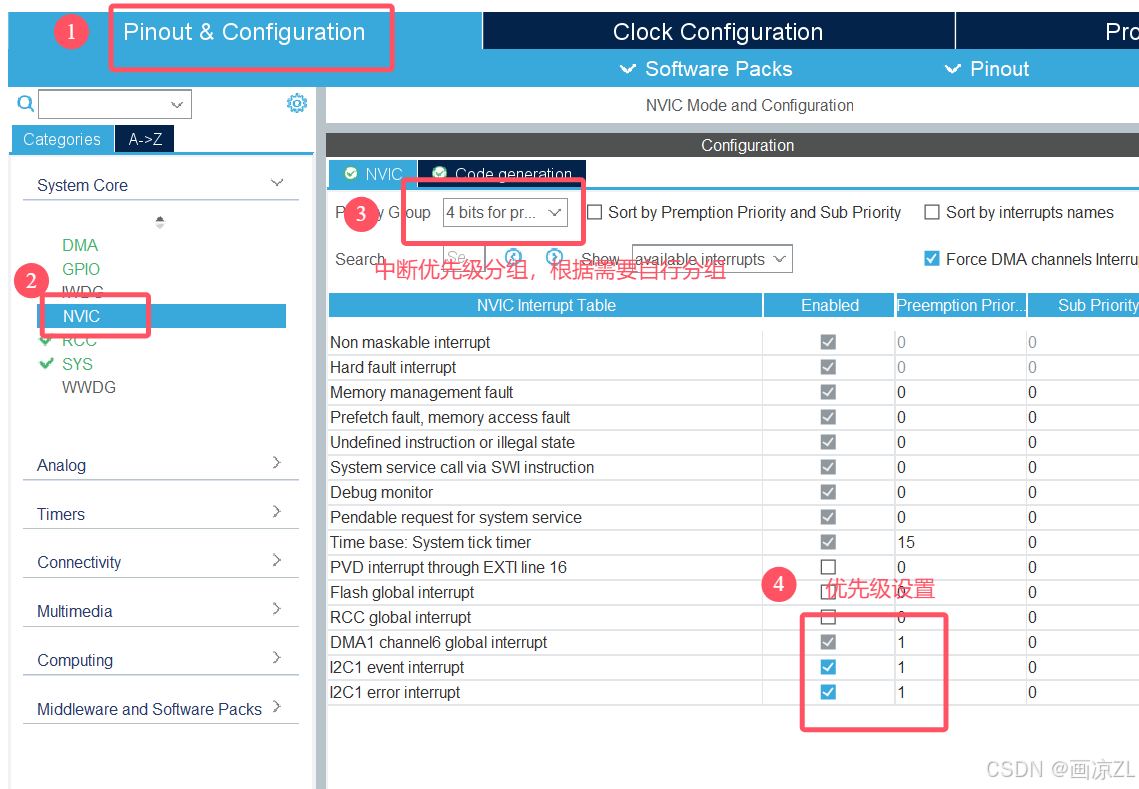

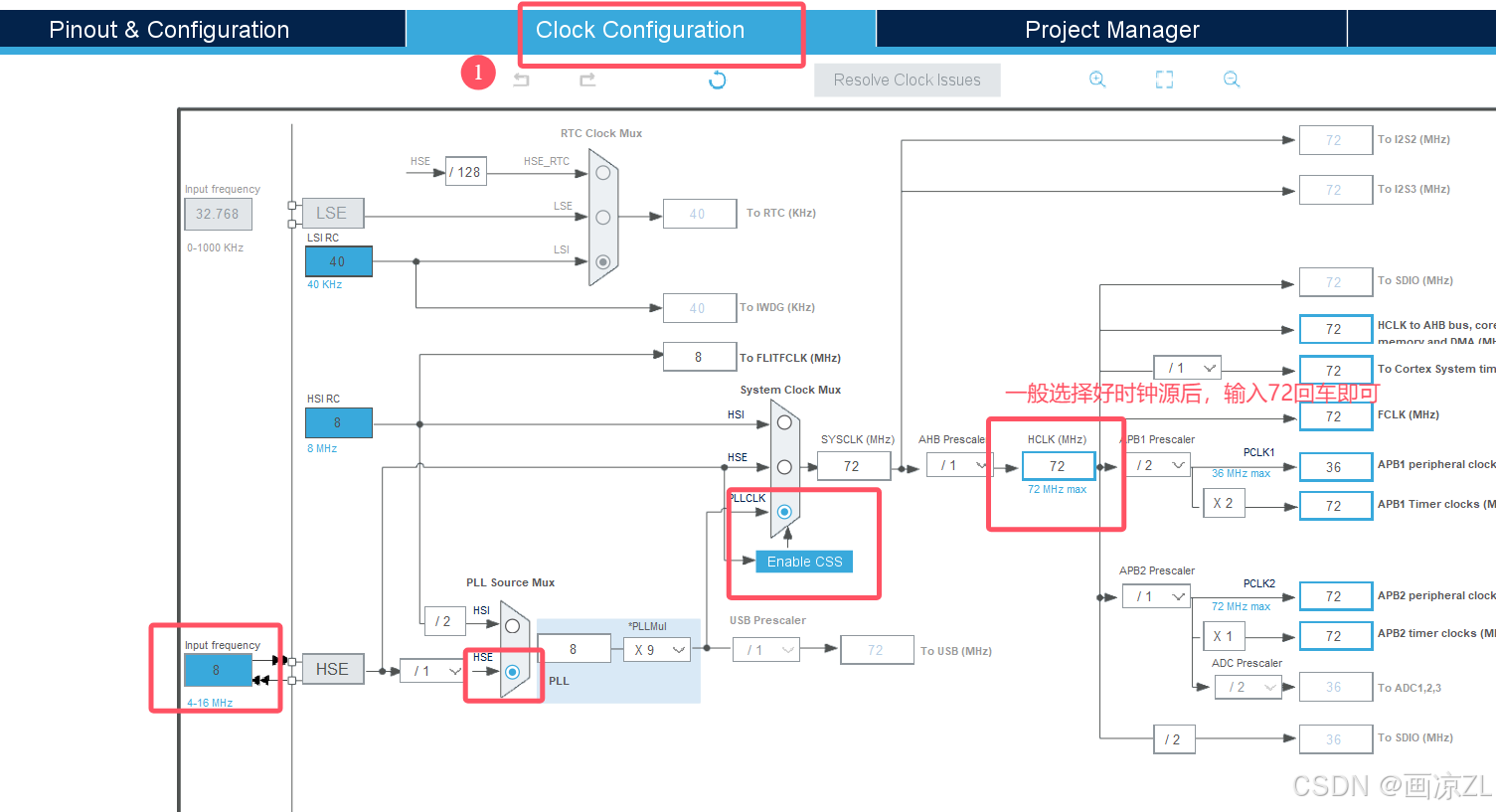

打开STM32CubeMXIDE，芯片选择跳过，进行系统和时钟配置：

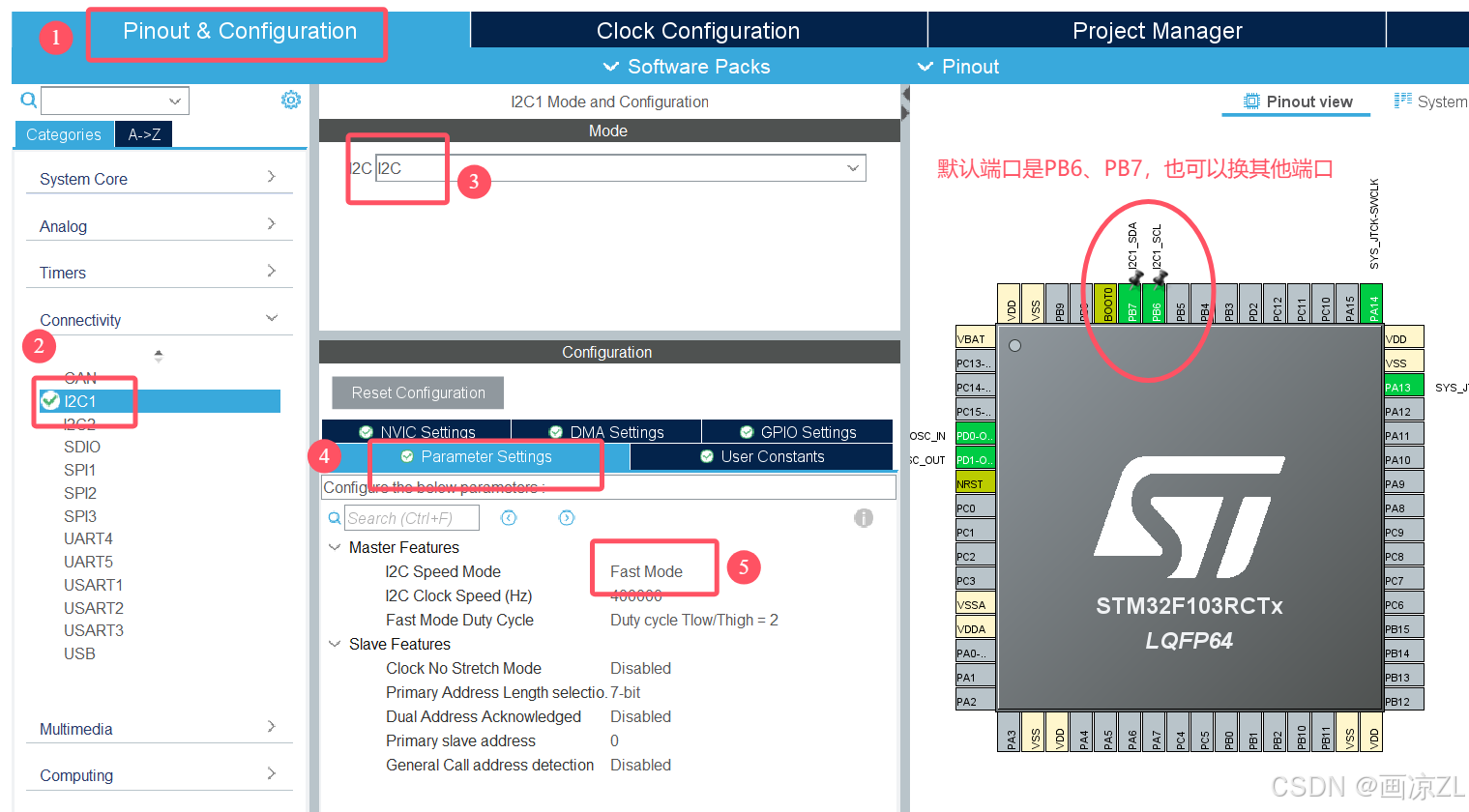

下面进行快速模式硬件IIC+DMA发送的配置：
MasterFeatures:主模式特性
I2C Speed Mode：IIC模式设置 快速模式和标准模式,实际上也就是速率的选择。标准模式，速率上限为 100kb/s；快速模式，速率上限为 400kb/s，在此使用快速模式，如果硬件不支持就换成标准模式；
I2C Clock Speed：I2C传输速率，使用默认速率。
SlaveFeatures:从模式特性
Clock No Stretch Mode：时钟没有扩展模式；
Primary Address Length selection：从设备地址长度,设置从设备的地址是7位还是10位，从设备地址长度 一般为7位，通讯时7位地址+1位读写做开头；
Dual Address Acknowledged：双地址确认；
Primary slave address：从设备初始地址；
General call address detecion：一般呼叫地址检测，关闭不需要。

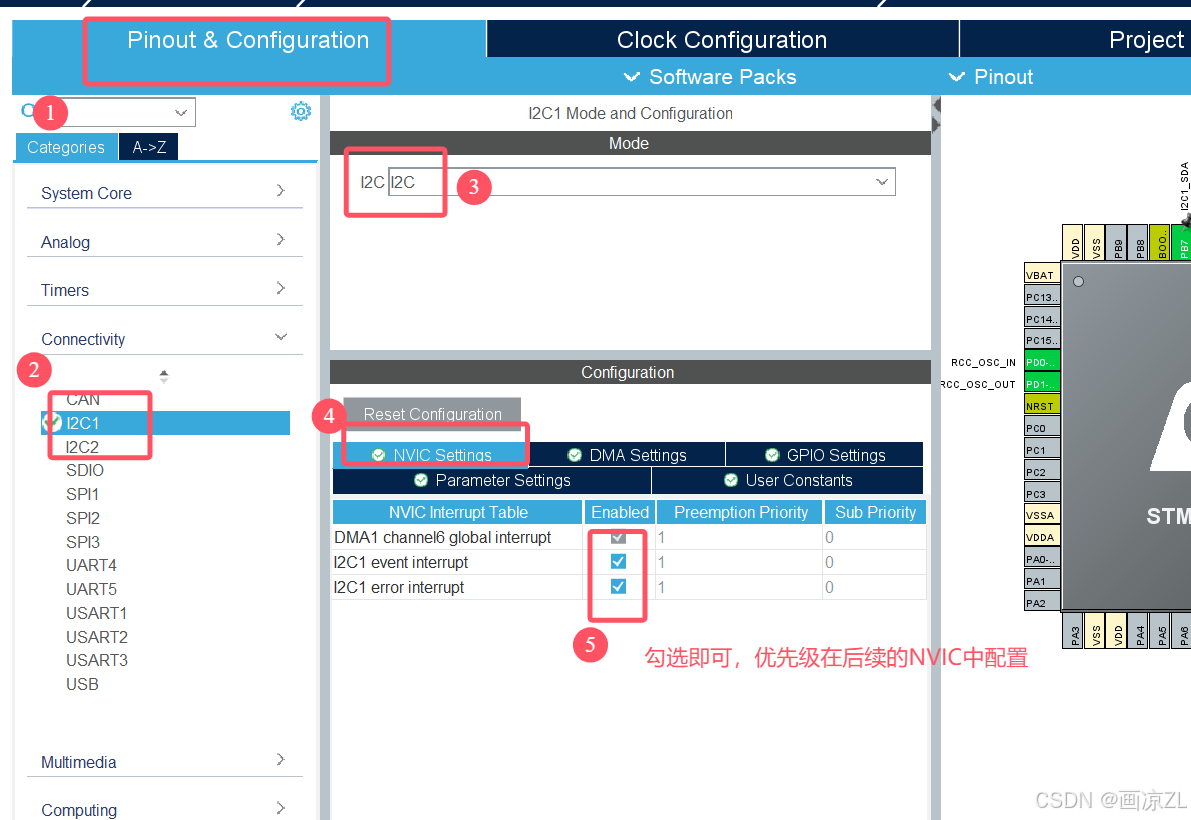

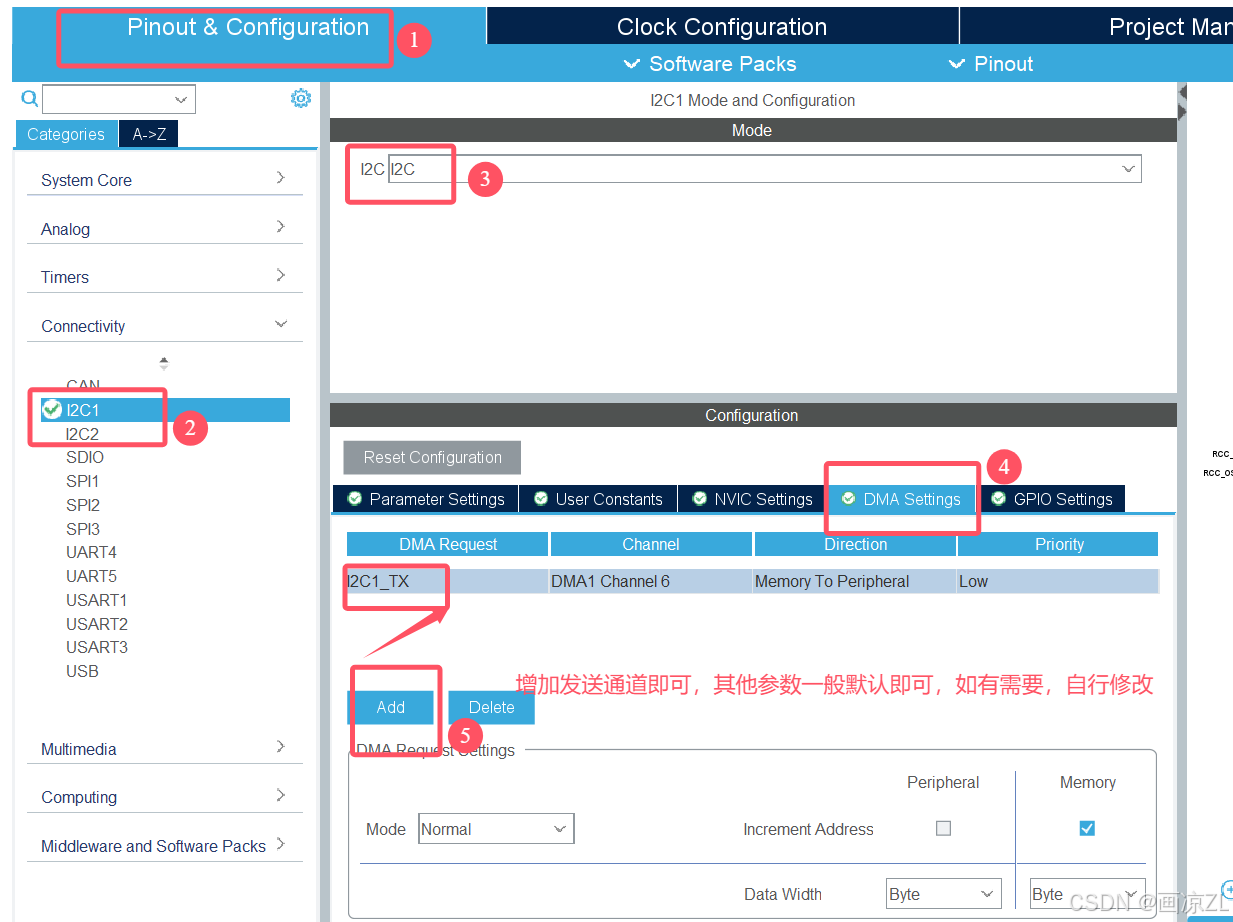

在上面配置的基础上，加入中断，才能增加DMA通道。
开启中断可以进行IIC中断收发，再配置DMA通道可以进行IIC+DMA收发，如果都不加，就只能进行IIC阻塞收发。

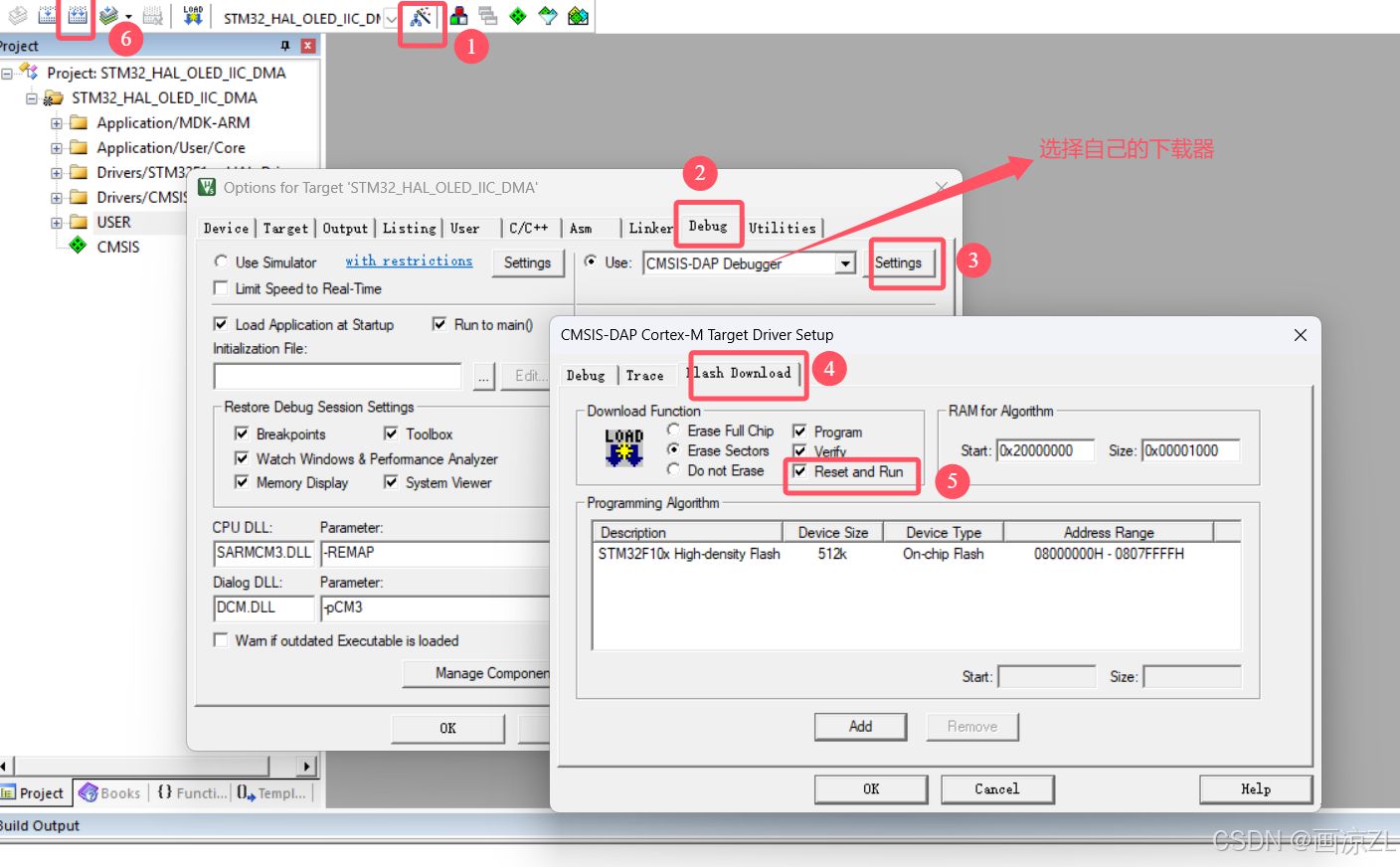

生成完以上的配置代码后，在KEIL端进行配置：
三、OLED驱动示例
1、0.96寸OLED
分辨率和内存大小：0.96寸OLED，分辨率为128×64，这意味着OLED有128列和64行的像素点。为了存储这些像素点的数据，OLED的显存（GDDRAM）被设计为128×8字节，即128×64 bit，对应128×64个像素点。
分页存储：GDDRAM被划分为8个页（Page，将64行像素点分成8块，每块占8行，而这所谓的一页就是其中的一块，即“8页同在一个面上”），每页包含128个字节。每个字节存储8个像素点的数据，因此每页对应8行像素点。
寻址模式：有页寻址，水平寻址，垂直寻址。一般使用按页进行寻址。
驱动芯片：OLED本身没有显存，其显存依赖于驱动芯片（如SSD1306）。SSD1306的GDDRAM分为8页，每页128字节，共128×8字节，对应128×64像素点。
2、OLED驱动程序
oled驱动代码：先在本地定义“显存”（即本地数组），然后等操作完成了再写入OLED刷新显示，而刷新的过程就很适合用硬件IIC+DMA的方式进行。
由于按页寻址模式，所以每次由用户启动刷新第一页，剩下的七页在中断里依次刷新，便可以完成一次刷新。
如下OLED.c:
#include <stdio.h>
#include <string.h>
#include "OLED.h"
#include "OLEDfont.h"
#include "i2c.h"
#define OLED_i2c hi2c1
OLED_t User_OLED =
{
.BUFFER = {0},
.RefreshPageCount = 0,
.RefreshOK_Flag = 1
};
/**
* @brief 发送OLED命令（阻塞式）
* @param cmd OLED命令
*/
static void OLED_Write_Cmd(u8 cmd)
{
HAL_I2C_Mem_Write(&OLED_i2c, OLED_Dev_Adds, OLED_CMD_Adds, I2C_MEMADD_SIZE_8BIT, &cmd, 1, 0xFFFFFF);
}
/**
* @brief 向OLED写入一个字节数据（阻塞式）
* @param data 数据
*/
//static void OLED_Write_Byte(u8 data)
//{
// HAL_I2C_Mem_Write(&OLED_i2c, OLED_Dev_Adds, OLED_DATA_Adds, I2C_MEMADD_SIZE_8BIT, &data, 1, 0xFFFFFF);
//}
/**
* @brief 连续写数据到OLED（阻塞式）
* @param adds 数据地址
* @param data 数据指针
* @param len 数据长度
* @retval 0(OK)
*/
static char OLED_Mem_Write(u8 adds, u8 *data, int len)
{
return HAL_I2C_Mem_Write(&OLED_i2c, OLED_Dev_Adds, adds, I2C_MEMADD_SIZE_8BIT, (uint8_t *)data, len, 0xFFFFFF);
}
/**
* @brief 连续写数据到OLED（DMA）
* @param adds 数据地址
* @param data 数据指针
* @param len 数据长度
* @retval 0(OK)
*/
static char OLED_Mem_Write_DMA(u8 adds, u8 *data, int len)
{
return HAL_I2C_Mem_Write_DMA(&OLED_i2c, OLED_Dev_Adds, adds, I2C_MEMADD_SIZE_8BIT, (uint8_t *)data, len);
}
/**
* @brief 开启OLED
*/
void OLED_Open(void)
{
OLED_Write_Cmd(0X8D);//电荷泵使能
OLED_Write_Cmd(0X14);//开启电荷泵
OLED_Write_Cmd(0XAF);//点亮屏幕
}
/**
* @brief 关闭OLED
*/
void OLED_Close(void)
{
OLED_Write_Cmd(0X8D);//电荷泵使能
OLED_Write_Cmd(0X10);//关闭电荷泵
OLED_Write_Cmd(0XAE);//关闭屏幕
}
/**
* @brief 反转屏幕显示
* @param mode 0:正常显示 1:反转显示
*/
void OLED_Color_Turn(u8 mode)
{
if(mode == 0)
OLED_Write_Cmd(0xA6);//正常显示
if(mode == 1)
OLED_Write_Cmd(0xA7);//反色显示
}
/**
* @brief 屏幕旋转180度
* @param mode 0:正常显示 1:反转显示
*/
void OLED_Disp_Turn(u8 mode)
{
if(mode == 0)
{
OLED_Write_Cmd(0xC8);//正常显示
OLED_Write_Cmd(0xA1);
}
if(mode == 1)
{
OLED_Write_Cmd(0xC0);//反转显示
OLED_Write_Cmd(0xA0);
}
}
/**
* @brief 全屏操作:清屏或者点亮全屏
*/
void OLED_ClearOrSetAll(u8 mode)
{
u8 i;
u8 buf[3];
if(mode == 0)
{
memset(User_OLED.BUFFER, 0, sizeof(User_OLED.BUFFER));
}
else
{
memset(User_OLED.BUFFER, 0xFF, sizeof(User_OLED.BUFFER));
}
for(i = 0; i < 8; i++)
{
// OLED_Write_Cmd (0xb0 + i); //设置页地址（0~7）
// OLED_Write_Cmd (0x00); //设置显示位置—列低地址
// OLED_Write_Cmd (0x10); //设置显示位置—列高地址
buf[0] = 0xb0 + i;
buf[1] = 0x00;
buf[2] = 0x10;
OLED_Mem_Write(OLED_CMD_Adds, buf, 3); // 发送命令
OLED_Mem_Write(OLED_DATA_Adds, (u8 *)User_OLED.BUFFER[i], 128);
}
}
/**
* @brief 在指定的(x,y)坐标处画一个点
* @param x 0 - 127（x坐标）
* @param y 0 - 63 （y坐标）
* @param t 1:填充; 0:清空
*/
void OLED_DrawPoint(u8 x, u8 y, u8 t)
{
u8 i, m, n;
i = y / 8;
m = y % 8;
n = 1 << m;
if(t) User_OLED.BUFFER[i][x] |= n;
else
{
User_OLED.BUFFER[i][x] = ~User_OLED.BUFFER[i][x];
User_OLED.BUFFER[i][x] |= n;
User_OLED.BUFFER[i][x] = ~User_OLED.BUFFER[i][x];
}
}
/**
* @brief 从(x1,y1)到(x2,y2)画一条直线
* @param x1,x2 0 - 127（x坐标）
* @param y1,y2 0 - 63 （y坐标）
* @param mode 1:填充 0:清空
*/
void OLED_DrawLine(u8 x1, u8 y1, u8 x2, u8 y2, u8 mode)
{
u16 t;
int xerr = 0, yerr = 0, delta_x, delta_y, distance;
int incx, incy, uRow, uCol;
delta_x = x2 - x1; //计算坐标增量
delta_y = y2 - y1;
uRow = x1; //画线起点坐标
uCol = y1;
if(delta_x > 0)incx = 1; //设置单步方向
else if (delta_x == 0)incx = 0; //垂直线
else
{
incx = -1;
delta_x = -delta_x;
}
if(delta_y > 0)incy = 1;
else if (delta_y == 0)incy = 0; //水平线
else
{
incy = -1;
delta_y = -delta_x;
}
if(delta_x > delta_y)distance = delta_x; //选取基本增量坐标轴
else distance = delta_y;
for(t = 0; t < distance + 1; t++)
{
OLED_DrawPoint(uRow, uCol, mode); //画点
xerr += delta_x;
yerr += delta_y;
if(xerr > distance)
{
xerr -= distance;
uRow += incx;
}
if(yerr > distance)
{
yerr -= distance;
uCol += incy;
}
}
}
/**
* @brief 以(x,y)为圆心,r为半径画一个圆
* @param x 0 - 127（x坐标）
* @param y 0 - 63 （y坐标）
*/
void OLED_DrawCircle(u8 x, u8 y, u8 r)
{
int a, b, num;
a = 0;
b = r;
while(2 * b * b >= r * r)
{
OLED_DrawPoint(x + a, y - b, 1);
OLED_DrawPoint(x - a, y - b, 1);
OLED_DrawPoint(x - a, y + b, 1);
OLED_DrawPoint(x + a, y + b, 1);
OLED_DrawPoint(x + b, y + a, 1);
OLED_DrawPoint(x + b, y - a, 1);
OLED_DrawPoint(x - b, y - a, 1);
OLED_DrawPoint(x - b, y + a, 1);
a++;
num = (a * a + b * b) - r * r; //计算画的点离圆心的距离
if(num > 0)
{
b--;
a--;
}
}
}
/**
* @brief 在(x,y)处显示一个字符,包括部分字符
* @param x 0 - 127（x坐标）
* @param y 0 - 63 （y坐标）
* @param fontsize 选择字体:8 12 16 24
* @param mode 0:反色显示 1:正常显示
*/
void OLED_ShowChar(u8 x, u8 y, u8 fontsize, u8 mode, u8 chr)
{
u8 i, m, temp, size2, chr1;
u8 x0 = x, y0 = y;
if(fontsize == 8)size2 = 6;
else size2 = (fontsize / 8 + ((fontsize % 8) ? 1 : 0)) * (fontsize / 2); //得到字体一个字符对应点阵集所占的字节数
chr1 = chr - ' '; //计算偏移后的值
for(i = 0; i < size2; i++)
{
if(fontsize == 8)
{
temp = F8X6[chr1][i];
}
else if(fontsize == 12)
{
temp = F12X12[chr1][i];
}
else if(fontsize == 16)
{
temp = F16X16[chr1][i];
}
#if USER_F24X24
else if(fontsize == 24)
{
temp = F24X24[chr1][i];
}
#endif
else return;
for(m = 0; m < 8; m++)
{
if(temp & 0x01)OLED_DrawPoint(x, y, mode);
else OLED_DrawPoint(x, y, !mode);
temp >>= 1;
y++;
}
x++;
if((fontsize != 8) && ((x - x0) == fontsize / 2))
{
x = x0;
y0 = y0 + 8;
}
y = y0;
}
}
/**
* @brief 以(x,y)为起点,显示一个字符串
* @param x 0 - 127（x坐标）
* @param y 0 - 63 （y坐标）
* @param fontsize 选择字体:8 12 16 24
* @param *str 字符串起始地址
* @param mode 0:反色显示 1:正常显示
*/
void OLED_ShowString1(u8 x, u8 y, u8 fontsize, u8 mode, char *str)
{
while((*str >= ' ') && (*str <= '~')) //判断是不是非法字符!
{
OLED_ShowChar(x, y, fontsize, mode, *str);
if(fontsize == 8)x += 6;
else x += fontsize / 2;
str++;
}
}
/**
* @brief 计算 m 的 n 次方
* @param m: 底数
* @param n: 指数
* @retval 计算结果
*/
static u32 OLED_Pow(u8 m, u8 n)
{
u32 result = 1;
while (n--)
{
result *= m;
}
return result;
}
/**
* @brief 在 (x,y) 位置显示数字
* @param x 0 - 127（x 坐标）
* @param y 0 - 63 （y 坐标）
* @param num 要显示的数字
* @param len 数字的位数
* @param fontsize 字体大小
* @param mode 0:反色显示 1:正常显示
*/
void OLED_ShowNum(u8 x, u8 y, u8 len, u8 fontsize, u8 mode, u32 num)
{
u8 t, temp;
u8 m = (fontsize == 8) ? 2 : 0;
for (t = 0; t < len; t++)
{
temp = (num / OLED_Pow(10, len - t - 1)) % 10;
OLED_ShowChar(x + (fontsize / 2 + m) * t, y, temp + '0', fontsize, mode);
}
}
/**
* @brief 以(x,y)为起点坐标显示图片
* @param x 0 - 127（x坐标）
* @param y 0 - 63 （y坐标）
* @param sizex 图片的长度
* @param sizey 图片的宽度
* @param BMP[] 要写入的图片数组
* @param mode 0:反色显示 1:正常显示
*/
void OLED_ShowPicture(u8 x, u8 y, u8 sizex, u8 sizey, u8 BMP[], u8 mode)
{
u16 j = 0;
u8 i, n, temp, m;
u8 x0 = x, y0 = y;
sizey = sizey / 8 + ((sizey % 8) ? 1 : 0);
for(n = 0; n < sizey; n++)
{
for(i = 0; i < sizex; i++)
{
temp = BMP[j];
j++;
for(m = 0; m < 8; m++)
{
if(temp & 0x01)OLED_DrawPoint(x, y, mode);
else OLED_DrawPoint(x, y, !mode);
temp >>= 1;
y++;
}
x++;
if((x - x0) == sizex)
{
x = x0;
y0 = y0 + 8;
}
y = y0;
}
}
}
/**
* @brief 复制数据到BUFFER（显存），注意数组越界
* @param data 数据
* @param x 0 - 127（x坐标）
* @param y 0 - 7 （y坐标）
* @param data 数据指针
* @param size 数据大小
*/
static void OLED_Buffer_Memcpy(int x, int y, uint8_t *data, uint16_t size)
{
if(x < 0 || x >= 128 || y < 0 || y >= 8) return;
if(y * 128 + x + size > sizeof(User_OLED.BUFFER)) return;
memcpy(User_OLED.BUFFER[y] + x, data, size);
}
/**
* @brief 反转字符数据
* @param data 数据指针
* @param size 数据大小
*/
static void invert_char_data(uint8_t *data, u8 size)
{
for (int i = 0; i < size; i++)
{
data[i] = ~data[i];
}
}
/**
* @brief 显示字符串
* @param x 0 - 127（x 坐标）
* @param y 0 - 63（y 坐标）
* @param fontsize 0:6*8字体 1:8*16字体 2:12*24字体 3:16*32字体
* @param str 字符串指针
* @param mode
*/
void OLED_ShowString2(u8 x, u8 y, u8 fontsize, u8 mode, char *str)
{
u8 buffer[128];
for (int index = 0; str[index] > 0; index++)
{
u8 c = str[index];
if (y > 7) break; // 显示超出范围，提前退出
if (c < 0x80) // ASCII 字符
{
u8 offset = c - ' ';
u8 size, rows;
const unsigned char *font_data = NULL;
switch (fontsize)
{
case 0:
size = 6;
rows = 1;
font_data = F8X6[offset];
break;
case 1:
size = 16;
rows = 2;
font_data = F16X8[offset];
break;
#if USER_F24X24
case 2:
size = 36;
rows = 3;
font_data = F24X24[offset];
break;
#endif
#if USER_F16X32
case 3:
size = 64;
rows = 4;
font_data = F16X32[offset];
break;
#endif
default:
continue;
}
memcpy(buffer, font_data, size);
if (!mode)
invert_char_data(buffer, size);
if (rows == 1)
{
OLED_Buffer_Memcpy(x, y, buffer, size);
x += size;
if (x > 128 - size)
{
x = 0;
y++;
}
}
else // 复制字符数据到缓冲区并处理换行
{
for (int r = 0; r < rows; r++)
OLED_Buffer_Memcpy(x, y + r, buffer + r * (size / rows), size / rows);
x += size / rows;
if (x > 128 - (size / rows))
{
x = 0;
y += rows;
}
}
}
}
}
/**
* @brief 显示点阵信息
* @param x 0 - 127（x 坐标）
* @param y 0 - 63（y 坐标）
* @param fontsize 1:16*16字体 2:24*24 字体 3:32*32
* @param mode
* @param date 数据首地址
* @param len 数据长度
*/
void OLED_Disp_Date(u8 x, u8 y, u8 fontsize, u8 mode, char *date, uint16_t len)
{
u8 buffer[128];
u16 size, rows;
// 根据显示模式确定数据大小和行数
switch (fontsize)
{
case 1:
size = 32;
rows = 2;
break;
case 2:
size = 72;
rows = 3;
break;
case 3:
size = 128;
rows = 4;
break;
default:
return;
}
while (len-- > 0)
{
if (y > 7) break; // 显示超行，提前退出
memcpy(buffer, date, size);
if (!mode)
invert_char_data(buffer, size);
// 复制数据到缓冲区
for (u8 r = 0; r < rows; r++)
{
OLED_Buffer_Memcpy(x, y + r, buffer + r * (size / rows), size / rows);
}
x += size / rows;
date += size;
// 自动换行
if (x > 128 - (size / rows))
{
x = 0;
y += rows;
}
}
}
/**
* @brief 显示字符串
* @param i 页地址偏移量（0—7）
*/
static void OLED_Refresh_PageData(u8 i)
{
u8 buf[3];
// OLED_Write_Cmd (0xb0 + i); //设置页地址（0~7）
// OLED_Write_Cmd (0x00); //设置显示位置—列低地址
// OLED_Write_Cmd (0x10); //设置显示位置—列高地址
buf[0] = 0xb0 + i;
buf[1] = 0x00;
buf[2] = 0x10;
OLED_Mem_Write(OLED_CMD_Adds, buf, 3); // 发送命令
OLED_Mem_Write_DMA(OLED_DATA_Adds, (uint8_t *)User_OLED.BUFFER[User_OLED.RefreshPageCount], 128); // 启动DMA传输
}
/**
* @brief 刷新第一页数据
*/
void OLED_Refresh_Page1(void)
{
User_OLED.RefreshPageCount = 0;
OLED_Refresh_PageData(0);
}
/**
* @brief 刷新2-8页数据(中断使用)
*/
void OLED_Refresh_Page2_8(void)
{
if( ++ User_OLED.RefreshPageCount < 8) // 1 - 7
{
OLED_Refresh_PageData(User_OLED.RefreshPageCount);
}
if(User_OLED.RefreshPageCount >= 8) User_OLED.RefreshOK_Flag = 1;
else User_OLED.RefreshOK_Flag = 0;
}
/**
* @brief 初始化OLED（SSD1306）
*/
void OLED_Init(void)
{
HAL_Delay(200);//oled需要上电稳定才能初始化成功
OLED_Write_Cmd(0xAE);//---关闭OLED面板
OLED_Write_Cmd(0x00);//---设置列低地址
OLED_Write_Cmd(0x10);//---设置列高地址
OLED_Write_Cmd(0x40);//---设置起始行地址设置映射RAM显示起始行（0x00~0x3F）
OLED_Write_Cmd(0x81);//---设置对比控制寄存器
OLED_Write_Cmd(0xCF);//---设置亮度
OLED_Write_Cmd(0xA1);//---设置分段/列映射 0xa0左右反置 0xa1正常
OLED_Write_Cmd(0xC8);//---设置COM列/行扫描方向 0xc0上下反置 0xc8正常
OLED_Write_Cmd(0xA6);//---设置正常显示
OLED_Write_Cmd(0xA8);//---设置复用比（1到64）
OLED_Write_Cmd(0x3f);//---1/64负载
OLED_Write_Cmd(0xD3);//---设置显示偏移映射RAM计数器（0x00~0x3F）
OLED_Write_Cmd(0x00);//---不抵消
OLED_Write_Cmd(0xd5);//---设置显示时钟分频比/振荡器频率
OLED_Write_Cmd(0x80);//---s设置分频比，将时钟设置为100帧/秒
OLED_Write_Cmd(0xD9);//---设置预充电时间
OLED_Write_Cmd(0xF1);//---将预充电设置为15个时钟，放电设置为1个时钟
OLED_Write_Cmd(0xDA);//---设置com引脚硬件配置
OLED_Write_Cmd(0x12);
OLED_Write_Cmd(0xDB);//---设置 vcomh
OLED_Write_Cmd(0x30);//---设置VCOM取消选择级别
OLED_Write_Cmd(0x20);//---设置页面寻址模式 (0x00/0x01/0x02)
OLED_Write_Cmd(0x02);//---
OLED_Write_Cmd(0x8D);//---设置电荷泵启用/禁用
OLED_Write_Cmd(0x14);//---设置（0x10）禁用
OLED_Write_Cmd(0xAF);
OLED_ClearOrSetAll(0);//清屏
}
如下头文件及字幕文件：
OLED.h:
#ifndef _OLED_H_
#define _OLED_H_
#include "main.h"
#define u8 unsigned char
#define u16 unsigned short
#define u32 unsigned int
#define OLED_Dev_Adds 0x78
#define OLED_CMD_Adds 0x00
#define OLED_DATA_Adds 0x40
typedef struct OLED_t
{
char BUFFER[8][128];
volatile unsigned char RefreshPageCount;
volatile unsigned char RefreshOK_Flag;
}OLED_t;
extern OLED_t User_OLED;
/**
* @brief 是否启用下面两种字体（定义在OLEDfont.h文件中，字模所占空间较大，不使用时建议禁用）
* @param USER_F24X24 1（使用该字体），0（禁用该字体）
* @param USER_F16X32 1（使用该字体），0（禁用该字体）
*/
#define USER_F24X24 1
#define USER_F16X32 1
void OLED_Open(void);
void OLED_Close(void);
void OLED_Color_Turn(u8 mode);
void OLED_Disp_Turn(u8 mode);
void OLED_ClearOrSetAll(u8 mode);
void OLED_DrawPoint(u8 x, u8 y, u8 t);
void OLED_DrawLine(u8 x1, u8 y1, u8 x2, u8 y2, u8 mode);
void OLED_DrawCircle(u8 x, u8 y, u8 r);
void OLED_ShowChar(u8 x, u8 y, u8 fontsize, u8 mode, u8 chr);
void OLED_ShowString1(u8 x, u8 y, u8 fontsize, u8 mode, char *str);
void OLED_ShowNum(u8 x, u8 y, u8 len, u8 fontsize, u8 mode, u32 num);
void OLED_ShowPicture(u8 x, u8 y, u8 sizex, u8 sizey, u8 BMP[], u8 mode);
void OLED_ShowString2(u8 x, u8 y, u8 fontsize, u8 mode, char *str);
void OLED_Disp_Date(u8 x, u8 y, u8 fontsize, u8 mode, char *date, uint16_t len);
void OLED_Refresh_Page1(void);
void OLED_Refresh_Page2_8(void);
void OLED_Init(void);
#endif
OLEDfont.h
#ifndef __OLEDFONT_H__
#define __OLEDFONT_H__
#include "OLED.h"
//8*6 ASCII字符集点阵
const unsigned char F8X6[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
//16*8 ASCII字符集点阵
const unsigned char F16X8[][16]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//sp /0
0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! /1
0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" /2
0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# /3
0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ /4
0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% /5
0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& /6
0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' /7
0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( /8
0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) /9
0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* /10
0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ /11
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, /12
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- /13
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. /14
0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// /15
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 /16
0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 /17
0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 /18
0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 /19
0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 /20
0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 /21
0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 /22
0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 /23
0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 /24
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 /25
0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: /26
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; /27
0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< /28
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= /29
0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> /30
0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? /31
0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ /32
0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A /33
0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B /34
0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C /35
0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D /36
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E /37
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F /38
0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G /39
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H /40
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I /41
0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J /42
0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K /43
0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L /44
0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M /45
0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N /46
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O /47
0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P /48
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q /49
0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R /50
0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S /51
0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T /52
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U /53
0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V /54
0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W /55
0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X /56
0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y /57
0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z /58
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ /59
0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ /60
0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] /61
0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ /62
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ /63
0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` /64
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a /65
0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b /66
0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c /67
0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d /68
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e /69
0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f /70
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g /71
0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h /72
0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i /73
0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j /74
0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k /75
0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l /76
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m /77
0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n /78
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o /79
0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p /80
0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q /81
0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r /82
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s /83
0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t /84
0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u /85
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v /86
0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w /87
0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x /88
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y /89
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z /90
0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ /91
0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} /92
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00};//| /93
//12*12 ASCII字符集点阵
const unsigned char F12X12[][12]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"!",1*/
{0x00,0x0C,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x90,0xD0,0xBC,0xD0,0xBC,0x90,0x00,0x03,0x00,0x03,0x00,0x00},/*"#",3*/
{0x18,0x24,0xFE,0x44,0x8C,0x00,0x03,0x02,0x07,0x02,0x01,0x00},/*"$",4*/
{0x18,0x24,0xD8,0xB0,0x4C,0x80,0x00,0x03,0x00,0x01,0x02,0x01},/*"%",5*/
{0xC0,0x38,0xE4,0x38,0xE0,0x00,0x01,0x02,0x02,0x01,0x02,0x02},/*"&",6*/
{0x08,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xF8,0x04,0x02,0x00,0x00,0x00,0x01,0x02,0x04},/*"(",8*/
{0x00,0x02,0x04,0xF8,0x00,0x00,0x00,0x04,0x02,0x01,0x00,0x00},/*")",9*/
{0x90,0x60,0xF8,0x60,0x90,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"*",10*/
{0x20,0x20,0xFC,0x20,0x20,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x06,0x00,0x00,0x00,0x00},/*",",12*/
{0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x80,0x60,0x1C,0x02,0x00,0x04,0x03,0x00,0x00,0x00,0x00},/*"/",15*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"0",16*/
{0x00,0x08,0xFC,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"1",17*/
{0x18,0x84,0x44,0x24,0x18,0x00,0x03,0x02,0x02,0x02,0x02,0x00},/*"2",18*/
{0x08,0x04,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"3",19*/
{0x40,0xB0,0x88,0xFC,0x80,0x00,0x00,0x00,0x00,0x03,0x02,0x00},/*"4",20*/
{0x3C,0x24,0x24,0x24,0xC4,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"5",21*/
{0xF8,0x24,0x24,0x2C,0xC0,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"6",22*/
{0x0C,0x04,0xE4,0x1C,0x04,0x00,0x00,0x00,0x03,0x00,0x00,0x00},/*"7",23*/
{0xD8,0x24,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"8",24*/
{0x38,0x44,0x44,0x44,0xF8,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"9",25*/
{0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00},/*";",27*/
{0x00,0x20,0x50,0x88,0x04,0x02,0x00,0x00,0x00,0x00,0x01,0x02},/*"<",28*/
{0x90,0x90,0x90,0x90,0x90,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x02,0x04,0x88,0x50,0x20,0x00,0x02,0x01,0x00,0x00,0x00},/*">",30*/
{0x18,0x04,0xC4,0x24,0x18,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"?",31*/
{0xF8,0x04,0xE4,0x94,0xF8,0x00,0x01,0x02,0x02,0x02,0x02,0x00},/*"@",32*/
{0x00,0xE0,0x9C,0xF0,0x80,0x00,0x02,0x03,0x00,0x00,0x03,0x02},/*"A",33*/
{0x04,0xFC,0x24,0x24,0xD8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"B",34*/
{0xF8,0x04,0x04,0x04,0x0C,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"C",35*/
{0x04,0xFC,0x04,0x04,0xF8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"D",36*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"E",37*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"F",38*/
{0xF0,0x08,0x04,0x44,0xCC,0x40,0x00,0x01,0x02,0x02,0x01,0x00},/*"G",39*/
{0x04,0xFC,0x20,0x20,0xFC,0x04,0x02,0x03,0x00,0x00,0x03,0x02},/*"H",40*/
{0x04,0x04,0xFC,0x04,0x04,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"I",41*/
{0x00,0x04,0x04,0xFC,0x04,0x04,0x06,0x04,0x04,0x03,0x00,0x00},/*"J",42*/
{0x04,0xFC,0x24,0xD0,0x0C,0x04,0x02,0x03,0x02,0x00,0x03,0x02},/*"K",43*/
{0x04,0xFC,0x04,0x00,0x00,0x00,0x02,0x03,0x02,0x02,0x02,0x03},/*"L",44*/
{0xFC,0x3C,0xC0,0x3C,0xFC,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"M",45*/
{0x04,0xFC,0x30,0xC4,0xFC,0x04,0x02,0x03,0x02,0x00,0x03,0x00},/*"N",46*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"O",47*/
{0x04,0xFC,0x24,0x24,0x18,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"P",48*/
{0xF8,0x84,0x84,0x04,0xF8,0x00,0x01,0x02,0x02,0x07,0x05,0x00},/*"Q",49*/
{0x04,0xFC,0x24,0x64,0x98,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"R",50*/
{0x18,0x24,0x24,0x44,0x8C,0x00,0x03,0x02,0x02,0x02,0x01,0x00},/*"S",51*/
{0x0C,0x04,0xFC,0x04,0x0C,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"T",52*/
{0x04,0xFC,0x00,0x00,0xFC,0x04,0x00,0x01,0x02,0x02,0x01,0x00},/*"U",53*/
{0x04,0x7C,0x80,0xE0,0x1C,0x04,0x00,0x00,0x03,0x00,0x00,0x00},/*"V",54*/
{0x1C,0xE0,0x3C,0xE0,0x1C,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"W",55*/
{0x04,0x9C,0x60,0x9C,0x04,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"X",56*/
{0x04,0x1C,0xE0,0x1C,0x04,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"Y",57*/
{0x0C,0x84,0x64,0x1C,0x04,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"Z",58*/
{0x00,0x00,0xFE,0x02,0x02,0x00,0x00,0x00,0x07,0x04,0x04,0x00},/*"[",59*/
{0x00,0x0E,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00},/*"\",60*/
{0x00,0x02,0x02,0xFE,0x00,0x00,0x00,0x04,0x04,0x07,0x00,0x00},/*"]",61*/
{0x00,0x04,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08},/*"_",63*/
{0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x40,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"a",65*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"b",66*/
{0x00,0xC0,0x20,0x20,0x60,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"c",67*/
{0x00,0xC0,0x20,0x24,0xFC,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"d",68*/
{0x00,0xC0,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"e",69*/
{0x00,0x20,0xF8,0x24,0x24,0x04,0x00,0x02,0x03,0x02,0x02,0x00},/*"f",70*/
{0x00,0x40,0xA0,0xA0,0x60,0x20,0x00,0x07,0x0A,0x0A,0x0A,0x04},/*"g",71*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"h",72*/
{0x00,0x20,0xE4,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"i",73*/
{0x00,0x00,0x20,0xE4,0x00,0x00,0x08,0x08,0x08,0x07,0x00,0x00},/*"j",74*/
{0x04,0xFC,0x80,0xE0,0x20,0x20,0x02,0x03,0x02,0x00,0x03,0x02},/*"k",75*/
{0x04,0x04,0xFC,0x00,0x00,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"l",76*/
{0xE0,0x20,0xE0,0x20,0xC0,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"m",77*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"n",78*/
{0x00,0xC0,0x20,0x20,0xC0,0x00,0x00,0x01,0x02,0x02,0x01,0x00},/*"o",79*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x08,0x0F,0x0A,0x02,0x01,0x00},/*"p",80*/
{0x00,0xC0,0x20,0x20,0xE0,0x00,0x00,0x01,0x02,0x0A,0x0F,0x08},/*"q",81*/
{0x20,0xE0,0x40,0x20,0x20,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"r",82*/
{0x00,0x60,0xA0,0xA0,0x20,0x00,0x00,0x02,0x02,0x02,0x03,0x00},/*"s",83*/
{0x00,0x20,0xF8,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x02,0x00},/*"t",84*/
{0x20,0xE0,0x00,0x20,0xE0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"u",85*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x00,0x00,0x03,0x01,0x00,0x00},/*"v",86*/
{0x60,0x80,0xE0,0x80,0x60,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"w",87*/
{0x20,0x60,0x80,0x60,0x20,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"x",88*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x08,0x08,0x07,0x01,0x00,0x00},/*"y",89*/
{0x00,0x20,0xA0,0x60,0x20,0x00,0x00,0x02,0x03,0x02,0x02,0x00},/*"z",90*/
{0x00,0x00,0x20,0xDE,0x02,0x00,0x00,0x00,0x00,0x07,0x04,0x00},/*"{",91*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x0F,0x00,0x00},/*"|",92*/
{0x00,0x02,0xDE,0x20,0x00,0x00,0x00,0x04,0x07,0x00,0x00,0x00},/*"}",93*/
{0x02,0x01,0x02,0x04,0x04,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//16*16 ASCII字符集点阵
const unsigned char F16X16[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//24*24 ASICII字符集点阵
#if USER_F24X24
const unsigned char F24X24[][36]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x7F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x80,0x60,0x30,0x1C,0x8C,0x60,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x86,0xE6,0x9F,0x86,0x86,0x86,0x86,0xE6,0x9F,0x86,0x00,0x00,0x01,0x1F,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x00},/*"#",3*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0xF8,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0xFF,0x70,0xE1,0x81,0x00,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x7F,0x10,0x0F,0x07,0x00,0x00},/*"$",4*/
{0x80,0x60,0x20,0x60,0x80,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,0x0F,0x30,0x20,0x30,0x9F,0x70,0xDC,0x37,0x10,0x30,0xC0,0x00,0x00,0x00,0x10,0x0E,0x03,0x00,0x07,0x18,0x10,0x18,0x07,0x00},/*"%",5*/
{0x00,0x00,0xC0,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x1F,0x38,0xE8,0x87,0x03,0xC4,0x3C,0x04,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x0B,0x07,0x0D,0x10,0x10,0x08,0x00},/*"&",6*/
{0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x30,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x04,0x08,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x66,0x66,0x3C,0x18,0xFF,0x18,0x3C,0x66,0x66,0x42,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x38,0x0C,0x00,0x00,0x00,0x00,0x00,0x80,0x70,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x60,0x38,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0E,0x07,0x01,0x00},/*"0",16*/
{0x00,0x00,0x80,0x80,0x80,0xC0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"1",17*/
{0x00,0x80,0x40,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x03,0x03,0x00,0x80,0x40,0x20,0x38,0x1F,0x07,0x00,0x00,0x00,0x1C,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x80,0xC0,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0x00,0x00,0x00,0x00,0xC0,0xB0,0x88,0x86,0x81,0x80,0xFF,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00},/*"4",20*/
{0x00,0x00,0xE0,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00,0x3F,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x07,0x0B,0x10,0x10,0x10,0x10,0x1C,0x0F,0x03,0x00,0x00},/*"5",21*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0xFC,0xFF,0x21,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x01,0x07,0x0C,0x18,0x10,0x10,0x10,0x08,0x0F,0x03,0x00},/*"6",22*/
{0x00,0x00,0xC0,0xE0,0x60,0x60,0x60,0x60,0x60,0xE0,0x60,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x87,0xEF,0x2C,0x18,0x18,0x30,0x30,0x68,0xCF,0x83,0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"8",24*/
{0x00,0x00,0xC0,0xC0,0x20,0x20,0x20,0x20,0xC0,0x80,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x40,0x20,0x10,0xFF,0xFE,0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x0E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x58,0x38,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x20,0x10,0x00,0x00,0x00,0x10,0x28,0x44,0x82,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x82,0x44,0x28,0x10,0x00,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x30,0xE0,0xC0,0x00,0x00,0x03,0x03,0x00,0x00,0xF0,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0xC0,0x40,0x60,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xFC,0xFF,0x01,0xF0,0x0E,0x03,0xC1,0xFE,0x03,0x80,0x7F,0x00,0x01,0x07,0x0E,0x08,0x11,0x11,0x10,0x11,0x09,0x04,0x02},/*"@",32*/
{0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7C,0x43,0x40,0x47,0x7F,0xF8,0x80,0x00,0x00,0x10,0x18,0x1F,0x10,0x00,0x00,0x00,0x00,0x13,0x1F,0x1C,0x10},/*"A",33*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"B",34*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0x20,0x60,0xE0,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x08,0x04,0x03,0x00},/*"C",35*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x40,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x18,0x08,0x0E,0x07,0x01,0x00},/*"D",36*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"E",37*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x01,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x40,0xE0,0x00,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x40,0x40,0xC0,0xC1,0x40,0x40,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00},/*"G",39*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10},/*"H",40*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x60,0xE0,0x80,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"J",42*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x20,0xA0,0x60,0x20,0x20,0x00,0x00,0xFF,0xFF,0x30,0x18,0x7C,0xE3,0xC0,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10},/*"K",43*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"L",44*/
{0x20,0xE0,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,0xFF,0x01,0x3F,0xFE,0xC0,0xE0,0x1E,0x01,0xFF,0xFF,0x00,0x10,0x1F,0x10,0x00,0x03,0x1F,0x03,0x00,0x10,0x1F,0x1F,0x10},/*"M",45*/
{0x20,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0x00,0x03,0x07,0x1C,0x78,0xE0,0x80,0x00,0xFF,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x1F,0x00},/*"N",46*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0C,0x07,0x01,0x00},/*"O",47*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x30,0x1F,0x0F,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x11,0x11,0x13,0x3C,0x7C,0x67,0x21,0x00},/*"Q",49*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x30,0xF0,0xD0,0x08,0x0F,0x07,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10},/*"R",50*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x40,0x40,0xE0,0x00,0x00,0x07,0x0F,0x0C,0x18,0x18,0x30,0x30,0x60,0xE0,0x81,0x00,0x00,0x1F,0x0C,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"S",51*/
{0x80,0x60,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x60,0x80,0x01,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00},/*"T",52*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x00},/*"U",53*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x07,0x7F,0xF8,0x80,0x00,0x80,0x7C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1C,0x07,0x00,0x00,0x00,0x00},/*"V",54*/
{0x20,0xE0,0xE0,0x20,0x00,0xE0,0xE0,0x20,0x00,0x20,0xE0,0x20,0x00,0x07,0xFF,0xF8,0xE0,0x1F,0xFF,0xFC,0xE0,0x1F,0x00,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x01,0x1F,0x03,0x00,0x00,0x00},/*"W",55*/
{0x00,0x20,0x60,0xE0,0xA0,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x00,0x00,0x03,0x8F,0x7C,0xF8,0xC6,0x01,0x00,0x00,0x00,0x00,0x10,0x18,0x1E,0x13,0x00,0x01,0x17,0x1F,0x18,0x10,0x00},/*"X",56*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x01,0x07,0x3E,0xF8,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x80,0x60,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x3E,0x0F,0x03,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x00,0x10,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x1C,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x70,0x80,0x00},/*"\",60*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x10,0x08,0x0C,0x04,0x0C,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x00,0x00,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x98,0xD8,0x44,0x64,0x24,0x24,0xFC,0xF8,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x10,0x08,0x1F,0x1F,0x10,0x18},/*"a",65*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x18,0x08,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x1F,0x0F,0x18,0x10,0x10,0x10,0x18,0x0F,0x03,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x18,0x04,0x04,0x04,0x3C,0x38,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x08,0x06,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x48,0x44,0x44,0x44,0x4C,0x78,0x70,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0xE0,0xC0,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xF8,0x8C,0x04,0x04,0x8C,0xF8,0x74,0x04,0x0C,0x00,0x70,0x76,0xCF,0x8D,0x8D,0x8D,0x89,0xC8,0x78,0x70,0x00},/*"g",71*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"j",74*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0xF4,0x1C,0x04,0x04,0x00,0x00,0x00,0x10,0x1F,0x1F,0x11,0x00,0x03,0x1F,0x1C,0x10,0x10,0x00},/*"k",75*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x00,0x10,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x08,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x0C,0x18,0xF0,0xE0,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x80,0xFF,0xFF,0x88,0x90,0x10,0x10,0x1C,0x0F,0x03,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x90,0x88,0xFF,0xFF,0x80,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x10,0x08,0x04,0x04,0x0C,0x0C,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x78,0xCC,0xC4,0x84,0x84,0x84,0x0C,0x1C,0x00,0x00,0x00,0x1E,0x18,0x10,0x10,0x10,0x11,0x19,0x0F,0x06,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0x10,0x10,0x10,0x0C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0x00,0xC4,0x3C,0x0C,0x04,0x00,0x00,0x00,0x00,0x01,0x0F,0x1E,0x0E,0x01,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x3C,0xFC,0xC4,0x00,0xE4,0x7C,0xFC,0x84,0x80,0x7C,0x04,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x07,0x1F,0x07,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x1C,0x7C,0xE4,0xC0,0x34,0x1C,0x04,0x04,0x00,0x00,0x10,0x10,0x1C,0x16,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0xC4,0x3C,0x04,0x04,0x00,0x00,0x00,0xC0,0x80,0xC1,0x37,0x0E,0x01,0x00,0x00,0x00,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x04,0x04,0xC4,0xF4,0x7C,0x1C,0x04,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x11,0x10,0x10,0x18,0x0E,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x28,0xEF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0x40,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x00,0x00,0x04,0x0C,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEF,0x28,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x18,0x06,0x02,0x02,0x04,0x08,0x10,0x20,0x20,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
#endif
#if USER_F16X32
//16*32 ASICII字符集点阵
const unsigned char F16X32[][64]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0x1F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x0F,0x0F,0x0F,0x06,0x00,0x00,0x00,0x00,0x00,/*"!",1*/
0x00,0x00,0x00,0x80,0xE0,0xF8,0x7C,0x3C,0x9C,0xE0,0xF8,0x7C,0x3C,0x1C,0x00,0x00,
0x00,0x00,0x03,0x03,0x01,0x00,0x00,0x03,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*""",2*/
0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,
0x00,0x38,0x38,0x38,0xF8,0xFF,0x3F,0x38,0x38,0x38,0x38,0xF8,0xFF,0x3F,0x38,0x38,
0x00,0x70,0x70,0xF0,0xFF,0xFF,0x70,0x70,0x70,0x70,0xF0,0xFF,0xFF,0x70,0x70,0x70,
0x00,0x00,0x00,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x00,0x00,0x00,0x00,/*"#",3*/
0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0xF0,0xF0,0x40,0xC0,0x80,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x1E,0x7F,0xFF,0xF0,0xFF,0xFF,0x00,0x0C,0x0F,0x0F,0x0F,0x00,0x00,
0x00,0x00,0xC0,0xC0,0xC0,0xC0,0x01,0xFF,0xFF,0x07,0x1F,0xFE,0xFC,0xF0,0x00,0x00,
0x00,0x00,0x03,0x07,0x07,0x0C,0x08,0x7F,0x7F,0x0C,0x0E,0x07,0x03,0x01,0x00,0x00,/*"$",4*/
0x00,0x80,0xC0,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,
0x7E,0xFF,0xFF,0x00,0x00,0xFF,0xFF,0x7E,0xE0,0xFC,0x1F,0x03,0x00,0x00,0x00,0x00,
0x00,0x01,0x03,0x03,0x83,0xE3,0x7D,0x1F,0xFB,0xFE,0xFF,0x03,0x03,0xFF,0xFE,0xF8,
0x00,0x00,0x00,0x0C,0x0F,0x03,0x00,0x00,0x01,0x07,0x0F,0x0C,0x0C,0x0F,0x07,0x01,/*"%",5*/
0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0xC0,0xE0,0x7F,0x3F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,
0xF8,0xFC,0xFF,0x03,0x0F,0x3F,0x7E,0xF8,0xE0,0x81,0xF1,0x7F,0x0F,0x01,0x01,0x00,
0x01,0x03,0x07,0x0E,0x0C,0x08,0x08,0x0D,0x07,0x07,0x0F,0x0E,0x0C,0x0E,0x07,0x03,/*"&",6*/
0x00,0x00,0x1C,0x1C,0xFC,0xFC,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x02,0x03,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"'",7*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0x70,0x38,0x0C,0x04,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0xFC,0xFF,0x0F,0x01,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x7F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x0F,0x1C,0x38,0x60,0x40,/*"(",8*/
0x00,0x04,0x0C,0x38,0x70,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0x0F,0xFF,0xFC,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xFF,0xFF,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x60,0x38,0x1C,0x0F,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*")",9*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x18,0x38,0x38,0x70,0x60,0xC6,0xFF,0xFF,0xCF,0x60,0x70,0x38,0x38,0x18,
0x00,0x00,0x18,0x1C,0x1C,0x0E,0x06,0xF3,0xFF,0xFF,0xE3,0x06,0x0E,0x1C,0x1C,0x18,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"*",10*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0xFF,0xFF,0x01,0x01,0x01,0x01,0x01,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"+",11*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0xC7,0xC7,0x7F,0x3F,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*",",12*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"-",13*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x06,0x0F,0x0F,0x0F,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*".",14*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x78,0x18,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x7C,0x1F,0x07,0x01,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xF0,0x7C,0x1F,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x30,0x3C,0x1F,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"/",15*/
0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0xFE,0xFF,0x0F,0x01,0x00,0x00,0x00,0x01,0x07,0xFF,0xFE,0xF0,0x00,
0x00,0x00,0x3F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xFF,0xFF,0x3F,0x00,
0x00,0x00,0x00,0x01,0x03,0x07,0x0E,0x0C,0x08,0x08,0x0E,0x07,0x03,0x01,0x00,0x00,/*"0",16*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x01,0x01,0x01,0x01,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x0C,0x0F,0x0F,0x0F,0x0C,0x08,0x08,0x08,0x00,0x00,/*"1",17*/
0x00,0x00,0x00,0x00,0x80,0xC0,0x40,0x40,0x40,0x40,0xC0,0xC0,0x80,0x80,0x00,0x00,
0x00,0x00,0x1E,0x1F,0x19,0x00,0x00,0x00,0x00,0x00,0x00,0xC1,0xFF,0xFF,0x3E,0x00,
0x00,0x00,0x00,0x00,0x80,0xC0,0x70,0x38,0x1C,0x0E,0x07,0x03,0x01,0xC0,0xC0,0x00,
0x00,0x00,0x0E,0x0F,0x0D,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0E,0x0F,0x03,0x00,/*"2",18*/
0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x0F,0x0F,0x0F,0x00,0x00,0x00,0x00,0x80,0xC1,0xFF,0x7F,0x3E,0x00,0x00,
0x00,0x00,0xC0,0xC0,0xC0,0x00,0x01,0x01,0x01,0x03,0x03,0x06,0xFE,0xFC,0xF0,0x00,
0x00,0x00,0x03,0x07,0x07,0x0C,0x08,0x08,0x08,0x08,0x0C,0x06,0x07,0x03,0x00,0x00,/*"3",19*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0xE0,0x70,0x1C,0x0F,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,
0x00,0x30,0x3C,0x2E,0x27,0x21,0x20,0x20,0x20,0xFF,0xFF,0xFF,0x20,0x20,0x20,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x00,/*"4",20*/
0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,0x00,0x00,0x00,
0x00,0x00,0xC0,0xC3,0xC3,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFC,0x00,
0x00,0x00,0x03,0x07,0x04,0x0C,0x08,0x08,0x08,0x08,0x0C,0x07,0x07,0x03,0x00,0x00,/*"5",21*/
0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0x80,0x80,0x00,0x00,
0x00,0x00,0xE0,0xFC,0xFF,0x87,0xC1,0xC0,0x40,0x40,0xC0,0xC3,0x83,0x03,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0x83,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFC,0x00,
0x00,0x00,0x00,0x01,0x07,0x07,0x0E,0x0C,0x08,0x08,0x0C,0x0E,0x07,0x03,0x00,0x00,/*"6",22*/
0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x00,
0x00,0x00,0x0E,0x0F,0x03,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1E,0x07,0x01,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFC,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"7",23*/
0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,0x00,0x00,0x00,
0x00,0x00,0x3E,0x7F,0xFF,0xF1,0xC0,0xC0,0x80,0x00,0x80,0xC1,0x7F,0x7F,0x1E,0x00,
0x00,0xF0,0xFC,0xFE,0x0E,0x03,0x01,0x01,0x03,0x07,0x0F,0x1E,0xFE,0xFC,0xF0,0x00,
0x00,0x01,0x03,0x07,0x06,0x0C,0x08,0x08,0x08,0x08,0x0C,0x06,0x07,0x03,0x01,0x00,/*"8",24*/
0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,
0x00,0xFC,0xFF,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFE,0xF8,0x00,
0x00,0x01,0x03,0x07,0x0F,0x0C,0x08,0x08,0x08,0x0C,0x06,0xE7,0xFF,0x7F,0x1F,0x00,
0x00,0x00,0x07,0x07,0x0F,0x08,0x08,0x08,0x0C,0x0E,0x07,0x03,0x01,0x00,0x00,0x00,/*"9",25*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x0F,0x0F,0x0F,0x06,0x00,0x00,0x00,0x00,0x00,/*":",26*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x6E,0x7E,0x7E,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,/*";",27*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x40,0x00,
0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x30,0x18,0x0C,0x06,0x03,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0x30,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x06,0x0C,0x08,0x00,/*"<",28*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,
0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"=",29*/
0x00,0x00,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0x03,0x06,0x0C,0x18,0x30,0x60,0xC0,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x30,0x18,0x0C,0x07,0x03,0x00,0x00,
0x00,0x00,0x08,0x0C,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*">",30*/
0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0x40,0xC0,0x80,0x80,0x00,0x00,
0x00,0x00,0x3C,0x3F,0x3F,0x39,0x00,0x00,0x00,0x00,0x00,0x80,0xC1,0xFF,0x7F,0x3E,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x3F,0x03,0x01,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x0F,0x0F,0x0F,0x06,0x00,0x00,0x00,0x00,0x00,/*"?",31*/
0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0x40,0x40,0xC0,0x80,0x00,0x00,0x00,
0x00,0xE0,0xFC,0xFE,0x0F,0x83,0xE1,0xF8,0x7C,0x0C,0xFC,0xFC,0x3D,0x07,0xFE,0xF8,
0x00,0x1F,0xFF,0xFF,0xC0,0x3F,0x7F,0x7F,0x60,0x3C,0x7F,0x7F,0x60,0x38,0x9F,0x87,
0x00,0x00,0x00,0x03,0x07,0x06,0x0C,0x08,0x08,0x08,0x08,0x0C,0x06,0x07,0x03,0x00,/*"@",32*/
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xFC,0x7F,0x03,0x3F,0xFF,0xFC,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x80,0xFC,0x7F,0x0F,0x08,0x08,0x08,0x0B,0x7F,0xFF,0xF8,0x80,0x00,0x00,
0x08,0x0C,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,0x08,0x0F,0x0F,0x0F,0x0C,0x08,/*"A",33*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0xC0,0xC0,0x80,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x80,0xC1,0xFF,0x7F,0x3E,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x01,0x01,0x01,0x01,0x01,0x03,0x06,0xFE,0xFC,0xF0,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x08,0x0C,0x0E,0x07,0x03,0x01,/*"B",34*/
0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0x40,0x40,0xC0,0x80,0x80,0x80,0x00,
0x00,0xE0,0xFC,0xFE,0x1F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x0F,0x0E,
0x00,0x3F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,
0x00,0x00,0x00,0x03,0x07,0x06,0x0C,0x08,0x08,0x08,0x08,0x0C,0x06,0x03,0x01,0x00,/*"C",35*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0x0F,0xFF,0xFC,0xF0,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFF,0xFF,0x1F,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x0C,0x0C,0x07,0x03,0x03,0x00,0x00,/*"D",36*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0x40,0x40,0xC0,0xC0,0xC0,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x01,0x07,0x06,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x01,0x01,0x01,0x01,0x03,0x0F,0x0F,0x00,0x80,0x80,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x0C,0x0E,0x0F,0x01,/*"E",37*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0x40,0xC0,0xC0,0xC0,0xC0,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x01,0x07,0x06,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x01,0x01,0x01,0x01,0x03,0x1F,0x1F,0x00,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"F",38*/
0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0x80,0x80,0x00,0x00,0x00,
0x00,0xE0,0xFC,0xFE,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x0E,0x00,0x00,
0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x04,0x04,0xFC,0xFC,0xFC,0x04,0x04,
0x00,0x00,0x00,0x03,0x07,0x0E,0x0C,0x08,0x08,0x08,0x0C,0x07,0x03,0x03,0x00,0x00,/*"G",39*/
0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x00,0x00,0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,
0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0xFF,0xFF,0xFF,0x00,
0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,/*"H",40*/
0x00,0x00,0x00,0x40,0x40,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x00,0x00,/*"I",41*/
0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,
0x00,0x70,0xF0,0xF0,0xF0,0x80,0x80,0xC0,0xE0,0x7F,0x3F,0x1F,0x00,0x00,0x00,0x00,/*"J",42*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x00,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x80,0xE0,0xF8,0x1E,0x07,0x03,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x03,0x03,0x0F,0x3F,0xFC,0xF0,0xC0,0x00,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x09,0x0F,0x0F,0x0E,0x08,0x08,/*"K",43*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x08,0x08,0x0C,0x0E,0x0F,0x01,/*"L",44*/
0x40,0x40,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0xC0,0x40,
0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x80,0xF8,0x7F,0xFF,0xFF,0xFF,0x00,
0x00,0x00,0xFF,0xFF,0x01,0x1F,0xFF,0xFE,0xF0,0xFF,0x0F,0x00,0xFF,0xFF,0xFF,0x00,
0x08,0x08,0x0F,0x0F,0x08,0x00,0x03,0x0F,0x0F,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,/*"M",45*/
0x40,0x40,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0xC0,0xC0,0x40,
0x00,0x00,0xFF,0xFF,0x07,0x1F,0x7E,0xF8,0xE0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x01,0x07,0x1F,0x7E,0xF8,0xE0,0xFF,0xFF,0x00,
0x08,0x08,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x0F,0x0F,0x00,/*"N",46*/
0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0x80,0x80,0x00,0x00,0x00,
0x00,0xF0,0xFC,0xFF,0x0F,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0x0F,0xFF,0xFC,0xE0,
0x00,0x1F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFF,0xFF,0x3F,
0x00,0x00,0x00,0x03,0x07,0x06,0x0C,0x08,0x08,0x08,0x0C,0x06,0x07,0x03,0x00,0x00,/*"O",47*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0x40,0xC0,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x81,0xFF,0xFF,0x7E,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x02,0x02,0x02,0x02,0x02,0x03,0x01,0x01,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"P",48*/
0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0x80,0x80,0x00,0x00,0x00,
0x00,0xF0,0xFC,0xFF,0x0F,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0x0F,0xFF,0xFC,0xF0,
0x00,0x3F,0xFF,0xFF,0x80,0xC0,0x40,0x40,0xC0,0xC0,0x80,0x00,0x80,0xFF,0xFF,0x3F,
0x00,0x00,0x01,0x03,0x07,0x07,0x0C,0x08,0x08,0x0F,0x3F,0x7F,0x77,0x63,0x71,0x10,/*"Q",49*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0xC0,0xC0,0x80,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x80,0xC1,0xFF,0x7F,0x3E,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x01,0x01,0x07,0x3F,0xFF,0xF9,0xC0,0x00,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x01,0x0F,0x0F,0x0E,0x08,0x08,/*"R",50*/
0x00,0x00,0x00,0x80,0xC0,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,0xC0,0xC0,0x00,0x00,
0x00,0x3E,0x7F,0xFF,0xE1,0xC0,0xC0,0x80,0x80,0x00,0x00,0x03,0x0F,0x0F,0x00,0x00,
0x00,0xE0,0xE0,0x80,0x00,0x01,0x01,0x03,0x03,0x07,0x07,0x1E,0xFE,0xFC,0xF0,0x00,
0x00,0x00,0x0F,0x0F,0x06,0x0C,0x08,0x08,0x08,0x08,0x0C,0x0E,0x07,0x03,0x01,0x00,/*"S",51*/
0x00,0x00,0xC0,0xC0,0xC0,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x00,
0x00,0x06,0x07,0x01,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x01,0x07,0x07,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,/*"T",52*/
0x40,0x40,0xC0,0xC0,0xC0,0x40,0x40,0x00,0x00,0x00,0x40,0x40,0xC0,0xC0,0x40,0x40,
0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x01,0x07,0x07,0x0E,0x0C,0x08,0x08,0x08,0x0C,0x06,0x03,0x01,0x00,0x00,/*"U",53*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x00,0x00,0x00,0x00,0x40,0xC0,0xC0,0xC0,0x40,
0x00,0x00,0x00,0x07,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x80,0xF8,0x7F,0x07,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xF0,0xF8,0x7F,0x07,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,/*"V",54*/
0x40,0xC0,0xC0,0xC0,0x40,0x00,0x40,0xC0,0xC0,0xC0,0x40,0x00,0x40,0xC0,0xC0,0xC0,
0x00,0x01,0xFF,0xFF,0xF8,0x00,0x00,0xF3,0xFF,0xFF,0xF8,0x00,0xC0,0xFF,0x3F,0x00,
0x00,0x00,0x00,0x3F,0xFF,0xFC,0xFE,0x1F,0x01,0xFF,0xFF,0xFC,0xFF,0x0F,0x00,0x00,
0x00,0x00,0x00,0x00,0x0F,0x0F,0x03,0x00,0x00,0x00,0x0F,0x0F,0x01,0x00,0x00,0x00,/*"W",55*/
0x00,0x40,0x40,0xC0,0xC0,0xC0,0x40,0x00,0x00,0x00,0x40,0x40,0xC0,0xC0,0x40,0x40,
0x00,0x00,0x00,0x01,0x07,0x1F,0x7E,0xF8,0xE0,0xF0,0x3C,0x0F,0x03,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0xE0,0x78,0x1F,0x0F,0x7F,0xFC,0xF0,0xC0,0x00,0x00,0x00,
0x00,0x08,0x08,0x0E,0x0F,0x0B,0x08,0x00,0x00,0x00,0x09,0x0F,0x0F,0x0E,0x0C,0x08,/*"X",56*/
0x00,0x40,0xC0,0xC0,0xC0,0xC0,0x40,0x40,0x00,0x00,0x40,0x40,0xC0,0xC0,0x40,0x40,
0x00,0x00,0x00,0x03,0x1F,0x7F,0xFC,0xE0,0x80,0x80,0xF0,0x7E,0x0F,0x01,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x00,0x00,/*"Y",57*/
0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0x40,0x40,0x40,0x40,0x40,0xC0,0xC0,0xC0,0x40,
0x00,0x00,0x06,0x07,0x03,0x01,0x00,0x00,0xC0,0xF0,0xF8,0x3E,0x0F,0x07,0x01,0x00,
0x00,0x00,0x00,0x80,0xC0,0xF0,0x7C,0x3F,0x0F,0x03,0x00,0x00,0x00,0x00,0x80,0x80,
0x00,0x08,0x0E,0x0F,0x0F,0x09,0x08,0x08,0x08,0x08,0x08,0x0C,0x0C,0x0F,0x0F,0x01,/*"Z",58*/
0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0xF8,0x08,0x08,0x08,0x08,0x08,0x08,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x3F,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x00,/*"[",59*/
0x00,0x00,0x00,0x60,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0x0F,0x3F,0xFC,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x3F,0xFC,0xF0,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x3F,0x7E,0x78,0x40,/*"\",60*/
0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0xF8,0xF8,0xF8,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x3F,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,/*"]",61*/
0x00,0x00,0x00,0x00,0x20,0x30,0x1C,0x1C,0x0C,0x0C,0x1C,0x38,0x20,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"^",62*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,/*"_",63*/
0x00,0x00,0x00,0x04,0x04,0x04,0x0C,0x0C,0x18,0x10,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"`",64*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x80,0xC0,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xE0,0xC0,0x80,0x00,0x00,
0x00,0xC0,0xE3,0xF3,0x33,0x18,0x18,0x08,0x08,0x08,0x0C,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x03,0x07,0x0F,0x0C,0x08,0x08,0x08,0x08,0x0C,0x04,0x07,0x0F,0x0F,0x08,0x0E,/*"a",65*/
0x00,0x40,0x40,0xC0,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0xC0,0x60,0x20,0x20,0x60,0xE0,0xC0,0xC0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,
0x00,0x00,0x00,0x0F,0x0F,0x07,0x0E,0x08,0x08,0x08,0x0C,0x0E,0x07,0x03,0x00,0x00,/*"b",66*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xC0,0xE0,0x60,0x20,0x20,0x20,0xE0,0xC0,0x80,0x00,0x00,
0x00,0x00,0xFE,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x03,0x03,0x83,0x80,0x00,
0x00,0x00,0x00,0x03,0x07,0x07,0x0C,0x08,0x08,0x08,0x08,0x0C,0x06,0x03,0x01,0x00,/*"c",67*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0xC0,0xE0,0xE0,0x00,0x00,
0x00,0x00,0x00,0x80,0xC0,0xE0,0x60,0x20,0x20,0x20,0x60,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0xFE,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x00,0x03,0x07,0x0E,0x0C,0x08,0x08,0x0C,0x06,0x0F,0x0F,0x07,0x04,0x04,/*"d",68*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xC0,0x60,0x20,0x20,0x20,0x60,0xC0,0xC0,0x80,0x00,0x00,
0x00,0x00,0xFE,0xFF,0xFF,0x11,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0x1F,0x1E,0x00,
0x00,0x00,0x00,0x03,0x07,0x07,0x0C,0x0C,0x08,0x08,0x08,0x0C,0x06,0x07,0x01,0x00,/*"e",69*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,0x40,0xC0,0xC0,0x80,
0x00,0x00,0x20,0x20,0x20,0x20,0xFE,0xFF,0xFF,0x20,0x20,0x20,0x20,0x23,0x03,0x03,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x00,0x00,0x00,/*"f",70*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xC0,0x60,0x20,0x20,0x20,0x60,0xE0,0xE0,0xE0,0x60,0x60,
0x00,0x00,0x00,0xC7,0xFF,0xFF,0x30,0x20,0x20,0x20,0x30,0x3F,0x1F,0x0F,0x00,0x00,
0x00,0x00,0x38,0x7D,0x7F,0xC7,0x83,0x83,0x83,0x83,0x83,0xC6,0x7E,0x7E,0x3C,0x00,/*"g",71*/
0x00,0x40,0x40,0xC0,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0xC0,0x60,0x20,0x20,0x60,0xE0,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,/*"h",72*/
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x20,0x20,0x20,0x20,0xE1,0xF1,0xF1,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x00,0x00,/*"i",73*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0xC0,0xC0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x20,0x20,0xE1,0xF1,0xF1,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,
0x00,0x00,0x00,0x60,0xE0,0xE0,0x80,0x80,0x80,0xE0,0x7F,0x3F,0x1F,0x00,0x00,0x00,/*"j",74*/
0x00,0x40,0x40,0xC0,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x20,0xE0,0xE0,0x60,0x20,0x20,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x38,0x1C,0x3E,0x7F,0xF1,0xC0,0x80,0x00,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x00,0x09,0x0F,0x0F,0x0E,0x0C,0x08,/*"k",75*/
0x00,0x00,0x00,0x40,0x40,0x40,0x40,0xC0,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x00,0x00,/*"l",76*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0xE0,0xF0,0xF0,0x60,0x20,0x20,0xE0,0xE0,0xC0,0x60,0x20,0x20,0xE0,0xE0,0xC0,
0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0xFF,0xFF,0xFF,
0x08,0x0F,0x0F,0x0F,0x08,0x00,0x08,0x0F,0x0F,0x0F,0x08,0x00,0x08,0x0F,0x0F,0x0F,/*"m",77*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x40,0xC0,0xE0,0xE0,0xC0,0x60,0x20,0x20,0x60,0xE0,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x00,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,/*"n",78*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xC0,0x60,0x20,0x20,0x20,0x60,0xC0,0xC0,0x80,0x00,0x00,
0x00,0x00,0xFC,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFE,0x00,
0x00,0x00,0x00,0x03,0x07,0x07,0x0C,0x08,0x08,0x08,0x0C,0x07,0x07,0x03,0x00,0x00,/*"o",79*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x40,0xC0,0xE0,0xE0,0xC0,0x60,0x20,0x20,0x60,0xE0,0xC0,0x80,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x00,
0x00,0x80,0x80,0xFF,0xFF,0xFF,0x86,0x8C,0x08,0x08,0x0C,0x0F,0x07,0x03,0x00,0x00,/*"p",80*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0xC0,0xC0,0x60,0x20,0x20,0x60,0xE0,0xC0,0xE0,0xE0,0x00,0x00,
0x00,0x00,0xFE,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x00,0x03,0x07,0x0E,0x0C,0x08,0x08,0x8C,0x86,0xFF,0xFF,0xFF,0x80,0x80,/*"q",81*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x40,0x40,0x40,0xE0,0xE0,0xE0,0x80,0xC0,0x40,0x60,0x20,0xE0,0xE0,0xC0,
0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0x08,0x08,0x0F,0x0F,0x0F,0x08,0x08,0x08,0x08,0x00,0x00,0x00,0x00,/*"r",82*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0xC0,0xE0,0x60,0x20,0x20,0x20,0x60,0xC0,0xE0,0xE0,0x00,
0x00,0x00,0x00,0x80,0x87,0x0F,0x0F,0x1C,0x18,0x38,0x38,0x70,0xF0,0xE3,0xC3,0x00,
0x00,0x00,0x00,0x0F,0x0F,0x06,0x0C,0x08,0x08,0x08,0x08,0x0C,0x0F,0x07,0x03,0x00,/*"s",83*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x20,0x20,0x20,0x30,0xF8,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x07,0x0F,0x0C,0x08,0x08,0x0C,0x07,0x03,0x00,/*"t",84*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x20,0x20,0xE0,0xF0,0xF0,0x00,0x00,0x00,0x20,0x20,0xE0,0xF0,0xF0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x00,0x03,0x07,0x0F,0x0C,0x08,0x08,0x0C,0x06,0x0F,0x0F,0x07,0x04,0x04,/*"u",85*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x20,0x20,0xE0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0x20,0xE0,0xE0,0x60,0x20,
0x00,0x00,0x00,0x01,0x07,0x3F,0xFE,0xF0,0xC0,0xC0,0xF8,0x3F,0x07,0x01,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x0F,0x0F,0x07,0x01,0x00,0x00,0x00,0x00,0x00,/*"v",86*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x60,0xE0,0xE0,0x20,0x20,0x20,0xE0,0xE0,0xE0,0x20,0x00,0x20,0xE0,0xE0,0x60,
0x00,0x00,0x07,0x7F,0xFF,0xF0,0xF0,0xFF,0x1F,0xFF,0xFC,0xC0,0xFC,0x3F,0x03,0x00,
0x00,0x00,0x00,0x00,0x07,0x0F,0x0F,0x00,0x00,0x01,0x0F,0x0F,0x03,0x00,0x00,0x00,/*"w",87*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x20,0x20,0xE0,0xE0,0xE0,0xA0,0x00,0x20,0x20,0xE0,0xE0,0x20,0x20,0x00,
0x00,0x00,0x00,0x00,0x00,0x81,0xC7,0x7F,0x3E,0xFE,0xE7,0xC1,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0x0C,0x0E,0x0F,0x09,0x00,0x00,0x08,0x09,0x0F,0x0F,0x0E,0x08,0x08,/*"x",88*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x20,0x20,0xE0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0xE0,0x60,0x20,0x20,
0x00,0x00,0x00,0x00,0x03,0x1F,0x7E,0xF8,0xC0,0xE0,0xFC,0x1F,0x03,0x00,0x00,0x00,
0x00,0x00,0xC0,0xC0,0xC0,0xC0,0xE0,0x7F,0x1F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,/*"y",89*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0xE0,0xE0,0xE0,0x60,0x00,0x00,
0x00,0x00,0x03,0x03,0x80,0xC0,0xF0,0xF8,0x3E,0x1F,0x07,0x03,0x00,0x80,0x80,0x00,
0x00,0x00,0x0C,0x0E,0x0F,0x0B,0x09,0x08,0x08,0x08,0x08,0x0C,0x0E,0x0F,0x03,0x00,/*"z",90*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0xF8,0x0C,0x04,0x04,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xFF,0x7F,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x03,0xFE,0xFC,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x00,/*"{",91*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,/*"|",92*/
0x00,0x00,0x00,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0xFE,0x03,0x01,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x40,0x40,0x60,0x3F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"}",93*/
0x00,0x18,0x1C,0x06,0x02,0x02,0x06,0x0E,0x3C,0x38,0x60,0x60,0x40,0x60,0x38,0x18,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"~",94*/
};
#endif
#endif
3、运用示例
在KEIL上编写运用示例，在main.c文件中操作如下：
加入头文件，
#include "OLED.h"
#include <stdio.h>
#include <string.h>用户初始化代码，
/***********************************************************
*@fuction :suer_init
*@brief :
*@param :--
*@return :void
*@author :--
*@date :2025
***********************************************************/
void suer_init(void)
{
OLED_Init();
OLED_Color_Turn(0);
OLED_Disp_Turn(1);
OLED_ShowString2(0, 0, 0, 1, "OLED");
OLED_ShowString2(0, 2, 1, 1, "OLED");
OLED_ShowString2(0, 4, 2, 1, "OLED");
OLED_ShowString2(64, 4, 3, 0, "OLED");
OLED_Refresh_Page1();
while(!User_OLED.RefreshOK_Flag);//等待刷新完成
HAL_Delay(1000);
OLED_Color_Turn(1);
OLED_Disp_Turn(0);
OLED_ClearOrSetAll(0);
}用户测试代码，
uint32_t num;
char buf[20] = {0};
void user_test(void)
{
static uint32_t last_time = 0;
if(HAL_GetTick() - last_time < 50) return ;
last_time = HAL_GetTick();
num++;
if(User_OLED.RefreshOK_Flag == 1)
{
User_OLED.RefreshOK_Flag = 0;
sprintf((char *)buf, "num:%d", num);
// OLED_ShowString1(0, 0, 8,0,"OLED ");
// OLED_ShowString1(0, 20,12,0,"OLEDOLED ");
// OLED_ShowString1(0, 40,16,1,"Hello_world");
OLED_DrawCircle(95, 31, 24);
OLED_ShowString2(0, 0, 1, 1, buf);
OLED_ShowString2(0, 2, 1, 1, "OLEDtest");
OLED_ShowString2(0, 4, 1, 1, buf);
OLED_ShowString2(0, 6, 1, 1, buf);
OLED_Refresh_Page1();
}
}在main函数中调用，
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_DMA_Init();
MX_I2C1_Init();
/* USER CODE BEGIN 2 */
suer_init();
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
user_test();
}
/* USER CODE END 3 */
}最后，中断回调函数代码 ，
/***********************************************************
*@fuction :HAL_I2C_MemTxCpltCallback
*@brief :硬件IIC发送完成回调函数
*@param :--
*@return :void
*@author :--
*@date :2025
***********************************************************/
void HAL_I2C_MemTxCpltCallback(I2C_HandleTypeDef *hi2c)
{
OLED_Refresh_Page2_8();
}4、效果展示
总结
本文通过硬件IIC+DMA方案，显著提升了OLED驱动的效率与系统实时性。关键步骤包括：CubeMX快速模式配置、DMA通道绑定、代码中的批量传输优化。该方案尤其适用于需要高频刷新显示或复杂后台任务（如电机控制、传感器采集）的场景。
有误之处望指正！
