静态NAT,动态NAT，NAPT
静态地址转换：只能实现一个私网与一个公网的一对一映射
动态地址转换：创建地址池，当私网地址需要访问外网时，从地址池中取出一个地址与私有地址一对一临时映射。
NAPT：NAT是一对一的转换，NAPT是多对一的转换，即多个内部地址使用同一地址不同端口转换成外部地址进行通信的。
接下来通过实验现象观察：
实验一：静态NAT地址转换

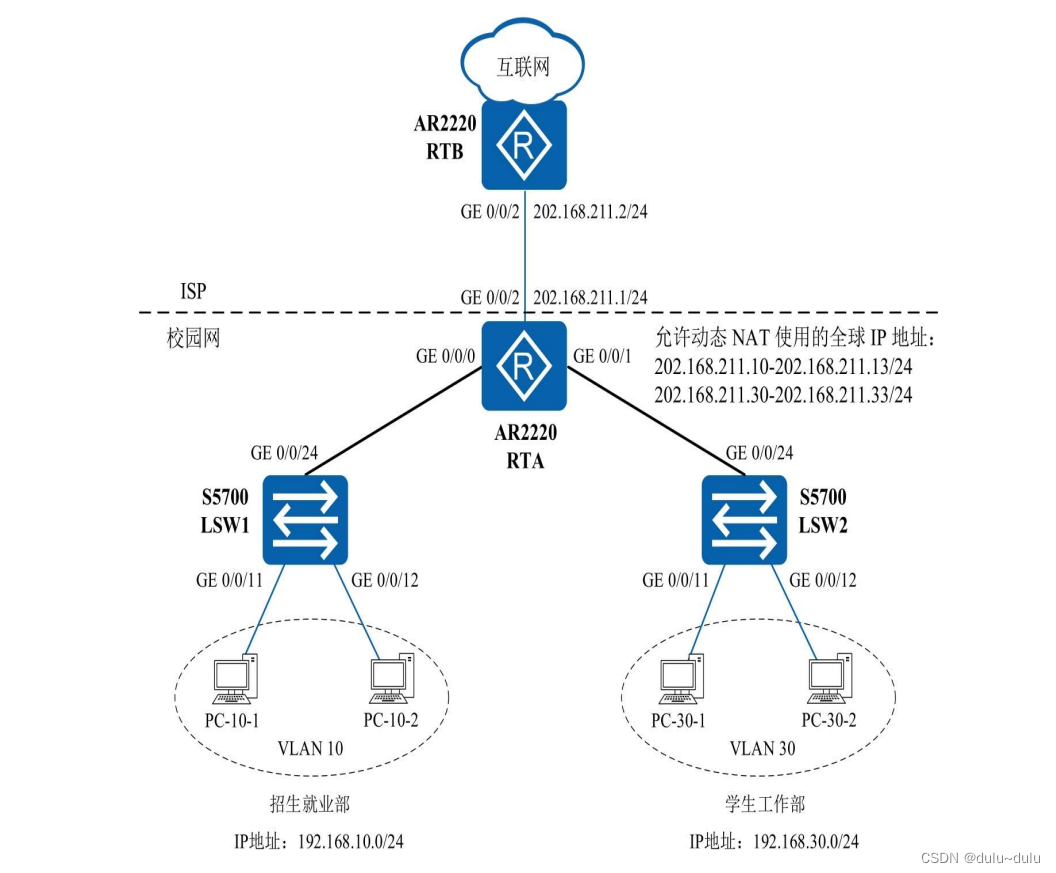

案例如下：

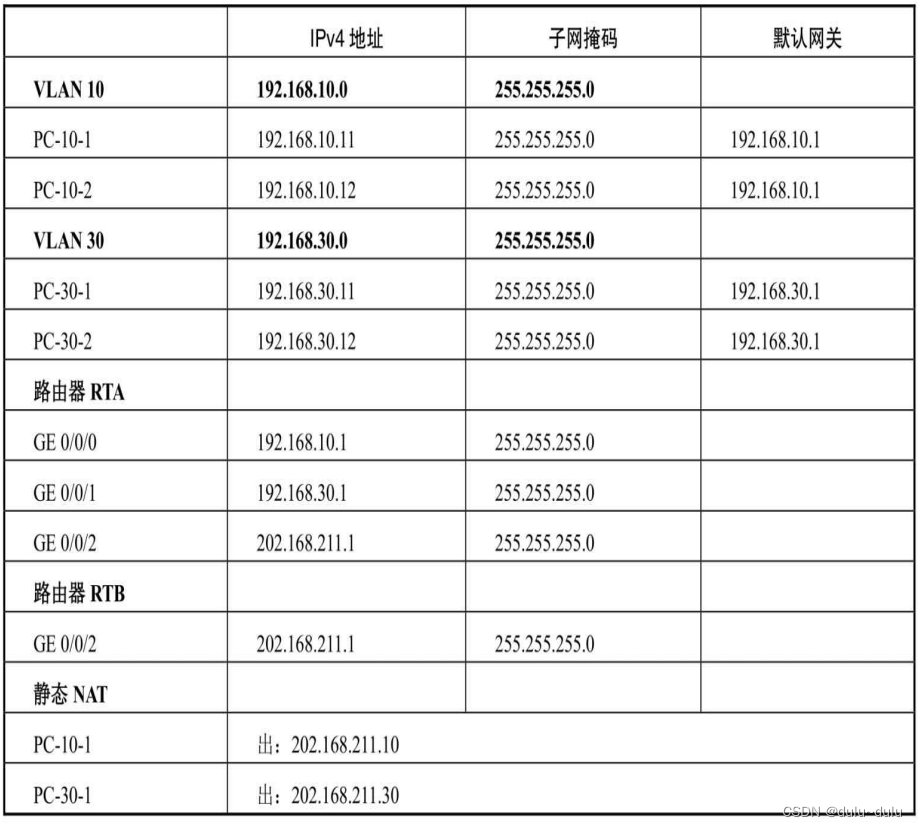

设备配置如下：
配置交换机LSW1
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW1
[LSW1]vlan batch 10
Sep 25 2023 19:47:17-08:00 LSW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.2
5.191.3.1 configurations have been changed. The current change number is 4, the
change loop count is 0, and the maximum number of records is 4095.
Info: This operation may take a few seconds. Please wait for a moment...done.
[LSW1]
Sep 25 2023 19:47:27-08:00 LSW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.2
5.191.3.1 configurations have been changed. The current change number is 5, the
change loop count is 0, and the maximum number of records is 4095.
[LSW1]undo info-center enable
Info: Information center is disabled.
[LSW1]port-group pgv10
[LSW1-port-group-pgv10]group-member g0/0/11
[LSW1-port-group-pgv10]group-member g0/0/12
[LSW1-port-group-pgv10]group-member g0/0/24
[LSW1-port-group-pgv10]port link-type access
[LSW1-GigabitEthernet0/0/11]port link-type access
[LSW1-GigabitEthernet0/0/12]port link-type access
[LSW1-GigabitEthernet0/0/24]port link-type access
[LSW1-port-group-pgv10]port default vlan 10
[LSW1-GigabitEthernet0/0/11]port default vlan 10
[LSW1-GigabitEthernet0/0/12]port default vlan 10
[LSW1-GigabitEthernet0/0/24]port default vlan 10
[LSW1-port-group-pgv10]qu
[LSW1]display vlan
The total number of vlans is : 2
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------
VID Type Ports
--------------------------------------------------------------------------------
1 common UT:GE0/0/1(D) GE0/0/2(D) GE0/0/3(D) GE0/0/4(D)
GE0/0/5(D) GE0/0/6(D) GE0/0/7(D) GE0/0/8(D)
GE0/0/9(D) GE0/0/10(D) GE0/0/13(D) GE0/0/14(D)
GE0/0/15(D) GE0/0/16(D) GE0/0/17(D) GE0/0/18(D)
GE0/0/19(D) GE0/0/20(D) GE0/0/21(D) GE0/0/22(D)
GE0/0/23(D)
10 common UT:GE0/0/11(U) GE0/0/12(U) GE0/0/24(U)
VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------
1 enable default enable disable VLAN 0001
10 enable default enable disable VLAN 0010
[LSW1]配置交换机LSW2
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW2
[LSW2]VLAN batch 10
Info: This operation may take a few seconds. Please wait for a moment...done.
[LSW2]undo info-center enable
Info: Information center is disabled.
[LSW2]port-group pgv10
[LSW2-port-group-pgv10]group-member g0/0/11
[LSW2-port-group-pgv10]group-member g0/0/12
[LSW2-port-group-pgv10]group-member g0/0/24
[LSW2-port-group-pgv10]port link-type access
[LSW2-GigabitEthernet0/0/11]port link-type access
[LSW2-GigabitEthernet0/0/12]port link-type access
[LSW2-GigabitEthernet0/0/24]port link-type access
[LSW2-port-group-pgv10]port default vlan 10
[LSW2-GigabitEthernet0/0/11]port default vlan 10
[LSW2-GigabitEthernet0/0/12]port default vlan 10
[LSW2-GigabitEthernet0/0/24]port default vlan 10
[LSW2-port-group-pgv10]qu
[LSW2]display vlan
The total number of vlans is : 2
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------
VID Type Ports
--------------------------------------------------------------------------------
1 common UT:GE0/0/1(D) GE0/0/2(D) GE0/0/3(D) GE0/0/4(D)
GE0/0/5(D) GE0/0/6(D) GE0/0/7(D) GE0/0/8(D)
GE0/0/9(D) GE0/0/10(D) GE0/0/13(D) GE0/0/14(D)
GE0/0/15(D) GE0/0/16(D) GE0/0/17(D) GE0/0/18(D)
GE0/0/19(D) GE0/0/20(D) GE0/0/21(D) GE0/0/22(D)
GE0/0/23(D)
10 common UT:GE0/0/11(U) GE0/0/12(U) GE0/0/24(U)
VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------
1 enable default enable disable VLAN 0001
10 enable default enable disable VLAN 0010 配置路由器IP地址和静态路由
RTA
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname RTA
[RTA]int g0/0/0
[RTA-GigabitEthernet0/0/0]ip address 192.168.10.1 24
Sep 25 2023 19:53:27-08:00 RTA %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[RTA-GigabitEthernet0/0/0]qu
[RTA]int g0/0/1
[RTA-GigabitEthernet0/0/1]ip address 192.168.30.1 24
Sep 25 2023 19:53:48-08:00 RTA %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[RTA-GigabitEthernet0/0/1]qu
[RTA]int g0/0/2
[RTA-GigabitEthernet0/0/2]ip address 202.168.211.1 24
Sep 25 2023 19:54:09-08:00 RTA %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP
on the interface GigabitEthernet0/0/2 has entered the UP state.
[RTA-GigabitEthernet0/0/2]qu
#配置静态默认路由，允许访问外部网络
[RTA]ip route-static 0.0.0.0 0 202.168.211.2
[RTA]display IP routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 14 Routes : 14
Destination/Mask Proto Pre Cost Flags NextHop Interface
0.0.0.0/0 Static 60 0 RD 202.168.211.2 GigabitEthernet
0/0/2
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
192.168.10.0/24 Direct 0 0 D 192.168.10.1 GigabitEthernet
0/0/0
192.168.10.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
192.168.10.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
192.168.30.0/24 Direct 0 0 D 192.168.30.1 GigabitEthernet
0/0/1
192.168.30.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
192.168.30.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
202.168.211.0/24 Direct 0 0 D 202.168.211.1 GigabitEthernet
0/0/2
202.168.211.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/2
202.168.211.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/2
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0RTB
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname RTB
[RTB]int g0/0/2
[RTB-GigabitEthernet0/0/2]ip address 202.168.211.2 24
[RTB-GigabitEthernet0/0/2]
Sep 25 2023 19:57:18-08:00 RTB %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/2 has entered the UP state.
[RTB-GigabitEthernet0/0/2]qu
[RTB]dis IP routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 7 Routes : 7
Destination/Mask Proto Pre Cost Flags NextHop Interface
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
202.168.211.0/24 Direct 0 0 D 202.168.211.2 GigabitEthernet
0/0/2
202.168.211.2/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/2
202.168.211.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/2
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
[RTB]PC-10-1与PC-10-2，PC-30-2以及RTA的通信
PC>ping 192.168.10.12
Ping 192.168.10.12: 32 data bytes, Press Ctrl_C to break
From 192.168.10.12: bytes=32 seq=1 ttl=128 time=47 ms
From 192.168.10.12: bytes=32 seq=2 ttl=128 time=16 ms
From 192.168.10.12: bytes=32 seq=3 ttl=128 time=31 ms
From 192.168.10.12: bytes=32 seq=4 ttl=128 time=31 ms
From 192.168.10.12: bytes=32 seq=5 ttl=128 time=31 ms
--- 192.168.10.12 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 16/31/47 ms
PC>ping 192.168.30.12
Ping 192.168.30.12: 32 data bytes, Press Ctrl_C to break
Request timeout!
From 192.168.30.12: bytes=32 seq=2 ttl=127 time=46 ms
From 192.168.30.12: bytes=32 seq=3 ttl=127 time=79 ms
From 192.168.30.12: bytes=32 seq=4 ttl=127 time=46 ms
From 192.168.30.12: bytes=32 seq=5 ttl=127 time=79 ms
--- 192.168.30.12 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 0/62/79 ms
PC>ping 202.168.211.1
Ping 202.168.211.1: 32 data bytes, Press Ctrl_C to break
From 202.168.211.1: bytes=32 seq=1 ttl=255 time=31 ms
From 202.168.211.1: bytes=32 seq=2 ttl=255 time=47 ms
From 202.168.211.1: bytes=32 seq=3 ttl=255 time=47 ms
From 202.168.211.1: bytes=32 seq=4 ttl=255 time=31 ms
From 202.168.211.1: bytes=32 seq=5 ttl=255 time=32 ms
--- 202.168.211.1 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 31/37/47 msPC-30-1与PC-10-2,PC-30-2和路由器RTA通信
PC>ping 192.168.10.12
Ping 192.168.10.12: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
From 192.168.10.12: bytes=32 seq=3 ttl=127 time=62 ms
From 192.168.10.12: bytes=32 seq=4 ttl=127 time=63 ms
From 192.168.10.12: bytes=32 seq=5 ttl=127 time=63 ms
--- 192.168.10.12 ping statistics ---
5 packet(s) transmitted
3 packet(s) received
40.00% packet loss
round-trip min/avg/max = 0/62/63 ms
PC>ping 192.168.30.12
Ping 192.168.30.12: 32 data bytes, Press Ctrl_C to break
From 192.168.30.12: bytes=32 seq=1 ttl=128 time=32 ms
From 192.168.30.12: bytes=32 seq=2 ttl=128 time=31 ms
From 192.168.30.12: bytes=32 seq=3 ttl=128 time=47 ms
From 192.168.30.12: bytes=32 seq=4 ttl=128 time=31 ms
From 192.168.30.12: bytes=32 seq=5 ttl=128 time=31 ms
--- 192.168.30.12 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 31/34/47 ms
PC>ping 202.168.211.1
Ping 202.168.211.1: 32 data bytes, Press Ctrl_C to break
From 202.168.211.1: bytes=32 seq=1 ttl=255 time=63 ms
From 202.168.211.1: bytes=32 seq=2 ttl=255 time=47 ms
From 202.168.211.1: bytes=32 seq=3 ttl=255 time=31 ms
From 202.168.211.1: bytes=32 seq=4 ttl=255 time=31 ms
From 202.168.211.1: bytes=32 seq=5 ttl=255 time=31 ms
--- 202.168.211.1 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 31/40/63 ms因为RTB与PC主机不在同一个网段，所以需要用到nat
对RTA配置静态NAT
[RTA]int g0/0/2
#将PC-10-1的地址映射到202.168.211.10
[RTA-GigabitEthernet0/0/2]nat static global 202.168.211.10 inside 192.168.10.11
#将PC-30-1的地址映射到202.168.211.30
[RTA-GigabitEthernet0/0/2]nat static global 202.168.211.30 inside 192.168.30.11
[RTA-GigabitEthernet0/0/2]qu
[RTA]display nat static
Static Nat Information:
Interface : GigabitEthernet0/0/2
Global IP/Port : 202.168.211.10/----
Inside IP/Port : 192.168.10.11/----
Protocol : ----
VPN instance-name : ----
Acl number : ----
Netmask : 255.255.255.255
Description : ----
Global IP/Port : 202.168.211.30/----
Inside IP/Port : 192.168.30.11/----
Protocol : ----
VPN instance-name : ----
Acl number : ----
Netmask : 255.255.255.255
Description : ----
Total : 2
[RTA]display nat session all verbose
NAT Session Table Information:
Total : 0用各主机 ping RTB,PC-10-2与PC-30-2不能ping通，因为没有做地址映射，所以
静态NAT需要为每个需要映射的内部主机分配一个公有IP地址，因此会占用较多的IP地址资源。
#PC-10-1
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=31 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=31 ms
From 202.168.211.2: bytes=32 seq=5 ttl=254 time=47 ms
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 31/40/47 ms
#PC-10-2
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
Request timeout!
Request timeout!
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
#PC-30-1
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=63 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=15 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=31 ms
From 202.168.211.2: bytes=32 seq=5 ttl=254 time=31 ms
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 15/37/63 ms
#PC-30-2
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
Request timeout!
Request timeout!
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
实验二：动态NAT配置
案例如下：
对以上实验进行如下配置，即可继续进行实验：
<RTA>sys
Enter system view, return user view with Ctrl+Z.
[RTA]int g0/0/2
[RTA-GigabitEthernet0/0/2]undo nat static global 202.168.211.10 inside 192.168.1
0.11
[RTA-GigabitEthernet0/0/2]undo nat static global 202.168.211.30 inside 192.1683
0.11
[RTA-GigabitEthernet0/0/2]路由器RTA配置动态NAT
1.配置地址池
2.配置ACL
3.配置出方向动态地址转换
#1.配置地址池
# 地址池是一些连续的 IP 地址集合。地址池的起始地址必须小于等于结束地址，且起始地址到结束地址之间的地址个数不能大于255。
#配置一个从202.168.211.10到202.168.211.13的地址池，地址池索引号为1。
[RTA]nat address-group 1 202.168.211.10 202.168.211.13
#配置一个从202.168.211.30到202.168.211.33的地址池，地址池索引号为1。
[RTA]nat address-group 2 202.168.211.30 202.168.211.33
#查看地址池
[RTA]dis nat address-group
NAT Address-Group Information:
--------------------------------------
Index Start-address End-address
--------------------------------------
1 202.168.211.10 202.168.211.13
2 202.168.211.30 202.168.211.33
--------------------------------------
Total : 2
#2.配置ACL(AccessControl List，访问控制列表)。
# 允许特定地址进行NAT 地址转换。
#编号为2000~2999的ACL为基本ACL(BasicAccess-List
# 配置ACL 2010，仅允许对192.168.10.0/24 网段中的源地址进行地址转换
[RTA]acl 2010
[RTA-acl-basic-2010]rule permit source 192.168.10.0 0.0.0.255
[RTA-acl-basic-2010]qu
# 配置ACL 2030，仅允许对192.168.30.0/24 网段中的源地址进行地址转换
[RTA]acl 2030
[RTA-acl-basic-2030]rule permit source 192.168.30.0 0.0.0.255
[RTA-acl-basic-2030]qu
[RTA]dis acl all
Total quantity of nonempty ACL number is 2
Basic ACL 2010, 1 rule
Acl's step is 5
rule 5 permit source 192.168.10.0 0.0.0.255
Basic ACL 2030, 1 rule
Acl's step is 5
rule 5 permit source 192.168.30.0 0.0.0.255
[RTA]dis acl 2010
Basic ACL 2010, 1 rule
Acl's step is 5
rule 5 permit source 192.168.10.0 0.0.0.255
[RTA]dis acl 2030
Basic ACL 2030, 1 rule
Acl's step is 5
rule 5 permit source 192.168.30.0 0.0.0.255
#3.配置出方向动态地址转换
#在端口 GE 0/0/2上配置出方向动态地址转换
[RTA]int g0/0/2
# nat outbound命令用来将一个访问控制列表ACL和一个地址池关联起来，表示ACL 中规定的地址可以使用地址池进行地址转换
# no-pat 表示使用一对一地址转换，只转换地址而不转换端口。
[RTA-GigabitEthernet0/0/2]nat outbound 2010 address-group 1 no-pat
[RTA-GigabitEthernet0/0/2]nat outbound 2030 address-group 2 no-pat
[RTA-GigabitEthernet0/0/2]qu
[RTA]display nat outbound
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2010 1 no-pat
GigabitEthernet0/0/2 2030 2 no-pat
--------------------------------------------------------------------------
Total : 2
[RTA]dis nat outbound acl 2010
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2010 1 no-pat
--------------------------------------------------------------------------
Total : 1
#gigabitethernet要全写
[RTA]dis nat outbound int gigabitethernet 0/0/2
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2010 1 no-pat
GigabitEthernet0/0/2 2030 2 no-pat
--------------------------------------------------------------------------
Total : 2
#查看NAT地址转换表所有表项的详细信息
[RTA]display nat session all verbose
NAT Session Table Information:
Total : 0
现在各PC主机都能ping通RTB，因为192.168.10.0/24网段与192.168.30.0/24网段都进行了地址映射
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=63 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=62 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=63 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=62 ms
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 62/62/63 ms
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=31 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=31 ms
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 31/39/47 ms
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=47 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=78 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=63 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=78 ms
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 47/66/78 ms
PC>ping 202.168.211.2
Ping 202.168.211.2: 32 data bytes, Press Ctrl_C to break
From 202.168.211.2: bytes=32 seq=1 ttl=254 time=62 ms
From 202.168.211.2: bytes=32 seq=2 ttl=254 time=32 ms
From 202.168.211.2: bytes=32 seq=3 ttl=254 time=31 ms
From 202.168.211.2: bytes=32 seq=4 ttl=254 time=31 ms
Request timeout!
--- 202.168.211.2 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 31/39/62 ms
查看NAT地址转换表，可以看到，内网地址映射到外网，202.168.211.1与202.168.211.2直连，所以可以与RTB通信
[RTA]display nat session all
NAT Session Table Information:
Protocol : ICMP(1)
SrcAddr Vpn : 192.168.10.11
DestAddr Vpn : 202.168.211.2
Type Code IcmpId : 0 8 33494
NAT-Info
New SrcAddr : 202.168.211.11
New DestAddr : ----
New IcmpId : ----
Protocol : ICMP(1)
SrcAddr Vpn : 192.168.10.11
DestAddr Vpn : 202.168.211.2
Type Code IcmpId : 0 8 33496
NAT-Info
New SrcAddr : 202.168.211.13
New DestAddr : ----
New IcmpId : ----
Protocol : ICMP(1)
SrcAddr Vpn : 192.168.10.11
DestAddr Vpn : 202.168.211.2

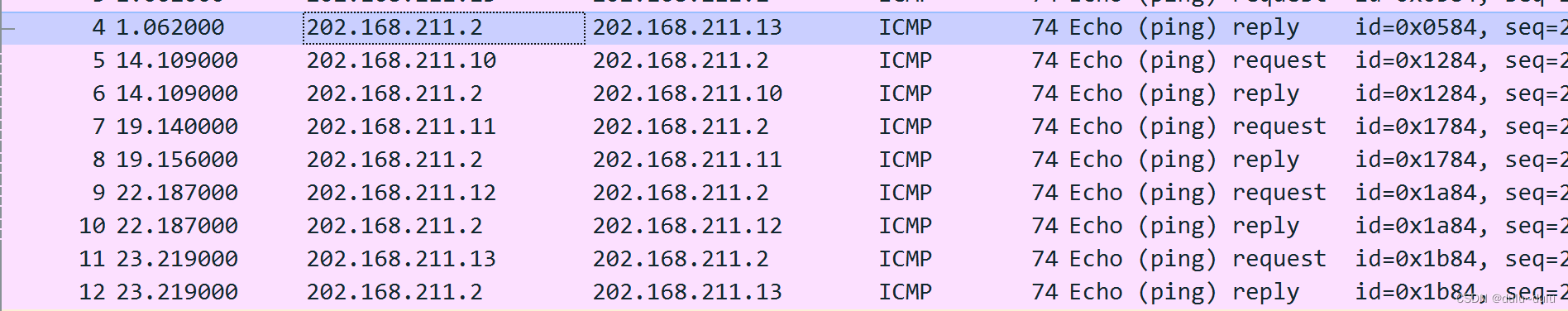

Type Code IcmpId : 0 8 33495用PC-10-1 ping RTB路由器， 通过对RTB的g0/0/2端口抓包可以看出，内网地址映射为地址池的地址，与RTB进行通信
这里也可以发现，一台PC占用了地址池的所有地址，即对地址池的所有地址轮流使用，这样两台PC就不能做到同时ping，但是现实里是不会这样的
两台PC同时ping的效果
实验三：NAPT配置
动态NAT与NAPT的区别：
动态NAT 使用公有地址池，并以先到先得的原则分配这些地址。 当具有私有IP地址的主机请求访问互联网时，动态NAT会从地址池中选择一个未被其他主机占用的IP地址进行一对一的转换。 当数据会话结束后，路由器会释放掉公有IP地址回到地址池，以提供其他内部私有IP地址的转换。 如果同一时刻地址池中地址被NAT转换完毕，则其他私有地址不能够被NAT转换。
NAPT代表网络地址端口转换。 它是一种NAT（网络地址转换），允许专用网络中的多个设备共享单个公共IP地址，NAPT 通过使用 IP 地址和端口号的组合来执行转换。
按照以上实验配置交换机和路由器，对RTA配置动态NAT
1.配置地址池
2.配置ACL，允许特定地址进行NAT地址转换
3.配置出方向动态地址转换
# 1.配置地址池
# 配置一个从202.168.211.10到202.168.211.10 的地址池，地址池索引号为 1。
[RTA]nat address-group 1 202.168.211.10 202.168.211.10
#查看地址池
[RTA]dis nat address-group
NAT Address-Group Information:
--------------------------------------
Index Start-address End-address
--------------------------------------
1 202.168.211.10 202.168.211.10
--------------------------------------
Total : 1
# 2.配置 ACL，允许特定地址进行 NAT 地址转换。
# 配置ACL 2100，仅允许对192.168.0.0/19网段中的源地址进行地址转换
[RTA]acl 2100
[RTA-acl-basic-2100]rule permit source 192.168.0.0 0.0.31.255
[RTA-acl-basic-2100]qu
[RTA]dis acl all
Total quantity of nonempty ACL number is 1
Basic ACL 2100, 1 rule
Acl's step is 5
rule 5 permit source 192.168.0.0 0.0.31.255
# 3.配置出方向动态地址转换
# 在端口 GE 0/0/2 上配置出方向动态地址转换，允许转换地址和端口
[RTA]dis acl 2010
[RTA]int g0/0/2
[RTA-GigabitEthernet0/0/2]nat outbound 2100 address-group 1
[RTA-GigabitEthernet0/0/2]qu
[RTA]display nat outbound
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2100 1 pat
--------------------------------------------------------------------------
Total : 1
[RTA]display nat outbound acl 2100
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2100 1 pat
--------------------------------------------------------------------------
Total : 1
[RTA]display nat outbound int gigabitethernet 0/0/2
NAT Outbound Information:
--------------------------------------------------------------------------
Interface Acl Address-group/IP/Interface Type
--------------------------------------------------------------------------
GigabitEthernet0/0/2 2100 1 pat
--------------------------------------------------------------------------
Total : 1
[RTA]display nat session all verbose
NAT Session Table Information:
Total : 0
[RTA]可以看到NAT的动态转换和NAPT配置的区别主要在于
#动态地址转换
#一对一
# no-pat 表示使用一对一地址转换，只转换地址而不转换端口。
[RTA-GigabitEthernet0/0/2]nat outbound 2010 address-group 1 no-pat
[RTA-GigabitEthernet0/0/2]nat outbound 2030 address-group 2 no-pat
#NAPT
#多对一
#多个内部地址使用同一地址(202.168.211.10)不同端口转换成外部地址进行通信的。
[RTA]int g0/0/2
[RTA-GigabitEthernet0/0/2]nat outbound 2100 address-group 1如有描述错误，请大佬们不吝赐教，感谢佬们！！💖💖💖
